Here you will find all available parts and drawings of the 'Makita GA029G'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

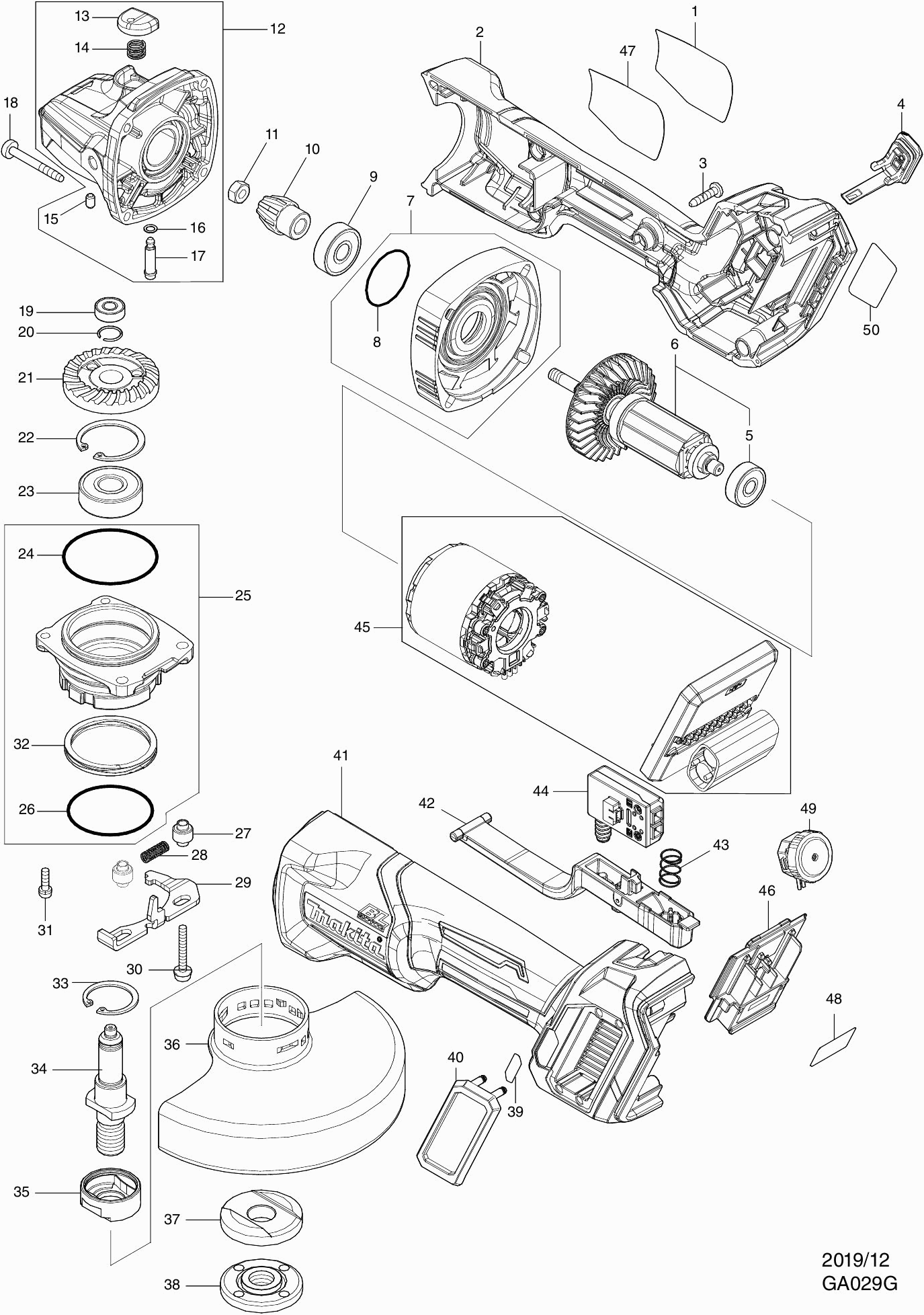

Technical drawing of model Makita GA029G
Spare parts list of model Makita GA029G
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 001 | 8008U5-3 | |||
| Motor Housing GA029G | ||||
| 002 | 183P78-5 | 22.00 | 26.62 | |
| Rubber pen 6 | ||||
| 002C10 | 263005-3 | 1.00 | 1.21 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 003 | 265B67-9 | 1.00 | 1.21 | |
| COVER DSP601/DHR400 A | ||||
| 004 | 140G30-2 | 1.74 | 2.11 | |
| O-ring 16 | ||||
| 004C10 | 213218-6 | 1.20 | 1.45 | |
| Hood label DLS211 | ||||
| 004C20 | 818H48-4 | 2.40 | 2.90 | |
| Ball bearing 627ddw | ||||
| 005 | 210045-2 | 3.60 | 4.36 | |
| Ball bearing 627ddw | ||||
| 005A | 210045-2 | 3.60 | 4.36 | |
| Ball bearing 627ddw | ||||
| 005B | 210045-2 | 3.60 | 4.36 | |
| Armature GA-40V series | ||||
| 006 | 519595-7 | 30.80 | 37.27 | |
| Armature GA-40V series | ||||
| 006A | 519595-7 | 30.80 | 37.27 | |
| No information available, not orderable | ||||
| 006B | 510614-2 | |||
| Gear Housing Cap GA-40V series | ||||
| 007 | 136190-4 | 7.20 | 8.71 | |
| O-ring 26 | ||||
| 008 | 213407-3 | 1.20 | 1.45 | |
| Ball bearing 629llb | ||||
| 009 | 210042-8 | 2.40 | 2.90 | |
| Gear 10 GA-40V series | ||||
| 010 | 226976-5 | 6.00 | 7.26 | |
| Nut M6 | ||||
| 011 | 252186-8 | 1.00 | 1.21 | |
| Gear housing GA-40V series | ||||
| 012 | 136198-8 | 16.50 | 19.96 | |
| Cover Cap GA005G | ||||
| 013 | 412234-7 | 1.00 | 1.21 | |
| Compression Spring 8 | ||||
| 014 | 233376-2 | 1.00 | 1.21 | |
| Rubber Pin 4 | ||||
| 015 | 263002-9 | 1.00 | 1.21 | |
| O-ring 4 | ||||
| 016 | 213032-0 | 1.00 | 1.21 | |
| Collar Pin 4mm | ||||
| 017 | 256546-6 | 1.00 | 1.21 | |
| Self-tapping screw 4x40 | ||||
| 018 | 266048-4 | 1.00 | 1.21 | |
| Ball bearing 696ZZ A | ||||
| 019 | 210026-6 | 2.40 | 2.90 | |
| Washer 11 Ga4530 | ||||
| 020 | 233950-6 | 1.00 | 1.21 | |
| Gear 37 DGA505 A | ||||
| 021 | 226862-0 | 6.00 | 7.26 | |
| Lock washer r-32 | ||||
| 022 | 962151-6 | 1.00 | 1.21 | |
| Ball Bearing 6201dw1 | ||||
| 023 | 211129-9 | 8.40 | 10.16 | |
| O-ring 45 | ||||
| 024 | 213622-9 | 1.00 | 1.21 | |
| Bearing housing GA012G | ||||
| 025 | 136262-5 | 11.00 | 13.31 | |
| O-ring 36 | ||||
| 026 | 213510-0 | 1.20 | 1.45 | |
| Sleeve 4 | ||||
| 027 | 327322-6 | 1.20 | 1.45 | |
| Compression Spring 4 | ||||
| 028 | 232490-1 | 1.00 | 1.21 | |
| Lever B GA004G | ||||
| 029 | 347641-4 | 3.60 | 4.36 | |
| Crosshead screw 4X30 | ||||
| 030 | 911159-7 | 1.00 | 1.21 | |
| Screw 4x20 | ||||
| 031 | 911138-5 | 1.00 | 1.21 | |
| Washer 41mm GA5050 | ||||
| 032 | 232542-8 | 3.60 | 4.36 | |
| Lock ring R-26 A | ||||
| 033 | 962105-3 | 1.00 | 1.21 | |
| Spindle Ass'y | ||||
| 034 | 326672-6 | 9.60 | 11.62 | |
| Guide ring holder | ||||
| 035 | 310514-4 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 036 | 347480-2 | |||
| Inner flange | ||||
| 037 | 224447-6 | 4.90 | 5.93 | |
| SLUITMOER HAAKSE SLIJPER | ||||
| 038 | 224554-5 | 3.00 | 3.63 | |
| Label XGT logo | ||||
| 039 | 8005T5-8 | 2.40 | 2.90 | |
| Dust Cap GA023G | ||||
| 040 | 422610-7 | 1.20 | 1.45 | |
| Motor Housing GA029G | ||||
| 041 | 183P78-5 | 22.00 | 26.62 | |
| Rubber pen 6 | ||||
| 041C10 | 263005-3 | 1.00 | 1.21 | |
| Switch handle GA012G | ||||
| 042 | 140T33-4 | 4.80 | 5.81 | |
| Pressure spring 9mm GA013G | ||||
| 043 | 233263-5 | 1.00 | 1.21 | |
| Switch C3Xa-1Pspm Dsp600 | ||||
| 044 | 651083-9 | 19.80 | 23.96 | |
| Field | ||||
| 045 | 629A00-3 | 169.40 | 204.97 | |
| Control unit GA-40V series | ||||
| 046 | 632P65-6 | 8.40 | 10.16 | |
| Nameplate GA029G | ||||
| 047 | 857H80-3 | 3.60 | 4.36 | |
| Serial number label GA029G | ||||
| 048 | 857H86-1 | 2.40 | 2.90 | |
| Circuit Dial GA023G | ||||
| 049 | 620D30-5 | 13.20 | 15.97 | |
| Label indicator GA023G | ||||
| 050 | 8015J1-9 | 2.40 | 2.90 | |
