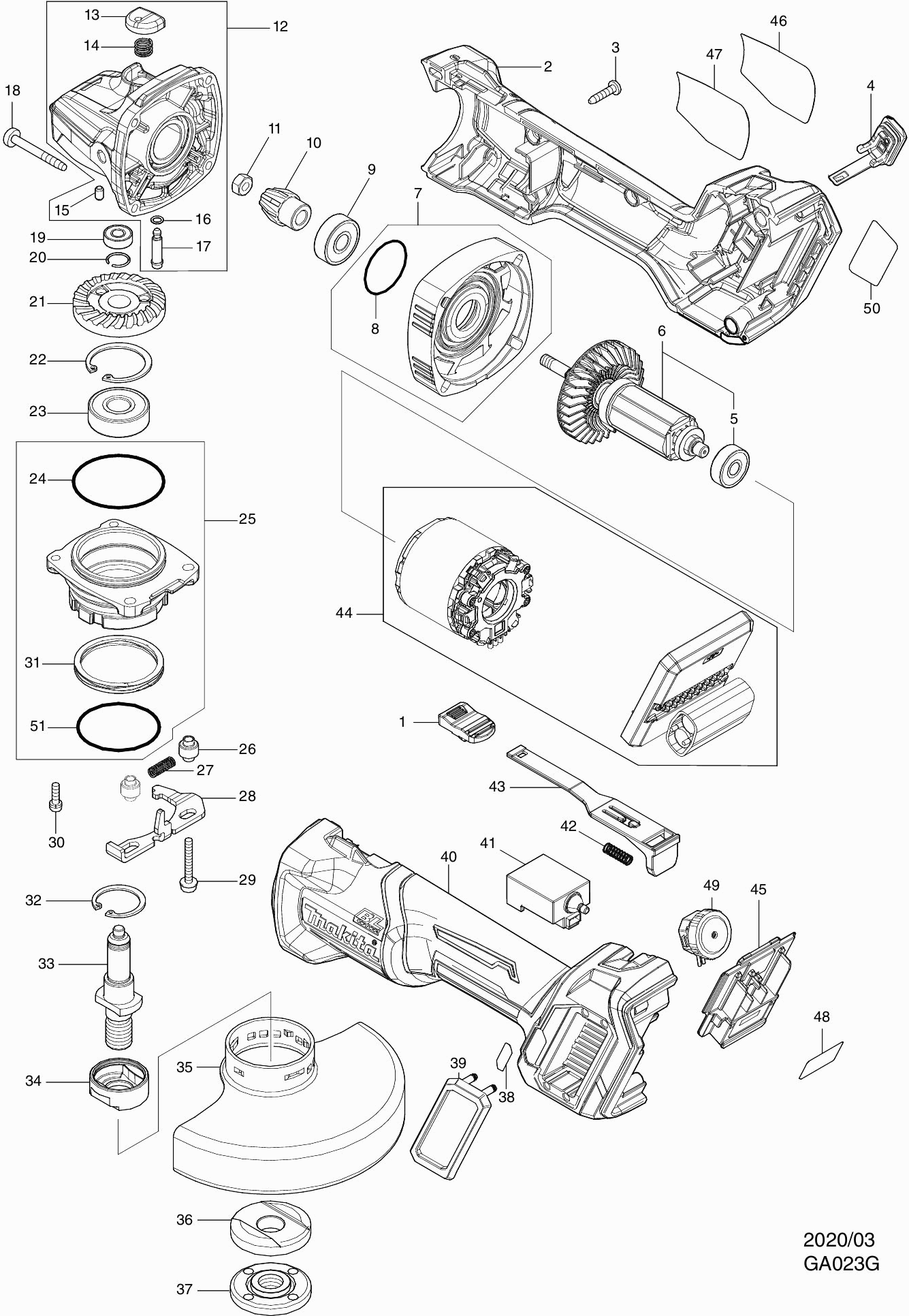

Technical drawing of model Makita GA023G
Spare parts list of model Makita GA023G
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Rotary knob ABB OHYS2AJ | ||||
| 001 | 455447-7 | 1.00 | 1.21 | |
| Motor Housing GA023G | ||||
| 002 | 183P76-9 | 17.60 | 21.30 | |
| Rubber pen 6 | ||||
| 002C10 | 263005-3 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 003 | 265B67-9 | 1.00 | 1.21 | |
| COVER DSP601/DHR400 A | ||||
| 004 | 140G30-2 | 1.74 | 2.11 | |
| O-ring 16 | ||||
| 004C10 | 213218-6 | 1.20 | 1.45 | |
| Hood label DLS211 | ||||
| 004C20 | 818H48-4 | 2.40 | 2.90 | |
| Ball bearing 627ddw | ||||
| 005 | 210045-2 | 3.60 | 4.36 | |
| Ball bearing 627ddw | ||||
| 005A | 210045-2 | 3.60 | 4.36 | |
| Ball bearing 627ddw | ||||
| 005B | 210045-2 | 3.60 | 4.36 | |
| Armature GA-40V series | ||||
| 006 | 519595-7 | 30.80 | 37.27 | |
| Armature GA-40V series | ||||
| 006A | 519595-7 | 30.80 | 37.27 | |
| No information available, not orderable | ||||
| 006B | 510614-2 | |||
| Gear Housing Cap GA-40V series | ||||
| 007 | 136190-4 | 7.20 | 8.71 | |
| O-ring 26 | ||||
| 008 | 213407-3 | 1.20 | 1.45 | |
| Ball bearing 629llb | ||||
| 009 | 210042-8 | 2.40 | 2.90 | |
| Gear 10 GA-40V series | ||||
| 010 | 226976-5 | 6.00 | 7.26 | |
| Nut M6 | ||||
| 011 | 252186-8 | 1.00 | 1.21 | |
| Gear housing GA-40V series | ||||
| 012 | 136198-8 | 16.50 | 19.96 | |
| Cover Cap GA005G | ||||
| 013 | 412234-7 | 1.00 | 1.21 | |
| Compression Spring 8 | ||||
| 014 | 233376-2 | 1.00 | 1.21 | |
| Rubber Pin 4 | ||||
| 015 | 263002-9 | 1.00 | 1.21 | |
| O-ring 4 | ||||
| 016 | 213032-0 | 1.00 | 1.21 | |
| Collar Pin 4mm | ||||
| 017 | 256546-6 | 1.00 | 1.21 | |
| Self-tapping screw 4x40 | ||||
| 018 | 266048-4 | 1.00 | 1.21 | |
| Ball bearing 696ZZ A | ||||
| 019 | 210026-6 | 2.40 | 2.90 | |
| Washer 11 Ga4530 | ||||
| 020 | 233950-6 | 1.00 | 1.21 | |
| Gear 37 DGA505 A | ||||
| 021 | 226862-0 | 6.00 | 7.26 | |
| Lock washer r-32 | ||||
| 022 | 962151-6 | 1.00 | 1.21 | |
| Ball Bearing 6201dw1 | ||||
| 023 | 211129-9 | 8.40 | 10.16 | |
| O-ring 45 | ||||
| 024 | 213622-9 | 1.00 | 1.21 | |
| Bearing housing GA012G | ||||
| 025 | 136262-5 | 11.00 | 13.31 | |
| Sleeve 4 | ||||
| 026 | 327322-6 | 1.20 | 1.45 | |
| Compression Spring 4 | ||||
| 027 | 232490-1 | 1.00 | 1.21 | |
| Lever B GA004G | ||||
| 028 | 347641-4 | 3.60 | 4.36 | |
| Crosshead screw 4X30 | ||||
| 029 | 911159-7 | 1.00 | 1.21 | |
| Screw 4x20 | ||||
| 030 | 911138-5 | 1.00 | 1.21 | |
| Washer 41mm GA5050 | ||||
| 031 | 232542-8 | 3.60 | 4.36 | |
| Lock ring R-26 A | ||||
| 032 | 962105-3 | 1.00 | 1.21 | |
| Spindle Ass'y | ||||
| 033 | 326672-6 | 9.60 | 11.62 | |
| Guide ring holder | ||||
| 034 | 310514-4 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 035 | 347480-2 | |||
| Inner flange | ||||
| 036 | 224447-6 | 4.90 | 5.93 | |
| SLUITMOER HAAKSE SLIJPER | ||||
| 037 | 224554-5 | 3.00 | 3.63 | |
| Label XGT logo | ||||
| 038 | 8005T5-8 | 2.40 | 2.90 | |
| Dust Cap GA023G | ||||
| 039 | 422610-7 | 1.20 | 1.45 | |
| Motor Housing GA023G | ||||
| 040 | 183P76-9 | 17.60 | 21.30 | |
| Rubber pen 6 | ||||
| 040C10 | 263005-3 | 1.00 | 1.21 | |
| Switch GA-40V Series | ||||
| 041 | 651445-1 | 11.00 | 13.31 | |
| Compression Spring 4 | ||||
| 042 | 233121-5 | 1.00 | 1.21 | |
| Switch lever GA-40V series | ||||
| 043 | 412233-9 | 1.00 | 1.21 | |
| Field cpl GA023G | ||||
| 044 | 629498-8 | 169.40 | 204.97 | |
| Control unit GA-40V series | ||||
| 045 | 632P65-6 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 046 | 8008U5-3 | |||
| Nameplate GA023G | ||||
| 047 | 857H22-7 | 3.60 | 4.36 | |
| Serial number label GA023G | ||||
| 048 | 857H28-5 | 2.40 | 2.90 | |
| Circuit Dial GA023G | ||||
| 049 | 620D30-5 | 13.20 | 15.97 | |
| Label indicator GA023G | ||||
| 050 | 8015J1-9 | 2.40 | 2.90 | |
| O-ring 36 | ||||
| 051 | 213510-0 | 1.20 | 1.45 | |
