Here you will find all available parts and drawings of the 'Makita GA008G'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

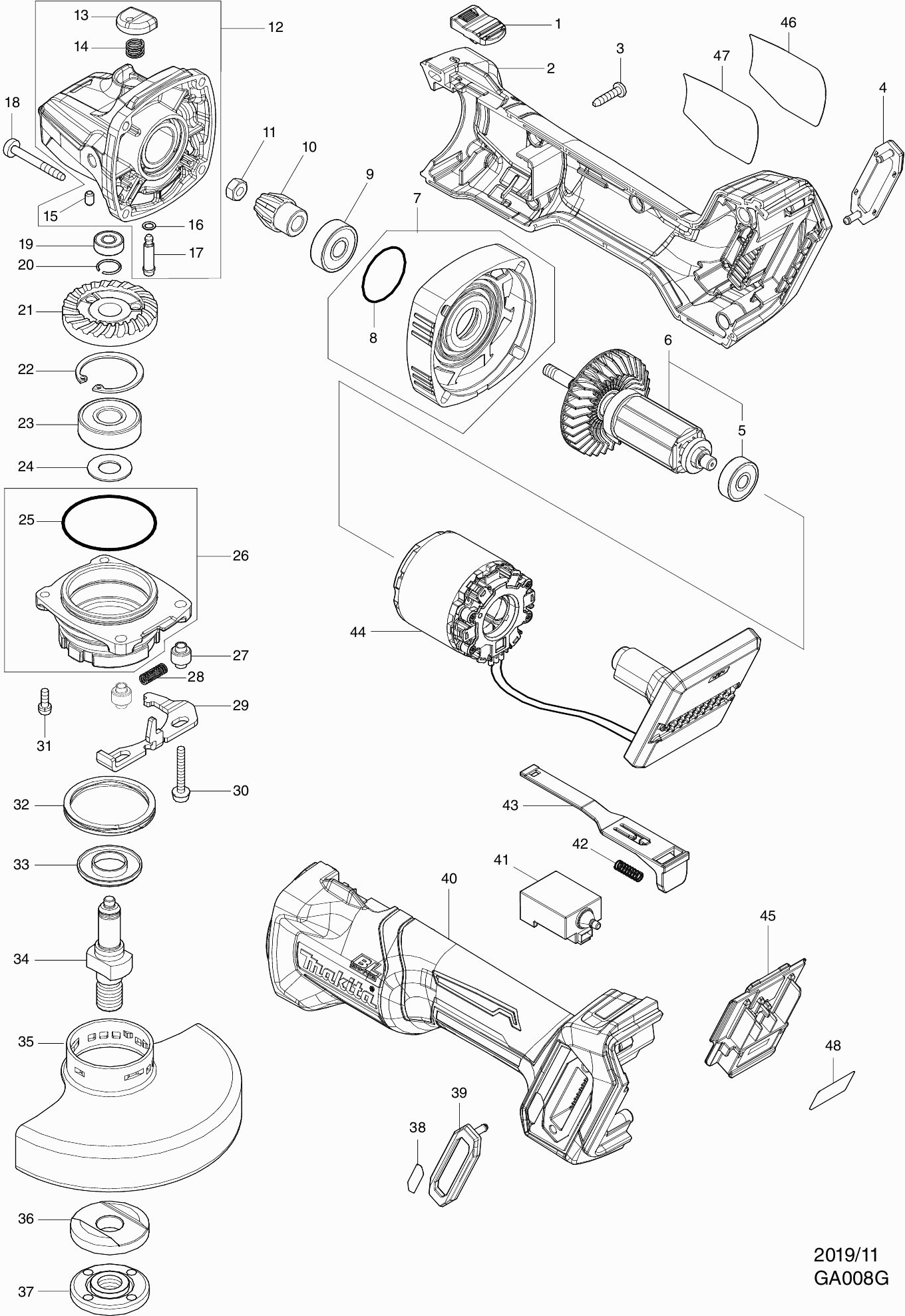

Technical drawing of model Makita GA008G
Spare parts list of model Makita GA008G
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Rotary knob ABB OHYS2AJ | ||||
| 001 | 455447-7 | 1.00 | 1.21 | |
| Motor Housing GA008G | ||||
| 002 | 183N89-8 | 11.00 | 13.31 | |
| Rubber pen 6 | ||||
| 002C10 | 263005-3 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 003 | 265B67-9 | 1.00 | 1.21 | |
| Dust Cover GA-40V Series | ||||
| 004 | 422563-0 | 2.40 | 2.90 | |
| Ball bearing 627ddw | ||||
| 005 | 210045-2 | 3.60 | 4.36 | |
| Ball bearing 627ddw | ||||
| 005A | 210045-2 | 3.60 | 4.36 | |
| Ball bearing 627ddw | ||||
| 005B | 210045-2 | 3.60 | 4.36 | |
| Armature GA-40V series | ||||
| 006 | 519595-7 | 30.80 | 37.27 | |
| Armature GA-40V series | ||||
| 006A | 519595-7 | 30.80 | 37.27 | |
| No information available, not orderable | ||||
| 006B | 510614-2 | |||
| Gear Housing Cap GA-40V series | ||||
| 007 | 136190-4 | 7.20 | 8.71 | |
| O-ring 26 | ||||
| 008 | 213407-3 | 1.20 | 1.45 | |
| Ball bearing 629llb | ||||
| 009 | 210042-8 | 2.40 | 2.90 | |
| Gear 10 GA-40V series | ||||
| 010 | 226976-5 | 6.00 | 7.26 | |
| Nut M6 | ||||
| 011 | 252186-8 | 1.00 | 1.21 | |
| Gear housing GA-40V series | ||||
| 012 | 136198-8 | 16.50 | 19.96 | |
| Cover Cap GA005G | ||||
| 013 | 412234-7 | 1.00 | 1.21 | |
| Compression Spring 8 | ||||
| 014 | 233376-2 | 1.00 | 1.21 | |
| Rubber Pin 4 | ||||
| 015 | 263002-9 | 1.00 | 1.21 | |
| O-ring 4 | ||||
| 016 | 213032-0 | 1.00 | 1.21 | |
| Collar Pin 4mm | ||||
| 017 | 256546-6 | 1.00 | 1.21 | |
| Self-tapping screw 4x40 | ||||
| 018 | 266048-4 | 1.00 | 1.21 | |
| Ball bearing 696ZZ A | ||||
| 019 | 210026-6 | 2.40 | 2.90 | |
| Washer 11 Ga4530 | ||||
| 020 | 233950-6 | 1.00 | 1.21 | |
| Gear 37 DGA505 A | ||||
| 021 | 226862-0 | 6.00 | 7.26 | |
| Lock washer r-32 | ||||
| 022 | 962151-6 | 1.00 | 1.21 | |
| Ball Bearing 6201dw1 | ||||
| 023 | 211129-9 | 8.40 | 10.16 | |
| 12mm locking ring GA-40V series | ||||
| 024 | 253464-9 | 1.00 | 1.21 | |
| O-ring 45 | ||||
| 025 | 213622-9 | 1.00 | 1.21 | |
| Bearing housing GA016G | ||||
| 026 | 136261-7 | 8.40 | 10.16 | |
| Sleeve 4 | ||||
| 027 | 327322-6 | 1.20 | 1.45 | |
| Compression Spring 4 | ||||
| 028 | 232490-1 | 1.00 | 1.21 | |
| Lever A GA008G | ||||
| 029 | 347642-2 | 2.40 | 2.90 | |
| Crosshead screw 4X30 | ||||
| 030 | 911159-7 | 1.00 | 1.21 | |
| Screw 4x16 A | ||||
| 031 | 911526-6 | 1.00 | 1.21 | |
| Washer 41mm GA5050 | ||||
| 032 | 232542-8 | 3.60 | 4.36 | |
| Labyrinth ring GA008G | ||||
| 033 | 347640-6 | 1.00 | 1.21 | |
| As GA008G | ||||
| 034 | 327484-0 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 035 | 347480-2 | |||
| BINNENFLENS HAAKSE SLIJPER EN SLEUVENZAAG | ||||
| 036 | 224415-9 | 3.00 | 3.63 | |
| SLUITMOER HAAKSE SLIJPER | ||||
| 037 | 224554-5 | 3.00 | 3.63 | |
| Label XGT logo | ||||
| 038 | 8007R2-2 | 2.40 | 2.90 | |
| Dust Cover GA-40V Series | ||||
| 039 | 422563-0 | 2.40 | 2.90 | |
| Motor Housing GA008G | ||||
| 040 | 183N89-8 | 11.00 | 13.31 | |
| Rubber pen 6 | ||||
| 040C10 | 263005-3 | 1.00 | 1.21 | |
| Switch GA-40V Series | ||||
| 041 | 651445-1 | 11.00 | 13.31 | |
| Compression Spring 4 | ||||
| 042 | 233121-5 | 1.00 | 1.21 | |
| Switch lever GA-40V series | ||||
| 043 | 412233-9 | 1.00 | 1.21 | |
| Field GA008G | ||||
| 044 | 629459-8 | 177.10 | 214.29 | |
| Control unit GA-40V series | ||||
| 045 | 632P65-6 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 046 | 8008U5-3 | |||
| Nameplate GA008G | ||||
| 047 | 856U40-0 | 3.60 | 4.36 | |
| Label serial number GA008G | ||||
| 048 | 856U44-2 | 2.40 | 2.90 | |
