Here you will find all available parts and drawings of the 'Makita G2800L'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

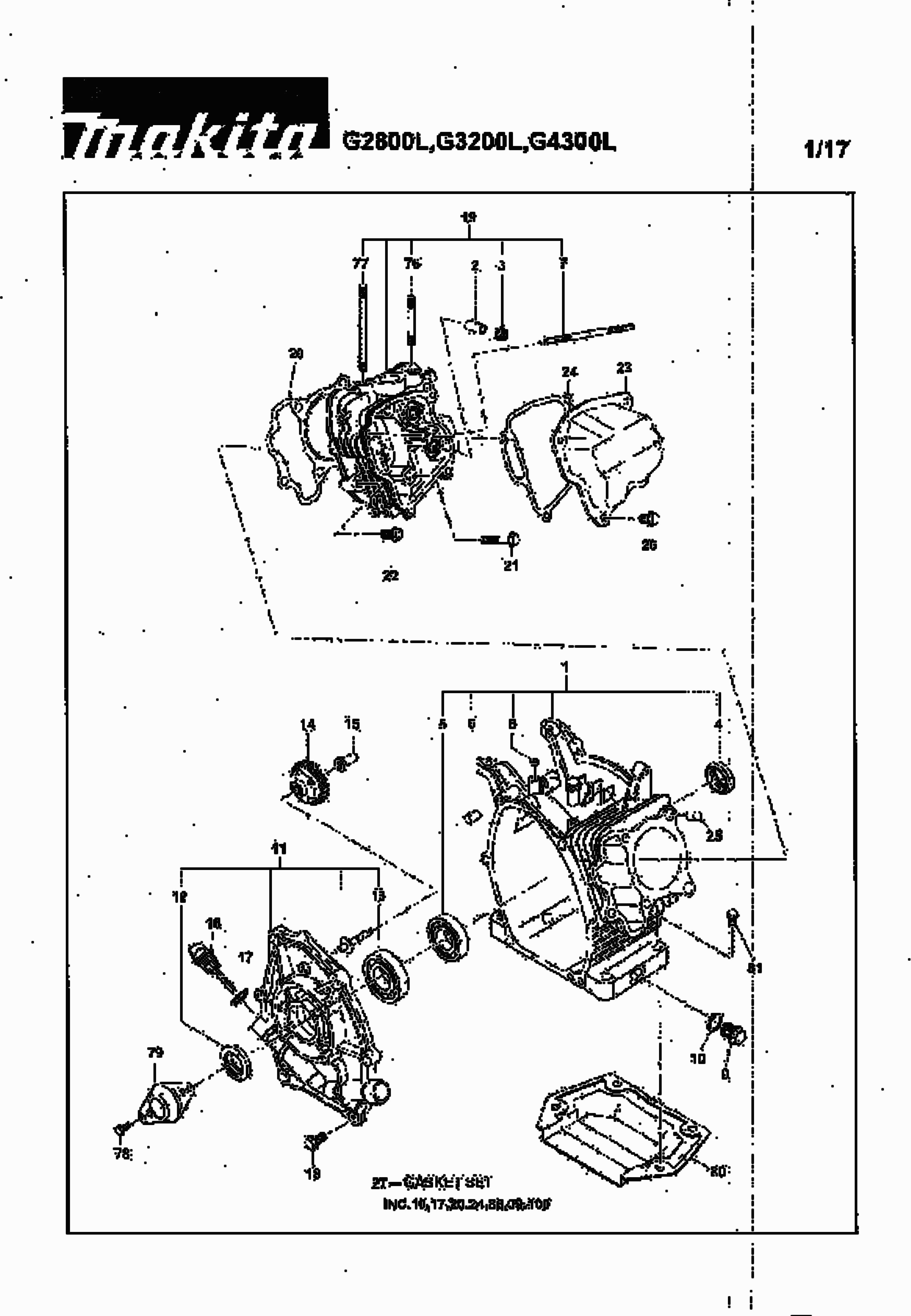

Technical drawing of model Makita G2800L

Spare parts list of model Makita G2800L

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Crank Case
001 2771010241 325.02 393.27
Valve guide
002 2371420203 33.35 40.35
Valve gasket
003 2771601001 4.45 5.38
Oil Seal 25X38X7 G2800L
004 0440250200 9.67 11.70
Ball bearing 62/28 G2800L
005 0600280021 17.40 21.05
Fit bush 10 10.3X8.5X14 Eg241 *
006 2771501103 0.83 1.00
Tapeind M6X980Mm G2800L
007 0105060351 6.41 7.76
Oil seal 6X10X2.5 G4300L
008 0440060020 5.09 6.16
Carterplug Eg-Series
009 0401140030 2.48 3.00
Gasket G2400-3500-550
010 0211140020 0.83 1.00
Crankcase Cover
011 2771100131 98.23 118.86
Oil seal 25X41X6 G2800L
012 0440250210 10.99 13.30
No information available, not orderable
013 0600250140
Regulateurtandwiel
014 27745004J1 12.22 14.79
Regulator bush G28/4300L A
015 2774190201 30.70 37.15
Oil Dipstick G2800L *
016 2776360113 3.12 3.78
O-ring for oil dipstick A
017 424100-6 0.83 1.00
Flange Bolt G4300L *
018 0010408350 1.39 1.68
Cylinder Head
019 2771300501 175.85 212.78
Cylinder head gasket
020 2771500123 4.45 5.38
Flange Bolt M8X68 G4300L *
021 0110080240 3.54 4.28
Flange bolt M8X33 G4300L *
022 0110080310 2.02 2.44
Valve Cover
023 2771550301 33.35 40.35
Valve cover gasket
024 2771600113 3.72 4.50
Fit bush 10 10.3X8.5X14 Eg241 *
025 2771501103 0.83 1.00
Flange bolt G24/35/5500
026 0110060020 1.67 2.02
Seal kit G2800L *
027 2779900127 11.84 14.33
Crank Shaft
028 2772050101 209.80 253.86
Flange Nut M14 G2800L *
029 0180140020 2.38 2.88
Insert Wedge G2400-3500-1R
030 0323030010 3.11 3.76
Connecting Rod
031 2772250110 77.62 93.92
Connecting rod bolt
032 2772300103 3.44 4.16
Piston Pin
033 2772330113 9.26 11.20
Piston 67
034 27723401J3 36.08 43.66
Piston Ring Set 28
035 2772350117 27.90 33.76
Lock Washer Eg241/321A
036 0565160010 1.20 1.45
Camshaft cpl
037 2783160111 82.47 99.79
Camshaft pin
038 2773510103 8.27 10.01
No information available, not orderable
039 0240060010
Pin 4mm G4300L *
040 2773860103 1.00 1.21
Freewheel Hook G2800L *
041 2773640103 10.50 12.70
Locking Ring 13.8mm G4300L *
042 2773650103 1.20 1.45
Return spring
043 2793870113 1.67 2.02
Valve spring
044 2793360103 3.44 4.16
Return spring
045 2693370103 5.09 6.16
No information available, not orderable
046 2773340113
Exhaust valve
047 2773350113 19.29 23.34
Check valve
048 13210KA031 1.39 1.68
Camshaft chain
049 2773560111 21.23 25.69
Camshaft chain
050 2773691103 3.12 3.78
Extension Spring
051 2773710103 3.12 3.78
Pin 6x13x34mm
052 2773690203 3.44 4.16
Chain guide
053 2773691313 2.71 3.28
Rocker arm pin
054 2773500201 2.71 3.28
Lock washer G28/4300L *
055 0031305000 0.83 1.00
Valve rocker
056 2773620100 25.36 30.69
Rocker
057 2773620200 23.04 27.88
Set screw M5 G28/4300L *
058 0149050020 2.71 3.28
Set screw M5 G28/4300L *
059 0149050020 2.71 3.28
Nut M5 G28/4300L *
060 0170050030 1.00 1.21
Nut M5 G28/4300L *
061 0170050030 1.00 1.21
Flange bolt G24/35/5500
062 0110060020 1.67 2.02
Regulator shaft
063 2774220133 11.84 14.33
Lock washer G28/4300L *
064 0031305000 0.83 1.00
Intermediate Plate
065 2775271121 9.26 11.20
Flange Bolt Eg241A A
066 0010406140 1.00 1.21
Flywheel G2800L *
067 2777923201 87.86 106.31
Ignition G2800L *
068 2777943101 77.62 93.92
No information available, not orderable
069 0011406250
Stop cable
070 27773102H1 6.41 7.76
Spark Plug Br6Hs
071 0650140150 10.99 13.30
Spark plug cap
072 X655000270 4.45 5.38
Oil Sensor
073 2777630121 41.84 50.63
No information available, not orderable
074 0011406160
No information available, not orderable
075 0130060260
Exhaust stud bolt *
076 0105080290 1.39 1.68
Stud bolt G2800L *
077 0105080510 6.41 7.76
Flange Bolt M8X12 G28/4300L *
078 0110080150 2.38 2.88
Cover G2800L *
079 2778700103 8.27 10.01
Mounting Plate G2800L *
080 33B3500101 19.29 23.34
Flange Bolt M8X33 G28/4300L *
081 0110080270 1.39 1.68
Flange Bolt M8X12 G28/4300L *
082 0110080150 2.38 2.88
Exhaust G2800L *
083 2773040121 118.43 143.30
Montageplaat G2800L *
084 33B5260103 5.09 6.16
Flensbout M6X23 G2800L *
085 0110060160 1.39 1.68
Exhaust Gasket
086 2773520113 2.38 2.88
No information available, not orderable
087 9802008280
Spark Catcher Cap G4300L *
088 2773721003 8.27 10.01
Screw Eh561 *
089 0043505160 0.83 1.00
No information available, not orderable
090 0021805000
No information available, not orderable
091 2773262220
Air filter housing
092 2773263208 48.40 58.56
No longer available, no replacement
093 2773260408
No information available, not orderable
094 2773264308
Air Filter Element
095 2773266117 37.75 45.68
Nut M/Rivet G28/6100R
096 0023806000 1.20 1.45
Rubber Pipe G2400-3501-350
097 0851080000 13.83 16.73
Manifold
098 20A3290201 11.84 14.33
Gasket 1 Manifold Eg241A A
099 20A3590203 1.18 1.43
Manifold gasket "2"
100 20A3590303 0.98 1.19
Bracket G2800L *
101 2773900401 10.52 12.73
Bolt Eg241A A
102 0010406200 1.00 1.21
Bout G28/32/4300L *
103 0110060150 1.39 1.68
Choke G28/3200L *
104 2774710110 23.04 27.88
No longer available, no replacement
105 2774670103
Screw M4X8Li G28/3200L
106 0043104080 0.83 1.00
Regulator lever
107 2774230140 12.22 14.79
Regulator rod
108 2774270101 1.20 1.45
Regulator rod spring
109 2774280123 2.02 2.44
Bolt Eg241A A
110 0010406200 1.00 1.21
Nut G2400-3500-550
111 0186060020 0.98 1.19
Regulator rod spring
112 2774252603 3.11 3.76
Regulator Adjustment Plate G28/3200L*
113 2774800101 2.71 3.28
Screw 5X55 G28/3200L *
114 0043105550 0.83 1.00
Flywheel housing G28/3200L *
115 2775200113 169.78 205.43
Bolt M/Washer G4100R
116 0011406350 0.83 1.00
Bolt M/Revet G4100R *
117 0011406450 1.99 2.41
Fit sleeve 8X10 G28/3200L *
118 9804008110 1.66 2.01
Plate G28/3200L *
119 2775600103 2.71 3.28
No information available, not orderable
120 2775040110
Starter Spring G28/3200L *
121 2775040208 25.36 30.69
Cord Reel G28/3200L *
122 2775040308 30.69 37.13
Starter cord
123 2775040808 17.40 21.05
Starter button G28/3200L *
124 2775040908 6.41 7.76
Alignment tool
125 2775040408 7.21 8.72
Friction spring
126 2775040508 17.40 21.05
Friction Plate
127 2775040708 8.27 10.01
Spring retaining ring
128 2775040608 10.52 12.73
Bolt M6X18 G17/28/3200L *
129 0110060140 1.39 1.68
Fan
130 2775410113 17.40 21.05
Intermediate Plate
131 2775270203 19.29 23.34
Flange bolt G24/35/5500
132 0110060020 1.67 2.02
Drive Shaft G28/3200L *
133 2772440103 72.58 87.82
Bolt M8X27 G28/3200L *
134 0110100110 2.02 2.44
No information available, not orderable
135 2776230900
Throttle valve
136 2776253508 15.65 18.94
Screw
137 2096235108 1.20 1.45
Choke Valve
138 2776252508 11.84 14.33
Gas needle
139 2466242008 12.19 14.75
Choke Handle
140 2776252008 19.23 23.27
Gas Rod
141 2776253118 33.35 40.35
Bolt G2400R *
142 2276245108 10.52 12.73
Pointer
143 2776250008 33.35 40.35
Pin
144 2776251508 3.54 4.28
Float chamber
145 2776250608 38.75 46.89
Gasket
146 2146245008 0.98 1.19
Gasket
147 2146254008 5.06 6.12
Float
148 2266250608 33.35 40.35
Main jet
149 2776244008 25.36 30.69
Main Throttle Needle
150 2776240208 15.65 18.94
Clip
151 2266270118 3.97 4.80
Bolt
152 2776236008 8.27 10.01
Gasket
153 2466239008 3.44 4.16
Air Nozzle
154 2486241008 15.65 18.94
Air nozzle (inlet)
155 1066241008 15.65 18.94
Seal
156 2366268008 5.70 6.90
Gasket
157 2366254108 5.09 6.16
Circuit Floater G28/3200L *
158 KU31104311 51.84 62.73
Flange bolt G24/35/5500
159 0110060020 1.67 2.02
Bracket G3501-5500-01R
160 0566000250 2.38 2.88
Field
161 33B2175201 617.29 746.92
Bout M5X125 G28/3200L *
162 33B2105308 3.97 4.80
Anker+Kogell.G28/3200L *
163 33B2116101 388.08 469.58
Ball Bearing G28/3200L *
164 32D2100108 27.90 33.76
Field Bolt M10X160 G28/3200L *
165 33B2105508 12.22 14.79
Field Cap G28/3200L *
166 33B2306101 23.04 27.88
Rear cover G4300L *
167 32D2307201 223.15 270.01
Bout M10X90 G28/3200L *
168 33B2105108 3.97 4.80
End Cap G28/3200L *
169 33B2305101 28.02 33.90
Bout M5X10 G28/3200L *
170 33B2105208 3.11 3.76
Carbon brush with holder
171 32D2310101 43.75 52.94
Bolt M5X18 G28/3200L *
172 32D2106208 1.66 2.01
Voltage regulator G28/3200L *
173 33B2300100 175.85 212.78
Bolt M5X14 G28/3200L *
174 32D2105508 1.67 2.02
Base Plate G28/3200L *
175 32D2105208 17.40 21.05
Bolt M5X14 G28/3200L *
176 32D2105508 1.67 2.02
Bolt G28/3200L *
177 32D2106108 1.67 2.02
Nut M5
178 32D2105108 1.00 1.21
Rivet M5
179 32D2105308 1.00 1.21
Washer M5
180 32D2105408 1.00 1.21
Feedthrough G28/3200L *
181 32B4500203 6.41 7.76
Clamp G28/3200L *
182 32D2106008 3.11 3.76
Bolt M5X12 G28/3200L *
183 32B2105308 1.66 2.01
Frame
184 33B3000111 235.28 284.69
Mounting Rubber L G28/3200L *
185 32B3021211 23.04 27.88
Mounting Rubber R G28/3200L *
186 32B3021111 23.04 27.88
Mounting Rubber L G28/3200L *
187 32B3020211 23.04 27.88
Mounting Rubber R G28/3200L *
188 32B3020111 23.04 27.88
No information available, not orderable
189 0023808000
Ground Cable G28/3200L *
190 33B4809101 7.21 8.72
Screw G28/3200L *
191 0140060121 0.83 1.00
Label (Earth) G28/3200L *
192 0732002651 2.71 3.28
Cover Cap G28/3200L *
193 33B5000201 41.84 50.63
Tapschroef G4100R
194 0150040070 0.83 1.00
Kap G28/3200L *
195 33B4600103 5.09 6.16
Washer
196 0031004000 0.83 1.00
Beugel G28/3200L *
197 33B4601211 11.84 14.33
Sealing Sponge G28/3200L *
198 34B5731103 2.71 3.28
Screw G2400-3500-55*
199 3534990408 0.83 1.00
No information available, not orderable
200 33B4374410
Panel Plate G28/3200L *
201 33B4510901 55.67 67.36
No information available, not orderable
202 33B4926503
Feedthrough G28/3200L *
203 2277500103 1.39 1.68
No information available, not orderable
204 3584062108
Screw G2400-5501R
205 0043603120 0.83 1.00
Nut G2400R-Etc
206 0021703000 0.83 1.00
Neon lamp Green G28/3200L *
207 3934066608 4.45 5.38
Ignition switch. 3200L *A
208 33K4181203 11.84 14.33
Rotary Knob
209 33K4201003 5.09 6.16
No longer available, no replacement
210 33K4202003
No longer available, no replacement
211 33K4203023
Mounting Plate
212 33B4601501 8.27 10.01
Screw M3X16 G28/3200L *
213 33K4181408 1.00 1.21
Tapschroef G4100R
214 0150040070 0.83 1.00
Circuit Breaker G28/3200L *
215 32B4315301 63.68 77.05
Screw with washer
216 31B7901103 1.20 1.45
Screw M5X18 G28/3200L *
217 3888800103 1.20 1.45
Washer Spring
218 3320005008 0.83 1.00
Ring
219 3534990308 0.83 1.00
Nut
220 3534990208 1.00 1.21
Lockring G4100R
221 0033005000 1.00 1.21
Nut Wing
222 3534990108 5.09 6.16
Choke Cable G28/3200L *
223 33B4602101 12.22 14.79
Screw G28/3200L
224 0140060190 0.83 1.00
Cable Ties G28/3200L
225 0563000020 2.02 2.44
No information available, not orderable
226 33B9001113
Lower Cover Cap G28/3200L *
227 33B5010101 32.15 38.90
Mounting Plate G28/3200L *
228 33B3550101 36.08 43.66
Rear Cover G28/3200L *
229 33B5050101 33.35 40.35
Flensbout M6X18 G28/3200L *
230 0110060180 1.39 1.68
Sealing Sponge G28/3200L *
231 34B5731103 2.71 3.28
Exhaust Cap G28/3200L *
232 33B5620101 98.23 118.86
Exhaust Cap (S) G28/3200L *
233 33B5605101 105.51 127.67
Sealing Rubber G28/3200L *
234 33B5700503 3.44 4.16
Flensbout M6X18 G28/3200L *
235 0110060180 1.39 1.68
Bolt G2400-3500-550 *
236 0110060080 1.00 1.21
No information available, not orderable
237 33B9713213
No information available, not orderable
238 33B9515613
No information available, not orderable
239 0732005200
Tank G2800L *
240 33B6010201 248.31 300.46
Tank Cap G2800R
241 0430590011 36.05 43.62
Gasoline Filter Eg-Series
242 0641540011 11.84 14.33
Fuel Gauge G2800L
243 0648001500 38.75 46.89
Petrol Tap G2800L
244 0642010300 30.69 37.13
Fuel Tap Filter G2800L
245 0642009320 2.36 2.86
Gasket for Benz. Circle. G4100R
246 0642006410 1.39 1.68
Fuel Sight Glass G4100R
247 0642007810 4.67 5.65
Screw for Benz. Circle. G4100R *
248 0642004790 1.00 1.21
Flange bolt G24/35/5500
249 0110060020 1.67 2.02
Fuel Hose G3500/01/5501 *
250 0851060000 25.36 30.69
Fuel Line G2800L *
251 33B6600103 5.70 6.90
Heat shield G2800L *
252 2511730203 10.52 12.73
Hose Clamp 11Mm P
253 0561110020 1.20 1.45
Hose Clamp 13Mm
254 0561130010 1.00 1.21
Bout Eg241A
255 0110060220 2.38 2.88
Rubber ring (tank)
256 3913900013 3.54 4.28
Danger Label G2800L *
257 33B9710213 8.27 10.01
Spark Catch Mesh G4300L *
258 2773722003 5.09 6.16

There are 0 items in your shopping basket.
