Here you will find all available parts and drawings of the 'Makita FS2701K'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

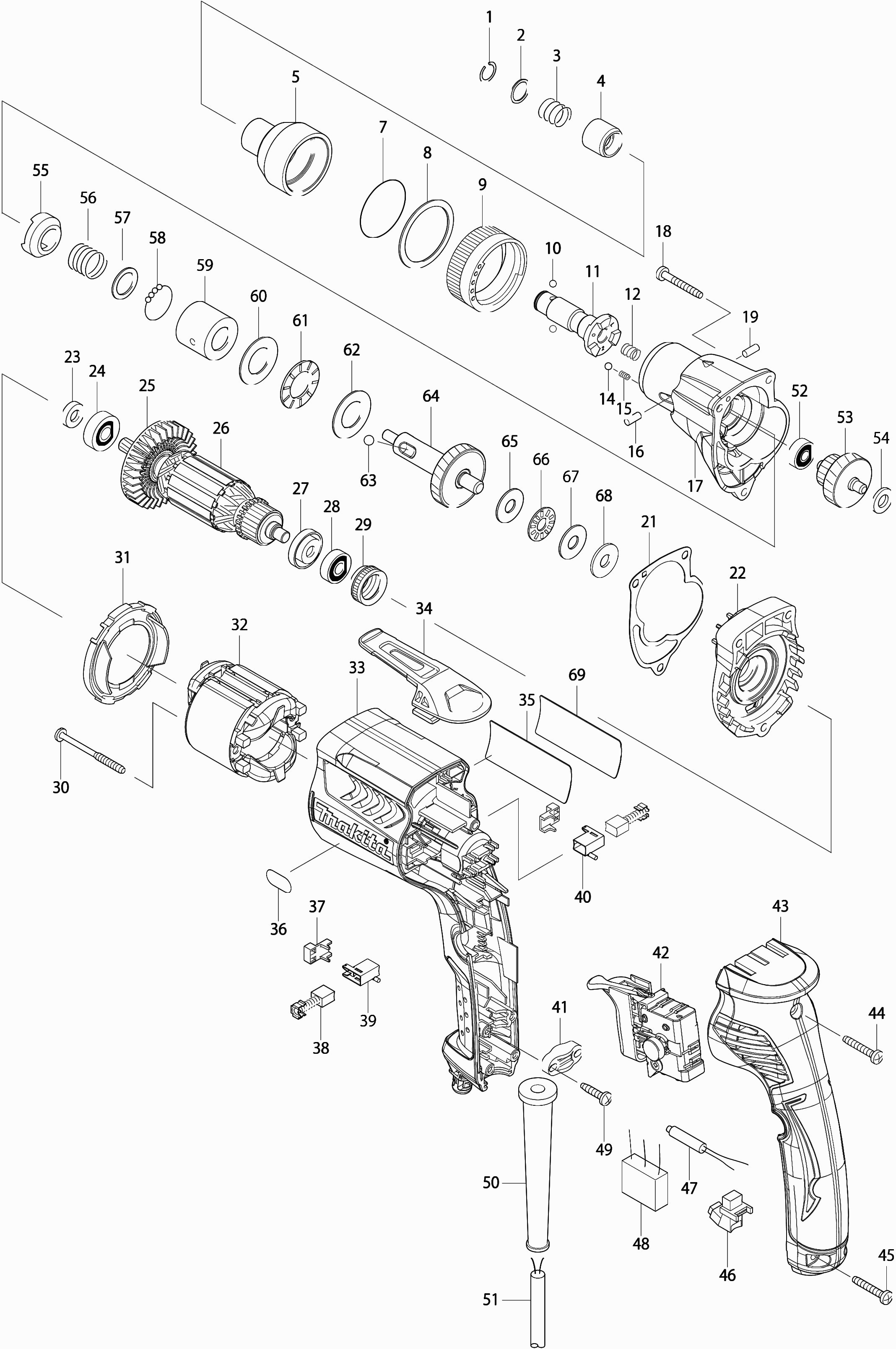

Technical drawing of model Makita FS2701K
Spare parts list of model Makita FS2701K
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Locking Ring 11 | ||||
| 001 | 231951-8 | 0.83 | 1.00 | |
| Washer 12 | ||||
| 002 | 267085-1 | 0.83 | 1.00 | |
| Compression Spring 13 | ||||
| 003 | 233005-7 | 0.83 | 1.00 | |
| Socket | ||||
| 004 | 324420-7 | 3.96 | 4.79 | |
| No information available, not orderable | ||||
| 005 | 168553-6 | |||
| O-ring 35 | ||||
| 007 | 213343-3 | 0.83 | 1.00 | |
| 36 Washer | ||||
| 008 | 253806-7 | 1.18 | 1.43 | |
| Washer 36 | ||||
| 009 | 152841-1 | 8.27 | 10.01 | |
| No information available, not orderable | ||||
| 010 | 216001-0 | |||
| No information available, not orderable | ||||
| 011 | 325608-2 | |||
| Compression Spring 6 | ||||
| 012 | 234095-3 | 0.83 | 1.00 | |
| Steel ball 4 | ||||
| 014 | 216008-6 | 0.83 | 1.00 | |
| Compression Spring 4 | ||||
| 015 | 233314-4 | 0.83 | 1.00 | |
| Pin 4 | ||||
| 016 | 268075-7 | 0.83 | 1.00 | |
| Gear House Tc | ||||
| 017 | 318387-9 | 12.80 | 15.49 | |
| Tap screw 4x30mm DGA520 | ||||
| 018 | 265B70-0 | 0.83 | 1.00 | |
| Pin 4 | ||||
| 019 | 268075-7 | 0.83 | 1.00 | |
| Gasket | ||||
| 021 | 442149-4 | 1.67 | 2.02 | |
| Gearbox cover cpl | ||||
| 022 | 158982-1 | 4.45 | 5.38 | |
| Ring 7mm | ||||
| 023 | 451099-2 | 0.83 | 1.00 | |
| Ball Bearing 608 | ||||
| 024 | 210007-0 | 5.71 | 6.91 | |
| Fan 52 Hr1830F | ||||
| 025 | 240083-0 | 1.46 | 1.77 | |
| Armature Compl. | ||||
| 026 | 515764-8 | 23.04 | 27.88 | |
| Insulation ring | ||||
| 027 | 681636-0 | 1.18 | 1.43 | |
| Ball bearing 607Zz A | ||||
| 028 | 211382-7 | 3.20 | 3.87 | |
| Intermediate ring 9554Nb A | ||||
| 029 | 422768-2 | 0.83 | 1.00 | |
| Self-tapping Screw 4X50mm | ||||
| 030 | 266467-4 | 0.83 | 1.00 | |
| Spacer plate | ||||
| 031 | 450880-8 | 0.83 | 1.00 | |
| SA FIELD 220-240V | ||||
| 032 | 633693-4 | 9.67 | 11.70 | |
| Motor House L | ||||
| 033 | 450878-5 | 6.70 | 8.11 | |
| Carry Hook | ||||
| 034 | 162272-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 035 | 867050-6 | |||
| Indicator label | ||||
| 036 | 808574-3 | 2.71 | 3.28 | |
| Spacer STM 1800 | ||||
| 037 | 689111-0 | 0.83 | 1.00 | |
| Brush Set CB-419 | ||||
| 038 | 195015-1 | 4.45 | 5.38 | |
| Brush holder left | ||||
| 039 | 643952-8 | 2.02 | 2.44 | |
| Brush holder Re | ||||
| 040 | 643953-6 | 2.02 | 2.44 | |
| Clamp Bracket | ||||
| 041 | 687124-5 | 0.83 | 1.00 | |
| Switch | ||||
| 042 | 650614-1 | 15.60 | 18.88 | |
| Left handle cover complete | ||||
| 043 | 158878-6 | 9.24 | 11.18 | |
| No longer available, no replacement | ||||
| 044 | 266374-1 | |||
| No longer available, no replacement | ||||
| 045 | 266374-1 | |||
| Light circuit | ||||
| 046 | 631939-2 | 6.41 | 7.76 | |
| Capacitor | ||||
| 047 | 646122-8 | 1.75 | 2.12 | |
| Capacitor | ||||
| 048 | 645253-0 | 4.45 | 5.38 | |
| Tap screw 4x18 | ||||
| 049 | 265A48-7 | 0.83 | 1.00 | |
| Cable gland 8-110 | ||||
| 050 | 682559-5 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 051 | 695034-2 | |||
| No information available, not orderable | ||||
| 052 | 211012-0 | |||
| Gear 17-39 | ||||
| 053 | 226157-1 | 9.24 | 11.18 | |
| Washer 8 | ||||
| 054 | 267017-8 | 1.18 | 1.43 | |
| Clutch | ||||
| 055 | 223073-8 | 10.99 | 13.30 | |
| Compression Spring 13.6 | ||||
| 056 | 231423-3 | 1.46 | 1.77 | |
| Washer 14 | ||||
| 057 | 253837-6 | 0.83 | 1.00 | |
| Steel ball 3.2 | ||||
| 058 | 216014-1 | 0.83 | 1.00 | |
| Guide Bush | ||||
| 059 | 324209-3 | 7.22 | 8.74 | |
| Washer 1730 | ||||
| 060 | 216216-9 | 0.83 | 1.00 | |
| Pressure needle bearing 1730 | ||||
| 061 | 216423-4 | 1.67 | 2.02 | |
| Washer 1730 | ||||
| 062 | 216216-9 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 063 | 216011-7 | |||
| Gear 35 cpl | ||||
| 064 | 158892-2 | 9.24 | 11.18 | |
| Ring 821 | ||||
| 065 | 216212-7 | 1.24 | 1.50 | |
| Thrust Needle Bearing 821 | ||||
| 066 | 216415-3 | 3.12 | 3.78 | |
| Ring 821 | ||||
| 067 | 216212-7 | 1.24 | 1.50 | |
| Urethane washer 8 | ||||
| 068 | 261111-8 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 069-1 | 892811-5 | |||
