Here you will find all available parts and drawings of the 'Makita EM4340L'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

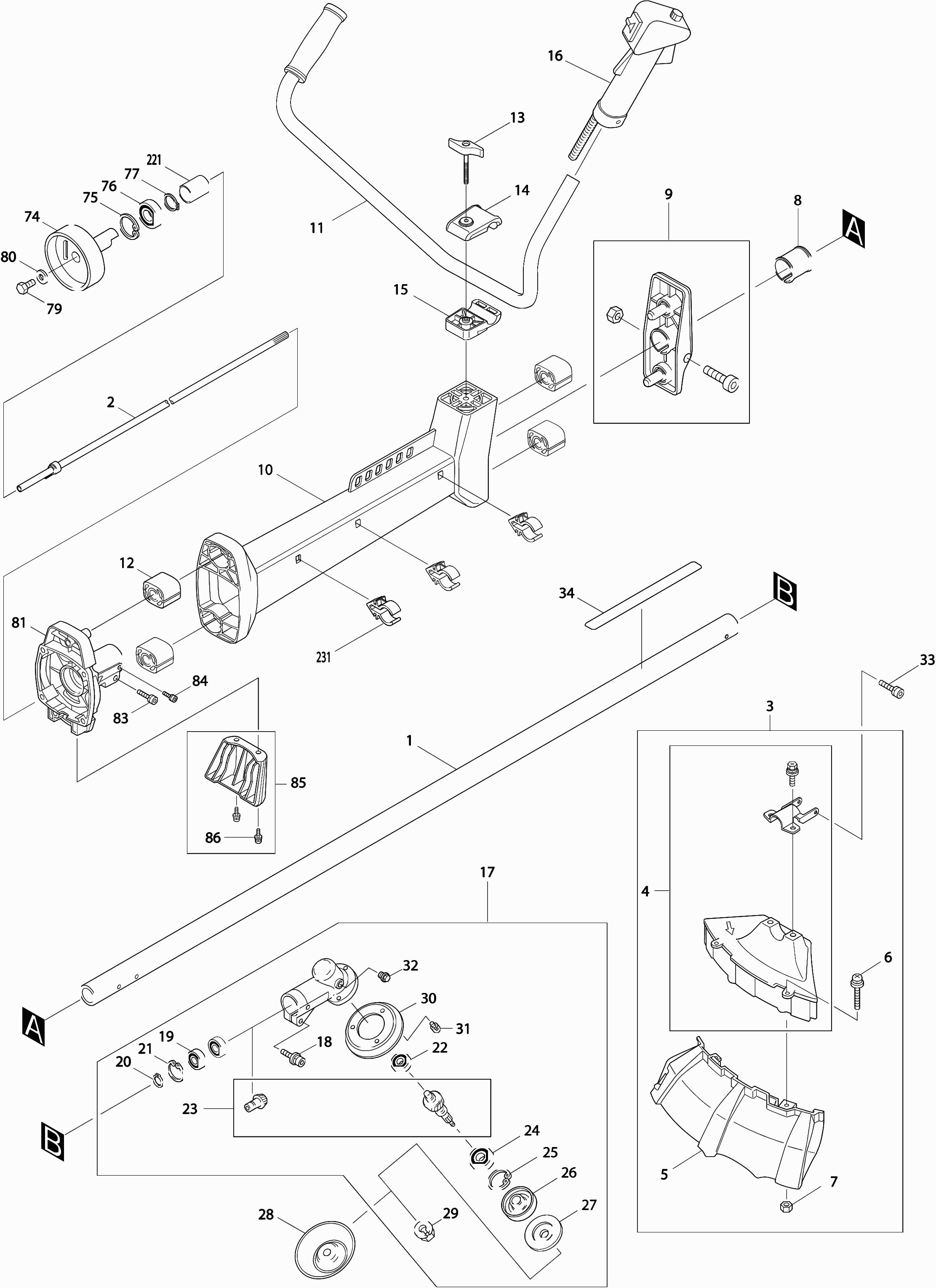

Technical drawing of model Makita EM4340L
Spare parts list of model Makita EM4340L
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 001 | 6341004000 | |||
| Drive Shaft | ||||
| 002 | 140878-0 | 40.70 | 49.25 | |
| No information available, not orderable | ||||
| 003 | 6348001001 | |||
| BESCHERMKAP "MES" | ||||
| 004 | 6348002001 | 9.00 | 10.89 | |
| Protective cap edge blade drdk | ||||
| 005 | 140424-9 | 13.20 | 15.97 | |
| Screw 5X40 Em4250 | ||||
| 006 | 0043605400 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 007 | 0021805000 | |||
| Spacer | ||||
| 008 | 6341500800 | 2.40 | 2.90 | |
| Handle holder 2 | ||||
| 009 | 6344001020 | 16.50 | 19.96 | |
| Handle Support | ||||
| 010 | 6344001011 | 78.10 | 94.50 | |
| Start grip | ||||
| 011 | 6344002000 | 48.40 | 58.56 | |
| Buffer | ||||
| 012 | 6344001120 | 10.80 | 13.07 | |
| Steering bolt | ||||
| 013 | 6344001040 | 13.20 | 15.97 | |
| Handle Support | ||||
| 014 | 6344001050 | 20.90 | 25.29 | |
| Handle support 2 | ||||
| 015 | 6344001060 | 23.10 | 27.95 | |
| Control Handle | ||||
| 016 | 6345003001 | 33.00 | 39.93 | |
| No information available, not orderable | ||||
| 017 | 6343004001 | |||
| No information available, not orderable | ||||
| 017-1 | 122C80-5 | |||
| Allen screw m6x30 (w,sw) | ||||
| 018 | 6343004160 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 018-1 | KC00000015 | |||
| Ball Bearing 6000zz | ||||
| 019 | 210067-2 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 019-1 | KC00000010 | |||
| No information available, not orderable | ||||
| 020 | 0031426000 | |||
| No information available, not orderable | ||||
| 020-1 | KC00000006 | |||
| No information available, not orderable | ||||
| 021 | 0031510000 | |||
| No information available, not orderable | ||||
| 021-1 | 257988-7 | |||
| Ball Bearing Drive 629 | ||||
| 022 | 211342-9 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 022-1 | KC00000009 | |||
| Transmission A | ||||
| 023 | 125844-8 | 42.81 | 51.80 | |
| No information available, not orderable | ||||
| 023-1 | KC00000018 | |||
| Ball bearing 6201/Du Rbc260-310 | ||||
| 024 | 0600129950 | 8.21 | 9.93 | |
| No information available, not orderable | ||||
| 024-1 | KC00000012 | |||
| Lock washer r-32 | ||||
| 025 | 962151-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 025-1 | KC00000005 | |||
| No information available, not orderable | ||||
| 026 | 6343004020 | |||
| No information available, not orderable | ||||
| 026-1 | KC00000013 | |||
| Spring retaining ring | ||||
| 027 | 346355-2 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 027-1 | KC00000004 | |||
| No information available, not orderable | ||||
| 028 | 168526-9 | |||
| NUT M10 | ||||
| 029 | 264025-0 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 029-1 | KC00000016 | |||
| Protective Washer | ||||
| 030 | 6343004040 | 2.84 | 3.44 | |
| No information available, not orderable | ||||
| 030-1 | KC00000003 | |||
| Screw M5x10mm | ||||
| 031 | 266646-4 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 031-1 | KC00000007 | |||
| Bolt | ||||
| 032 | 6343004050 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 032-1 | KC00000014 | |||
| Screw 5x12 | ||||
| 033 | 911213-7 | 1.00 | 1.21 | |
| Label "warning" | ||||
| 034 | 6349500901 | 3.60 | 4.36 | |
| Throttle handle knob | ||||
| 041 | 6215022030 | 8.40 | 10.16 | |
| Lock Lever | ||||
| 042 | 451934-4 | 7.20 | 8.71 | |
| Adjusting Screw | ||||
| 043 | 6215023050 | 7.20 | 8.71 | |
| Cable Set | ||||
| 044 | 6345003030 | 20.90 | 25.29 | |
| Cable Set | ||||
| 045 | 6345003040 | 11.00 | 13.31 | |
| Spring | ||||
| 046 | 6195006050 | 2.40 | 2.90 | |
| Allen Bolt M5x30 | ||||
| 047 | 922252-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 048 | 264049-6 | |||
| Screw 4x20 | ||||
| 049 | 6195006060 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 050 | 5931021000 | |||
| Housing Cover | ||||
| 052 | 318443-5 | 4.80 | 5.81 | |
| Valve cover Ms335.4U A | ||||
| 053 | 140419-2 | 9.60 | 11.62 | |
| Crankcase cover gasket | ||||
| 054 | 162274-2 | 2.40 | 2.90 | |
| Valve cover gasket | ||||
| 055 | 162307-3 | 3.60 | 4.36 | |
| Feed valve | ||||
| 056 | 346083-9 | 2.40 | 2.90 | |
| Holding Plate | ||||
| 057 | 318440-1 | 2.40 | 2.90 | |
| Screw M4X10 P | ||||
| 058 | 0119049960 | 1.00 | 1.21 | |
| Met. Screw Ph2 M5X16Mm Ck A | ||||
| 059 | 922223-9 | 1.00 | 1.21 | |
| Screw M5x18mm | ||||
| 060 | 266812-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 061 | 6214016030 | |||
| Screw 5X14 P | ||||
| 062 | 0043605140 | 1.20 | 1.45 | |
| Fan Housing Ms335.4U A | ||||
| 063 | 318614-4 | 12.10 | 14.64 | |
| Met. Screw Ph2 M5X16Mm Ck A | ||||
| 064 | 922223-9 | 1.00 | 1.21 | |
| Karter Cover Ms335.4U A | ||||
| 065 | 318612-8 | 6.00 | 7.26 | |
| Crankcase gasket | ||||
| 066 | 162308-1 | 2.40 | 2.90 | |
| Oil Pipe | ||||
| 067 | 5926500200 | 6.00 | 7.26 | |
| Weight for oil hose | ||||
| 068 | 5926500300 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 069 | 5926500600 | |||
| O-ring for oil dipstick A | ||||
| 070 | 424100-6 | 1.00 | 1.21 | |
| Screw Bhx2500 | ||||
| 071 | 0043605180 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 072 | 965603030 | |||
| Control valve | ||||
| 073 | 424201-0 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 074 | 6342002000 | |||
| Lock Ring R-35 | ||||
| 075 | 962153-2 | 1.00 | 1.21 | |
| Ball bearing 6003Llu A | ||||
| 076 | 211338-0 | 7.20 | 8.71 | |
| Lock ring S-17 | ||||
| 077 | 961057-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 079 | 6202500400 | |||
| Ring | ||||
| 080 | 267429-5 | 1.20 | 1.45 | |
| Clutch housing | ||||
| 081 | 6341500700 | 23.10 | 27.95 | |
| Inbusbout M6X22Mm Rbc525 | ||||
| 082 | 0119069750 | 1.20 | 1.45 | |
| Inbusbout M6X22Mm Rbc525 | ||||
| 083 | 0119069750 | 1.20 | 1.45 | |
| Hexagonal Screw M5X8 | ||||
| 084 | 0119059460 | 1.20 | 1.45 | |
| Complete Motor Support | ||||
| 085 | 195144-0 | 2.40 | 2.90 | |
| Metal screw Ph M5x14mm Ck | ||||
| 086 | 266809-2 | 1.00 | 1.21 | |
| Crank Shaft | ||||
| 087 | 125756-5 | 58.30 | 70.54 | |
| Seal Ring 12mm | ||||
| 088 | 213537-0 | 3.60 | 4.36 | |
| No longer available, no replacement | ||||
| 089 | 213148-1 | |||
| Washer 26 Ms335.4U A | ||||
| 090 | 267425-3 | 1.00 | 1.21 | |
| Piston Ms335.4U A | ||||
| 091 | 318613-6 | 11.00 | 13.31 | |
| Piston Ring Set | ||||
| 092 | 195141-6 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 093 | 0565099990 | |||
| Piston Pin Ms335.4U A | ||||
| 094 | 257796-6 | 2.40 | 2.90 | |
| Spacer Ebh253U A | ||||
| 095 | 424200-2 | 1.00 | 1.21 | |
| Cam Tiller | ||||
| 096 | 313169-4 | 3.60 | 4.36 | |
| Rocker gear | ||||
| 097 | 125552-1 | 23.10 | 27.95 | |
| Pen 5Mm Ebh253U A | ||||
| 098 | 268238-5 | 1.00 | 1.21 | |
| Pin 4mm Ebh253U A | ||||
| 099 | 268239-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 100 | 5933500000 | |||
| Valve arm | ||||
| 101 | 125554-7 | 4.80 | 5.81 | |
| Pen 5mm | ||||
| 102 | 256200-2 | 1.00 | 1.21 | |
| Valve spring | ||||
| 103 | 5933500200 | 1.20 | 1.45 | |
| Latch retaining ring Ms335.4U A | ||||
| 104 | 325912-9 | 2.40 | 2.90 | |
| Exhaust Valve Ms335.4U A | ||||
| 105 | 325913-7 | 3.60 | 4.36 | |
| Intake valve Ms335.4U A | ||||
| 106 | 325914-5 | 3.60 | 4.36 | |
| Starting device Assy Ms335 A | ||||
| 107 | 126475-6 | 19.80 | 23.96 | |
| Cord reel | ||||
| 108 | 451923-9 | 4.80 | 5.81 | |
| Set screw | ||||
| 109 | 5425003010 | 2.40 | 2.90 | |
| Coil Spring | ||||
| 110 | 232257-7 | 10.80 | 13.07 | |
| Start Cord | ||||
| 113 | 444018-5 | 3.60 | 4.36 | |
| Starter Handle Ms335.4U A | ||||
| 114 | 424317-1 | 3.60 | 4.36 | |
| Pulley | ||||
| 115 | 165606-2 | 4.80 | 5.81 | |
| Metal screw Ph M5x14mm Ck | ||||
| 116 | 266809-2 | 1.00 | 1.21 | |
| Tank support Ms335.4U A | ||||
| 118 | 162310-4 | 3.54 | 4.28 | |
| Metal screw Ph M5x14mm Ck | ||||
| 119 | 266809-2 | 1.00 | 1.21 | |
| Model label | ||||
| 120 | 6349500500 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 121 | 5936004000 | |||
| No information available, not orderable | ||||
| 122 | 5926002140 | |||
| Air Purifier Case Ebh253U A | ||||
| 123 | 140438-8 | 27.50 | 33.28 | |
| Pump cover Ebh253U A | ||||
| 124 | 346270-0 | 7.20 | 8.71 | |
| Booster pump | ||||
| 125 | 424314-7 | 11.00 | 13.31 | |
| Diaphragm | ||||
| 126 | 168620-7 | 38.50 | 46.58 | |
| Diaphragm Gasket | ||||
| 127 | 442154-1 | 7.20 | 8.71 | |
| Pump diaphragm | ||||
| 128 | WJ00009599 | 3.96 | 4.79 | |
| No information available, not orderable | ||||
| 129 | 5926002040 | |||
| Needle Ms335.4U A | ||||
| 130 | 325921-8 | 14.30 | 17.30 | |
| O-ring 2 | ||||
| 131 | 213538-8 | 4.80 | 5.81 | |
| Seegering E-3 A | ||||
| 132 | 257964-1 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 133 | 5236018040 | |||
| Throttle valve | ||||
| 134 | 5936002020 | 44.00 | 53.24 | |
| No information available, not orderable | ||||
| 135 | 5206008030 | |||
| Cap | ||||
| 136 | 5206008110 | 2.40 | 2.90 | |
| Parker 3X24Mm Ck A | ||||
| 137 | 266582-4 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 138 | 5926002020 | |||
| Rivet for adjusting needle | ||||
| 139 | 5426005030 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 140 | 352010-6 | |||
| No information available, not orderable | ||||
| 141 | 5933018000 | |||
| Hex Nut M5 | ||||
| 142 | 931202-6 | 1.00 | 1.21 | |
| Nut M6 Htr5600 A | ||||
| 143 | 0022706000 | 1.00 | 1.21 | |
| Nut M6 Htr5600 A | ||||
| 144 | 0022706000 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 145A | 5923504700 | |||
| Gasket "carburetor" | ||||
| 146 | 413138-6 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 147 | 5933500600 | |||
| Allen bolt M5x18mm | ||||
| 148 | 266787-6 | 1.00 | 1.21 | |
| Adjusting screw P | ||||
| 149 | 0149069961 | 3.60 | 4.36 | |
| Vent pipe Ms335.4U A | ||||
| 152 | 422055-9 | 2.40 | 2.90 | |
| Air Filter Housing Ebh253U A | ||||
| 153 | 123845-0 | 17.60 | 21.30 | |
| No information available, not orderable | ||||
| 154 | 5933005000 | |||
| Overpressure valve | ||||
| 155 | 424315-5 | 1.20 | 1.45 | |
| Overpressure valve | ||||
| 156 | 424316-3 | 3.60 | 4.36 | |
| Overpressure valve plate | ||||
| 157 | 451924-7 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 158 | 5923503300 | |||
| No longer available, no replacement | ||||
| 159 | 451925-5 | |||
| No information available, not orderable | ||||
| 160 | 5923503500 | |||
| O-ring 14 | ||||
| 161 | 213539-6 | 1.00 | 1.21 | |
| O-ring 15 | ||||
| 162 | 213540-1 | 1.00 | 1.21 | |
| Choke plate | ||||
| 163 | 450560-6 | 1.20 | 1.45 | |
| Mounting plate Ebh253U A | ||||
| 164 | 346647-9 | 2.40 | 2.90 | |
| Washer | ||||
| 165 | 423376-2 | 1.20 | 1.45 | |
| Cleaner Cover | ||||
| 166 | 450561-4 | 6.00 | 7.26 | |
| Vent pipe Ebh253U A | ||||
| 167 | 422042-8 | 2.40 | 2.90 | |
| Metal screw Ph M5x14mm Ck | ||||
| 168 | 266809-2 | 1.00 | 1.21 | |
| Metric screw Ph2 M5x68mm Ck | ||||
| 169 | 265188-5 | 1.00 | 1.21 | |
| Hose clamp IAS 3 | ||||
| 170 | 345918-1 | 1.00 | 1.21 | |
| Muffler | ||||
| 171 | 168469-5 | 13.20 | 15.97 | |
| Exhaust gasket | ||||
| 172 | 5923501601 | 4.80 | 5.81 | |
| Exhaust Cap | ||||
| 173 | 5923503400 | 3.60 | 4.36 | |
| Hex socket screw 5x40 | ||||
| 174 | 922262-9 | 1.00 | 1.21 | |
| Screw 5x8 | ||||
| 175 | 911601-8 | 1.00 | 1.21 | |
| FUEL TANK | ||||
| 176 | 451877-0 | 15.40 | 18.63 | |
| Gas hose | ||||
| 177 | 162309-9 | 4.80 | 5.81 | |
| Fuel filter | ||||
| 178 | 163447-0 | 11.00 | 13.31 | |
| Hose clamp IAS 3 | ||||
| 179 | 345920-4 | 1.00 | 1.21 | |
| Fuel Cap | ||||
| 181 | 5926013000 | 7.20 | 8.71 | |
| Warning label "fuel" | ||||
| 182 | 810455-9 | 2.40 | 2.90 | |
| Damper Ebh253U A | ||||
| 183 | 424102-2 | 1.00 | 1.21 | |
| Damper Ebh253U A | ||||
| 184 | 424103-0 | 1.00 | 1.21 | |
| Damper | ||||
| 185 | 424104-8 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 186 | 168501-5 | |||
| Flywheel Ms335.4U A | ||||
| 187 | 319035-3 | 13.20 | 15.97 | |
| Spark plug cap Ebh253U A | ||||
| 188 | 424105-6 | 3.60 | 4.36 | |
| Bougieveer Ebh253U A | ||||
| 189 | 324891-8 | 1.20 | 1.45 | |
| Connecting cable | ||||
| 190 | 638664-6 | 2.40 | 2.90 | |
| Connection Cable Ebh253U P | ||||
| 191 | 638665-4 | 2.40 | 2.90 | |
| Feedthrough Eh561 15X7X2Mm * | ||||
| 192 | 5257500300 | 2.40 | 2.90 | |
| Bolt M6x16mm / rivet EM4250 A | ||||
| 193 | 265577-4 | 1.00 | 1.21 | |
| Rivet RBC230-G24-350 P | ||||
| 194 | 0031206000 | 1.00 | 1.21 | |
| Allen screw | ||||
| 195 | 0119049940 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 196 | 168563-3 | |||
| Coupling Cmpl Ms335.4U A | ||||
| 197 | 125757-3 | 11.00 | 13.31 | |
| Coupling bolt | ||||
| 198 | 5938500000 | 3.60 | 4.36 | |
| Washer 8 | ||||
| 199 | 253762-1 | 1.20 | 1.45 | |
| Cylinder cover | ||||
| 200 | 5935500800 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 201 | 0140059370 | |||
| No information available, not orderable | ||||
| 202 | 0140059370 | |||
| No information available, not orderable | ||||
| 203 | 5935500500 | |||
| Clamp | ||||
| 204 | 345963-6 | 1.00 | 1.21 | |
| Screw 5x8 | ||||
| 214 | 911601-8 | 1.00 | 1.21 | |
| Allen Bolt M5x12mm Ck | ||||
| 216 | 922213-2 | 1.00 | 1.21 | |
| Cleaner Element | ||||
| 217 | 443141-3 | 2.71 | 3.28 | |
| Cleaner Element | ||||
| 218 | 443140-5 | 3.60 | 4.36 | |
| Buffer | ||||
| 221 | 424403-8 | 11.00 | 13.31 | |
| Cord Clamp | ||||
| 231 | 6344001110 | 2.40 | 2.90 | |
| Clamp | ||||
| 232 | 450562-2 | 1.20 | 1.45 | |
| Hose clamp IAS 3 | ||||
| 233 | 282020-8 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 236 | 0323039990 | |||
| Air intake Ms335.4U A | ||||
| 237 | 325915-3 | 3.60 | 4.36 | |
| O-Ring 10 Ebh253U A | ||||
| 238 | 213078-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 244-1 | KC00000011 | |||
