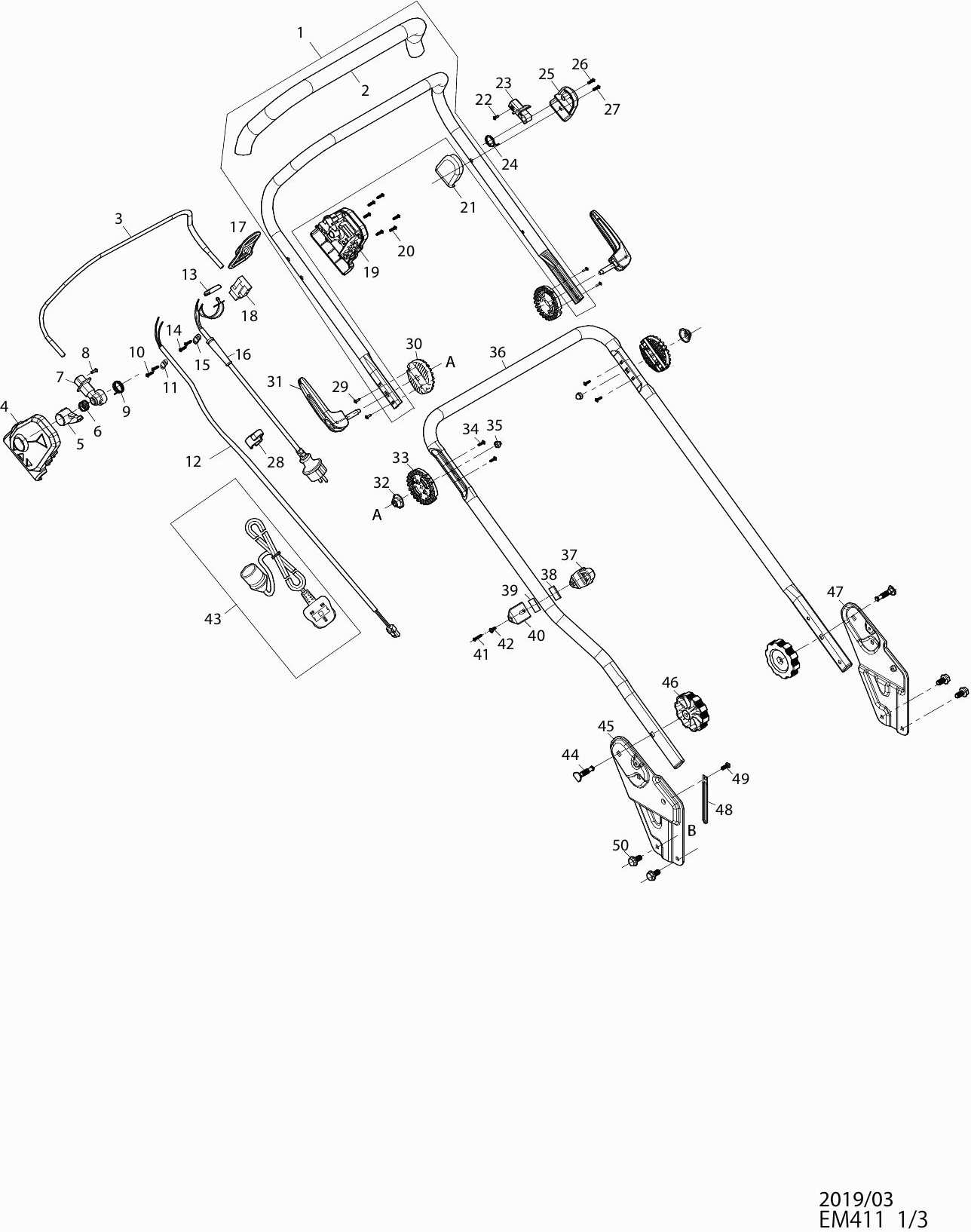

Technical drawing of model Makita EM411
Spare parts list of model Makita EM411
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Push Handle (top) ELM4121 | ||||
| 001 | YA00000958 | 23.10 | 27.95 | |
| Handle cap ELM4121 | ||||
| 002 | YA00001187 | 5.70 | 6.90 | |
| Switch handle ELM4121 | ||||
| 003 | YA00000959 | 8.40 | 10.16 | |
| Switch box R ELM3320 | ||||
| 004 | YA00000765 | 2.40 | 2.90 | |
| Push button ELM3320 | ||||
| 005 | YA00000766 | 1.20 | 1.45 | |
| Compression spring 16.8 ELM3320 | ||||
| 006 | YA00000767 | 1.00 | 1.21 | |
| End cap R ELM3320 | ||||
| 007 | YA00000768 | 1.20 | 1.45 | |
| Parker Screw 3,5X10Mm Ev3618 | ||||
| 008 | 652024721 | 1.00 | 1.21 | |
| Torsion spring 21 ELM3320 | ||||
| 009 | YA00000769 | 1.00 | 1.21 | |
| Parker 4x16mm ELM3320 | ||||
| 010 | YA00000778 | 1.00 | 1.21 | |
| Cable clamp ELM3320 | ||||
| 011 | YA00000780 | 1.00 | 1.21 | |
| Wire harness assy EUR ELM4120 | ||||
| 012 | YA00000914 | 6.00 | 7.26 | |
| Lens indicator ELM3320 | ||||
| 013 | YA00000781 | 1.20 | 1.45 | |
| Parker 4x16mm ELM3320 | ||||
| 014 | YA00000778 | 1.00 | 1.21 | |
| Cable clamp ELM3320 | ||||
| 015 | YA00000780 | 1.00 | 1.21 | |
| Wire harness assy EUR ELM3320 | ||||
| 016 | YA00000773 | 13.20 | 15.97 | |
| Cable holder ELM3320 | ||||
| 017 | 652023811 | 2.40 | 2.90 | |
| Switch ELM3320 | ||||
| 018 | YA00000772 | 3.60 | 4.36 | |
| Switch box L ELM3320 | ||||
| 019 | YA00000782 | 2.40 | 2.90 | |
| Parker 4x16mm ELM3320 | ||||
| 020 | YA00000778 | 1.00 | 1.21 | |
| Support for right handle | ||||
| 021 | 652023795 | 2.40 | 2.90 | |
| Parker Screw 3,5X10Mm Ev3618 | ||||
| 022 | 652024721 | 1.00 | 1.21 | |
| Plug for left lever | ||||
| 023 | 652023794 | 7.20 | 8.71 | |
| Torsion spring 18.3 ELM3320 | ||||
| 024 | YA00000737 | 1.20 | 1.45 | |
| Support for left lever | ||||
| 025 | 652023793 | 2.40 | 2.90 | |
| Parker 4x16mm ELM3320 | ||||
| 026 | YA00000778 | 1.00 | 1.21 | |
| Parker 4x25mm ELM3320 | ||||
| 027 | YA00000785 | 1.00 | 1.21 | |
| Cable clamp ELM4120 | ||||
| 028 | YA00000921 | 1.00 | 1.21 | |
| Met.Screw 3X12mm ELM4121 | ||||
| 029 | YA00000960 | 1.00 | 1.21 | |
| Connecting ring ELM4121 | ||||
| 030 | YA00000961 | 1.20 | 1.45 | |
| Clamp lever ELM4121 | ||||
| 031 | YA00000975 | 7.20 | 8.71 | |
| Conical spring ELM4121 | ||||
| 032 | YA00000976 | 1.20 | 1.45 | |
| Connecting ring ELM4121 | ||||
| 033 | YA00000977 | 1.20 | 1.45 | |
| Met.Screw 3X12mm ELM4121 | ||||
| 034 | YA00000960 | 1.00 | 1.21 | |
| Nut cap ELM3320 | ||||
| 035 | YA00000802 | 1.00 | 1.21 | |
| Push bar below ELM4121 | ||||
| 036 | YA00000974 | 22.00 | 26.62 | |
| Cable guide ELM4121 | ||||
| 037 | YA00000970 | 1.20 | 1.45 | |
| Rubber cladding ELM4121 | ||||
| 038 | YA00000971 | 1.00 | 1.21 | |
| Rubber cladding ELM4121 | ||||
| 039 | YA00000971 | 1.00 | 1.21 | |
| Cable clamp ELM4121 | ||||
| 040 | YA00000972 | 1.20 | 1.45 | |
| Parker 4X12Mm ELM3720 | ||||
| 041 | YA00000873 | 1.00 | 1.21 | |
| Parker 3x16mm ELM4121 | ||||
| 042 | YA00000973 | 1.00 | 1.21 | |
| Bolt M8x40 flat 4k-head ELM4121 | ||||
| 044 | YA00000983 | 1.00 | 1.21 | |
| Handle support re ELM4121 | ||||
| 045 | YA00000996 | 9.60 | 11.62 | |
| Adjustment knob M8 ELM3320 | ||||
| 046 | YA00000803 | 1.20 | 1.45 | |
| Handle support left ELM4121 | ||||
| 047 | YA00001001 | 9.60 | 11.62 | |
| Cable clamp ELM4121 | ||||
| 048 | YA00000997 | 1.20 | 1.45 | |
| Met.screw M6x18mm ELM4121 | ||||
| 049 | YA00000998 | 1.00 | 1.21 | |
| Screw M8x16mm | ||||
| 050 | YA00000995 | 1.20 | 1.45 | |
| Air Intake RE EM411 | ||||
| 051 | YA00001009 | 2.40 | 2.90 | |
| Sponge Rubber ELM4121 | ||||
| 052 | YA00001010 | 1.00 | 1.21 | |
| Motor Cover EM411 | ||||
| 053 | YA00001007 | 13.20 | 15.97 | |
| Sponge Rubber ELM4121 | ||||
| 054 | YA00001011 | 1.20 | 1.45 | |
| Air intake LI EM411 | ||||
| 055 | YA00001013 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 056 | YA00000450 | |||
| No information available, not orderable | ||||
| 057 | YA00001174 | |||
| No information available, not orderable | ||||
| 058 | YA00001173 | |||
| Wire harness ELM3720 | ||||
| 059 | YA00001181 | 5.71 | 6.91 | |
| Motor 230V ELM4121 | ||||
| 060 | YA00000928 | 93.50 | 113.14 | |
| Parker 4x10mm ELM3320 | ||||
| 061 | YA00000813 | 1.00 | 1.21 | |
| Carbon brush set ELM3320 | ||||
| 062 | YA00000814 | 4.45 | 5.38 | |
| Motor frame+pulley ELM4121 | ||||
| 063 | YA00001183 | 15.60 | 18.88 | |
| Parker 5x20mm ELM3320 | ||||
| 064 | YA00000806 | 1.00 | 1.21 | |
| V-belt ELM4120 | ||||
| 065 | YA00001180 | 7.21 | 8.72 | |
| Insert lock nut M8 | ||||
| 066 | 652023843 | 1.00 | 1.21 | |
| Belt cover ELM4121 | ||||
| 067 | YA00001184 | 9.24 | 11.18 | |
| Parker 5x20mm ELM3320 | ||||
| 068 | YA00000806 | 1.00 | 1.21 | |
| Parker 4x16mm ELM3320 | ||||
| 069 | YA00000778 | 1.00 | 1.21 | |
| Cable clamp ELM4121 | ||||
| 070 | YA00001034 | 1.00 | 1.21 | |
| Grass capture cover EM411 | ||||
| 071 | YA00000993 | 8.40 | 10.16 | |
| Lock ring E5 | ||||
| 072 | YA00000990 | 1.00 | 1.21 | |
| Hinge pin ELM4121 | ||||
| 073 | YA00000991 | 1.20 | 1.45 | |
| Torsion spring 7.7mm | ||||
| 074 | YA00000994 | 1.20 | 1.45 | |
| Cover cap EM411 | ||||
| 075 | YA00001000 | 4.80 | 5.81 | |
| Parker 4x14mm ELM3320 | ||||
| 076 | YA00000794 | 1.00 | 1.21 | |
| Height Adjustment plate ELM4121 | ||||
| 077 | YA00001002 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 078 | YA00000450 | |||
| Nut M5 | ||||
| 079 | YA00000393 | 1.20 | 1.45 | |
| Slotted screw M5x12mm | ||||
| 080 | YA00001032 | 1.00 | 1.21 | |
| Mowing deck ELM4121 | ||||
| 081 | YA00001003 | 105.60 | 127.78 | |
| Engine cover EM411 | ||||
| 082 | YA00001020 | 8.40 | 10.16 | |
| Cover ELM4121 | ||||
| 083 | YA00001021 | 4.80 | 5.81 | |
| Parker 4x16mm ELM3320 | ||||
| 084 | YA00000778 | 1.00 | 1.21 | |
| Parker 4x14mm ELM3320 | ||||
| 085 | YA00000794 | 1.00 | 1.21 | |
| Parker 5x20mm | ||||
| 086 | YA00001030 | 1.00 | 1.21 | |
| Parker 5x20mm | ||||
| 087 | YA00001030 | 1.00 | 1.21 | |
| Belt cover ELM4121 | ||||
| 088 | YA00001015 | 3.60 | 4.36 | |
| Bolt M8x35mm | ||||
| 089 | YA00001016 | 1.00 | 1.21 | |
| Filling washer 16mm | ||||
| 090 | YA00001029 | 1.20 | 1.45 | |
| Knife holder ELM3720 | ||||
| 091 | YA00000890 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 092 | YA00000734 | |||
| Spring washer 8mm ELM3720 | ||||
| 093 | YA00000891 | 1.20 | 1.45 | |
| Tap Bolt M8x25mm | ||||
| 094 | YA00000827 | 1.20 | 1.45 | |
| Rear Wheel Cap ELM4120 | ||||
| 095 | YA00000925 | 4.80 | 5.81 | |
| Insert lock nut M8 | ||||
| 096 | 652023843 | 1.00 | 1.21 | |
| Washer 8mm ELM3320 | ||||
| 097 | YA00000420 | 1.20 | 1.45 | |
| Rear Wheel ELM4120 | ||||
| 098 | YA00000926 | 8.40 | 10.16 | |
| Height adjustment handle ELM4121 | ||||
| 099 | YA00000989 | 3.60 | 4.36 | |
| Met.Screw M4X12Mm | ||||
| 100 | YA00000988 | 1.00 | 1.21 | |
| Height adjustment lever ELM4121 | ||||
| 101 | YA00000987 | 3.60 | 4.36 | |
| Nut bolt M5x16mm | ||||
| 102 | YA00000407 | 3.60 | 4.36 | |
| Nut bolt M5x16mm | ||||
| 103 | YA00000407 | 3.60 | 4.36 | |
| Spring height adjustment ELM4121 | ||||
| 104 | YA00000986 | 2.40 | 2.90 | |
| Nut M5 | ||||
| 105 | YA00000393 | 1.20 | 1.45 | |
| Rear axle ELM4121 | ||||
| 106 | YA00000985 | 16.50 | 19.96 | |
| Nut M5 | ||||
| 107 | YA00000393 | 1.20 | 1.45 | |
| Locking pin 7mm ELM3320 | ||||
| 108 | YA00000851 | 1.00 | 1.21 | |
| Connecting shaft ELM4121 | ||||
| 109 | YA00001017 | 8.40 | 10.16 | |
| Pin 7mm | ||||
| 110 | YA00001018 | 1.00 | 1.21 | |
| Wheel cap for ELM4121 | ||||
| 111 | YA00001022 | 4.80 | 5.81 | |
| Insert lock nut M8 | ||||
| 112 | 652023843 | 1.00 | 1.21 | |
| Washer 8mm ELM3320 | ||||
| 113 | YA00000420 | 1.20 | 1.45 | |
| Wheel for ELM4121 | ||||
| 114 | YA00001023 | 6.00 | 7.26 | |
| Front Axle ELM4120 | ||||
| 115 | YA00000954 | 10.80 | 13.07 | |
| Front axle mounting A ELM4121 | ||||
| 116 | YA00001026 | 1.20 | 1.45 | |
| Front axle mounting B ELM4121 | ||||
| 117 | YA00001025 | 1.20 | 1.45 | |
| Spring height adjustment ELM4121 | ||||
| 118 | YA00001027 | 1.20 | 1.45 | |
| Locking pin 7mm ELM3320 | ||||
| 119 | YA00000851 | 1.00 | 1.21 | |
| Pin 7mm | ||||
| 120 | YA00001018 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 121 | YA00000963 | |||
| Grass catch bag EM411 | ||||
| 122 | YA00000965 | 28.60 | 34.61 | |
| Grass catch bin indicator EM331 | ||||
| 123 | YA00000792 | 1.20 | 1.45 | |
| Grass catch bag cover ELM4121 | ||||
| 124 | YA00000966 | 14.30 | 17.30 | |
| Grass catch handle | ||||
| 125 | YA00000795 | 2.40 | 2.90 | |
| Parker 4x14mm ELM3320 | ||||
| 126 | YA00000794 | 1.00 | 1.21 | |
| Grass catch bag frame ELM4121 | ||||
| 127 | YA00000968 | 8.40 | 10.16 | |
| Rivet 4mm | ||||
| 128 | YA00000967 | 1.00 | 1.21 | |
| Parker 4x14mm ELM3320 | ||||
| 129 | YA00000794 | 1.00 | 1.21 | |
| Mulch plug assy | ||||
| 130 | YA00000978 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 131 | YA00000979 | |||
| Mulch closure ELM4121 | ||||
| 132 | YA00000980 | 1.20 | 1.45 | |
| Compression spring for mulchplug ELM4121 | ||||
| 133 | YA00000981 | 1.00 | 1.21 | |
| Locking ring for mulchplug ELM4121 | ||||
| 134 | YA00000982 | 1.20 | 1.45 | |
| Parker 4x16mm ELM3320 | ||||
| 135 | YA00000778 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 136 | YA00000798 | |||
