Here you will find all available parts and drawings of the 'Makita ELM4620'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

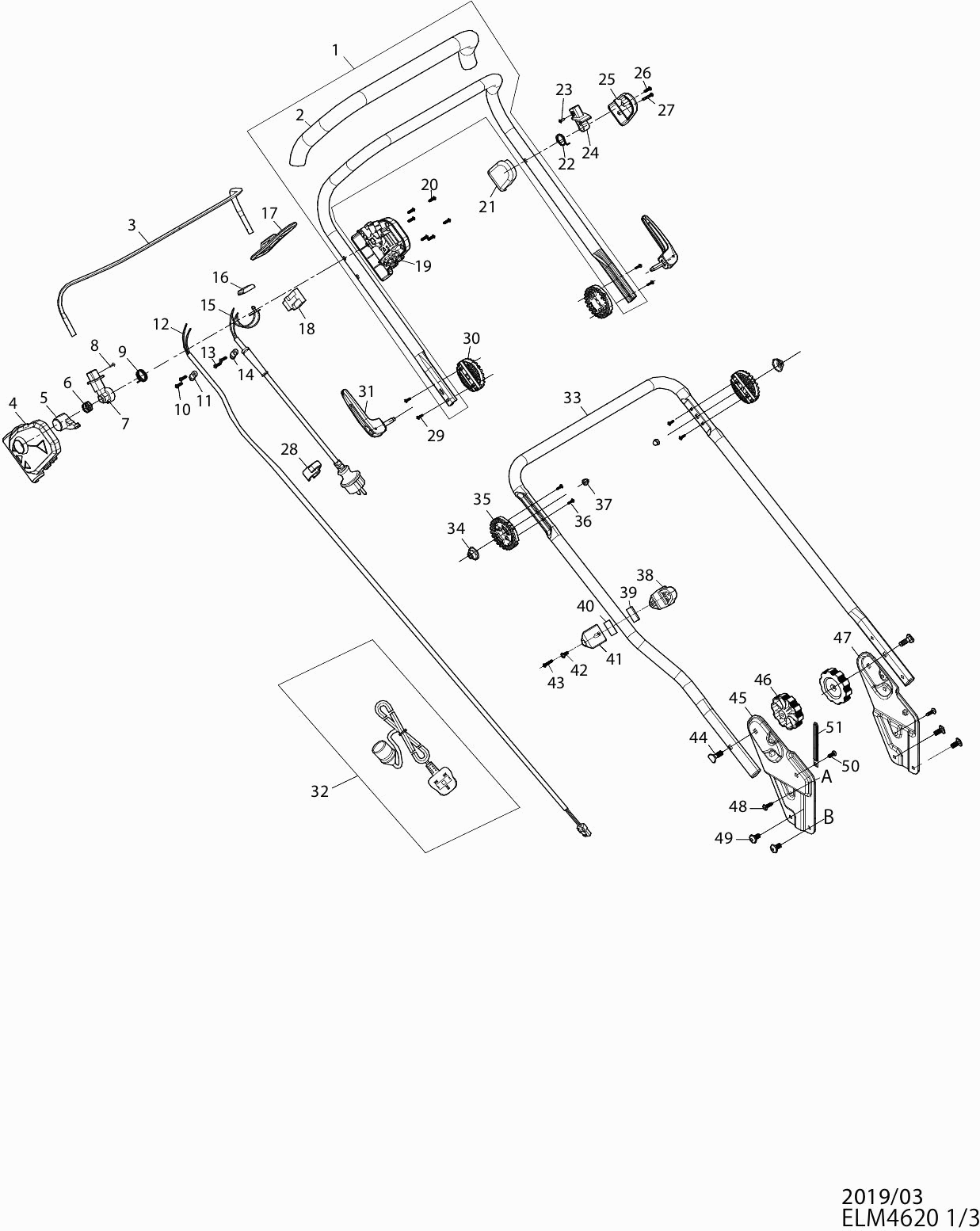

Technical drawing of model Makita ELM4620
Spare parts list of model Makita ELM4620
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Push rod upper EM463S | ||||
| 001 | YA00001159 | 27.90 | 33.76 | |
| Softgrip EM463S | ||||
| 002 | YA00001185 | 6.41 | 7.76 | |
| Switch lever EM463S | ||||
| 003 | YA00001160 | 7.21 | 8.72 | |
| Switch box R ELM3320 | ||||
| 004 | YA00000765 | 2.40 | 2.90 | |
| Push button ELM3320 | ||||
| 005 | YA00000766 | 1.20 | 1.45 | |
| Compression spring 16.8 ELM3320 | ||||
| 006 | YA00000767 | 1.00 | 1.21 | |
| End cap R ELM3320 | ||||
| 007 | YA00000768 | 1.20 | 1.45 | |
| Parker Screw 3,5X10Mm Ev3618 | ||||
| 008 | 652024721 | 1.00 | 1.21 | |
| Torsion spring 21 ELM3320 | ||||
| 009 | YA00000769 | 1.00 | 1.21 | |
| Parker 4x16mm ELM3320 | ||||
| 010 | YA00000778 | 1.00 | 1.21 | |
| Cable clamp ELM3320 | ||||
| 011 | YA00000780 | 1.00 | 1.21 | |
| Connection cord EM463S | ||||
| 012 | YA00001038 | 4.80 | 5.81 | |
| Parker 4x16mm ELM3320 | ||||
| 013 | YA00000778 | 1.00 | 1.21 | |
| Cable clamp ELM3320 | ||||
| 014 | YA00000780 | 1.00 | 1.21 | |
| Wire harness assy EUR ELM3320 | ||||
| 015 | YA00000773 | 13.20 | 15.97 | |
| Lens indicator ELM3320 | ||||
| 016 | YA00000781 | 1.20 | 1.45 | |
| Cable holder ELM3320 | ||||
| 017 | 652023811 | 2.40 | 2.90 | |
| Switch ELM3320 | ||||
| 018 | YA00000772 | 3.60 | 4.36 | |
| Switch box L ELM3320 | ||||
| 019 | YA00000782 | 2.40 | 2.90 | |
| Parker 4x16mm ELM3320 | ||||
| 020 | YA00000778 | 1.00 | 1.21 | |
| Support for right handle | ||||
| 021 | 652023795 | 2.40 | 2.90 | |
| Torsion spring 18.3 ELM3320 | ||||
| 022 | YA00000737 | 1.20 | 1.45 | |
| Parker Screw 3,5X10Mm Ev3618 | ||||
| 023 | 652024721 | 1.00 | 1.21 | |
| Plug for left lever | ||||
| 024 | 652023794 | 7.20 | 8.71 | |
| Support for left lever | ||||
| 025 | 652023793 | 2.40 | 2.90 | |
| Parker 4x16mm ELM3320 | ||||
| 026 | YA00000778 | 1.00 | 1.21 | |
| Parker 4x25mm ELM3320 | ||||
| 027 | YA00000785 | 1.00 | 1.21 | |
| Cable clamp ELM4120 | ||||
| 028 | YA00000921 | 1.00 | 1.21 | |
| Met.Screw 3X12mm ELM4121 | ||||
| 029 | YA00000960 | 1.00 | 1.21 | |
| Connecting ring ELM4121 | ||||
| 030 | YA00000961 | 1.20 | 1.45 | |
| Clamp lever ELM4121 | ||||
| 031 | YA00000975 | 7.20 | 8.71 | |
| Lower push bar EM463S | ||||
| 033 | YA00001046 | 17.60 | 21.30 | |
| Conical spring ELM4121 | ||||
| 034 | YA00000976 | 1.20 | 1.45 | |
| Connecting ring ELM4121 | ||||
| 035 | YA00000977 | 1.20 | 1.45 | |
| Met.Screw 3X12mm ELM4121 | ||||
| 036 | YA00000960 | 1.00 | 1.21 | |
| Nut cap ELM3320 | ||||
| 037 | YA00000802 | 1.00 | 1.21 | |
| Cable guide ELM4121 | ||||
| 038 | YA00000970 | 1.20 | 1.45 | |
| Rubber cladding ELM4121 | ||||
| 039 | YA00000971 | 1.00 | 1.21 | |
| Rubber cladding ELM4121 | ||||
| 040 | YA00000971 | 1.00 | 1.21 | |
| Cable clamp ELM4121 | ||||
| 041 | YA00000972 | 1.20 | 1.45 | |
| Parker 4X12Mm ELM3720 | ||||
| 042 | YA00000873 | 1.00 | 1.21 | |
| Parker 3x16mm ELM4121 | ||||
| 043 | YA00000973 | 1.00 | 1.21 | |
| Bolt M8x40 flat 4k-head ELM4121 | ||||
| 044 | YA00000983 | 1.00 | 1.21 | |
| Handle Support R EM463S | ||||
| 045 | YA00001060 | 10.80 | 13.07 | |
| Adjustment knob M8 ELM3320 | ||||
| 046 | YA00000803 | 1.20 | 1.45 | |
| Handle Support L EM463S | ||||
| 047 | YA00001063 | 11.00 | 13.31 | |
| Parker 4x16mm ELM3320 | ||||
| 048 | YA00000778 | 1.00 | 1.21 | |
| Screw M8x16mm | ||||
| 049 | YA00000995 | 1.20 | 1.45 | |
| Met.screw M6x18mm ELM4121 | ||||
| 050 | YA00000998 | 1.00 | 1.21 | |
| Cable clamp ELM4121 | ||||
| 051 | YA00000997 | 1.20 | 1.45 | |
| Metal screw M5x16mm EM463S | ||||
| 052 | 652023758 | 1.00 | 1.21 | |
| Motor cover cap BLW ELM4620 | ||||
| 053 | YA00001070 | 11.00 | 13.31 | |
| Cover cap M Elm4620 | ||||
| 054 | YA00001072 | 13.20 | 15.97 | |
| Parker 5x16mm ELM3320 | ||||
| 055 | YA00000820 | 1.00 | 1.21 | |
| Metal screw M5x16mm EM463S | ||||
| 056 | 652023758 | 1.00 | 1.21 | |
| Parker 4x16mm ELM3320 | ||||
| 057 | YA00000778 | 1.00 | 1.21 | |
| Motorhouse TOP EM463S | ||||
| 058 | YA00001140 | 6.41 | 7.76 | |
| Retaining ring S17 EM463S | ||||
| 059 | YA00001096 | 1.00 | 1.21 | |
| Motor fan EM463S | ||||
| 060 | YA00001097 | 4.80 | 5.81 | |
| Motor assembly 50Hz 230V EM463S | ||||
| 061 | YA00001074 | 223.30 | 270.19 | |
| Capacitor 25mF 500V EM463S | ||||
| 062 | YA00001099 | 8.40 | 10.16 | |
| Parker 4x16mm ELM3320 | ||||
| 063 | YA00000778 | 1.00 | 1.21 | |
| Cord Clamp | ||||
| 064 | 652023752 | 1.20 | 1.45 | |
| Insert lock nut M8 | ||||
| 065 | 652023843 | 1.00 | 1.21 | |
| Base plate of motor housing EM463S | ||||
| 066 | YA00001075 | 14.30 | 17.30 | |
| Screw M8x16mm | ||||
| 067 | YA00000995 | 1.20 | 1.45 | |
| Lock ring E5 | ||||
| 068 | YA00000990 | 1.00 | 1.21 | |
| Axis 46Cm Plm4620 | ||||
| 069 | YA00001057 | 2.40 | 2.90 | |
| Ejection Lid ELM4620 | ||||
| 070 | YA00001058 | 8.40 | 10.16 | |
| Torsion spring 7.7mm | ||||
| 071 | YA00000994 | 1.20 | 1.45 | |
| Parker 4x16mm ELM3320 | ||||
| 072 | YA00000778 | 1.00 | 1.21 | |
| Rear Cover Base ELM4620 | ||||
| 073 | YA00001061 | 4.80 | 5.81 | |
| Mounting board EM463S | ||||
| 074 | YA00001089 | 2.40 | 2.90 | |
| Parker 4x16mm ELM3320 | ||||
| 075 | YA00000778 | 1.00 | 1.21 | |
| Metal screw M5x16mm EM463S | ||||
| 076 | 652023758 | 1.00 | 1.21 | |
| Height Plate EM463S | ||||
| 077 | YA00001064 | 2.40 | 2.90 | |
| Mowing Deck 46Cm Elm4620 | ||||
| 078 | YA00001065 | 117.70 | 142.42 | |
| Ejection guide side EM463S | ||||
| 079 | YA00001090 | 4.80 | 5.81 | |
| Ejection cover side EM463S | ||||
| 080 | YA00001092 | 10.80 | 13.07 | |
| Parker 5x12mm EM463S | ||||
| 081 | YA00001091 | 1.00 | 1.21 | |
| Parker 4x10mm EM463S | ||||
| 082 | YA00001031 | 1.00 | 1.21 | |
| Parker 5x20mm EM463S | ||||
| 083 | YA00001024 | 1.00 | 1.21 | |
| Parker 5x16mm ELM3320 | ||||
| 084 | YA00000820 | 1.00 | 1.21 | |
| Front Axle Cover ELM4620 | ||||
| 085 | YA00001079 | 9.60 | 11.62 | |
| Front Axle Cover EM463S | ||||
| 086 | YA00001080 | 6.00 | 7.26 | |
| Parker 4x16mm ELM3320 | ||||
| 087 | YA00000778 | 1.00 | 1.21 | |
| Allen bolt M8x35mm EM463S | ||||
| 088 | YA00001076 | 1.20 | 1.45 | |
| Retaining ring S17 EM463S | ||||
| 089 | YA00001096 | 1.00 | 1.21 | |
| Spacer Elm4620 | ||||
| 090 | YA00001093 | 2.40 | 2.90 | |
| Key Elm4620 | ||||
| 091 | YA00001098 | 1.00 | 1.21 | |
| Fan circle knife EM463S | ||||
| 092 | YA00001094 | 4.80 | 5.81 | |
| Lower fan cover EM463S | ||||
| 093 | YA00001095 | 6.00 | 7.26 | |
| Parker 4x16mm ELM3320 | ||||
| 094 | YA00000778 | 1.00 | 1.21 | |
| Blade Supporter EM463S | ||||
| 095 | YA00001066 | 3.60 | 4.36 | |
| CIRKELMES 46CM EM463S A | ||||
| 096 | YA00000741 | 20.90 | 25.29 | |
| Bolt for circular saw blade M10x30mm | ||||
| 097 | YA00001067 | 2.40 | 2.90 | |
| Rear wheel cap EM463S | ||||
| 098 | YA00001049 | 4.80 | 5.81 | |
| Insert lock nut M8 | ||||
| 099 | 652023843 | 1.00 | 1.21 | |
| Washer 8mm ELM3320 | ||||
| 100 | YA00000420 | 1.20 | 1.45 | |
| Wheel bearing ID12 rear EM463S | ||||
| 101 | YA00001186 | 1.39 | 1.68 | |
| Rear wheel EM463S | ||||
| 102 | YA00001050 | 19.80 | 23.96 | |
| Wheel bearing ID12 rear EM463S | ||||
| 103 | YA00001186 | 1.39 | 1.68 | |
| Rear wheel hub EM463S | ||||
| 104 | YA00001088 | 1.20 | 1.45 | |
| Rear axle EM463S A | ||||
| 105 | YA00001115 | 17.38 | 21.03 | |
| Height adjustment handle ELM4121 | ||||
| 106 | YA00000989 | 3.60 | 4.36 | |
| Met.Screw M4X12Mm | ||||
| 107 | YA00000988 | 1.00 | 1.21 | |
| Height adjustment handle EM463S | ||||
| 108 | YA00001053 | 3.60 | 4.36 | |
| Nut bolt M5x16mm | ||||
| 109 | YA00000407 | 3.60 | 4.36 | |
| Nut bolt M5x16mm | ||||
| 110 | YA00000407 | 3.60 | 4.36 | |
| Spring height adjustment ELM4121 | ||||
| 111 | YA00000986 | 2.40 | 2.90 | |
| Nut M5 | ||||
| 112 | YA00000393 | 1.20 | 1.45 | |
| Nut M5 | ||||
| 113 | YA00000393 | 1.20 | 1.45 | |
| Screw 5X12mm ELM4620 | ||||
| 114 | YA00001086 | 1.00 | 1.21 | |
| Mounting plate Elm4620 | ||||
| 115 | YA00001087 | 2.40 | 2.90 | |
| Parker 3X14mm ELM4620 | ||||
| 116 | YA00001054 | 1.00 | 1.21 | |
| Mounting plate Elm4620 | ||||
| 117 | YA00001055 | 1.20 | 1.45 | |
| Mounting plate Elm4620 | ||||
| 118 | YA00001056 | 1.20 | 1.45 | |
| Locking pin 7mm ELM3320 | ||||
| 119 | YA00000851 | 1.00 | 1.21 | |
| Pin 7mm | ||||
| 120 | YA00001018 | 1.00 | 1.21 | |
| Connection shaft Elm4620 | ||||
| 121 | YA00001077 | 9.60 | 11.62 | |
| Front Wheel Cap EM463S | ||||
| 122 | YA00001081 | 3.60 | 4.36 | |
| Insert lock nut M8 | ||||
| 123 | 652023843 | 1.00 | 1.21 | |
| Washer 8mm ELM3320 | ||||
| 124 | YA00000420 | 1.20 | 1.45 | |
| Nylon bearing EM463S | ||||
| 125 | YA00001100 | 1.00 | 1.21 | |
| Front Wheel EM463S | ||||
| 126 | YA00001082 | 16.50 | 19.96 | |
| Nylon bearing EM463S | ||||
| 127 | YA00001100 | 1.00 | 1.21 | |
| Front axle EM463S | ||||
| 128 | YA00001085 | 16.50 | 19.96 | |
| Front Axle Mounting Cap EM463S | ||||
| 129 | YA00001083 | 1.20 | 1.45 | |
| Front axle mounting B ELM4121 | ||||
| 130 | YA00001025 | 1.20 | 1.45 | |
| Height adjustment spring EM463S | ||||
| 131 | YA00001084 | 2.40 | 2.90 | |
| Locking pin 7mm ELM3320 | ||||
| 132 | YA00000851 | 1.00 | 1.21 | |
| Pin 7mm | ||||
| 133 | YA00001018 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 134 | YA00001039 | |||
| Collection bag ELM4620 | ||||
| 135 | YA00001041 | 34.10 | 41.26 | |
| Grass catch bin indicator ELM3320 | ||||
| 136 | YA00000791 | 1.00 | 1.21 | |
| Collection bag cover EM463S | ||||
| 137 | YA00001043 | 14.30 | 17.30 | |
| Grass catch handle | ||||
| 138 | YA00000795 | 2.40 | 2.90 | |
| Parker 4x16mm ELM3320 | ||||
| 139 | YA00000778 | 1.00 | 1.21 | |
| Mounting plate Elm4121 | ||||
| 140 | YA00001044 | 8.40 | 10.16 | |
| Washer 4mm ELM3320 | ||||
| 141 | YA00000796 | 1.00 | 1.21 | |
| Parker 4x16mm ELM3320 | ||||
| 142 | YA00000778 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 143 | YA00001047 | |||
| No information available, not orderable | ||||
| 144 | YA00001048 | |||
| Mulch closure ELM4121 | ||||
| 145 | YA00000980 | 1.20 | 1.45 | |
| Compression spring for mulchplug ELM4121 | ||||
| 146 | YA00000981 | 1.00 | 1.21 | |
| Locking ring for mulchplug ELM4121 | ||||
| 147 | YA00000982 | 1.20 | 1.45 | |
| Parker 4x16mm ELM3320 | ||||
| 148 | YA00000778 | 1.00 | 1.21 | |
| Wrench 10-27mm EM463S | ||||
| 149 | YA00001045 | 2.40 | 2.90 | |
