Here you will find all available parts and drawings of the 'Makita ELM3720'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

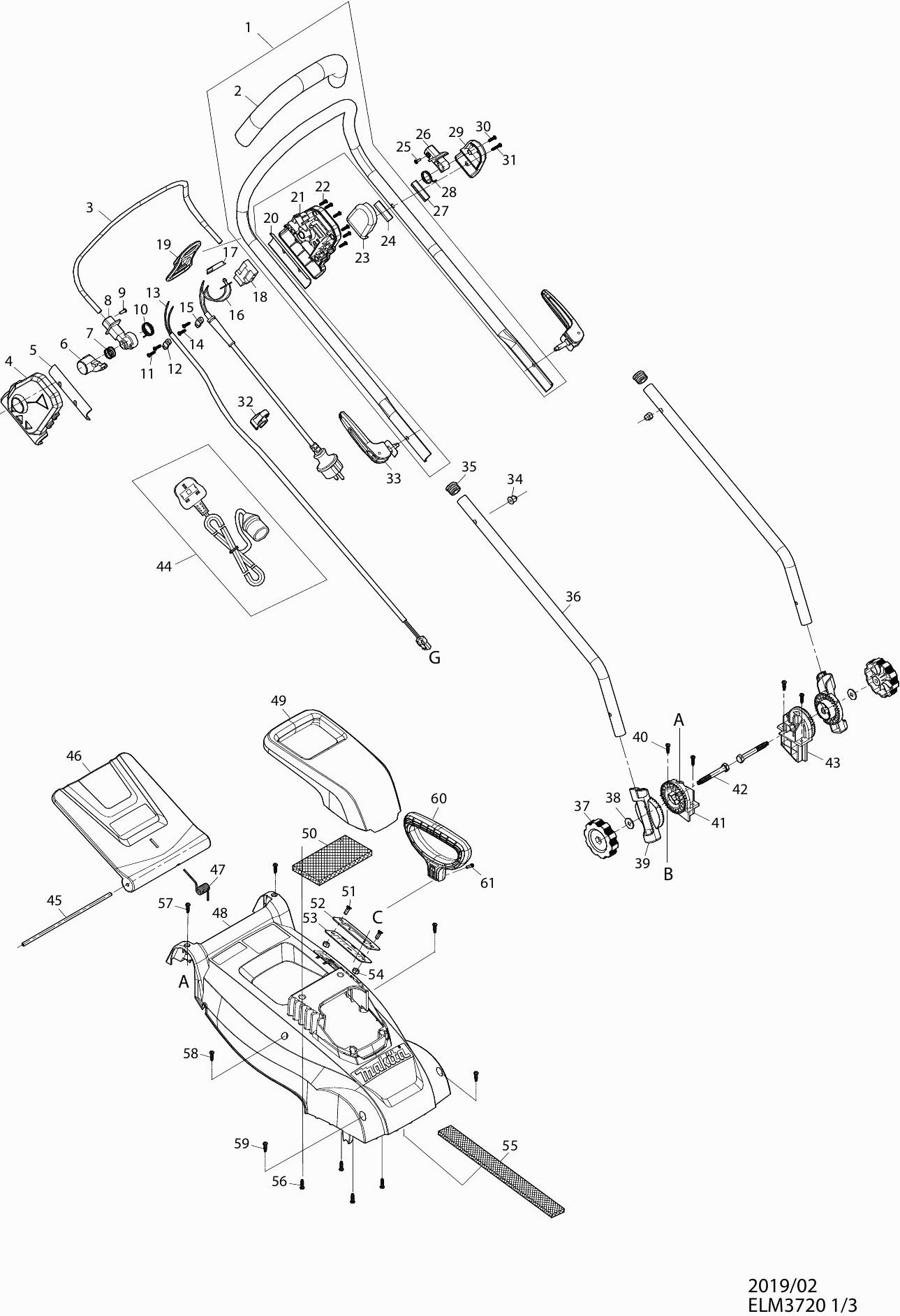

Technical drawing of model Makita ELM3720
Spare parts list of model Makita ELM3720
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Push rod (Top) ELM3320 | ||||
| 001 | YA00000866 | 23.10 | 27.95 | |
| Handle cap ELM3720 | ||||
| 002 | YA00001175 | 2.71 | 3.28 | |
| Switch handle ELM3720 | ||||
| 003 | YA00000867 | 6.00 | 7.26 | |
| Switch box R ELM3320 | ||||
| 004 | YA00000765 | 2.40 | 2.90 | |
| Intermediate Plate ELM3320 | ||||
| 005 | YA00000786 | 1.20 | 1.45 | |
| Push button ELM3320 | ||||
| 006 | YA00000766 | 1.20 | 1.45 | |
| Compression spring 16.8 ELM3320 | ||||
| 007 | YA00000767 | 1.00 | 1.21 | |
| End cap R ELM3320 | ||||
| 008 | YA00000768 | 1.20 | 1.45 | |
| Parker Screw 3,5X10Mm Ev3618 | ||||
| 009 | 652024721 | 1.00 | 1.21 | |
| Torsion spring 21 ELM3320 | ||||
| 010 | YA00000769 | 1.00 | 1.21 | |
| Parker 4x16mm ELM3320 | ||||
| 011 | YA00000778 | 1.00 | 1.21 | |
| Cable clamp ELM3320 | ||||
| 012 | YA00000780 | 1.00 | 1.21 | |
| Control cable ELM3320 | ||||
| 013 | YA00000771 | 4.80 | 5.81 | |
| Parker 4x16mm ELM3320 | ||||
| 014 | YA00000778 | 1.00 | 1.21 | |
| Cable clamp ELM3320 | ||||
| 015 | YA00000780 | 1.00 | 1.21 | |
| Wire harness assy EUR ELM3320 | ||||
| 016 | YA00000773 | 13.20 | 15.97 | |
| Lens indicator ELM3320 | ||||
| 017 | YA00000781 | 1.20 | 1.45 | |
| Switch ELM3320 | ||||
| 018 | YA00000772 | 3.60 | 4.36 | |
| Cable holder ELM3320 | ||||
| 019 | 652023811 | 2.40 | 2.90 | |
| Intermediate Plate ELM3320 | ||||
| 020 | YA00000786 | 1.20 | 1.45 | |
| Switch box L ELM3320 | ||||
| 021 | YA00000782 | 2.40 | 2.90 | |
| Parker 4x16mm ELM3320 | ||||
| 022 | YA00000778 | 1.00 | 1.21 | |
| Support for right handle | ||||
| 023 | 652023795 | 2.40 | 2.90 | |
| Intermediate Plate ELM3320 | ||||
| 024 | YA00000787 | 1.00 | 1.21 | |
| Parker Screw 3,5X10Mm Ev3618 | ||||
| 025 | 652024721 | 1.00 | 1.21 | |
| Plug for left lever | ||||
| 026 | 652023794 | 7.20 | 8.71 | |
| Torsion spring 18.3 ELM3320 | ||||
| 027 | YA00000737 | 1.20 | 1.45 | |
| Intermediate Plate ELM3320 | ||||
| 028 | YA00000787 | 1.00 | 1.21 | |
| Support for left lever | ||||
| 029 | 652023793 | 2.40 | 2.90 | |
| Parker 4x16mm ELM3320 | ||||
| 030 | YA00000778 | 1.00 | 1.21 | |
| Parker 4x25mm ELM3320 | ||||
| 031 | YA00000785 | 1.00 | 1.21 | |
| Cable clip ELM3320 | ||||
| 032 | YA00000799 | 1.20 | 1.45 | |
| Clamp handle ELM3320 | ||||
| 033 | YA00000801 | 2.40 | 2.90 | |
| Nut cap ELM3320 | ||||
| 034 | YA00000802 | 1.00 | 1.21 | |
| Impact cap ELM3320 | ||||
| 035 | YA00001166 | 0.83 | 1.00 | |
| Push handle (lower) ELM3320 | ||||
| 036 | YA00001167 | 6.41 | 7.76 | |
| Adjustment knob M8 ELM3320 | ||||
| 037 | YA00000803 | 1.20 | 1.45 | |
| Washer 8mm ELM3320 | ||||
| 038 | YA00000420 | 1.20 | 1.45 | |
| Connecting ring ELM3320 | ||||
| 039 | YA00000804 | 2.40 | 2.90 | |
| Parker 5x20mm ELM3320 | ||||
| 040 | YA00000806 | 1.00 | 1.21 | |
| Connecting ring R ELM3320 | ||||
| 041 | YA00000875 | 2.40 | 2.90 | |
| Hex bolt M8x65mm | ||||
| 042 | YA00000807 | 1.20 | 1.45 | |
| Connecting ring L ELM3320 | ||||
| 043 | YA00000876 | 2.40 | 2.90 | |
| Shaft for ejection cover ELM3720 | ||||
| 045 | YA00000894 | 1.20 | 1.45 | |
| Ejection cover ELM3720 | ||||
| 046 | YA00000895 | 4.80 | 5.81 | |
| Torsion spring 7.7 ELM3320 | ||||
| 047 | YA00000831 | 1.00 | 1.21 | |
| Housing ELM3720 | ||||
| 048 | YA00000901 | 19.80 | 23.96 | |
| Housing cover ELM3720 | ||||
| 049 | YA00000897 | 4.80 | 5.81 | |
| Protective cushion ELM3320 | ||||
| 050 | YA00000841 | 1.20 | 1.45 | |
| Met.screw M5x14mm ELM3320 | ||||
| 050 | YA00000398 | 1.20 | 1.45 | |
| Height adjustment plate ELM3720 | ||||
| 051 | YA00000898 | 2.40 | 2.90 | |
| Met.screw M5x14mm ELM3320 | ||||
| 051 | YA00000398 | 1.20 | 1.45 | |
| Height adjustment plate ELM3720 | ||||
| 052 | YA00000898 | 2.40 | 2.90 | |
| Stop plate ELM3720 | ||||
| 052 | YA00000899 | 2.40 | 2.90 | |
| Stop plate ELM3720 | ||||
| 053 | YA00000899 | 2.40 | 2.90 | |
| Insert lock nut M5 ELM3320 | ||||
| 053 | YA00000837 | 1.00 | 1.21 | |
| Protective cushion ELM3320 | ||||
| 054 | YA00000841 | 1.20 | 1.45 | |
| Insert lock nut M5 ELM3320 | ||||
| 054 | YA00000837 | 1.00 | 1.21 | |
| Bumper ELM3320 | ||||
| 055 | YA00000840 | 1.20 | 1.45 | |
| Parker 5x16mm ELM3320 | ||||
| 056 | YA00000820 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 057 | YA00000821 | |||
| No information available, not orderable | ||||
| 058 | YA00000821 | |||
| No information available, not orderable | ||||
| 059 | YA00000821 | |||
| Height adjustment handle ELM3320 | ||||
| 060 | YA00000848 | 3.60 | 4.36 | |
| Met. screw M4x10mm ELM3320 | ||||
| 061 | YA00000849 | 1.00 | 1.21 | |
| Motor 230V ELM3720 | ||||
| 062 | YA00001176 | 92.17 | 111.53 | |
| Parker 4x10mm ELM3320 | ||||
| 063 | YA00000813 | 1.00 | 1.21 | |
| Carbon brush set ELM3320 | ||||
| 064 | YA00000814 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 065 | YA00001174 | |||
| No information available, not orderable | ||||
| 066 | YA00001173 | |||
| Wire harness ELM3720 | ||||
| 067 | YA00001181 | 5.71 | 6.91 | |
| Motor mount ELM4120 | ||||
| 068 | YA00001178 | 12.22 | 14.79 | |
| Parker 5x20mm ELM3320 | ||||
| 069 | YA00000806 | 1.00 | 1.21 | |
| V-belt ELM4120 | ||||
| 070 | YA00001180 | 7.21 | 8.72 | |
| Parker 5x20mm ELM3320 | ||||
| 071 | YA00000806 | 1.00 | 1.21 | |
| V-Belt cover ELM3720 | ||||
| 072 | YA00001179 | 7.22 | 8.74 | |
| Parker 5x20mm ELM3320 | ||||
| 073 | YA00000806 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 074 | YA00000821 | |||
| Cable clamp ELM3320 | ||||
| 075 | YA00000780 | 1.00 | 1.21 | |
| Fill buffer ELM3720 | ||||
| 076 | YA00000884 | 1.20 | 1.45 | |
| Mowing deck ELM3720 | ||||
| 077 | YA00000881 | 28.60 | 34.61 | |
| Fill buffer ELM3720 | ||||
| 078 | YA00000882 | 1.20 | 1.45 | |
| Fill buffer ELM3720 | ||||
| 079 | YA00000883 | 1.20 | 1.45 | |
| Fill buffer ELM3720 | ||||
| 080 | YA00000885 | 1.20 | 1.45 | |
| Parker 5x20mm ELM3320 | ||||
| 081 | YA00000806 | 1.00 | 1.21 | |
| Grass catch guide plate ELM3720 | ||||
| 082 | YA00000887 | 1.20 | 1.45 | |
| Parker 5x16mm ELM3320 | ||||
| 083 | YA00000820 | 1.00 | 1.21 | |
| Reinforcement plate re ELM3720 | ||||
| 084 | YA00000888 | 3.60 | 4.36 | |
| Parker 5x16mm ELM3320 | ||||
| 085 | YA00000820 | 1.00 | 1.21 | |
| Air intake board RE ELM3720 | ||||
| 086 | YA00000889 | 1.20 | 1.45 | |
| Parker 5x16mm ELM3320 | ||||
| 087 | YA00000820 | 1.00 | 1.21 | |
| Reinforcement plate Li ELM3720 | ||||
| 088 | YA00000904 | 2.40 | 2.90 | |
| Parker 5x16mm ELM3320 | ||||
| 089 | YA00000820 | 1.00 | 1.21 | |
| Air intake plate li ELM3720 | ||||
| 090 | YA00000905 | 1.20 | 1.45 | |
| Parker 5x16mm ELM3320 | ||||
| 091 | YA00000820 | 1.00 | 1.21 | |
| Filling ring ELM3720 | ||||
| 092 | YA00000910 | 1.00 | 1.21 | |
| Knife holder ELM3720 | ||||
| 093 | YA00000890 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 094 | YA00000732 | |||
| Spring washer 8mm ELM3720 | ||||
| 095 | YA00000891 | 1.20 | 1.45 | |
| Tap Bolt M8x25mm | ||||
| 096 | YA00000827 | 1.20 | 1.45 | |
| Rear hubcap ELM3320 | ||||
| 097 | YA00000809 | 3.60 | 4.36 | |
| Insert lock nut M8 | ||||
| 098 | 652023843 | 1.00 | 1.21 | |
| Washer 8mm ELM3320 | ||||
| 099 | YA00000420 | 1.20 | 1.45 | |
| Rear wheel 200mm ELM3320 | ||||
| 100 | YA00000810 | 3.60 | 4.36 | |
| Rear axle ELM3320 | ||||
| 101 | YA00000812 | 8.40 | 10.16 | |
| Mounting plate for axle ELM3320 | ||||
| 102 | YA00000811 | 1.00 | 1.21 | |
| Parker 5x16mm ELM3320 | ||||
| 103 | YA00000820 | 1.00 | 1.21 | |
| Allen Bolt M6x16mm | ||||
| 104 | YA00000843 | 1.00 | 1.21 | |
| Parker 5x16mm ELM3320 | ||||
| 105 | YA00000820 | 1.00 | 1.21 | |
| Washer 5mm ELM3320 | ||||
| 106 | YA00000845 | 1.00 | 1.21 | |
| Pull spring 11 ELM3720 | ||||
| 107 | YA00000903 | 1.20 | 1.45 | |
| Lock Nut M6 | ||||
| 108 | YA00000627 | 1.00 | 1.21 | |
| Connecting rod ELM3720 | ||||
| 109 | YA00000902 | 8.40 | 10.16 | |
| Pressure spring 8 ELM3720 | ||||
| 110 | YA00000907 | 1.20 | 1.45 | |
| Locking pin 7mm ELM3320 | ||||
| 111 | YA00000851 | 1.00 | 1.21 | |
| Height adjustment ELM3720 | ||||
| 112 | YA00000906 | 2.40 | 2.90 | |
| Hubcap for ELM3320 | ||||
| 113 | YA00000853 | 3.60 | 4.36 | |
| Insert lock nut M8 | ||||
| 114 | 652023843 | 1.00 | 1.21 | |
| Washer 8mm ELM3320 | ||||
| 115 | YA00000420 | 1.20 | 1.45 | |
| Front wheel 200mm ELM3320 | ||||
| 116 | YA00000854 | 3.60 | 4.36 | |
| Front axle ELM3720 | ||||
| 117 | YA00000908 | 10.80 | 13.07 | |
| Locking ring ELM33720 | ||||
| 118 | YA00000909 | 1.00 | 1.21 | |
| Parker 5x16mm ELM3320 | ||||
| 119 | YA00000820 | 1.00 | 1.21 | |
| Lock Nut M6 | ||||
| 120 | YA00000627 | 1.00 | 1.21 | |
| Allen Bolt M6x16mm | ||||
| 121 | YA00000843 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 122 | YA00000869 | |||
| No information available, not orderable | ||||
| 123 | YA00000870 | |||
| Grass catch bin indicator ELM3320 | ||||
| 124 | YA00000791 | 1.00 | 1.21 | |
| Grass catcher cover ELM3720 | ||||
| 125 | YA00000872 | 13.20 | 15.97 | |
| Grass catch handle | ||||
| 126 | YA00000795 | 2.40 | 2.90 | |
| Parker 4X12Mm ELM3720 | ||||
| 127 | YA00000873 | 1.00 | 1.21 | |
| Grass catcher frame ELM3720 | ||||
| 128 | YA00000874 | 6.00 | 7.26 | |
| Washer 4mm ELM3320 | ||||
| 129 | YA00000796 | 1.00 | 1.21 | |
| Parker 4X12Mm ELM3720 | ||||
| 130 | YA00000873 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 131 | YA00000798 | |||
