Here you will find all available parts and drawings of the 'Makita ELM3710'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

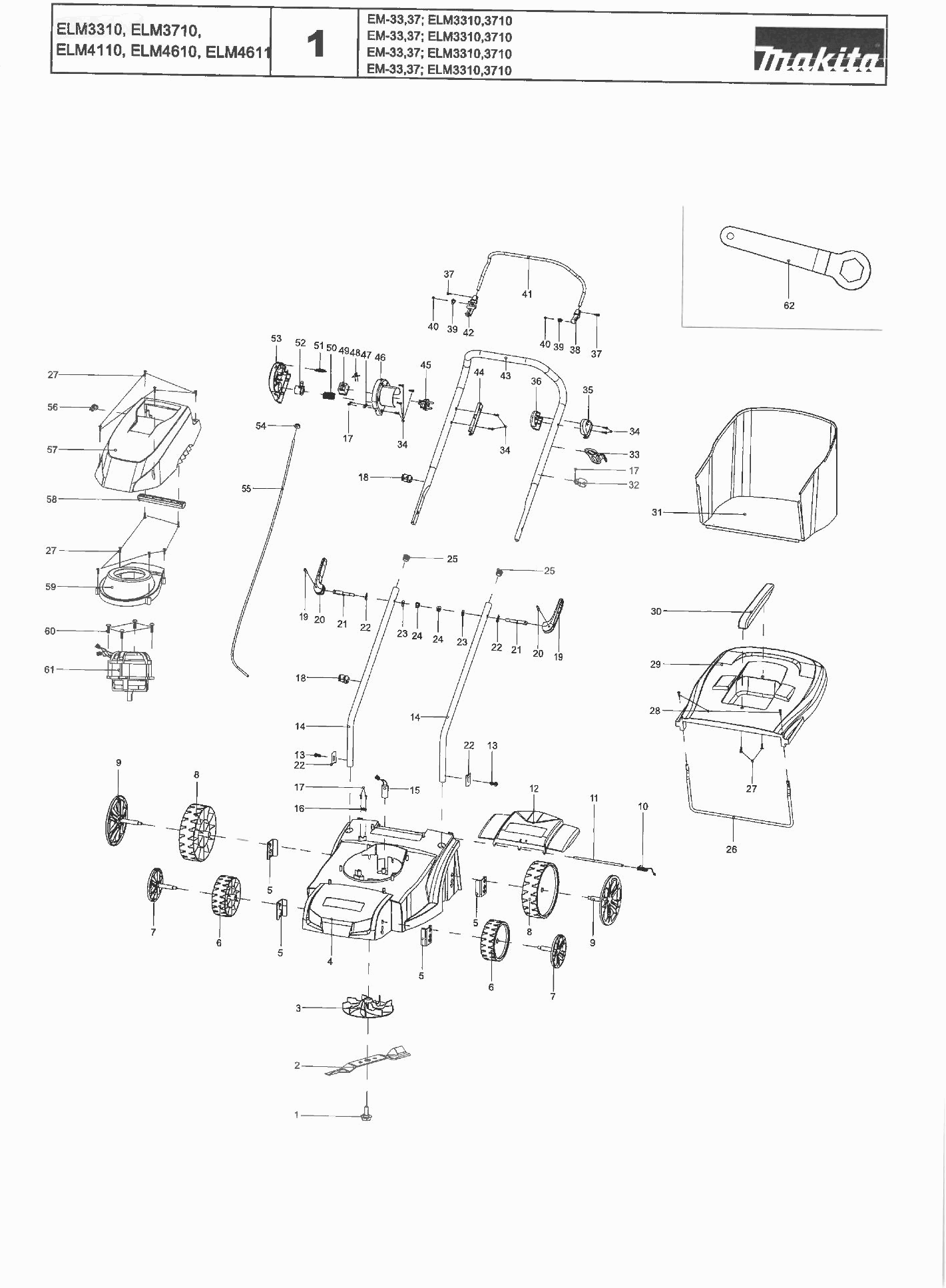

Technical drawing of model Makita ELM3710
Spare parts list of model Makita ELM3710
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw M10x1.35x35 | ||||
| 001 | 671001008 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 002 | 671001414 | |||
| Blade Holder | ||||
| 003 | 671492001 | 16.50 | 19.96 | |
| No information available, not orderable | ||||
| 004 | 671436001 | |||
| BEVEL PLATE | ||||
| 005 | 671014150 | 4.80 | 5.81 | |
| Rear wheel | ||||
| 006 | 671421001 | 11.00 | 13.31 | |
| Wheel cap 5" | ||||
| 007 | 671001188 | 8.40 | 10.16 | |
| Rear wheel | ||||
| 008 | 671419001 | 13.20 | 15.97 | |
| Wheel cover cap 7 Em-33 A | ||||
| 009 | DA00000906 | 3.60 | 4.36 | |
| Torsion Spring | ||||
| 010 | 671011121 | 2.40 | 2.90 | |
| Spindle Ass'y | ||||
| 011 | 671001027 | 2.40 | 2.90 | |
| Grass catch cover | ||||
| 012 | 671422001 | 16.50 | 19.96 | |
| Parker St5x12 | ||||
| 013 | DA00000888 | 1.00 | 1.21 | |
| Lower push handle | ||||
| 014 | 671001421 | 30.80 | 37.27 | |
| Capacitor 18uf | ||||
| 015 | 671001007 | 10.80 | 13.07 | |
| Cable Guide | ||||
| 016 | 671001023 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 017 | 671001003 | |||
| Cable clip Em-33 * | ||||
| 018 | 671001051 | 1.20 | 1.45 | |
| Cylinder pin 5.3x20 | ||||
| 019 | 671090040 | 1.20 | 1.45 | |
| Clutch handle | ||||
| 020 | 671431001 | 6.00 | 7.26 | |
| Screw Fixing M6x60 | ||||
| 021 | 671002466 | 2.40 | 2.90 | |
| Mounting Plate | ||||
| 022 | 671001420 | 1.20 | 1.45 | |
| Rivet 8 | ||||
| 023 | 671007007 | 1.20 | 1.45 | |
| Hexagonal Bolt M6 | ||||
| 024 | 164060000K | 1.20 | 1.45 | |
| Bus plug 19mm | ||||
| 025 | 671001198 | 0.98 | 1.19 | |
| Collection bag support | ||||
| 026 | 671001417 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 027 | 671001047 | |||
| Screw,M4x12 | ||||
| 028 | 671002007 | 1.20 | 1.45 | |
| Top Cover | ||||
| 029 | 671424001 | 16.50 | 19.96 | |
| Grass box handle | ||||
| 030 | 671423001 | 3.60 | 4.36 | |
| Grass collection bag 35l nylon | ||||
| 031 | 671014140 | 23.10 | 27.95 | |
| Cord Clamp | ||||
| 032 | 671001083 | 0.98 | 1.19 | |
| Cable Guide | ||||
| 033 | 671001052 | 0.98 | 1.19 | |
| Parker screw 4x16 | ||||
| 034 | 671001005 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 035 | 671434002 | |||
| Handlebar (r) | ||||
| 036 | 671434001 | 3.60 | 4.36 | |
| Screw M4x8 | ||||
| 037 | 671002025 | 1.20 | 1.45 | |
| Throttle lever coupling | ||||
| 038 | 671279005 | 2.40 | 2.90 | |
| Spring | ||||
| 039 | 671011124 | 1.20 | 1.45 | |
| Parker screw 3x10 | ||||
| 040 | 671001036 | 1.20 | 1.45 | |
| Engine brake lever | ||||
| 041 | 671014180 | 14.30 | 17.30 | |
| Mounting plug R ELM4110 A | ||||
| 042 | DA00001023 | 1.20 | 1.45 | |
| Lower push handle | ||||
| 043 | 671001419 | 39.60 | 47.92 | |
| Switch box pressure plate | ||||
| 044 | 671428001 | 2.40 | 2.90 | |
| SWITCH BOX COVER "L" EM-33 A | ||||
| 045 | 671001071 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 046 | 671426002 | |||
| Trekontlasting | ||||
| 047 | 671491001 | 0.98 | 1.19 | |
| Indicator light | ||||
| 048 | 671009002 | 4.80 | 5.81 | |
| Switch Em-33 | ||||
| 049 | 671010040 | 9.60 | 11.62 | |
| Spring for safety button | ||||
| 050 | 671011079 | 1.20 | 1.45 | |
| Halogen lamp | ||||
| 051 | 671001043 | 1.20 | 1.45 | |
| Safety Lock Button | ||||
| 052 | 671425002 | 1.20 | 1.45 | |
| Switch box cover "r" | ||||
| 053 | 671426001 | 8.40 | 10.16 | |
| No longer available, no replacement | ||||
| 054 | 671283001 | |||
| Connection cable 1250mm | ||||
| 055 | 671001010 | 9.60 | 11.62 | |
| Terminal cap | ||||
| 056 | 671284001 | 0.83 | 1.00 | |
| Motor cover cap | ||||
| 057 | 671433001 | 34.10 | 41.26 | |
| Handle Cover | ||||
| 058 | 671441001 | 2.40 | 2.90 | |
| Motor Hood | ||||
| 059 | 671417001 | 13.20 | 15.97 | |
| Parker screw 6x30 | ||||
| 060 | 671001053 | 1.20 | 1.45 | |
| Motor ce/gs 230v 50hz | ||||
| 061 | 671002014 | 137.50 | 166.38 | |
| No information available, not orderable | ||||
| 062 | 671002009 | |||
