Here you will find all available parts and drawings of the 'Makita EK7301'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

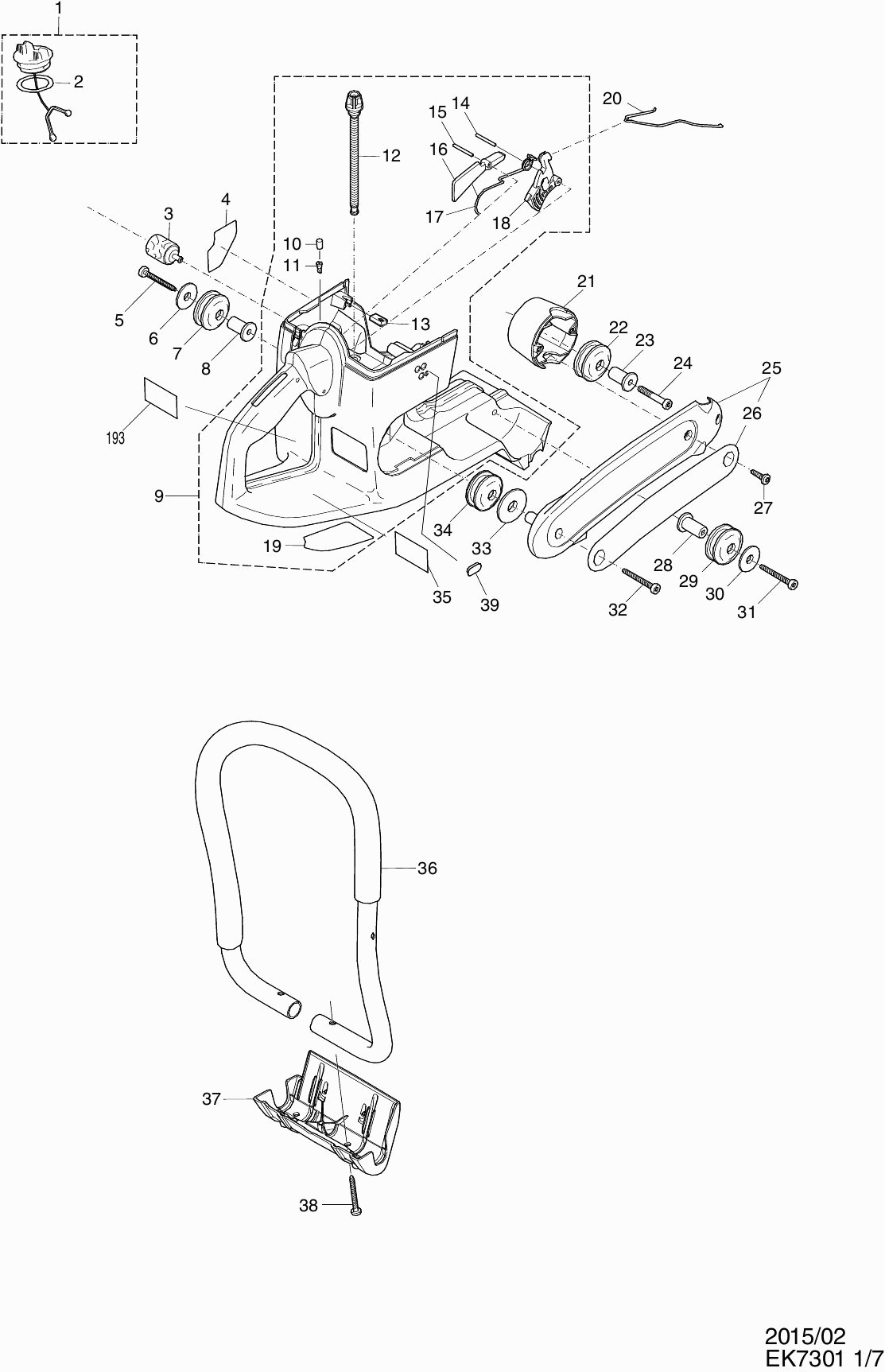

Technical drawing of model Makita EK7301
Spare parts list of model Makita EK7301
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| TANK LID ASSY EA3201S A | ||||
| 001 | 168823-3 | 3.60 | 4.36 | |
| O-Ring 29,5Mm A | ||||
| 002 | 213831-0 | 1.20 | 1.45 | |
| Filter | ||||
| 003 | 163499-1 | 17.60 | 21.30 | |
| SCREW 5.5x45 EK7650H A | ||||
| 005 | 266687-0 | 1.00 | 1.21 | |
| Ring 5.8X26X2 | ||||
| 006 | 346870-6 | 1.00 | 1.21 | |
| Vibration damper A | ||||
| 007 | 424695-9 | 3.60 | 4.36 | |
| Axis vibration damper | ||||
| 008 | 319268-0 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 009 | 123321-4 | |||
| No information available, not orderable | ||||
| 010 | 422063-0 | |||
| Valve | ||||
| 011 | 424170-5 | 2.40 | 2.90 | |
| PETROL PIPE EK8100 A | ||||
| 012 | 424723-0 | 17.60 | 21.30 | |
| No information available, not orderable | ||||
| 013 | 252897-5 | |||
| Pin 3 A | ||||
| 014 | 268335-7 | 1.00 | 1.21 | |
| Pin 3 A | ||||
| 015 | 268233-5 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 016 | 455821-9 | |||
| No information available, not orderable | ||||
| 017 | 233626-5 | |||
| No information available, not orderable | ||||
| 018 | 455820-1 | |||
| No information available, not orderable | ||||
| 019 | 806J47-0 | |||
| Gasstang Ek8100 A | ||||
| 020 | 326497-8 | 3.60 | 4.36 | |
| Holder For Damper Ek8100 A | ||||
| 021 | 455806-5 | 8.40 | 10.16 | |
| Vibration damper A | ||||
| 022 | 424695-9 | 3.60 | 4.36 | |
| Axis vibration damper | ||||
| 023 | 319268-0 | 3.60 | 4.36 | |
| Inbusschroef m5x40 | ||||
| 024 | 266943-8 | 1.00 | 1.21 | |
| GLIJSTANG EK8100 A | ||||
| 025 | 143211-5 | 10.20 | 12.34 | |
| No longer available, no replacement | ||||
| 026 | 806J44-6 | |||
| TAPSCHROEF 5,5X20MM EK7651H A | ||||
| 027 | 266475-5 | 1.00 | 1.21 | |
| Axis vibration damper | ||||
| 028 | 319268-0 | 3.60 | 4.36 | |
| Vibration damper A | ||||
| 029 | 424695-9 | 3.60 | 4.36 | |
| Ring 5.8X26X2 | ||||
| 030 | 346870-6 | 1.00 | 1.21 | |
| SCREW 5.5x45 EK7650H A | ||||
| 031 | 266687-0 | 1.00 | 1.21 | |
| SCREW 5.5x45 EK7650H A | ||||
| 032 | 266687-0 | 1.00 | 1.21 | |
| Revet A | ||||
| 033 | 346871-4 | 1.20 | 1.45 | |
| Vibration damper A | ||||
| 034 | 424695-9 | 3.60 | 4.36 | |
| No longer available, no replacement | ||||
| 035 | 851C80-5 | |||
| Bracket handle Ek8100 A | ||||
| 036 | 143097-7 | 48.40 | 58.56 | |
| Pedal | ||||
| 037 | 319270-3 | 16.50 | 19.96 | |
| SCREW 5.5x45 EK7650H A | ||||
| 038 | 266687-0 | 1.00 | 1.21 | |
| Plug Ek8100 A | ||||
| 039 | 424693-3 | 2.40 | 2.90 | |
| DEKSEL VOORFILTER A | ||||
| 041 | 127087-8 | 24.20 | 29.28 | |
| No information available, not orderable | ||||
| 042 | 266692-7 | |||
| No information available, not orderable | ||||
| 043 | 123312-5 | |||
| Warning Label | ||||
| 044 | 807L79-2 | 2.40 | 2.90 | |
| Pre-filter EK8100 A | ||||
| 045 | 424700-2 | 7.20 | 8.71 | |
| MET.SCHR. M5X50MM A | ||||
| 053 | 266941-2 | 1.20 | 1.45 | |
| Cap Assy Black | ||||
| 054 | 123308-6 | 47.30 | 57.23 | |
| Seal ring EK8100 A | ||||
| 055 | 424697-5 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 056 | 806J50-1 | |||
| Cover EK8100 A | ||||
| 057 | 424703-6 | 2.40 | 2.90 | |
| Air Filter A | ||||
| 058 | 424701-0 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 059 | 424705-2 | |||
| Metal screw M5x20mm | ||||
| 060 | 266960-8 | 1.00 | 1.21 | |
| Met. screw M5x12mm A | ||||
| 061 | 266946-2 | 1.00 | 1.21 | |
| Clamping Ring | ||||
| 062 | 267821-5 | 1.00 | 1.21 | |
| Exhaust Complete Ek8100 A | ||||
| 063 | 161338-9 | 52.80 | 63.89 | |
| Gasket | ||||
| 067 | 346876-4 | 2.40 | 2.90 | |
| HEATSHIELD | ||||
| 068 | 346868-3 | 1.20 | 1.45 | |
| Inlet Manifold Ek8100 A | ||||
| 069 | 123310-9 | 36.08 | 43.66 | |
| INLAATSPRUITSTUK EK7300 A | ||||
| 069 | 127098-3 | 27.50 | 33.28 | |
| Hose | ||||
| 070 | 424699-1 | 7.20 | 8.71 | |
| Hose connector | ||||
| 071 | 161311-9 | 3.60 | 4.36 | |
| Suction cup EK8100 A | ||||
| 072 | 424708-6 | 16.50 | 19.96 | |
| No information available, not orderable | ||||
| 073 | 233625-7 | |||
| Guide Ring | ||||
| 074 | 346867-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 075 | 455808-1 | |||
| Chokestang | ||||
| 076 | 326496-0 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 077 | 266944-6 | |||
| Insulation Tubing | ||||
| 078 | 424710-9 | 1.00 | 1.21 | |
| Uitlaatpakking Ek8100 A | ||||
| 079 | 346874-8 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 080 | 161315-1 | |||
| Hose clamp IAS 3 | ||||
| 081 | 324616-0 | 3.60 | 4.36 | |
| Petrol hose 3x120mm | ||||
| 082 | 424698-3 | 2.40 | 2.90 | |
| Rubber Revet P | ||||
| 083 | 424696-7 | 0.83 | 1.00 | |
| Nipple | ||||
| 084 | 326499-4 | 2.40 | 2.90 | |
| Makita A Label | ||||
| 085 | 806K78-5 | 8.40 | 10.16 | |
| No longer available, no replacement | ||||
| 086 | 123357-3 | |||
| No information available, not orderable | ||||
| 087 | 267862-1 | |||
| START HANDLE EK8100 A | ||||
| 088 | 452458-3 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 089 | 266938-1 | |||
| No information available, not orderable | ||||
| 090 | 123315-9 | |||
| Rewind spring EK8100 A | ||||
| 091 | 140587-1 | 16.50 | 19.96 | |
| STARTTROMMEL COMPLEET A | ||||
| 092 | 143098-5 | 23.06 | 27.90 | |
| No information available, not orderable | ||||
| 093 | 455805-7 | |||
| Lock Washer Ek8100 | ||||
| 094 | 257997-6 | 1.20 | 1.45 | |
| ZESKANTMOER M8 A | ||||
| 095 | 264107-8 | 1.00 | 1.21 | |
| Washer 8mm EA3201S A | ||||
| 096 | 267822-3 | 1.00 | 1.21 | |
| Flywheel Ek8100 A | ||||
| 097 | 394141101 | 30.80 | 37.27 | |
| No information available, not orderable | ||||
| 098 | 326500-5 | |||
| No information available, not orderable | ||||
| 099 | 346865-9 | |||
| No longer available, no replacement | ||||
| 100 | 233535-8 | |||
| Cable With Plug Ek8100 A | ||||
| 101 | 632E41-4 | 9.60 | 11.62 | |
| Choke Rod | ||||
| 103 | 346869-1 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 104 | 266942-0 | |||
| REVET E8100 A | ||||
| 105 | 451462-9 | 1.20 | 1.45 | |
| Ignition | ||||
| 106 | 161310-1 | 92.40 | 111.80 | |
| Spark plug cap | ||||
| 107 | 424706-0 | 3.60 | 4.36 | |
| Stator spring EK8100 A | ||||
| 108 | 234358-7 | 1.00 | 1.21 | |
| SPARK PLUG A | ||||
| 109 | 168517-0 | 6.00 | 7.26 | |
| Cover Ek8100 A | ||||
| 111 | 455819-6 | 6.00 | 7.26 | |
| Met. screw M5X15mm A | ||||
| 112 | 266940-4 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 113 | 266945-4 | |||
| No longer available, no replacement | ||||
| 114 | 213814-0 | |||
| Must 4k M5 A | ||||
| 115 | 264108-6 | 1.00 | 1.21 | |
| Rubber plate | ||||
| 116 | 424707-8 | 1.20 | 1.45 | |
| Crankcase Ms | ||||
| 117 | 143226-2 | 39.60 | 47.92 | |
| No information available, not orderable | ||||
| 118 | 258038-1 | |||
| Crankcase gasket Ek8100 A | ||||
| 119 | 346877-2 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 120 | 211154-0 | |||
| TORX SCREW M5X23 A | ||||
| 121 | 266473-9 | 1.20 | 1.45 | |
| De-Komp.Valve Ek8100 A | ||||
| 122 | 455804-9 | 17.60 | 21.30 | |
| Cylinder+Piston Set PC7414 A | ||||
| 123 | 183H02-0 | 261.80 | 316.78 | |
| BORGCLIP 12 EK7301 A | ||||
| 125 | 234359-5 | 1.20 | 1.45 | |
| Piston pin EK7301 | ||||
| 126 | 257840-9 | 11.00 | 13.31 | |
| Piston Set EK7301 | ||||
| 127 | 198663-5 | 147.40 | 178.35 | |
| Piston Ring D=50Mm A | ||||
| 128 | 257377-6 | 19.80 | 23.96 | |
| BORGCLIP 12 EK7301 A | ||||
| 129 | 234359-5 | 1.20 | 1.45 | |
| Gasket | ||||
| 130 | 346873-0 | 2.40 | 2.90 | |
| PISTON PIN BEARING EK8100 A | ||||
| 131 | 212133-1 | 8.40 | 10.16 | |
| Inlegspie 3 A | ||||
| 132 | 254042-8 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 133 | 143107-0 | |||
| No information available, not orderable | ||||
| 134 | 211154-0 | |||
| Carter Cs | ||||
| 135 | 143225-4 | 49.50 | 59.90 | |
| No longer available, no replacement | ||||
| 136 | 213814-0 | |||
| Lock washer A | ||||
| 137 | 234366-8 | 1.00 | 1.21 | |
| Stopring A | ||||
| 138 | 346872-2 | 3.60 | 4.36 | |
| Guide Disk Ek8100 A | ||||
| 139 | 346866-7 | 1.20 | 1.45 | |
| Clutch EK7301 | ||||
| 140 | 161317-7 | 26.40 | 31.94 | |
| Needle Bearing 15x21x16 A | ||||
| 141 | 212134-9 | 11.00 | 13.31 | |
| Washer 12 | ||||
| 142 | 267389-1 | 2.40 | 2.90 | |
| Coupling assembly | ||||
| 143 | 123305-2 | 26.40 | 31.94 | |
| Coupling spring EK7301 A | ||||
| 144 | 232352-3 | 2.40 | 2.90 | |
| V Belt Dpc7301 | ||||
| 145 | 424712A5 | 23.06 | 27.90 | |
| Clutch Housing Ek8100 A | ||||
| 146 | 455832-4 | 19.80 | 23.96 | |
| Screw 5x14 | ||||
| 147 | 266947-0 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 150 | 266976-3 | |||
| Inner flange 102 Ek7650H A | ||||
| 151 | 224478-5 | 17.60 | 21.30 | |
| As Ek8100 A | ||||
| 152 | 326502-1 | 13.20 | 15.97 | |
| Inner flange 102 Ek7650H A | ||||
| 153 | 224478-5 | 17.60 | 21.30 | |
| SPACER DPC7301 A | ||||
| 154 | 394228022 | 3.60 | 4.36 | |
| Pressure Ring | ||||
| 155 | 318746-7 | 38.50 | 46.58 | |
| Guide Bowl | ||||
| 156 | 442169-8 | 3.60 | 4.36 | |
| Rubber ring inner Ek7650 A | ||||
| 157 | 424426-6 | 6.00 | 7.26 | |
| Rubber ring "inner" | ||||
| 158 | 424427-4 | 6.00 | 7.26 | |
| Guide Bowl | ||||
| 159 | 442169-8 | 3.60 | 4.36 | |
| Plate | ||||
| 160 | 346455-8 | 8.40 | 10.16 | |
| Warning Label EK7301 | ||||
| 161 | 806J83-6 | 8.40 | 10.16 | |
| Protective Cover 350mm | ||||
| 162 | 143792-9 | 147.40 | 178.35 | |
| Handle Ek7650H A | ||||
| 163 | 452938-9 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 164 | 266725-8 | |||
| Grinding arm Dpc64/7311 A | ||||
| 165 | 319286-8 | 23.10 | 27.95 | |
| Spring retaining ring | ||||
| 167 | 257998-4 | 1.20 | 1.45 | |
| Ball Bearing 6203llu | ||||
| 168 | 211490-4 | 8.40 | 10.16 | |
| Spring retaining ring | ||||
| 169 | 257998-4 | 1.20 | 1.45 | |
| SPACER DPC7301 A | ||||
| 170 | 394228022 | 3.60 | 4.36 | |
| Ball Bearing 6203llu | ||||
| 171 | 211490-4 | 8.40 | 10.16 | |
| O-Ring 9Mm Ek7650H A | ||||
| 172 | 213625-3 | 1.00 | 1.21 | |
| Stop Screw Complete Ek8100 A | ||||
| 173 | 123307-8 | 4.80 | 5.81 | |
| Threaded Bolt | ||||
| 174 | 266688-8 | 1.20 | 1.45 | |
| Compression Spring 8 | ||||
| 175 | 234216-7 | 1.20 | 1.45 | |
| Collar screw M6 | ||||
| 176 | 266689-6 | 2.40 | 2.90 | |
| Pulley EK7301 | ||||
| 177 | 222180-4 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 178 | 266976-3 | |||
| Plate Ek7650H A | ||||
| 180 | 346457-4 | 4.80 | 5.81 | |
| Nut M6 A | ||||
| 181 | 264112-5 | 1.00 | 1.21 | |
| Pressure Spring 6mm Ek7650H A | ||||
| 182 | 234215-9 | 2.40 | 2.90 | |
| Cover Cap, Blue Dpc6430/31 A | ||||
| 183 | 455956-6 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 184 | 266691-9 | |||
| Lock nut M8 Dcs230T A | ||||
| 185 | 252145-2 | 1.00 | 1.21 | |
| Water connection kit | ||||
| 186 | 123369-6 | 45.44 | 54.98 | |
| Cover nut Ek8100 A | ||||
| 187 | 264109-4 | 2.40 | 2.90 | |
| Countersink Screw | ||||
| 188 | 266949-6 | 3.60 | 4.36 | |
| Countersink Screw | ||||
| 189 | 266949-6 | 3.60 | 4.36 | |
| Cover nut Ek8100 A | ||||
| 190 | 264109-4 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 191 | 266950-1 | |||
