Here you will find all available parts and drawings of the 'Makita EH561'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

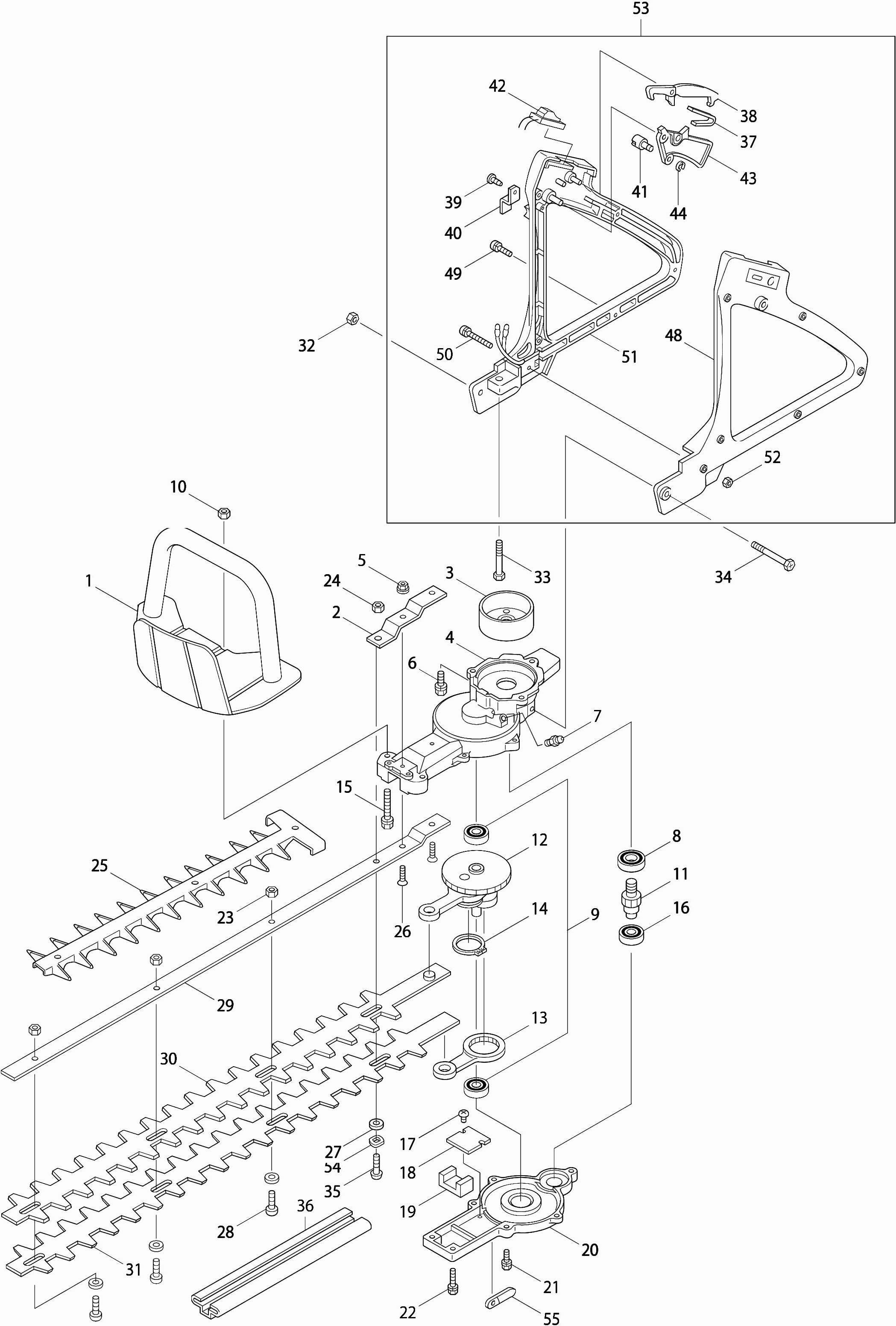

Technical drawing of model Makita EH561
Spare parts list of model Makita EH561
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 001 | 118155B000 | |||
| Plate for Knife Uh561 | ||||
| 002A | 0301080000 | 8.40 | 10.16 | |
| Intermediate Plate Htr5600 A | ||||
| 002B | 3251020040 | 4.80 | 5.81 | |
| DRUM | ||||
| 003 | 1361410000 | 16.50 | 19.96 | |
| No information available, not orderable | ||||
| 004 | 1181410000 | |||
| Flange nut M5 | ||||
| 005 | 162050000K | 1.00 | 1.21 | |
| Hex bolt 6x15 Uh561 A | ||||
| 006 | 054060150K | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 007 | 055001000R | |||
| Ball Bearing 6001 2R3 Eh561 * | ||||
| 008 | 354060010K | 17.60 | 21.30 | |
| No information available, not orderable | ||||
| 009 | 351006080K | |||
| Hex Nut M6 Eh561 * | ||||
| 010 | 150060000K | 1.20 | 1.45 | |
| Gear Shaft | ||||
| 011 | 1361420000 | 38.50 | 46.58 | |
| Gear | ||||
| 012 | 1360030000 | 104.50 | 126.44 | |
| No information available, not orderable | ||||
| 013 | 1A044000TE | |||
| Lock Ring Stw-26 Eh561 * | ||||
| 014 | 283026000K | 2.40 | 2.90 | |
| Bolt 6X35 Eh561 * | ||||
| 015 | 055060350K | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 016 | 351006080K | |||
| Screw 3x5 | ||||
| 017 | 010030050K | 1.20 | 1.45 | |
| Connecting Rod Plate Eh561 | ||||
| 018 | 0301100000 | 7.20 | 8.71 | |
| Seal | ||||
| 019A | 1181010000 | 7.20 | 8.71 | |
| Damping felt | ||||
| 019B | 3251040040 | 8.40 | 10.16 | |
| Scale A | ||||
| 020 | 3251010020 | 30.80 | 37.27 | |
| Bolt M6X16 Htr5600 A | ||||
| 021 | 0054050160 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 022 | 054050200K | |||
| Hexagonal Bolt M6 | ||||
| 023 | 164060000K | 1.20 | 1.45 | |
| Hexagonal Bolt M6 | ||||
| 024 | 164060000K | 1.20 | 1.45 | |
| Cover for Knife | ||||
| 025 | 1181520000 | 10.80 | 13.07 | |
| Countersunk Screw M5x20 | ||||
| 026 | 031050200K | 2.40 | 2.90 | |
| Washer for Cutting Blade Eh561 | ||||
| 027 | 0082500000 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 028 | 0082470000 | |||
| Blade Knife Support | ||||
| 029 | 1181260000 | 36.30 | 43.92 | |
| Upper Shear Blade | ||||
| 030 | 6018505400 | 56.10 | 67.88 | |
| Lower shear blade | ||||
| 031 | 6018505500 | 56.10 | 67.88 | |
| Hex Nut M6 Eh561 * | ||||
| 032 | 150060000K | 1.20 | 1.45 | |
| Bolt M6X40 Eh561 A * | ||||
| 033 | 055060400K | 1.20 | 1.45 | |
| Bolt M6X50 Htr5600 A | ||||
| 034 | 0055060500 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 035 | 0082480000 | |||
| No information available, not orderable | ||||
| 036 | 028002039A | |||
| Leaf Spring New | ||||
| 037 | 1181620000 | 6.00 | 7.26 | |
| Lock Lever | ||||
| 038 | 1181510000 | 4.80 | 5.81 | |
| Tap screw 4X10 Eh561 * | ||||
| 039 | 112040100K | 1.20 | 1.45 | |
| Cable Cleat | ||||
| 040 | 1181210000 | 2.40 | 2.90 | |
| Nipple | ||||
| 041 | 1181110000 | 10.80 | 13.07 | |
| Schakelaar Htr5600 A | ||||
| 042 | 0005044004 | 11.00 | 13.31 | |
| Brush Holder | ||||
| 042 | 638921-2 | 4.80 | 5.81 | |
| Lever | ||||
| 043 | 1181150000 | 4.80 | 5.81 | |
| Locking Ring Etw 2.5 Eh561 * | ||||
| 044 | 280002500K | 1.20 | 1.45 | |
| Pin | ||||
| 045 | 1181120000 | 6.00 | 7.26 | |
| Spring | ||||
| 046 | 1181140000 | 2.40 | 2.90 | |
| Cap of Pen | ||||
| 047 | 1181130000 | 3.60 | 4.36 | |
| Rear Handle L | ||||
| 048 | 1181500000 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 049 | 017040160K | |||
| No information available, not orderable | ||||
| 050 | 017040300K | |||
| Rear Handle R | ||||
| 051 | 1181490000 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 052 | 150040000K | |||
| Handle Set | ||||
| 053 | 1180030000 | 81.40 | 98.49 | |
| Washer Spring | ||||
| 054 | 229060000K | 1.20 | 1.45 | |
| Clamp Rbc415 * | ||||
| 055 | 0566079970 | 1.20 | 1.45 | |
| Crank Case | ||||
| 056 | 5251003000 | 59.40 | 71.87 | |
| Crankcase Gasket | ||||
| 057 | 424447-8 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 058 | 266700-4 | |||
| Crank Shaft | ||||
| 059 | 5252002002 | 124.30 | 150.40 | |
| Piston | ||||
| 060 | 5212500700 | 8.40 | 10.16 | |
| Piston Ring | ||||
| 061 | 5982500000 | 3.60 | 4.36 | |
| Piston Pin | ||||
| 062 | 5212500801 | 2.40 | 2.90 | |
| Lock ring for piston pin | ||||
| 063 | 233976-8 | 1.00 | 1.21 | |
| Cylinder gasket | ||||
| 064 | 442171-1 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 065 | 5251500300 | |||
| No information available, not orderable | ||||
| 066 | 0119059630 | |||
| Gasket | ||||
| 067 | 5253500200 | 1.20 | 1.45 | |
| Insulator | ||||
| 068 | 141056-5 | 9.60 | 11.62 | |
| Screw 5X25 P | ||||
| 069 | 0140059500 | 1.20 | 1.45 | |
| Exhaust Gasket | ||||
| 070 | 5253500102 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 071 | 5253071000 | |||
| Washer 5mm DSP601 A | ||||
| 072 | 253414-4 | 1.00 | 1.21 | |
| Bolt 5x50 | ||||
| 073 | 266794-9 | 2.40 | 2.90 | |
| Flywheel Eh561 | ||||
| 074 | 5257001010 | 16.50 | 19.96 | |
| Ignition | ||||
| 075 | 5257001021 | 24.20 | 29.28 | |
| Screw 4x20 | ||||
| 076 | 911138-5 | 1.00 | 1.21 | |
| Feedthrough Eh561 15X7X2Mm * | ||||
| 077 | 5257500300 | 2.40 | 2.90 | |
| Bougieveer Ebh253U A | ||||
| 078 | 324891-8 | 1.20 | 1.45 | |
| Spark plug cap | ||||
| 079 | 5237503301 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 080 | 0650149721 | |||
| Clutch Spring | ||||
| 081 | 5238500500 | 2.40 | 2.90 | |
| Clutch shoe | ||||
| 082 | 6252500801 | 8.40 | 10.16 | |
| Ring | ||||
| 083 | 267429-5 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 084 | 0200089911 | |||
| Allen screw M6x25mm | ||||
| 085 | 266864-4 | 2.40 | 2.90 | |
| Holder | ||||
| 086 | 6202500000 | 3.60 | 4.36 | |
| Exhaust Cap | ||||
| 087 | 5253500500 | 9.60 | 11.62 | |
| No longer available, no replacement | ||||
| 088 | 0043705160 | |||
| Starting device complete | ||||
| 089 | 5255001000 | 17.60 | 21.30 | |
| Screw Eh561 * | ||||
| 090 | 5255001020 | 2.40 | 2.90 | |
| Clutch Plate Rbc310 * | ||||
| 091 | 5505001030 | 4.80 | 5.81 | |
| Spring Plate | ||||
| 092 | 5105015050 | 4.80 | 5.81 | |
| Detent | ||||
| 093 | 5105015020 | 4.80 | 5.81 | |
| Spring Plate | ||||
| 094 | 5105015060 | 2.40 | 2.90 | |
| Reel | ||||
| 095 | 5025001010 | 6.00 | 7.26 | |
| Starter cord 3.5mm x 85cm | ||||
| 096 | 036164010 | 6.00 | 7.26 | |
| Coil Spring | ||||
| 097 | 232257-7 | 10.80 | 13.07 | |
| Starter Handle | ||||
| 098 | 424319-7 | 3.60 | 4.36 | |
| Metal screw Ph M5x14mm Ck | ||||
| 099 | 266809-2 | 1.00 | 1.21 | |
| Washer Eh561 * | ||||
| 100 | 0200070010 | 1.20 | 1.45 | |
| Cylinder cover | ||||
| 101 | 5255500301 | 10.80 | 13.07 | |
| Spacer | ||||
| 102 | 5503503001 | 2.40 | 2.90 | |
| Metal screw Ph M5x14mm Ck | ||||
| 103 | 266809-2 | 1.00 | 1.21 | |
| Rivet RBC230-G24-350 P | ||||
| 104 | 0031206000 | 1.00 | 1.21 | |
| Bolt M6x16mm / rivet EM4250 A | ||||
| 105 | 265577-4 | 1.00 | 1.21 | |
| Intermediate Plate Eh561 * | ||||
| 106 | 5215500300 | 2.40 | 2.90 | |
| Fan Housing Eh561 * | ||||
| 107 | 5255500001 | 19.80 | 23.96 | |
| Screw Eh561 * | ||||
| 108 | 0043505160 | 1.20 | 1.45 | |
| Pipe | ||||
| 109 | 5256012001 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 110 | 5256002000 | |||
| Fuel filter | ||||
| 111 | 163447-0 | 11.00 | 13.31 | |
| No longer available, no replacement | ||||
| 112 | 0043705160 | |||
| FUEL TANK | ||||
| 113 | 5256025000 | 13.20 | 15.97 | |
| Petrol/Oil cap cpl | ||||
| 114 | 168668-9 | 24.20 | 29.28 | |
| No information available, not orderable | ||||
| 115 | 1181240000 | |||
| Screw 5X18 | ||||
| 116 | 0140059450 | 1.20 | 1.45 | |
| Threaded bolt M6x14mm | ||||
| 117 | 266703-8 | 1.20 | 1.45 | |
| Wire 2 Eh561 * | ||||
| 118 | 5607005000 | 3.60 | 4.36 | |
| Carburetor | ||||
| 119 | 5256032000 | 38.50 | 46.58 | |
| Air filter cover | ||||
| 120 | 5253020010 | 10.80 | 13.07 | |
| No longer available, no replacement | ||||
| 121 | 5203004010 | |||
| No information available, not orderable | ||||
| 122 | 0043305650 | |||
| New air filter housing | ||||
| 123 | 5253003020 | 24.20 | 29.28 | |
| O Ring Rbc201 A | ||||
| 124 | 213632-6 | 1.20 | 1.45 | |
| Gasket | ||||
| 125 | 5256501200 | 1.20 | 1.45 | |
| New Cable Support | ||||
| 126 | 5256501900 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 127 | 5236018040 | |||
| No information available, not orderable | ||||
| 128 | 5206008030 | |||
| New throttle lever | ||||
| 129 | 5256032010 | 20.90 | 25.29 | |
| Seegering E-3 A | ||||
| 130 | 257964-1 | 7.20 | 8.71 | |
| O-ring 2 | ||||
| 131 | 213538-8 | 4.80 | 5.81 | |
| Sprayer | ||||
| 132 | 326085-1 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 133 | 5246001030 | |||
| Pump diaphragm | ||||
| 134 | WJ00009599 | 3.96 | 4.79 | |
| No information available, not orderable | ||||
| 135 | 352010-6 | |||
| Pump Housing | ||||
| 136 | 5256007010 | 34.10 | 41.26 | |
| Diaphragm Gasket | ||||
| 137 | 442154-1 | 7.20 | 8.71 | |
| Diaphragm | ||||
| 138 | 168620-7 | 38.50 | 46.58 | |
| No information available, not orderable | ||||
| 139 | 5236046060 | |||
| Booster pump | ||||
| 140 | 424314-7 | 11.00 | 13.31 | |
| Pump cover Ebh253U A | ||||
| 141 | 346270-0 | 7.20 | 8.71 | |
| Parker 3X24Mm Ck A | ||||
| 142 | 266582-4 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 143 | 5103502801 | |||
| No information available, not orderable | ||||
| 144 | 5216008010 | |||
| No information available, not orderable | ||||
| 145 | 5316005450 | |||
| Control Cable Eh561 New A | ||||
| 146 | 0630029830 | 6.00 | 7.26 | |
| Hose clamp IAS 3 | ||||
| 148 | 345920-4 | 1.00 | 1.21 | |
| Oil seal | ||||
| 149 | 213628-7 | 2.40 | 2.90 | |
| Ball Bearing 6001C3 Rpt250 A | ||||
| 150 | 210113-1 | 6.00 | 7.26 | |
| Petrol/Oil cap cpl | ||||
| 151 | 168668-9 | 24.20 | 29.28 | |
| No information available, not orderable | ||||
| 152 | 5103502801 | |||
| Clamp | ||||
| 153 | 345963-6 | 1.00 | 1.21 | |
| Protective sleeve Eh561 | ||||
| 154 | 0851049950 | 2.40 | 2.90 | |
| Guide plate | ||||
| 155 | 3251030040 | 8.40 | 10.16 | |
