Here you will find all available parts and drawings of the 'Makita EG441A'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

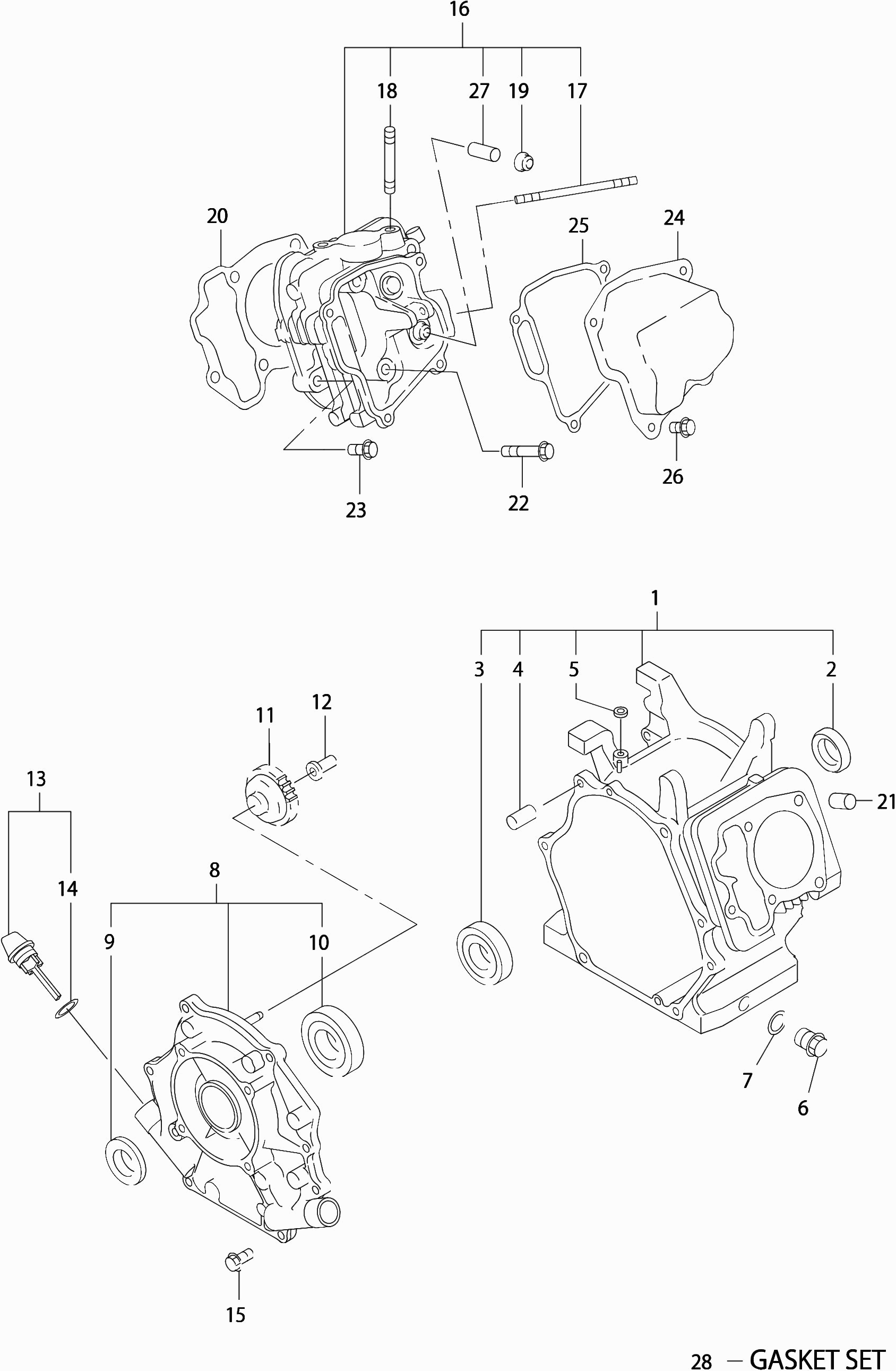

Technical drawing of model Makita EG441A

Spare parts list of model Makita EG441A

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Crank Case
001 2911010251 617.29 746.92
Oil seal 30X45X7 G4300L
002 0440300160 11.84 14.33
Ball bearing 6206 G4300L *
003 0600300341 17.40 21.05
Fit bush 10 10.3X8.5X14 Eg241 *
004 2771501103 0.83 1.00
Oil seal 6X10X2.5 G4300L
005 0440060020 5.09 6.16
Carterplug Eg-Series
006 0401140030 2.48 3.00
Gasket G2400-3500-550
007 0211140020 0.83 1.00
Main bearing cover
008 2791110121 117.63 142.33
Oil seal 30X45X7 G4300L
009 0440300160 11.84 14.33
Ball Bearing 6206 G4300L
010 0600300370 17.40 21.05
Regulateurtandwiel
011 27745004J1 12.22 14.79
Regulator bush G28/4300L A
012 2774190201 30.70 37.15
Oil Dipstick
013 2796360130 5.70 6.90
Oil dipstick gasket G6100R A
014 0213200050 1.99 2.41
Flange Bolt G4300L *
015 0010408350 1.39 1.68
Cylinder Head
016 2791300231 260.74 315.50
Steun M6X107 G4300L *
017 0105060410 3.44 4.16
Exhaust stud bolt *
018 0105080290 1.39 1.68
Valve gasket
019 2771601001 4.45 5.38
Head Gasket
020 2791500133 11.34 13.72
Fit bush 10 10.3X8.5X14 Eg241 *
021 2771501103 0.83 1.00
Flange Bolt M8X68 G4300L *
022 0110080240 3.54 4.28
Flange bolt M8X33 G4300L *
023 0110080310 2.02 2.44
Valve Cover
024 2771550301 33.35 40.35
Valve cover gasket
025 2771600113 3.72 4.50
Flange bolt G24/35/5500
026 0110060020 1.67 2.02
Valve guide
027 2371420203 33.35 40.35
Sealing kit
028 2799900137 17.40 21.05
Crank Shaft
029 2912070101 273.78 331.27
Insert Wedge G2400-3500-1R
030 0323030010 3.11 3.76
Connecting Rod
031 2912250100 99.33 120.19
Connecting rod bolt M7x13.8
032 2792300103 3.97 4.80
Piston Pin
033 2792330113 10.52 12.73
Lock Washer Eg441A
034 0565180010 1.00 1.21
Piston
035 29123401H3 41.84 50.63
Piston Ring Set
036 2912350117 30.69 37.13
Camshaft cpl
037 2793160211 87.32 105.66
Freewheel Hook
038 2793640103 12.19 14.75
Return spring
039 2793870113 1.67 2.02
Pin 4mm G4300L *
040 2773860103 1.00 1.21
Locking Ring 13.8mm G4300L *
041 2773650103 1.20 1.45
Camshaft Pin Eg241A A
042 2773510101 11.84 14.33
Camshaft pin
043 2773510103 8.27 10.01
O-Ring 5,8X9,6 Eg241A A
044 0240060030 2.15 2.60
Flange bolt G24/35/5500
045 0110060020 1.67 2.02
Intake valve
046 27933401H3 19.29 23.34
Exhaust valve
047 27933501H3 30.69 37.13
Valve spring
048 2793360103 3.44 4.16
Return spring
049 2693370103 5.09 6.16
Check valve
050 13210KA031 1.39 1.68
Valve rocker
051 2773620100 25.36 30.69
Set screw M5 G28/4300L *
052 0149050020 2.71 3.28
Nut M5 G28/4300L *
053 0170050030 1.00 1.21
Rocker
054 2773620200 23.04 27.88
Set screw M5 G28/4300L *
055 0149050020 2.71 3.28
Nut M5 G28/4300L *
056 0170050030 1.00 1.21
Rocker arm pin
057 2773500401 3.54 4.28
Lock washer G28/4300L *
058 0031305000 0.83 1.00
Camshaft chain
059 27935602H1 30.69 37.13
Camshaft chain
060 2773691103 3.12 3.78
Extension Spring
061 2773710103 3.12 3.78
Pin 6x13x34mm
062 2773690203 3.44 4.16
Chain guide
063 2773691313 2.71 3.28
Exhaust pipe
064 2773400101 36.08 43.66
Exhaust stud bolt *
065 0105080290 1.39 1.68
Exhaust Gasket
066 2773520113 2.38 2.88
No information available, not orderable
067 0023808000
Muffler
068 2793050101 297.12 359.52
Exhaust Cap
069 2793470201 71.56 86.59
Exhaust bracket
070 2793910111 7.21 8.72
Bolt G2400-3500-550 *
071 0110060010 1.39 1.68
Bolt with Washer G3501-5501R
072 0011408200 0.83 1.00
Bolt M/Washer Eg441A
073 0011408160 0.83 1.00
Exhaust gasket T=16 28dx52p
074 2773520101 8.27 10.01
No information available, not orderable
075 0023808000
Rubber hose
076 29166001H0 17.40 21.05
Bracket G3501-5500-01R
077 0566000250 2.38 2.88
Nut M/Rivet G28/6100R
078 0023806000 1.20 1.45
Air Filter
079 2793262420 111.57 135.00
Air filter housing
080 2793263728 48.40 58.56
Gasket
081 2793265018 6.70 8.11
Air Filter Cover
082 2793264608 41.84 50.63
Spring retaining ring
083 2793268308 3.54 4.28
Label, Choke- Eg241A A
084 0732004430 5.71 6.91
Air Filter Element
085 2793261208 16.35 19.78
Air Filter Support
086 2793900101 8.27 10.01
Bolt Eg241A A
087 0010406200 1.00 1.21
Regulator lever
088 2794230160 12.19 14.75
Regulator lever
089 2794230160 12.19 14.75
Bolt Eg241A A
090 0010406200 1.00 1.21
Nut G2400-3500-550
091 0186060020 0.98 1.19
Regulator shaft
092 2774220133 11.84 14.33
Lock washer G28/4300L *
093 0031305000 0.83 1.00
Regulator rod
094 2794270123 3.11 3.76
Regulator rod spring
095 2774280123 2.02 2.44
Regulator spring
096 2794250543 3.97 4.80
Speed regulation
097 2774650111 15.65 18.94
Nut G2400R-Etc A
098 0021706000 0.83 1.00
No information available, not orderable
099 0043106400
Flange bolt G24/35/5500
100 0110060020 1.67 2.02
Flywheel Housing
101 2795120501 72.58 87.82
Sponge 4
102 2795960413 10.52 12.73
Bolt M6X1.0X14Dx14L
103 0110060030 1.66 2.01
Label (Trade Mark)Eg241/601A A
104 0732005820 3.97 4.80
Bout M/Revet Eg441A
105 0130060281 0.83 1.00
Intermediate plate Eg441A *
106 2795271111 10.52 12.73
Bout G5500R
107 0016508120 0.83 1.00
Intermediate Plate
108 2795270213 19.29 23.34
Flange bolt G24/35/5500
109 0110060020 1.67 2.02
Covering hood
110 2775500121 13.83 16.73
Flange bolt G24/35/5500
111 0110060020 1.67 2.02
No information available, not orderable
112 2795030120
Starter Spring
113 2265071608 32.15 38.90
Cord reel
114 2775012108 36.08 43.66
Detent
115 2815032508 7.21 8.72
Friction spring
116 2815033008 5.70 6.90
Centering screw
117 2815035108 5.70 6.90
Friction Plate
118 2815034008 5.70 6.90
Starter cord
119 2795011008 19.29 23.34
Starter Cord Button
120 2265070118 8.27 10.01
Start pulley
121 2795014808 23.04 27.88
Circuit float
122 KU31107901 68.53 82.92
Bout M/Revet Eg441A
123 0130060281 0.83 1.00
Manifold
124 27932902J1 12.19 14.75
Gasket
125 27935902J3 1.39 1.68
Gasket
126 27935903J3 1.20 1.45
No information available, not orderable
127 2796236400
Gas Rod
128 2796253608 33.35 40.35
Choke Valve
129 2796252808 5.70 6.90
Spring
130 2836235708 6.41 7.76
Screw
131 1066255608 1.39 1.68
Screw
132 2796235108 3.97 4.80
Plate
133 2796236008 7.21 8.72
O-ring
134 1066238408 2.71 3.28
Sprayer
135 2796242208 15.65 18.94
Throttle rod "a"
136 2796253308 36.08 43.66
Ring
137 2796255108 6.41 7.76
Gasket
138 2466239008 3.44 4.16
Gasket
139 2066254008 5.30 6.41
Float
140 2346250608 29.35 35.51
Float chamber
141 2796250608 27.90 33.76
Main jet
142 2796240808 11.84 14.33
Ring
143 2076234508 0.83 1.00
Bolt
144 1506235808 3.11 3.76
Ring
145 2796254108 3.97 4.80
Bolt
146 2796236108 5.09 6.16
Float Pin
147 2146251508 5.71 6.91
Clip
148 2266270118 3.97 4.80
Needle Valve
149 2246230508 36.08 43.66
Screw
150 2096235108 1.20 1.45
Ring
151 2796255408 5.70 6.90
Choke Handle
152 2796252308 41.84 50.63
Seal
153 2366268008 5.70 6.90
Screw
154 2376245108 1.20 1.45
Ring
155 2776257108 7.21 8.72
Magneto Rotor Comp.
156 2797923011 209.80 253.86
Ignition
157 2797943001 77.67 93.98
Spark plug cap
158 X655000270 4.45 5.38
Bolt Eg241A A
159 0010406200 1.00 1.21
Flange Nut M18 G4300L *
160 0180180010 7.21 8.72
Spark Plug Br6Hs
161 0650140150 10.99 13.30
Stop cable
162 27773102H1 6.41 7.76
Oil Sensor
163 2797630151 30.70 37.15
Flange Bolt Eg241A A
164 0010406140 1.00 1.21
Tap bolt G3501R
165 0152060050 0.83 1.00
Cord Clamp
166 2797550113 2.71 3.28
Field Winding
167 36C2000108 795.78 962.89
Armature
168 36C2010108 955.04 1155.60
Voltage regulator
169 36C2020108 99.33 120.19
Carbon Brush
170 36A2030008 17.40 21.05
Support
171 36C2200008 82.76 100.14
Support
172 36C2210008 68.53 82.92
Support
173 36C2220008 123.71 149.69
Mounting Plate
174 36C2300008 30.69 37.13
Socket
175 36C2500008 5.09 6.16
Bolt
176 36B2100008 15.65 18.94
Bolt
177 36A8000508 5.09 6.16
Flange Bolt
178 36A8000108 1.99 2.41
Screw and Washer
179 36A8010008 1.00 1.21
Flange Bolt
180 36A8000208 1.67 2.02
DIODE
181 36A2500108 27.90 33.76
Screw and Washer
182 36A8010108 1.39 1.68
Hose
183 36C2500208 25.36 30.69
Bushing
184 36A2500308 9.26 11.20
Connector (1)
185 36A7000008 5.70 6.90
Connector (1)
186 36A7000408 3.44 4.16
Connector (1)
187 36A7000208 2.38 2.88
Spring retaining ring
188 36A7010108 1.66 2.01
Spring retaining ring
189 36A7010008 2.02 2.44
Wire (green)
190 36A7101308 12.22 14.79
Wire (white)
191 36A7100108 13.83 16.73
Screw
192 36A8020008 4.45 5.38
LINK
193 36A7000508 15.65 18.94
Bolt
194 36C2110008 36.08 43.66
Sponge filter
195 36C2500408 21.23 25.69
Label (Trade Mark)Eg241/601A A
196 0732005820 3.97 4.80
Tube frame
197 36C3000008 617.29 746.92
Control box
198 36C4000108 311.67 377.12
Screw and Washer
199 36A8010408 1.99 2.41
Screw and Washer
200 36A8010508 1.20 1.45
Bolt
201 36A8100208 1.99 2.41
Bolt
202 36A8000608 8.27 10.01
Retaining Bracket
203 36C3100008 19.29 23.34
Flange Bolt
204 36A8000408 1.39 1.68
Lock washer filter
205 36A8200108 0.83 1.00
Bolt
206 36A8100308 2.38 2.88
Bolt
207 36A8100408 1.20 1.45
Sponge
208 36A2500508 2.71 3.28
Sponge
209 36A3500008 12.22 14.79
Sponge
210 36C3500108 6.41 7.76
Wire (green/yellow)
211 36A7101908 15.65 18.94
No information available, not orderable
212 36C9100718
Petrol tap label
213 36A9800308 15.65 18.94
Operator Panel
214 36C4100108 118.43 143.30
Switch
215 36A4900008 21.23 25.69
Socket
216 36A4700108 26.55 32.13
Circuit breaker Dc 10a
217 36C4800008 51.84 62.73
Voltmeter
218 36A4900108 81.38 98.47
DC memory
219 36A4710108 11.84 14.33
DC Circuit Breaker 10A
220 36A4800108 30.69 37.13
Screw and Washer
221 36A8010208 1.39 1.68
Lock washer filter
222 36A8200008 0.83 1.00
Bolt
223 36A8100008 1.20 1.45
Cap rivet Eg241/321a
224 36A8210008 1.99 2.41
Ring
225 36A8220008 0.83 1.00
Washer Spring
226 36A8230008 0.83 1.00
Nut Wing
227 36A8110008 2.71 3.28
Connector (1)
228 36A7000308 3.44 4.16
Connector (1)
229 36A7000108 7.21 8.72
Spring retaining ring
230 36A7010108 1.66 2.01
Spring retaining ring
231 36A7010008 2.02 2.44
Screw and Washer
232 36A8010308 1.20 1.45
Screw
233 36A8020108 1.00 1.21
Bolt
234 36A8100108 1.20 1.45
Bushing
235 36C4990008 7.21 8.72
Wire (white)
236 36A7100208 17.40 21.05
Wire (white)
237 36A7100308 17.40 21.05
Wire (black)
238 36A7100408 13.83 16.73
Wire (green)
239 36A7101408 36.08 43.66
Wire (black)
240 36A7100608 17.40 21.05
Wire (green/yellow)
241 36A7101508 10.52 12.73
Wire (green/yellow)
242 36A7101608 19.29 23.34
Wire (green)
243 36A7101708 11.84 14.33
Wire (blue)
244 36A7101808 48.40 58.56
Label (trade mark) Eg441a
245 36C9000208 33.35 40.35
Choke label
246 36A9800408 3.44 4.16
FUEL TANK
247 2706172201 184.64 223.41
Tank Cap G2800R
248 0430590011 36.05 43.62
Gasoline Filter Eg-Series
249 0641540011 11.84 14.33
Fuel gauge Eg241/321A
250 0648001800 38.75 46.89
Screw G2400-3500-550
251 0145050040 1.39 1.68
Bout Eg241A
252 0110060220 2.38 2.88
Rubber ring (tank)
253 3913900013 3.54 4.28
Fuel Tap G4100R
254 0642010001 20.15 24.38
Gasoline filter Eg241A A
255 0642001420 1.66 2.01
Gasket ring Eg441A
256 0642001430 1.39 1.68
Sight Glass Eg241A
257 0642001410 3.44 4.16
Locknut Eg241A
258 0642010030 3.97 4.80
O-Ring Eg241A
259 0642000330 1.66 2.01
Bolt Eg241/321/441A
260 0642002790 0.83 1.00
Compression spring Eg241A
261 0642003230 1.20 1.45
Gas hose
262 2706260311 9.26 11.20
No information available, not orderable
263 0561110060
Hose 100mm
264 36A6000108 12.19 14.75
Petrol tap label
265 36A9800108 6.41 7.76
Label (symbol tank) Eg241/601a
266 36A9800208 15.65 18.94
Rubber hose
267 X851061421 12.06 14.59
Ring
268 36A8220208 15.65 18.94
Noise filter
269 36A7500108 311.67 377.12
Bolt with washer
270 36A8030008 2.38 2.88

There are 0 items in your shopping basket.
