Here you will find all available parts and drawings of the 'Makita EG241A'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

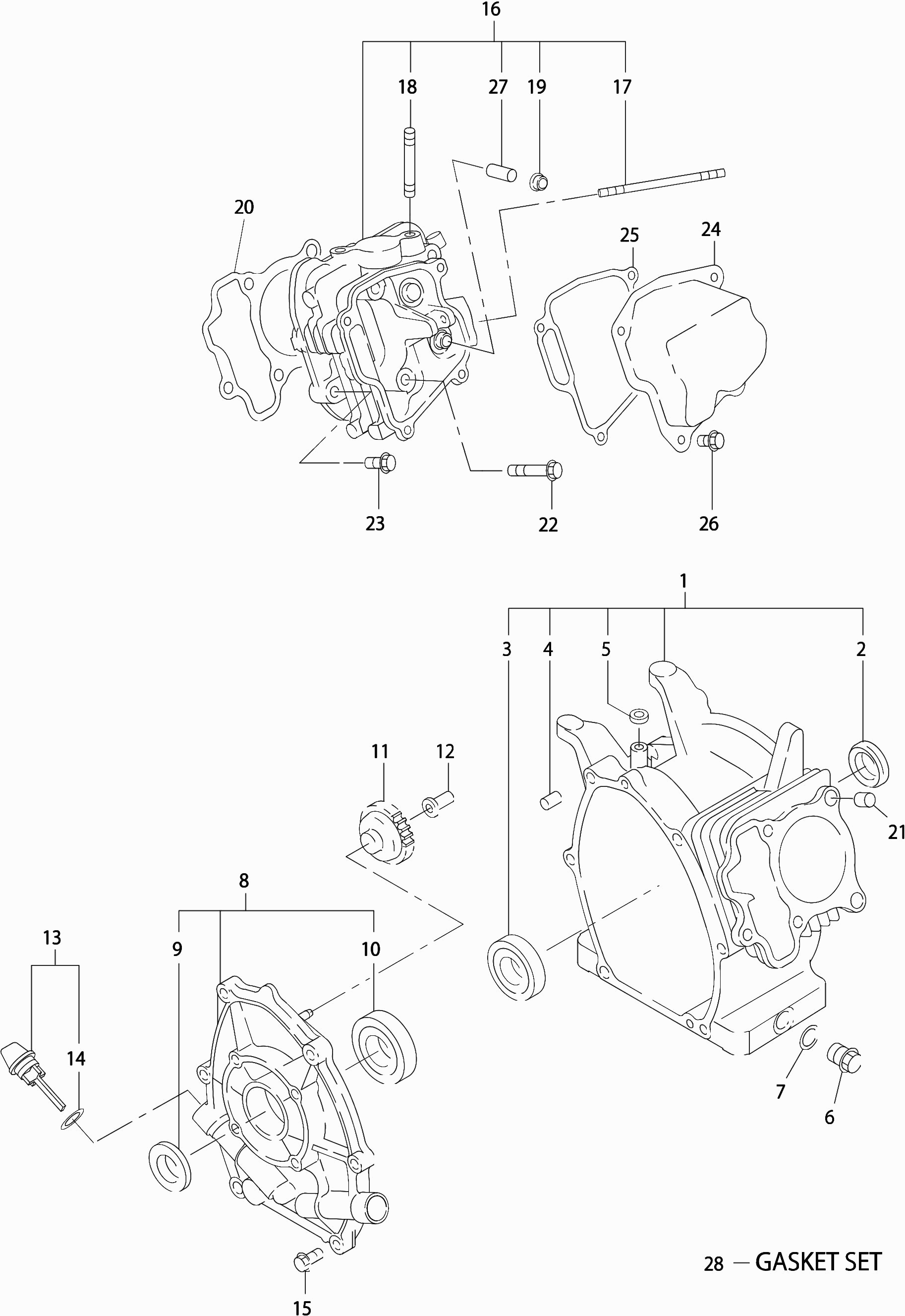

Technical drawing of model Makita EG241A
Spare parts list of model Makita EG241A
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Crankcase G2800L/Eg241A * | ||||
| 001 | 2771010251 | 375.10 | 453.87 | |
| Oil Seal 25X38X7 G2800L | ||||
| 002 | 0440250200 | 10.80 | 13.07 | |
| Ball bearing 62/28 G2800L | ||||
| 003 | 0600280021 | 17.60 | 21.30 | |
| Fit bush 10 10.3X8.5X14 Eg241 * | ||||
| 004 | 2771501103 | 1.20 | 1.45 | |
| Oil seal 6X10X2.5 G4300L | ||||
| 005 | 0440060020 | 6.00 | 7.26 | |
| Carterplug Eg-Series | ||||
| 006 | 0401140030 | 2.40 | 2.90 | |
| Gasket G2400-3500-550 | ||||
| 007 | 0211140020 | 1.20 | 1.45 | |
| Crankcase Cover | ||||
| 008 | 2771100131 | 99.00 | 119.79 | |
| Oil seal 25X41X6 G2800L | ||||
| 009 | 0440250210 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 010 | 0600250140 | |||
| Regulateurtandwiel | ||||
| 011 | 27745004J1 | 13.20 | 15.97 | |
| Regulator bush G28/4300L A | ||||
| 012 | 2774190201 | 30.80 | 37.27 | |
| Oil Dipstick | ||||
| 013 | 2776360130 | 7.20 | 8.71 | |
| O-ring for oil dipstick A | ||||
| 014 | 424100-6 | 1.00 | 1.21 | |
| Flange Bolt G4300L * | ||||
| 015 | 0010408350 | 2.40 | 2.90 | |
| Cylinder Head | ||||
| 016 | 2771300211 | 184.80 | 223.61 | |
| Tapeind M6X980Mm G2800L | ||||
| 017 | 0105060351 | 7.20 | 8.71 | |
| Exhaust stud bolt * | ||||
| 018 | 0105080290 | 2.40 | 2.90 | |
| Valve gasket | ||||
| 019 | 2771601001 | 4.80 | 5.81 | |
| Cylinder head gasket | ||||
| 020 | 2771500133 | 4.80 | 5.81 | |
| Fit bush 10 10.3X8.5X14 Eg241 * | ||||
| 021 | 2771501103 | 1.20 | 1.45 | |
| Flange Bolt M8X68 G4300L * | ||||
| 022 | 0110080240 | 3.60 | 4.36 | |
| Flange bolt M8X33 G4300L * | ||||
| 023 | 0110080310 | 2.40 | 2.90 | |
| Valve Cover | ||||
| 024 | 2771550301 | 34.10 | 41.26 | |
| Valve cover gasket | ||||
| 025 | 2771600113 | 3.60 | 4.36 | |
| Flange bolt G24/35/5500 | ||||
| 026 | 0110060020 | 2.40 | 2.90 | |
| Valve guide | ||||
| 027 | 2371420203 | 34.10 | 41.26 | |
| No information available, not orderable | ||||
| 028 | 2779900167 | |||
| Crank Shaft | ||||
| 029 | 2772070121 | 248.60 | 300.81 | |
| Insert Wedge G2400-3500-1R | ||||
| 030 | 0323030010 | 3.60 | 4.36 | |
| Connecting Rod | ||||
| 031 | 2772250110 | 78.10 | 94.50 | |
| Connecting rod bolt | ||||
| 032 | 2772300103 | 3.60 | 4.36 | |
| Piston Pin | ||||
| 033 | 2772330113 | 9.60 | 11.62 | |
| Lock Washer Eg241/321A | ||||
| 034 | 0565160010 | 1.20 | 1.45 | |
| Piston 67 | ||||
| 035 | 27723401J3 | 36.30 | 43.92 | |
| Piston ov.siz.0.25mm | ||||
| 035A | 27723403J3 | 39.60 | 47.92 | |
| Piston over size 0.50mm | ||||
| 035B | 27723404J3 | 39.60 | 47.92 | |
| Piston Ring Set for Oil Pump | ||||
| 036 | 2772353107 | 42.90 | 51.91 | |
| Piston ring set 0.25mm | ||||
| 036A | 2772353207 | 42.90 | 51.91 | |
| Piston Ring Set 0.50mm | ||||
| 036A | 2772353307 | 42.90 | 51.91 | |
| Camshaft cpl | ||||
| 037 | 2783160131 | 82.50 | 99.82 | |
| Freewheel Hook G2800L * | ||||
| 038 | 2773640103 | 10.80 | 13.07 | |
| Return spring | ||||
| 039 | 2793870113 | 2.40 | 2.90 | |
| Pin 4mm G4300L * | ||||
| 040 | 2773860103 | 1.20 | 1.45 | |
| Locking Ring 13.8mm G4300L * | ||||
| 041 | 2773650103 | 1.20 | 1.45 | |
| Camshaft Pin Eg241A A | ||||
| 042 | 2773510101 | 11.00 | 13.31 | |
| Camshaft pin | ||||
| 043 | 2773510103 | 8.40 | 10.16 | |
| O-Ring 5,8X9,6 Eg241A A | ||||
| 044 | 0240060030 | 2.40 | 2.90 | |
| Bolt G2400-3500-550 * | ||||
| 045 | 0110060010 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 046 | 27733401H3 | |||
| No information available, not orderable | ||||
| 047 | 27733501H3 | |||
| Valve spring | ||||
| 048 | 2793360103 | 3.60 | 4.36 | |
| Return spring | ||||
| 049 | 2693370103 | 6.00 | 7.26 | |
| Check valve | ||||
| 050 | 13210KA031 | 2.40 | 2.90 | |
| Valve rocker | ||||
| 051 | 2773620100 | 26.40 | 31.94 | |
| Set screw M5 G28/4300L * | ||||
| 052 | 0149050020 | 3.60 | 4.36 | |
| Nut M5 G28/4300L * | ||||
| 053 | 0170050030 | 1.20 | 1.45 | |
| Rocker | ||||
| 054 | 2773620200 | 23.10 | 27.95 | |
| Set screw M5 G28/4300L * | ||||
| 055 | 0149050020 | 3.60 | 4.36 | |
| Nut M5 G28/4300L * | ||||
| 056 | 0170050030 | 1.20 | 1.45 | |
| Rocker arm pin | ||||
| 057 | 2773500401 | 3.60 | 4.36 | |
| Lock washer G28/4300L * | ||||
| 058 | 0031305000 | 1.00 | 1.21 | |
| Camshaft chain Eg241A A | ||||
| 059 | 27735602H1 | 28.60 | 34.61 | |
| Camshaft chain | ||||
| 060 | 2773691103 | 3.60 | 4.36 | |
| Extension Spring | ||||
| 061 | 2773710103 | 3.60 | 4.36 | |
| Pin 6x13x34mm | ||||
| 062 | 2773690203 | 3.60 | 4.36 | |
| Chain guide | ||||
| 063 | 2773691313 | 3.60 | 4.36 | |
| Exhaust pipe | ||||
| 064 | 2773400101 | 36.30 | 43.92 | |
| Exhaust stud bolt * | ||||
| 065 | 0105080290 | 2.40 | 2.90 | |
| Exhaust Gasket | ||||
| 066 | 2773520113 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 067 | 0023808000 | |||
| Muffler | ||||
| 068 | 2773051101 | 124.30 | 150.40 | |
| Exhaust Cap | ||||
| 069 | 2773470101 | 56.10 | 67.88 | |
| Exhaust bracket | ||||
| 070 | 2773910101 | 11.00 | 13.31 | |
| Exhaust bracket | ||||
| 071 | 2773910201 | 9.60 | 11.62 | |
| Exhaust gasket T=16 28dx52p | ||||
| 072 | 2773520101 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 073 | 0023808000 | |||
| Bolt G2400-3500-550 * | ||||
| 074 | 0110060010 | 2.40 | 2.90 | |
| Flange Bolt Eg241A A | ||||
| 075 | 0010406140 | 1.00 | 1.21 | |
| Sponge protector | ||||
| 076 | 2776900203 | 4.80 | 5.81 | |
| Nut M/Rivet G28/6100R | ||||
| 077 | 0023806000 | 1.20 | 1.45 | |
| Vent Pipe | ||||
| 078 | 2773276208 | 14.30 | 17.30 | |
| No information available, not orderable | ||||
| 079 | 2773262220 | |||
| Air Filter Cap G2900Lx A | ||||
| 080 | 2773264328 | 39.60 | 47.92 | |
| Label, Choke- Eg241A A | ||||
| 081 | 0732004430 | 6.00 | 7.26 | |
| Air filter housing | ||||
| 082 | 2773263208 | 48.40 | 58.56 | |
| No longer available, no replacement | ||||
| 083 | 2773260408 | |||
| Air Filter Element | ||||
| 084 | 2773266117 | 38.50 | 46.58 | |
| Air Filter Support | ||||
| 085 | 2773900101 | 7.20 | 8.71 | |
| Bolt Eg241A A | ||||
| 086 | 0010406200 | 1.20 | 1.45 | |
| Regulator lever | ||||
| 087 | 2774230140 | 13.20 | 15.97 | |
| Regulator lever | ||||
| 088 | 2774230140 | 13.20 | 15.97 | |
| Bolt Eg241A A | ||||
| 089 | 0010406200 | 1.20 | 1.45 | |
| Nut G2400-3500-550 | ||||
| 090 | 0186060020 | 1.20 | 1.45 | |
| Regulator shaft | ||||
| 091 | 2774220133 | 11.00 | 13.31 | |
| Lock washer G28/4300L * | ||||
| 092 | 0031305000 | 1.00 | 1.21 | |
| Regulator rod | ||||
| 093 | 2774270123 | 3.60 | 4.36 | |
| Regulator rod spring | ||||
| 094 | 2774280123 | 2.40 | 2.90 | |
| Regulator spring | ||||
| 095 | 2794250543 | 4.80 | 5.81 | |
| Speed regulation | ||||
| 096 | 2774650111 | 16.50 | 19.96 | |
| Nut G2400R-Etc A | ||||
| 097 | 0021706000 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 098 | 0043106400 | |||
| Flange bolt G24/35/5500 | ||||
| 099 | 0110060020 | 2.40 | 2.90 | |
| Flywheel Housing | ||||
| 100 | 2775120501 | 56.10 | 67.88 | |
| Circuit float | ||||
| 101 | KU31107001 | 69.30 | 83.85 | |
| Tapschroef G2400-3500-550 | ||||
| 102 | 0150040010 | 1.00 | 1.21 | |
| Bolt M6X1.0X14Dx14L | ||||
| 103 | 0110060030 | 2.40 | 2.90 | |
| Label (Trade Mark)Eg241/601A A | ||||
| 104 | 0732005820 | 4.80 | 5.81 | |
| Bout M/Revet Eg441A | ||||
| 105 | 0130060281 | 1.20 | 1.45 | |
| Intermediate Plate | ||||
| 106 | 2775271121 | 9.60 | 11.62 | |
| Flange Bolt Eg241A A | ||||
| 107 | 0010406140 | 1.00 | 1.21 | |
| Intermediate Plate | ||||
| 108 | 2775270203 | 19.80 | 23.96 | |
| Flange bolt G24/35/5500 | ||||
| 109 | 0110060020 | 2.40 | 2.90 | |
| Covering hood | ||||
| 110 | 2775500121 | 14.30 | 17.30 | |
| Flange bolt G24/35/5500 | ||||
| 111 | 0110060020 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 112 | 2775030120 | |||
| Starter Spring | ||||
| 113 | 2265071608 | 33.00 | 39.93 | |
| Cord reel | ||||
| 114 | 2775012108 | 36.30 | 43.92 | |
| Detent | ||||
| 115 | 2815032508 | 8.40 | 10.16 | |
| Friction spring | ||||
| 116 | 2815033008 | 6.00 | 7.26 | |
| Centering screw | ||||
| 117 | 2815035108 | 6.00 | 7.26 | |
| Friction Plate | ||||
| 118 | 2815034008 | 6.00 | 7.26 | |
| Starter cord | ||||
| 119 | 2775011008 | 16.50 | 19.96 | |
| Starter Knop Eg241A A | ||||
| 120 | 2815030018 | 8.40 | 10.16 | |
| Start pulley | ||||
| 121 | 2775014508 | 23.10 | 27.95 | |
| Manifold | ||||
| 122 | 20A3290201 | 11.00 | 13.31 | |
| Gasket 1 Manifold Eg241A A | ||||
| 123 | 20A3590203 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 124 | 27735903J3 | |||
| Carburetor | ||||
| 125 | 2776230440 | 111.10 | 134.43 | |
| Throttle valve | ||||
| 126 | 2776253508 | 16.50 | 19.96 | |
| Air nozzle (inlet) | ||||
| 127 | 1066241008 | 16.50 | 19.96 | |
| Choke Valve | ||||
| 128 | 2776252708 | 10.80 | 13.07 | |
| Air Nozzle | ||||
| 129 | 2486241008 | 16.50 | 19.96 | |
| Gas needle | ||||
| 130 | 2466242008 | 13.20 | 15.97 | |
| Gas Rod | ||||
| 131 | 2776253118 | 34.10 | 41.26 | |
| Choke Handle | ||||
| 132 | 2776252208 | 28.60 | 34.61 | |
| Main jet | ||||
| 133 | 2776244008 | 26.40 | 31.94 | |
| Float | ||||
| 134 | 2266250608 | 34.10 | 41.26 | |
| Float chamber | ||||
| 135 | 2776250608 | 39.60 | 47.92 | |
| Main Throttle Needle | ||||
| 136 | 2776240208 | 16.50 | 19.96 | |
| Gasket | ||||
| 137 | 2146245008 | 1.20 | 1.45 | |
| Bolt G2400R * | ||||
| 138 | 2276245108 | 10.80 | 13.07 | |
| Clip | ||||
| 139 | 2266270118 | 4.80 | 5.81 | |
| Pin | ||||
| 140 | 2776251508 | 3.60 | 4.36 | |
| Gasket | ||||
| 141 | 2146254008 | 6.00 | 7.26 | |
| Pointer | ||||
| 142 | 2776250008 | 34.10 | 41.26 | |
| Gasket | ||||
| 143 | 2466239008 | 3.60 | 4.36 | |
| Seal | ||||
| 144 | 2366268008 | 6.00 | 7.26 | |
| Bolt | ||||
| 145 | 2776236008 | 8.40 | 10.16 | |
| Gasket | ||||
| 146 | 2366254108 | 6.00 | 7.26 | |
| Ring | ||||
| 147 | 2776257028 | 7.20 | 8.71 | |
| Ring | ||||
| 148 | 2776257108 | 8.40 | 10.16 | |
| Screw | ||||
| 149 | 2096235108 | 1.20 | 1.45 | |
| Screw | ||||
| 150 | 2376245108 | 1.20 | 1.45 | |
| Spring | ||||
| 151 | 2836235708 | 7.20 | 8.71 | |
| Screw | ||||
| 152 | 1066255608 | 2.40 | 2.90 | |
| Nut | ||||
| 153 | 2776255308 | 7.20 | 8.71 | |
| Magneto Rotor Comp. | ||||
| 154 | 2777923011 | 184.80 | 223.61 | |
| Ignition | ||||
| 155 | 2777943111 | 105.60 | 127.78 | |
| Spark plug cap | ||||
| 156 | X655000270 | 4.80 | 5.81 | |
| Bolt Eg241A A | ||||
| 157 | 0010406200 | 1.20 | 1.45 | |
| Flange Nut M14 G2800L * | ||||
| 158 | 0180140020 | 2.38 | 2.88 | |
| Spark Plug Br6Hs | ||||
| 159 | 0650140150 | 10.99 | 13.30 | |
| Stop cable | ||||
| 160 | 27773102H1 | 7.20 | 8.71 | |
| Snap Ring G1700I | ||||
| 161 | 0569000020 | 1.20 | 1.45 | |
| Oil Sensor | ||||
| 162 | 2777630121 | 42.90 | 51.91 | |
| Flange Bolt Eg241A A | ||||
| 163 | 0010406140 | 1.00 | 1.21 | |
| Field Winding | ||||
| 164 | 36A2000108 | 744.70 | 901.09 | |
| Armature | ||||
| 165 | 36A2010108 | 586.30 | 709.42 | |
| No information available, not orderable | ||||
| 166 | 36A2020108 | |||
| Carbon Brush | ||||
| 167 | 36A2030008 | 17.60 | 21.30 | |
| Support | ||||
| 168 | 36A2200008 | 72.60 | 87.85 | |
| Support | ||||
| 169 | 36A2210008 | 42.90 | 51.91 | |
| Support | ||||
| 170 | 36A2220008 | 92.40 | 111.80 | |
| Mounting Plate | ||||
| 171 | 36A2300008 | 22.00 | 26.62 | |
| Socket | ||||
| 172 | 36A2500008 | 8.40 | 10.16 | |
| Bolt | ||||
| 173 | 36A2100008 | 14.30 | 17.30 | |
| Bolt | ||||
| 174 | 36A8000008 | 2.40 | 2.90 | |
| Flange Bolt | ||||
| 175 | 36A8000108 | 2.40 | 2.90 | |
| Screw and Washer | ||||
| 176 | 36A8010008 | 1.20 | 1.45 | |
| Flange Bolt | ||||
| 177 | 36A8000208 | 2.40 | 2.90 | |
| DIODE | ||||
| 178 | 36A2500108 | 28.60 | 34.61 | |
| Screw and Washer | ||||
| 179 | 36A8010108 | 2.40 | 2.90 | |
| Hose | ||||
| 180 | 36A2500208 | 8.40 | 10.16 | |
| Bushing | ||||
| 181 | 36A2500308 | 9.60 | 11.62 | |
| Connector (1) | ||||
| 182 | 36A7000008 | 6.00 | 7.26 | |
| Connector (1) | ||||
| 183 | 36A7000208 | 2.40 | 2.90 | |
| Spring retaining ring | ||||
| 184 | 36A7010108 | 2.40 | 2.90 | |
| Spring retaining ring | ||||
| 185 | 36A7010008 | 2.40 | 2.90 | |
| Wire (green) | ||||
| 186 | 36A7100008 | 13.20 | 15.97 | |
| Wire (white) | ||||
| 187 | 36A7100108 | 14.30 | 17.30 | |
| Screw | ||||
| 188 | 36A8020008 | 4.80 | 5.81 | |
| Bolt | ||||
| 189 | 36A2110008 | 17.60 | 21.30 | |
| Filter sponge | ||||
| 190 | 36A2500408 | 16.50 | 19.96 | |
| Label (Trade Mark)Eg241/601A A | ||||
| 191 | 0732005820 | 4.80 | 5.81 | |
| Tube frame | ||||
| 192 | 36A3000008 | 585.20 | 708.09 | |
| Control box | ||||
| 193 | 36A4000108 | 363.00 | 439.23 | |
| Screw and Washer | ||||
| 194 | 36A8010408 | 2.40 | 2.90 | |
| Screw and Washer | ||||
| 195 | 36A8010508 | 1.20 | 1.45 | |
| Bolt | ||||
| 196 | 36A8100208 | 2.40 | 2.90 | |
| Bolt | ||||
| 197 | 36A8000308 | 4.80 | 5.81 | |
| Retaining Bracket | ||||
| 198 | 36A3100008 | 13.20 | 15.97 | |
| Flange Bolt | ||||
| 199 | 36A8000408 | 2.40 | 2.90 | |
| Lock washer filter | ||||
| 200 | 36A8200108 | 1.00 | 1.21 | |
| Sponge | ||||
| 201 | 36A2500508 | 3.60 | 4.36 | |
| Sponge | ||||
| 202 | 36A3500008 | 13.20 | 15.97 | |
| Sponge | ||||
| 203 | 36A3500108 | 6.00 | 7.26 | |
| Wire (green/yellow) | ||||
| 204 | 36A7100708 | 16.50 | 19.96 | |
| Label (spec) Eg241a | ||||
| 205 | 36A9100918 | 11.00 | 13.31 | |
| Petrol tap label | ||||
| 206 | 36A9800308 | 16.50 | 19.96 | |
| No information available, not orderable | ||||
| 207 | 36B4100708 | |||
| Switch | ||||
| 208 | 36A4900008 | 22.00 | 26.62 | |
| Socket | ||||
| 209 | 36A4700108 | 27.50 | 33.28 | |
| DC Circuit Breaker 10A | ||||
| 210 | 36A4800008 | 52.80 | 63.89 | |
| Voltmeter | ||||
| 211 | 36A4900108 | 81.40 | 98.49 | |
| DC memory | ||||
| 212 | 36A4710108 | 11.00 | 13.31 | |
| DC Circuit Breaker 10A | ||||
| 213 | 36A4800108 | 30.80 | 37.27 | |
| Screw and Washer | ||||
| 214 | 36A8010208 | 2.40 | 2.90 | |
| Lock washer filter | ||||
| 215 | 36A8200008 | 1.20 | 1.45 | |
| Bolt | ||||
| 216 | 36A8100008 | 1.20 | 1.45 | |
| Cap rivet Eg241/321a | ||||
| 217 | 36A8210008 | 2.40 | 2.90 | |
| Ring | ||||
| 218 | 36A8220008 | 1.00 | 1.21 | |
| Washer Spring | ||||
| 219 | 36A8230008 | 1.00 | 1.21 | |
| Nut Wing | ||||
| 220 | 36A8110008 | 3.60 | 4.36 | |
| Connector (1) | ||||
| 221 | 36A7000308 | 3.60 | 4.36 | |
| Connector (1) | ||||
| 222 | 36A7000108 | 8.40 | 10.16 | |
| Spring retaining ring | ||||
| 223 | 36A7010108 | 2.40 | 2.90 | |
| Spring retaining ring | ||||
| 224 | 36A7010008 | 2.40 | 2.90 | |
| Screw and Washer | ||||
| 225 | 36A8010308 | 1.20 | 1.45 | |
| Screw | ||||
| 226 | 36A8020108 | 1.20 | 1.45 | |
| Bolt | ||||
| 227 | 36A8100108 | 1.20 | 1.45 | |
| Bushing | ||||
| 228 | 36A4990008 | 11.00 | 13.31 | |
| Wire (white) | ||||
| 229 | 36A7100208 | 17.60 | 21.30 | |
| Wire (white) | ||||
| 230 | 36A7100308 | 17.60 | 21.30 | |
| Wire (black) | ||||
| 231 | 36A7100408 | 14.30 | 17.30 | |
| Wire (green) | ||||
| 232 | 36A7100508 | 10.80 | 13.07 | |
| Wire (black) | ||||
| 233 | 36A7100608 | 17.60 | 21.30 | |
| Wire (grey) | ||||
| 234 | 36A7100808 | 8.40 | 10.16 | |
| Wire (red) | ||||
| 235 | 36A7100908 | 17.60 | 21.30 | |
| Wire (red) | ||||
| 236 | 36A7101008 | 26.40 | 31.94 | |
| Wire (green) | ||||
| 237 | 36A7101108 | 28.60 | 34.61 | |
| Wire (blue) | ||||
| 238 | 36A7101208 | 36.30 | 43.92 | |
| Label (trade mark) Eg241a | ||||
| 239 | 36A9000208 | 25.30 | 30.61 | |
| Choke label | ||||
| 240 | 36A9800408 | 2.40 | 2.90 | |
| FUEL TANK | ||||
| 241 | 2706172201 | 184.80 | 223.61 | |
| Tank Cap G2800R | ||||
| 242 | 0430590011 | 36.30 | 43.92 | |
| Gasoline Filter Eg-Series | ||||
| 243 | 0641540011 | 11.00 | 13.31 | |
| Fuel gauge Eg241/321A | ||||
| 244 | 0648001800 | 39.60 | 47.92 | |
| Screw G2400-3500-550 | ||||
| 245 | 0145050040 | 2.40 | 2.90 | |
| Bout Eg241A | ||||
| 246 | 0110060220 | 2.40 | 2.90 | |
| Rubber ring (tank) | ||||
| 247 | 3913900013 | 3.60 | 4.36 | |
| Fuel Tap G4100R | ||||
| 248 | 0642010001 | 20.90 | 25.29 | |
| Gasoline filter Eg241A A | ||||
| 249 | 0642001420 | 2.40 | 2.90 | |
| Gasket ring Eg441A | ||||
| 250 | 0642001430 | 2.40 | 2.90 | |
| Sight Glass Eg241A | ||||
| 251 | 0642001410 | 3.60 | 4.36 | |
| Locknut Eg241A | ||||
| 252 | 0642010030 | 4.80 | 5.81 | |
| O-Ring Eg241A | ||||
| 253 | 0642000330 | 2.40 | 2.90 | |
| Bolt Eg241/321/441A | ||||
| 254 | 0642002790 | 1.20 | 1.45 | |
| Compression spring Eg241A | ||||
| 255 | 0642003230 | 1.20 | 1.45 | |
| Fuel hose set | ||||
| 256 | 2696261301 | 26.40 | 31.94 | |
| Hose Clamp 11Mm P | ||||
| 257 | 0561110020 | 1.20 | 1.45 | |
| Hose 100mm | ||||
| 258 | 36A6000108 | 13.20 | 15.97 | |
| Petrol tap label | ||||
| 259 | 36A9800108 | 7.20 | 8.71 | |
| Label (symbol tank) Eg241/601a | ||||
| 260 | 36A9800208 | 15.40 | 18.63 | |
| Rubber hose | ||||
| 261 | 2696801203 | 23.10 | 27.95 | |
| Ring | ||||
| 262 | 36A8220108 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 263 | 36A7500008 | |||
| No information available, not orderable | ||||
| 264 | 36A8030108 | |||
| Screw + Washer | ||||
| 265 | 36A8010708 | 1.20 | 1.45 | |
| Label "danger" | ||||
| 266 | 36A9802108 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 267 | 36A9802208 | |||
