Here you will find all available parts and drawings of the 'Makita EBH341U'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

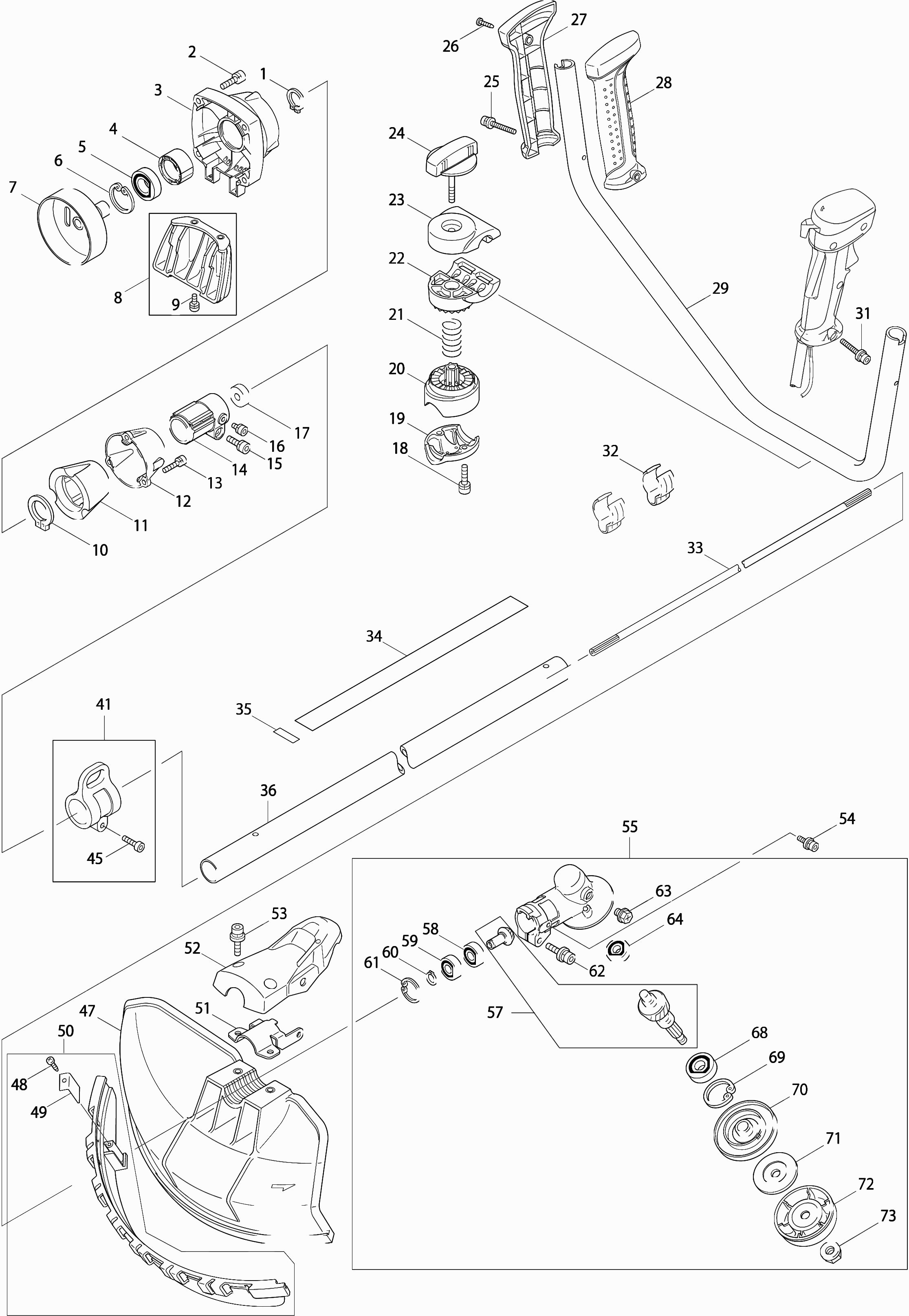

Technical drawing of model Makita EBH341U
Spare parts list of model Makita EBH341U
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Lock ring S-17 | ||||
| 001 | 961057-5 | 1.00 | 1.21 | |
| Inbusbout M6x20 | ||||
| 002 | 265905-3 | 1.20 | 1.45 | |
| Coupling Housing Ebh341U * | ||||
| 003 | 318421-5 | 8.40 | 10.16 | |
| Spacer | ||||
| 004 | 451157-4 | 2.40 | 2.90 | |
| Ball bearing 6003llu | ||||
| 005 | 210126-2 | 7.20 | 8.71 | |
| Ball bearing 6003Llu A | ||||
| 005 | 211338-0 | 7.20 | 8.71 | |
| Ball bearing 6003llu | ||||
| 005-1 | 210126-2 | 7.20 | 8.71 | |
| Lock Ring R-35 | ||||
| 006 | 962153-2 | 1.00 | 1.21 | |
| Clutch Drum | ||||
| 007 | 165577-3 | 8.40 | 10.16 | |
| Complete Motor Support | ||||
| 008 | 195144-0 | 2.40 | 2.90 | |
| Metal screw Ph M5x14mm Ck | ||||
| 009 | 266809-2 | 1.00 | 1.21 | |
| Lock Ring S-32 | ||||
| 010 | 961151-3 | 2.40 | 2.90 | |
| Damper Ebh341U A | ||||
| 011 | 424204-4 | 3.60 | 4.36 | |
| Spindle Bushing Ebh341U | ||||
| 012 | 318453-2 | 3.60 | 4.36 | |
| Hexagonal bolt 5X20 LF1000 A | ||||
| 013 | 265550-4 | 1.00 | 1.21 | |
| Steel Holder Ebh341U A | ||||
| 014 | 318454-0 | 7.20 | 8.71 | |
| Inbusbout M6x20 | ||||
| 015 | 265905-3 | 1.20 | 1.45 | |
| Screw | ||||
| 016 | 922201-9 | 1.00 | 1.21 | |
| Felt ring 8mm | ||||
| 017 | 443146-3 | 1.00 | 1.21 | |
| Hex bolt 6x25 | ||||
| 018 | 922341-3 | 1.00 | 1.21 | |
| Tube Grip Bracket | ||||
| 019 | 318422-3 | 3.60 | 4.36 | |
| Tube Grip Holder | ||||
| 020 | 318423-1 | 7.20 | 8.71 | |
| Compression Spring 20 | ||||
| 021 | 233202-5 | 1.20 | 1.45 | |
| Handgreephouder | ||||
| 022 | 318424-9 | 6.00 | 7.26 | |
| Handle Bracket | ||||
| 023 | 318425-7 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 024 | 168524-3 | |||
| Star head 57mm | ||||
| 024-1 | 168796-0 | 4.80 | 5.81 | |
| Star head 57mm | ||||
| 024-1A | 168796-0 | 4.80 | 5.81 | |
| Hex socket screw Ck M5x35mm | ||||
| 025 | 922256-4 | 1.20 | 1.45 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 026 | 265B67-9 | 1.00 | 1.21 | |
| Set Of Handles | ||||
| 027 | 188660-9 | 13.20 | 15.97 | |
| Set Of Handles | ||||
| 027-1 | 188660-9 | 13.20 | 15.97 | |
| Set Of Handles | ||||
| 027-1A | 188660-9 | 13.20 | 15.97 | |
| Set Of Handles | ||||
| 028 | 188660-9 | 13.20 | 15.97 | |
| Set Of Handles | ||||
| 028-1 | 188660-9 | 13.20 | 15.97 | |
| Set Of Handles | ||||
| 028-1A | 188660-9 | 13.20 | 15.97 | |
| Handle Bracket | ||||
| 029 | 331863-6 | 13.20 | 15.97 | |
| Hex socket screw Ck M5x35mm | ||||
| 031 | 922256-4 | 1.20 | 1.45 | |
| Cord Clamp | ||||
| 032 | 451525-1 | 3.60 | 4.36 | |
| No longer available, no replacement | ||||
| 033 | 325675-7 | |||
| Warning Label | ||||
| 034 | 810500-0 | 2.40 | 2.90 | |
| serial number label | ||||
| 035 | 816551-1 | 2.40 | 2.90 | |
| Label "serienr" | ||||
| 035-3 | 801D19-4 | 2.40 | 2.90 | |
| serial number label | ||||
| 035A | 816551-1 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 035AC10 | 819760-1 | |||
| LABEL DATUM SN400MP | ||||
| 035AC20 | 814A82-0 | 2.40 | 2.90 | |
| Steel | ||||
| 036 | 140042-3 | 44.96 | 54.40 | |
| No information available, not orderable | ||||
| 037 | 331865-2 | |||
| No information available, not orderable | ||||
| 038 | 140043-1 | |||
| No information available, not orderable | ||||
| 039 | 214048-8 | |||
| No information available, not orderable | ||||
| 040 | 424205-2 | |||
| Carrying eye set | ||||
| 041 | 125558-9 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 042 | 451159-0 | |||
| No information available, not orderable | ||||
| 043 | 162278-4 | |||
| No information available, not orderable | ||||
| 044 | 451158-2 | |||
| Inbusbout 5X20 | ||||
| 045 | 922232-8 | 1.20 | 1.45 | |
| Inbusbout 5X20 | ||||
| 045-1 | 922232-8 | 1.20 | 1.45 | |
| Hex Nut M5 | ||||
| 046 | 931202-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 047 | 451091-8 | |||
| BESCHERMKAP "MES" | ||||
| 047-1 | 452259-9 | 7.00 | 8.47 | |
| No information available, not orderable | ||||
| 047A | 451091-8 | |||
| TAPSCHR 4X18MM DGA520 A | ||||
| 048 | 265B67-9 | 1.00 | 1.21 | |
| Cutting knife Em2653Lh A | ||||
| 049 | 347050-7 | 1.20 | 1.45 | |
| Blade Holder | ||||
| 050 | 135398-7 | 5.00 | 6.05 | |
| Blade Holder | ||||
| 050-1 | 135398-7 | 5.00 | 6.05 | |
| Assembly Bracket | ||||
| 051 | 346072-4 | 3.60 | 4.36 | |
| Covering hood | ||||
| 052 | 451090-0 | 3.60 | 4.36 | |
| Allen Bolt m6x30 | ||||
| 053 | 922353-6 | 1.00 | 1.21 | |
| Allen Bolt m6x30 | ||||
| 053-1 | 266579-3 | 1.00 | 1.21 | |
| Allen Bolt m6x30 | ||||
| 053A | 922353-6 | 1.00 | 1.21 | |
| Allen bolt Ck M5x14mm | ||||
| 054 | 922218-2 | 1.00 | 1.21 | |
| Gearbox Housing Set Ms335.4C A | ||||
| 055 | 123835-3 | 46.20 | 55.90 | |
| No information available, not orderable | ||||
| 055A | 126260-7 | |||
| O-ring 32 | ||||
| 055AC10 | 213459-4 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 055B | 125557-1 | |||
| Gearbox Housing Set Ms335.4C A | ||||
| 055C | 123835-3 | 46.20 | 55.90 | |
| O-ring 32 | ||||
| 055C10 | 213459-4 | 1.20 | 1.45 | |
| Gear Cover | ||||
| 056 | 318444-3 | 19.80 | 23.96 | |
| Gear 13 | ||||
| 057 | 227553-6 | 12.10 | 14.64 | |
| Shaft Em4351Uh A | ||||
| 057-1 | 183K07-8 | 20.90 | 25.29 | |
| Shaft Em4351Uh A | ||||
| 057-2 | 183K07-8 | 20.90 | 25.29 | |
| No information available, not orderable | ||||
| 057A | 188865-1 | |||
| Ball bearing 6000 | ||||
| 058 | 211064-1 | 5.71 | 6.91 | |
| No information available, not orderable | ||||
| 058-1 | 210161-0 | |||
| Ball bearing 6000rd | ||||
| 059 | 211062-5 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 059-1 | 210160-2 | |||
| Locking Ring S-10 | ||||
| 060 | 257408-1 | 1.20 | 1.45 | |
| Locking Ring S-10 | ||||
| 060-1 | 257408-1 | 1.20 | 1.45 | |
| Lock ring R-26 A | ||||
| 061 | 962105-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 061-1 | 257988-7 | |||
| Allen Bolt m6x30 | ||||
| 062 | 922353-6 | 1.00 | 1.21 | |
| Metal screw Ck M8x10mm | ||||
| 063 | 265590-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 064 | 210081-8 | |||
| No information available, not orderable | ||||
| 068 | 210116-5 | |||
| Lock washer r-32 | ||||
| 069 | 962151-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 069-1 | 257409-9 | |||
| Protection ring 25,4mm | ||||
| 070 | 332114-0 | 8.40 | 10.16 | |
| Protection ring 25,4mm | ||||
| 070-1 | 332114-0 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 070-2 | 326823-1 | |||
| Spring retaining ring | ||||
| 071 | 346355-2 | 9.60 | 11.62 | |
| Spring retaining ring | ||||
| 071-1 | 346355-2 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 071A | 346084-7 | |||
| No information available, not orderable | ||||
| 072 | 168526-9 | |||
| NUT M10 | ||||
| 073 | 264025-0 | 2.40 | 2.90 | |
| Gas/Control Handle | ||||
| 074 | 125545-8 | 33.00 | 39.93 | |
| No information available, not orderable | ||||
| 075-1 | 188657-8 | |||
| HANDGREEPSET MS335.4U * | ||||
| 075-2 | 183A09-4 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 075A | 451086-1 | |||
| HANDGREEPSET MS335.4U * | ||||
| 075B | 183A09-4 | 7.20 | 8.71 | |
| Torsion Spring 11 | ||||
| 076 | 233540-5 | 2.40 | 2.90 | |
| Throttle Control | ||||
| 077 | 451084-5 | 2.40 | 2.90 | |
| Torsion Spring 7 | ||||
| 078 | 233541-3 | 1.20 | 1.45 | |
| Unlocking lever | ||||
| 079 | 451083-7 | 1.20 | 1.45 | |
| External cable | ||||
| 080 | 451213-0 | 3.60 | 4.36 | |
| Throttle Wire Comp. | ||||
| 081 | 168539-0 | 17.60 | 21.30 | |
| Cable Cleat | ||||
| 082 | 451081-1 | 1.20 | 1.45 | |
| Shift lever | ||||
| 083 | 451082-9 | 1.20 | 1.45 | |
| Leaf Spring | ||||
| 084 | 232251-9 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 085 | 451085-3 | |||
| Handle cover Ebh253U A | ||||
| 085-1 | 455722-1 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 085A | 451085-3 | |||
| Handle cover Ebh253U A | ||||
| 085B | 455722-1 | 1.20 | 1.45 | |
| Connecting cable | ||||
| 086 | 638663-8 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 087-1 | 188657-8 | |||
| HANDGREEPSET MS335.4U * | ||||
| 087-2 | 183A09-4 | 7.20 | 8.71 | |
| HANDGREEPSET MS335.4U * | ||||
| 087-2C | 183A09-4 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 087A | 188657-8 | |||
| HANDGREEPSET MS335.4U * | ||||
| 087B | 183A09-4 | 7.20 | 8.71 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 088 | 265B67-9 | 1.00 | 1.21 | |
| Fan Housing Ms335.4U A | ||||
| 089 | 318614-4 | 12.10 | 14.64 | |
| Met. Screw Ph2 M5X16Mm Ck A | ||||
| 090 | 922223-9 | 1.00 | 1.21 | |
| Washer 8 | ||||
| 093-1 | 253762-1 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 093A | 267424-5 | |||
| No information available, not orderable | ||||
| 094 | 267832-0 | |||
| Metric Screw M8X23Mm Ms335.4U * | ||||
| 095 | 266571-9 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 096 | 168563-3 | |||
| Coupling Cmpl Ms335.4U A | ||||
| 096-1 | 125757-3 | 11.00 | 13.31 | |
| Coupling Cmpl Ms335.4U A | ||||
| 097 | 125757-3 | 11.00 | 13.31 | |
| Bolt M6x16mm / rivet EM4250 A | ||||
| 098 | 265577-4 | 1.00 | 1.21 | |
| Flywheel Ms335.4U A | ||||
| 099 | 319035-3 | 13.20 | 15.97 | |
| Flywheel Ms335.4U A | ||||
| 099-1 | 319035-3 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 100 | 168501-5 | |||
| Ignition | ||||
| 100-1 | 168816-0 | 13.20 | 15.97 | |
| Hexagon socket screw M4x20 Ck | ||||
| 101 | 922138-0 | 1.00 | 1.21 | |
| Bougieveer Ebh253U A | ||||
| 102 | 324891-8 | 1.20 | 1.45 | |
| Spark plug cap Ebh253U A | ||||
| 103 | 424105-6 | 3.60 | 4.36 | |
| Connecting cable | ||||
| 104 | 638664-6 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 104-1 | 632E38-3 | |||
| Connection Cable Ebh253U P | ||||
| 105 | 638665-4 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 105-1 | 632E39-1 | |||
| No information available, not orderable | ||||
| 106 | 424313-9 | |||
| Clamp | ||||
| 107 | 345963-6 | 1.00 | 1.21 | |
| Makita logo label | ||||
| 108 | 819312-8 | 2.40 | 2.90 | |
| Spark plug cap | ||||
| 109-1 | 451876-2 | 3.60 | 4.36 | |
| Metric screw Ck | ||||
| 110 | 266572-7 | 1.00 | 1.21 | |
| Label "4-stroke" | ||||
| 111 | 808633-3 | 2.40 | 2.90 | |
| Label "4-stroke" | ||||
| 111A | 808633-3 | 2.40 | 2.90 | |
| Screw 5x12 | ||||
| 112 | 911213-7 | 1.00 | 1.21 | |
| Screw 5x12 | ||||
| 112-1 | 911213-7 | 1.00 | 1.21 | |
| Screw 5x12 | ||||
| 112A | 911213-7 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 113 | 451875-4 | |||
| Allen bolt M5x40mm Ck | ||||
| 114 | 266440-4 | 1.20 | 1.45 | |
| Metric screw Ph2 M X mm Ck | ||||
| 115 | 265184-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 116 | 345915-7 | |||
| Muffler | ||||
| 117 | 168469-5 | 13.20 | 15.97 | |
| Exhaust Gasket | ||||
| 118 | 345916-5 | 2.40 | 2.90 | |
| Spark Arrestor Ebh253U A | ||||
| 119 | 324980-9 | 7.20 | 8.71 | |
| Allen bolt M5x40mm Ck | ||||
| 120 | 266495-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 120-1 | 922217-4 | |||
| Allen bolt M5x40mm Ck | ||||
| 120A | 266495-9 | 1.00 | 1.21 | |
| Valve cover Ms335.4U A | ||||
| 121 | 140419-2 | 9.60 | 11.62 | |
| Valve cover gasket | ||||
| 122 | 162307-3 | 3.60 | 4.36 | |
| Spark Plug | ||||
| 123 | 168534-0 | 11.00 | 13.31 | |
| Crankcase cover gasket | ||||
| 124 | 162274-2 | 2.40 | 2.90 | |
| Housing Cover | ||||
| 125 | 318443-5 | 4.80 | 5.81 | |
| Hex. Socket Hd. Bolt (w/flange) M5x12 | ||||
| 126 | 922212-4 | 1.00 | 1.21 | |
| Oil Dipstick | ||||
| 127 | 450565-6 | 2.40 | 2.90 | |
| O-ring for oil dipstick A | ||||
| 128 | 424100-6 | 1.00 | 1.21 | |
| Hose clamp IAS 3 | ||||
| 129 | 282020-8 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 130 | 424202-8 | |||
| No information available, not orderable | ||||
| 131 | 325666-8 | |||
| Crankcase gasket | ||||
| 132 | 162308-1 | 2.40 | 2.90 | |
| Karter Cover Ms335.4U A | ||||
| 133 | 318612-8 | 6.00 | 7.26 | |
| Allen bolt M5x40mm Ck | ||||
| 134 | 266495-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 134-1 | 922217-4 | |||
| Allen bolt M5x40mm Ck | ||||
| 134A | 266495-9 | 1.00 | 1.21 | |
| Metric screw Ck Inb M5x33mm | ||||
| 135 | 266573-5 | 1.00 | 1.21 | |
| Allen bolt 5x16 | ||||
| 136-1 | 922221-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 136A | 266570-1 | |||
| Allen bolt M4x10 | ||||
| 137-1 | 922112-8 | 1.00 | 1.21 | |
| Metric screw Ck Inb M4x10mm | ||||
| 137A | 266569-6 | 1.00 | 1.21 | |
| Holding Plate | ||||
| 138 | 318440-1 | 2.40 | 2.90 | |
| Feed valve | ||||
| 139 | 346083-9 | 2.40 | 2.90 | |
| Control valve | ||||
| 140 | 424201-0 | 2.40 | 2.90 | |
| Cylinder | ||||
| 141 | 135373-3 | 67.10 | 81.19 | |
| Valve arm | ||||
| 142 | 125554-7 | 4.80 | 5.81 | |
| Latch retaining ring Ms335.4U A | ||||
| 143 | 325912-9 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 144-1 | 234181-0 | |||
| Pen 5mm | ||||
| 145 | 256200-2 | 1.00 | 1.21 | |
| Valve pin | ||||
| 146 | 256866-8 | 1.00 | 1.21 | |
| Spacer Ebh253U A | ||||
| 147 | 424200-2 | 1.00 | 1.21 | |
| Pin 4mm Ebh253U A | ||||
| 148 | 268239-3 | 1.00 | 1.21 | |
| Cam Tiller | ||||
| 149 | 313169-4 | 3.60 | 4.36 | |
| Exhaust Valve Ms335.4U A | ||||
| 150 | 325913-7 | 3.60 | 4.36 | |
| Intake valve Ms335.4U A | ||||
| 151 | 325914-5 | 3.60 | 4.36 | |
| Rocker gear | ||||
| 152 | 125552-1 | 23.10 | 27.95 | |
| Pen 5Mm Ebh253U A | ||||
| 153 | 268238-5 | 1.00 | 1.21 | |
| Piston Ring Set | ||||
| 154 | 195141-6 | 13.20 | 15.97 | |
| Piston Ms335.4U A | ||||
| 155 | 318613-6 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 155-1 | 197454-1 | |||
| Piston Ms335.4U A | ||||
| 155-1C10 | 318613-6 | 11.00 | 13.31 | |
| Piston Pin Ms335.4U A | ||||
| 156 | 257796-6 | 2.40 | 2.90 | |
| Spring retaining ring | ||||
| 157 | 233983-1 | 1.20 | 1.45 | |
| Inlegspie 3 | ||||
| 158 | 254040-2 | 3.60 | 4.36 | |
| Seal Ring 12mm | ||||
| 159 | 213537-0 | 3.60 | 4.36 | |
| Washer 26 Ms335.4U A | ||||
| 160 | 267425-3 | 1.00 | 1.21 | |
| Crank Shaft | ||||
| 161-1 | 125756-5 | 58.30 | 70.54 | |
| Crank Shaft | ||||
| 161A | 125756-5 | 58.30 | 70.54 | |
| No longer available, no replacement | ||||
| 162 | 213148-1 | |||
| No longer available, no replacement | ||||
| 162-1 | 213148-1 | |||
| BENZINEDOP EBH253U A | ||||
| 163 | 127108-6 | 27.50 | 33.28 | |
| BENZINEDOP EBH253U A | ||||
| 163-1 | 127108-6 | 27.50 | 33.28 | |
| No information available, not orderable | ||||
| 164 | 140435-4 | |||
| Fuel Cap Ebh253U A | ||||
| 164-1 | 127109-4 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 165 | 140436-2 | |||
| Warning label "fuel" | ||||
| 166 | 810455-9 | 2.40 | 2.90 | |
| Damper | ||||
| 167 | 424104-8 | 2.40 | 2.90 | |
| FUEL TANK | ||||
| 168 | 451877-0 | 15.40 | 18.63 | |
| Fuel filter | ||||
| 169 | 163447-0 | 11.00 | 13.31 | |
| Hose clamp IAS 3 | ||||
| 170 | 345920-4 | 1.00 | 1.21 | |
| Damper Ebh253U A | ||||
| 171 | 424103-0 | 1.00 | 1.21 | |
| Damper Ebh253U A | ||||
| 172 | 424102-2 | 1.00 | 1.21 | |
| Gas hose | ||||
| 173 | 162309-9 | 4.80 | 5.81 | |
| Starting device Assy Ms335 A | ||||
| 174 | 126475-6 | 19.80 | 23.96 | |
| Starting device Assy Ms335 A | ||||
| 174-1 | 126475-6 | 19.80 | 23.96 | |
| Pulley | ||||
| 175 | 165606-2 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 175-1 | 168827-5 | |||
| No information available, not orderable | ||||
| 176 | 266580-8 | |||
| Cord reel | ||||
| 177 | 451923-9 | 4.80 | 5.81 | |
| Coil Spring | ||||
| 178 | 232257-7 | 10.80 | 13.07 | |
| Starter Handle Ms335.4U A | ||||
| 179 | 424317-1 | 3.60 | 4.36 | |
| Start Cord | ||||
| 180 | 444018-5 | 3.60 | 4.36 | |
| Metal screw Ph M5x14mm Ck | ||||
| 181 | 266809-2 | 1.00 | 1.21 | |
| Tank support Ms335.4U A | ||||
| 183 | 162310-4 | 3.54 | 4.28 | |
| Metal screw Ph M5x14mm Ck | ||||
| 184 | 266809-2 | 1.00 | 1.21 | |
| Metal screw Ph M5x14mm Ck | ||||
| 184-1 | 266809-2 | 1.00 | 1.21 | |
| Air intake Ms335.4U A | ||||
| 185 | 325915-3 | 3.60 | 4.36 | |
| Insulator gasket | ||||
| 186 | 413120-5 | 1.20 | 1.45 | |
| O-Ring 10 (1,7Mm) | ||||
| 187 | 213063-9 | 3.60 | 4.36 | |
| O-Ring 10 Ebh253U A | ||||
| 187 | 213078-6 | 1.00 | 1.21 | |
| O-Ring 10 (1,7Mm) | ||||
| 187-1 | 213063-9 | 3.60 | 4.36 | |
| Manifold | ||||
| 188 | 451874-6 | 4.80 | 5.81 | |
| Carburetor manifold | ||||
| 190 | 346261-1 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 191 | 922228-9 | |||
| Gasket "carburetor" | ||||
| 192 | 413138-6 | 1.20 | 1.45 | |
| Clamp | ||||
| 193 | 450562-2 | 1.20 | 1.45 | |
| Allen Bolt M5x12mm Ck | ||||
| 194 | 922213-2 | 1.00 | 1.21 | |
| Carburetor | ||||
| 195 | 168561-7 | 93.50 | 113.14 | |
| Swivel element | ||||
| 196 | 325922-6 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 197 | 413140-9 | |||
| Seegering E-3 A | ||||
| 198 | 257964-1 | 7.20 | 8.71 | |
| Met.screw Ph2 M3x18mm Ck | ||||
| 199 | 266581-6 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 199-1 | WJ00096364 | |||
| O-ring 2 | ||||
| 200 | 213538-8 | 4.80 | 5.81 | |
| Needle Ms335.4U A | ||||
| 201 | 325921-8 | 14.30 | 17.30 | |
| No information available, not orderable | ||||
| 201-1 | 5926007011 | |||
| Compression Spring 5-9mm | ||||
| 202 | 234183-6 | 4.80 | 5.81 | |
| Diaphragm Gasket | ||||
| 203 | 442155-9 | 7.20 | 8.71 | |
| Pump diaphragm | ||||
| 204 | WJ00009599 | 3.96 | 4.79 | |
| Pump diaphragm | ||||
| 204-1 | WJ00009599 | 3.96 | 4.79 | |
| Parker 3X24Mm Ck A | ||||
| 205 | 266582-4 | 3.60 | 4.36 | |
| Pump cover Ebh253U A | ||||
| 206 | 346270-0 | 7.20 | 8.71 | |
| Booster pump | ||||
| 207 | 424314-7 | 11.00 | 13.31 | |
| Air Purifier Case Ebh253U A | ||||
| 208 | 140438-8 | 27.50 | 33.28 | |
| Diaphragm | ||||
| 209 | WJ00095586 | 33.00 | 39.93 | |
| No information available, not orderable | ||||
| 209-1 | WJ00963279 | |||
| Diaphragm | ||||
| 209-2 | WJ00095586 | 33.00 | 39.93 | |
| Diaphragm | ||||
| 209-3 | 168620-7 | 38.50 | 46.58 | |
| Diaphragm Gasket | ||||
| 210 | 442154-1 | 7.20 | 8.71 | |
| POMPHUIS EBH253U A | ||||
| 211 | 140437-0 | 39.60 | 47.92 | |
| No information available, not orderable | ||||
| 212 | 352010-6 | |||
| Inlet strainer | ||||
| 212-1 | WJ00014070 | 2.40 | 2.90 | |
| Hose clamp IAS 3 | ||||
| 213 | 345918-1 | 1.00 | 1.21 | |
| Vent pipe Ms335.4U A | ||||
| 214 | 422055-9 | 2.40 | 2.90 | |
| Vent pipe Ebh253U A | ||||
| 215 | 422042-8 | 2.40 | 2.90 | |
| Air Filter Housing Ebh253U A | ||||
| 216 | 123845-0 | 17.60 | 21.30 | |
| Air Filter Housing Ebh253U A | ||||
| 216A | 123845-0 | 17.60 | 21.30 | |
| No longer available, no replacement | ||||
| 217 | 451925-5 | |||
| O-ring 15 | ||||
| 218 | 213540-1 | 1.00 | 1.21 | |
| Overpressure valve | ||||
| 219 | 424316-3 | 3.60 | 4.36 | |
| O-ring 14 | ||||
| 220 | 213539-6 | 1.00 | 1.21 | |
| Overpressure valve plate | ||||
| 221 | 451924-7 | 1.20 | 1.45 | |
| Overpressure valve | ||||
| 222 | 424315-5 | 1.20 | 1.45 | |
| Separation Gasket | ||||
| 223 | 168577-2 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 224 | 168576-4 | |||
| Choke plate | ||||
| 225 | 450560-6 | 1.20 | 1.45 | |
| Washer | ||||
| 226 | 423376-2 | 1.20 | 1.45 | |
| Mounting plate Ebh253U A | ||||
| 227 | 346647-9 | 2.40 | 2.90 | |
| Metric screw Ph2 M5x68mm Ck | ||||
| 228 | 265188-5 | 1.00 | 1.21 | |
| Cleaner Element | ||||
| 229 | 443140-5 | 3.60 | 4.36 | |
| Cleaner Element | ||||
| 230 | 443141-3 | 2.71 | 3.28 | |
| Cleaner Cover | ||||
| 231 | 450561-4 | 6.00 | 7.26 | |
| Metal screw Ph M5x14mm Ck | ||||
| 232 | 266809-2 | 1.00 | 1.21 | |
| Connecting cable | ||||
| 233 | 638671-9 | 2.40 | 2.90 | |
| Rivet | ||||
| 234 | 413143-3 | 1.00 | 1.21 | |
| Allen Bolt m6x30 | ||||
| 235 | 922353-6 | 1.00 | 1.21 | |
