Here you will find all available parts and drawings of the 'Makita EBH253U'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

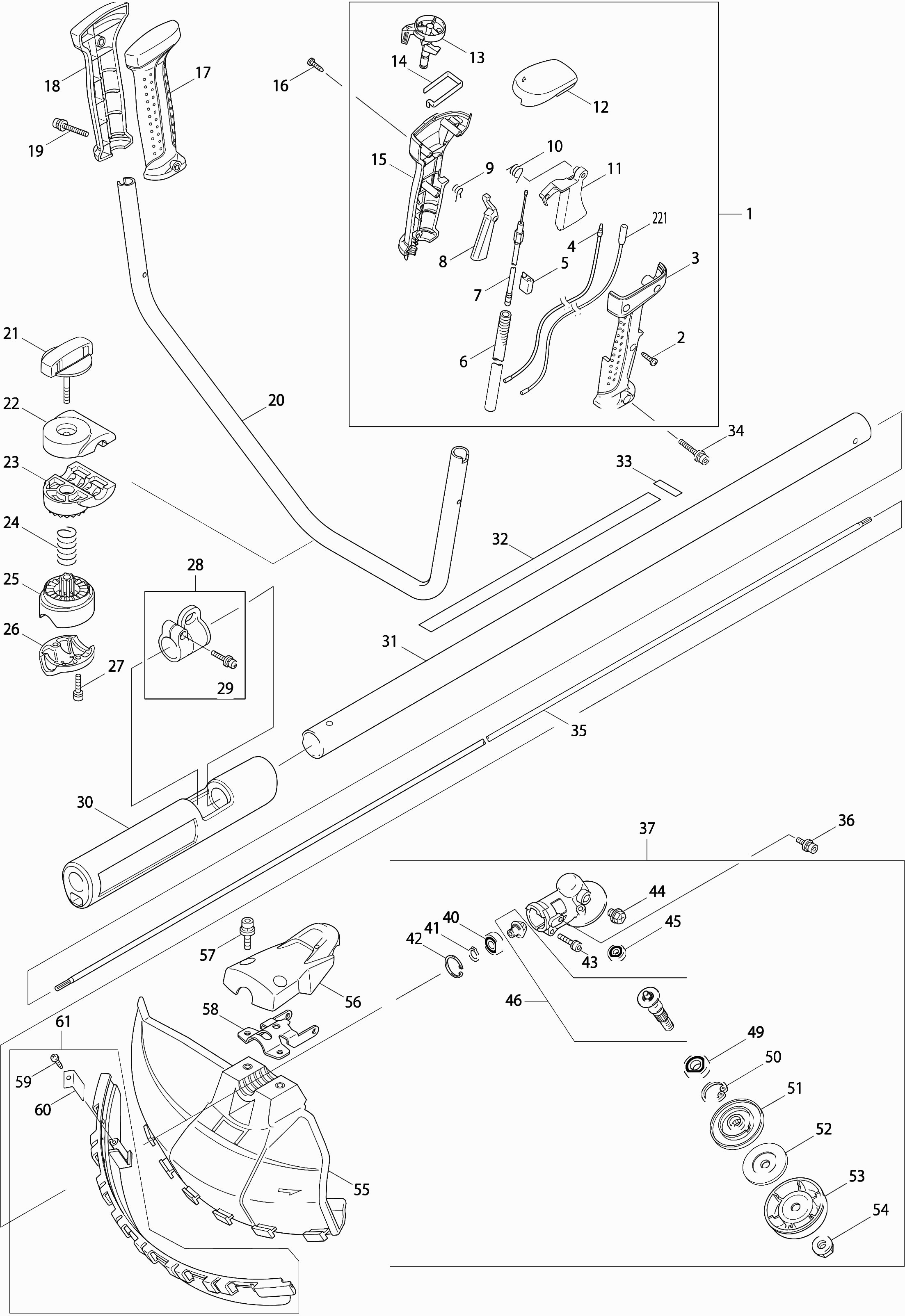

Technical drawing of model Makita EBH253U
Spare parts list of model Makita EBH253U
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Gas/Control Handle | ||||
| 001 | 125544-0 | 16.50 | 19.96 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 002 | 265B67-9 | 1.00 | 1.21 | |
| Handle set | ||||
| 003 | 188656-0 | 13.20 | 15.97 | |
| Connecting cable | ||||
| 004 | 638663-8 | 2.40 | 2.90 | |
| Cable Cleat | ||||
| 005 | 451081-1 | 1.20 | 1.45 | |
| External cable | ||||
| 006 | 451213-0 | 3.60 | 4.36 | |
| Throttle Wire Comp. | ||||
| 007 | 168527-7 | 4.80 | 5.81 | |
| Unlocking lever | ||||
| 008 | 451083-7 | 1.20 | 1.45 | |
| Torsion Spring 7 | ||||
| 009 | 233541-3 | 1.20 | 1.45 | |
| Torsion Spring 11 | ||||
| 010 | 233540-5 | 2.40 | 2.90 | |
| Throttle Control | ||||
| 011 | 451084-5 | 2.40 | 2.90 | |
| Gas/Control Handle | ||||
| 012 | 125544-0 | 16.50 | 19.96 | |
| Shift lever | ||||
| 013 | 451082-9 | 1.20 | 1.45 | |
| Leaf Spring | ||||
| 014 | 232251-9 | 1.20 | 1.45 | |
| Handle set | ||||
| 015 | 188656-0 | 13.20 | 15.97 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 016 | 265B67-9 | 1.00 | 1.21 | |
| Handle set | ||||
| 017 | 188659-4 | 13.20 | 15.97 | |
| Handle set | ||||
| 018 | 188659-4 | 13.20 | 15.97 | |
| Hex socket screw Ck M5x35mm | ||||
| 019 | 922256-4 | 1.20 | 1.45 | |
| Handle Tube | ||||
| 020 | 331862-8 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 021 | 168524-3 | |||
| Handle Bracket | ||||
| 022 | 318429-9 | 4.80 | 5.81 | |
| Handgreephouder | ||||
| 023 | 318428-1 | 4.80 | 5.81 | |
| Compression Spring 20 | ||||
| 024 | 233202-5 | 1.20 | 1.45 | |
| Tube Mounting | ||||
| 025 | 318427-3 | 4.80 | 5.81 | |
| Tube Grip Bracket | ||||
| 026 | 318426-5 | 4.80 | 5.81 | |
| Hex Socket Bolt Ck M5x25mm | ||||
| 027 | 922241-7 | 1.00 | 1.21 | |
| Mounting Bracket | ||||
| 028 | 195143-2 | 3.60 | 4.36 | |
| Screw Vk 20mm | ||||
| 029 | 911233-1 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 030 | 422045-2 | |||
| Steel | ||||
| 031 | 140041-5 | 23.10 | 27.95 | |
| Warning Label | ||||
| 032 | 810538-5 | 2.40 | 2.90 | |
| serial number label | ||||
| 033 | 806904-2 | 2.40 | 2.90 | |
| Hex socket screw Ck M5x35mm | ||||
| 034 | 922256-4 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 035 | 324893-4 | |||
| Hexagon Socket Bolt 5x10 | ||||
| 036 | 922206-9 | 1.20 | 1.45 | |
| Gearbox Housing Set Ebh253U A | ||||
| 037 | 123833-7 | 56.10 | 67.88 | |
| Gearbox Housing Set Ebh253U A | ||||
| 038 | 123833-7 | 56.10 | 67.88 | |
| Gear 14 | ||||
| 039 | 227551-0 | 7.20 | 8.71 | |
| Ball Bearing 609zz | ||||
| 040 | 210049-4 | 3.60 | 4.36 | |
| Lock ring S-9 | ||||
| 041 | 961005-4 | 1.00 | 1.21 | |
| Seeger Ring R24 | ||||
| 042 | 962113-4 | 1.00 | 1.21 | |
| Hex Socket Bolt Ck M5x25mm | ||||
| 043 | 922241-7 | 1.00 | 1.21 | |
| Metal screw Ck M8x10mm | ||||
| 044 | 265590-2 | 1.00 | 1.21 | |
| Ball bearing 626 | ||||
| 045 | 211019-6 | 3.60 | 4.36 | |
| No longer available, no replacement | ||||
| 046 | 140039-2 | |||
| No longer available, no replacement | ||||
| 047 | 140039-2 | |||
| No longer available, no replacement | ||||
| 048 | 140039-2 | |||
| Ball Bearing 6001llu | ||||
| 049 | 211138-8 | 4.80 | 5.81 | |
| Lock washer R-28 | ||||
| 050 | 962106-1 | 1.20 | 1.45 | |
| Protective Washer | ||||
| 051 | 331861-0 | 8.40 | 10.16 | |
| Spring retaining ring | ||||
| 052 | 346355-2 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 053 | 168526-9 | |||
| NUT M10 | ||||
| 054 | 264025-0 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 055 | 451098-4 | |||
| No information available, not orderable | ||||
| 056 | 451097-6 | |||
| Allen Screw m6x25 | ||||
| 057 | 266280-0 | 1.00 | 1.21 | |
| Clamp for hood | ||||
| 058 | 347012-5 | 2.40 | 2.90 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 059 | 265B67-9 | 1.00 | 1.21 | |
| Cutting knife Em2653Lh A | ||||
| 060 | 347050-7 | 1.20 | 1.45 | |
| Blade Holder | ||||
| 061 | 135398-7 | 5.00 | 6.05 | |
| Allen bolt 5x18 | ||||
| 062 | 922226-3 | 1.00 | 1.21 | |
| Allen Bolt 5x12 | ||||
| 063 | 922211-6 | 1.00 | 1.21 | |
| Steel damper 1 | ||||
| 064 | 424191-7 | 2.40 | 2.90 | |
| Steel Clamp 1 | ||||
| 065 | 318270-0 | 3.60 | 4.36 | |
| Steel Clamp 2 Ebh253U A | ||||
| 066 | 318271-8 | 2.40 | 2.90 | |
| Shock absorber 2 Ebh253U A | ||||
| 067 | 424107-2 | 3.60 | 4.36 | |
| Allen bolt 5x16 | ||||
| 068 | 922221-3 | 1.00 | 1.21 | |
| Clutch housing | ||||
| 069 | 318329-3 | 9.60 | 11.62 | |
| Spacer | ||||
| 070 | 450569-8 | 1.20 | 1.45 | |
| Lock washer S-12 | ||||
| 071 | 961052-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 072 | 168475-0 | |||
| Ball Bearing 6201ddu | ||||
| 073 | 210111-5 | 6.00 | 7.26 | |
| Lock washer r-32 | ||||
| 074 | 962151-6 | 1.00 | 1.21 | |
| Complete Motor Support | ||||
| 075 | 195144-0 | 2.40 | 2.90 | |
| Metal screw Ph M5x14mm Ck | ||||
| 076 | 266809-2 | 1.00 | 1.21 | |
| Screw 5x12 | ||||
| 077 | 911213-7 | 1.00 | 1.21 | |
| Cylinder cover cap | ||||
| 078 | 450654-7 | 9.60 | 11.62 | |
| Makita logo label | ||||
| 079 | 819312-8 | 2.40 | 2.90 | |
| Spark plug cap | ||||
| 080 | 452144-6 | 2.40 | 2.90 | |
| Label "4-stroke" | ||||
| 081 | 808633-3 | 2.40 | 2.90 | |
| Metal screw Ph2 M4x16mm Ck | ||||
| 083 | 265189-3 | 1.00 | 1.21 | |
| Allen bolt M5x40mm Ck | ||||
| 084 | 266440-4 | 1.20 | 1.45 | |
| Metric screw Ph2 M X mm Ck | ||||
| 085 | 265184-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 086 | 345915-7 | |||
| Muffler | ||||
| 087 | 168469-5 | 13.20 | 15.97 | |
| Exhaust Gasket | ||||
| 088 | 345916-5 | 2.40 | 2.90 | |
| Valve Cover | ||||
| 089 | 140B46-7 | 6.00 | 7.26 | |
| Valve cover gasket | ||||
| 090 | 162275-0 | 2.40 | 2.90 | |
| Met. Screw Ph2 M5X16Mm Ck A | ||||
| 091 | 922223-9 | 1.00 | 1.21 | |
| Spark Plug | ||||
| 092 | 168534-0 | 11.00 | 13.31 | |
| Crankcase cover gasket | ||||
| 093 | 162274-2 | 2.40 | 2.90 | |
| Housing Cover | ||||
| 094 | 318443-5 | 4.80 | 5.81 | |
| Allen bolt M5x40mm Ck | ||||
| 095 | 266495-9 | 1.00 | 1.21 | |
| Oil Dipstick | ||||
| 096 | 450565-6 | 2.40 | 2.90 | |
| Oil Dipstick | ||||
| 097 | 450565-6 | 2.40 | 2.90 | |
| Crankcase gasket | ||||
| 098 | 162276-8 | 2.40 | 2.90 | |
| Carter Ebh253U A | ||||
| 099 | 318442-7 | 7.20 | 8.71 | |
| Allen bolt M5x40mm Ck | ||||
| 100 | 266495-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 101 | 325666-8 | |||
| No information available, not orderable | ||||
| 102 | 424202-8 | |||
| Hose clamp IAS 3 | ||||
| 103 | 282020-8 | 1.00 | 1.21 | |
| Allen bolt M4x10mm Ck | ||||
| 104 | 266493-3 | 1.00 | 1.21 | |
| Holding Plate | ||||
| 105 | 318440-1 | 2.40 | 2.90 | |
| Feed valve | ||||
| 106 | 346083-9 | 2.40 | 2.90 | |
| Cylinder | ||||
| 107 | 135375-9 | 77.00 | 93.17 | |
| Control valve | ||||
| 108 | 424201-0 | 2.40 | 2.90 | |
| Allen bolt M5x40mm Ck | ||||
| 109 | 266495-9 | 1.00 | 1.21 | |
| Spacer Ebh253U A | ||||
| 110 | 424200-2 | 1.00 | 1.21 | |
| Valve arm | ||||
| 111 | 125554-7 | 4.80 | 5.81 | |
| Valve Locking Ring | ||||
| 112 | 325668-4 | 2.40 | 2.90 | |
| Compression Spring 9 | ||||
| 113 | 234108-0 | 2.40 | 2.90 | |
| Pen 5mm | ||||
| 114 | 256200-2 | 1.00 | 1.21 | |
| Intake valve | ||||
| 115 | 326367-1 | 4.80 | 5.81 | |
| Exhaust valve | ||||
| 116 | 326366-3 | 4.80 | 5.81 | |
| Rocker gear | ||||
| 117 | 125552-1 | 23.10 | 27.95 | |
| Pen 5Mm Ebh253U A | ||||
| 118 | 268238-5 | 1.00 | 1.21 | |
| Cam Tiller | ||||
| 119 | 313169-4 | 3.60 | 4.36 | |
| Pin 4mm Ebh253U A | ||||
| 120 | 268239-3 | 1.00 | 1.21 | |
| Valve pin | ||||
| 121 | 256865-0 | 1.00 | 1.21 | |
| Parts Set | ||||
| 122 | 196595-0 | 22.00 | 26.62 | |
| Lock ring for piston pin | ||||
| 123 | 233976-8 | 1.00 | 1.21 | |
| Piston | ||||
| 124 | 318441-9 | 9.60 | 11.62 | |
| Piston Pin | ||||
| 125 | 257781-9 | 3.60 | 4.36 | |
| Seal ring 12 | ||||
| 126 | 213147-3 | 2.40 | 2.90 | |
| Washer 23 | ||||
| 127 | 267400-9 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 128 | 125551-3 | |||
| No longer available, no replacement | ||||
| 129 | 213148-1 | |||
| Spark plug cap Ebh253U A | ||||
| 130 | 424105-6 | 3.60 | 4.36 | |
| Bougieveer Ebh253U A | ||||
| 131 | 324891-8 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 132 | 168501-5 | |||
| Hexagon socket screw M4x20 Ck | ||||
| 133 | 922138-0 | 1.00 | 1.21 | |
| Magneto Rotor Comp. | ||||
| 134 | 318343-9 | 30.80 | 37.27 | |
| Ignition | ||||
| 134A | 168816-0 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 135 | 267812-6 | |||
| Clutch shoe | ||||
| 136 | 168498-8 | 8.40 | 10.16 | |
| Washer 8 | ||||
| 137 | 267817-6 | 1.00 | 1.21 | |
| Allen screw M6x25mm | ||||
| 138 | 266864-4 | 2.40 | 2.90 | |
| Bolt M6x16mm / rivet EM4250 A | ||||
| 139 | 265577-4 | 1.00 | 1.21 | |
| Pull Spring 7mm | ||||
| 140 | 231881-3 | 3.60 | 4.36 | |
| FUEL CAP EBH253U A | ||||
| 141 | 127108-6 | 27.50 | 33.28 | |
| FUEL CAP EBH253U A | ||||
| 142 | 127108-6 | 27.50 | 33.28 | |
| FUEL CAP EBH253U A | ||||
| 143 | 127108-6 | 27.50 | 33.28 | |
| Warning label "fuel" | ||||
| 144 | 810455-9 | 2.40 | 2.90 | |
| Damper Ebh253U A | ||||
| 145 | 424102-2 | 1.00 | 1.21 | |
| Damper Ebh253U A | ||||
| 146 | 424103-0 | 1.00 | 1.21 | |
| Damper | ||||
| 147 | 424104-8 | 2.40 | 2.90 | |
| FUEL TANK | ||||
| 148 | 450566-4 | 13.20 | 15.97 | |
| Fuel filter | ||||
| 149 | 163447-0 | 11.00 | 13.31 | |
| Hose clamp IAS 3 | ||||
| 150 | 345920-4 | 1.00 | 1.21 | |
| Gas hose | ||||
| 151 | 168472-6 | 8.40 | 10.16 | |
| Startinrichting | ||||
| 152 | 195147-4 | 18.70 | 22.63 | |
| Pulley | ||||
| 153 | 168471-8 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 154 | 266585-8 | |||
| Cam plate | ||||
| 155 | 451940-9 | 3.60 | 4.36 | |
| Damping spring | ||||
| 156 | 233984-9 | 4.80 | 5.81 | |
| Cord reel Ebh253U A | ||||
| 157 | 451939-4 | 7.20 | 8.71 | |
| Starter Spring | ||||
| 158 | 232258-5 | 6.00 | 7.26 | |
| Starter Handle | ||||
| 159 | 424319-7 | 3.60 | 4.36 | |
| Start Cord | ||||
| 160 | 444020-8 | 3.60 | 4.36 | |
| Label "ebh253u" | ||||
| 161 | 809117-4 | 2.40 | 2.90 | |
| Metric screw Ph2 M5x68mm Ck | ||||
| 162 | 265188-5 | 1.00 | 1.21 | |
| Mounting plate Ebh253U A | ||||
| 163 | 346647-9 | 2.40 | 2.90 | |
| Washer | ||||
| 164 | 423376-2 | 1.20 | 1.45 | |
| Choke plate | ||||
| 165 | 450560-6 | 1.20 | 1.45 | |
| Metal screw Ph M5x14mm Ck | ||||
| 166 | 266809-2 | 1.00 | 1.21 | |
| Cleaner Cover | ||||
| 167 | 450561-4 | 6.00 | 7.26 | |
| Cleaner Element | ||||
| 168 | 443141-3 | 2.71 | 3.28 | |
| Cleaner Element | ||||
| 169 | 443140-5 | 3.60 | 4.36 | |
| Hose clamp IAS 3 | ||||
| 170 | 345918-1 | 1.00 | 1.21 | |
| Vent Pipe | ||||
| 171 | 422041-0 | 2.40 | 2.90 | |
| Vent pipe Ebh253U A | ||||
| 172 | 422042-8 | 2.40 | 2.90 | |
| Air Filter Housing Ebh253U A | ||||
| 173 | 123845-0 | 17.60 | 21.30 | |
| No longer available, no replacement | ||||
| 174 | 451925-5 | |||
| O-ring 15 | ||||
| 175 | 213540-1 | 1.00 | 1.21 | |
| Overpressure valve | ||||
| 176 | 424316-3 | 3.60 | 4.36 | |
| O-ring 14 | ||||
| 177 | 213539-6 | 1.00 | 1.21 | |
| Overpressure valve plate | ||||
| 178 | 451924-7 | 1.20 | 1.45 | |
| Overpressure valve | ||||
| 179 | 424315-5 | 1.20 | 1.45 | |
| Separation Gasket | ||||
| 180 | 168577-2 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 181 | 168576-4 | |||
| Inlet Manifold Gasket | ||||
| 182 | 413121-3 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 183 | 922228-9 | |||
| Insulator Ebh253U A | ||||
| 184 | 450559-1 | 4.80 | 5.81 | |
| Air Intake Ebh253U A | ||||
| 187 | 324961-3 | 3.60 | 4.36 | |
| Insulator gasket | ||||
| 188 | 413120-5 | 1.20 | 1.45 | |
| O-Ring 10 Ebh253U A | ||||
| 189 | 213078-6 | 1.00 | 1.21 | |
| Allen Bolt M5x12mm Ck | ||||
| 190 | 922213-2 | 1.00 | 1.21 | |
| Clamp | ||||
| 191 | 450562-2 | 1.20 | 1.45 | |
| Carburetor | ||||
| 193 | 168497-0 | 170.50 | 206.30 | |
| No information available, not orderable | ||||
| 194 | 5926002140 | |||
| No information available, not orderable | ||||
| 195 | 352010-6 | |||
| Diaphragm Gasket | ||||
| 196 | 442154-1 | 7.20 | 8.71 | |
| Diaphragm | ||||
| 197 | WJ00095586 | 33.00 | 39.93 | |
| Air Purifier Case Ebh253U A | ||||
| 198 | 140438-8 | 27.50 | 33.28 | |
| Booster pump | ||||
| 199 | 424314-7 | 11.00 | 13.31 | |
| Pump cover Ebh253U A | ||||
| 200 | 346270-0 | 7.20 | 8.71 | |
| Parker 3X24Mm Ck A | ||||
| 201 | 266582-4 | 3.60 | 4.36 | |
| Pump diaphragm | ||||
| 202 | WJ00009599 | 3.96 | 4.79 | |
| Diaphragm Gasket | ||||
| 203 | 442155-9 | 7.20 | 8.71 | |
| Sprayer Ebh253U P | ||||
| 204 | 326027-5 | 14.30 | 17.30 | |
| O-ring 2 | ||||
| 205 | 213538-8 | 4.80 | 5.81 | |
| Compression Spring 5-9mm | ||||
| 206 | 234183-6 | 4.80 | 5.81 | |
| Met.screw Ph2 M3x18mm Ck | ||||
| 207 | 266581-6 | 1.20 | 1.45 | |
| Swivel element | ||||
| 208 | 325922-6 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 209 | 413140-9 | |||
| Seegering E-3 A | ||||
| 210 | 257964-1 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 211 | 806902-6 | |||
| Tank Support | ||||
| 212 | 345964-4 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 213 | 806903-4 | |||
| Screw 4x25 | ||||
| 214 | 911148-2 | 1.00 | 1.21 | |
| Screw 5x12 | ||||
| 215 | 911213-7 | 1.00 | 1.21 | |
| Spacer | ||||
| 216 | 331835-1 | 1.00 | 1.21 | |
| Clamp | ||||
| 217 | 345963-6 | 1.00 | 1.21 | |
| Connecting cable | ||||
| 218 | 638664-6 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 218A | 632E38-3 | |||
| Connection Cable Ebh253U P | ||||
| 219 | 638665-4 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 219A | 632E39-1 | |||
| Spark Arrestor Ebh253U A | ||||
| 220 | 324980-9 | 7.20 | 8.71 | |
| Connecting cable | ||||
| 221 | 638671-9 | 2.40 | 2.90 | |
