Here you will find all available parts and drawings of the 'Makita EB5300TH'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:
Technical drawing of model Makita EB5300TH
Spare parts list of model Makita EB5300TH
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Elbow | ||||
| 001 | 412144-8 | 6.00 | 7.26 | |
| O-Ring Bbx7600 A | ||||
| 002 | 213645-7 | 3.60 | 4.36 | |
| Label Serial Number Eb5300Th | ||||
| 003 | 852V99-1 | 2.40 | 2.90 | |
| Warning Label | ||||
| 005 | 803T61-7 | 2.40 | 2.90 | |
| Label "serienr" | ||||
| 006 | 801D19-4 | 2.40 | 2.90 | |
| Fan Housing Front Eb5300Th | ||||
| 008 | 457098-2 | 19.80 | 23.96 | |
| Bolt M6X25 | ||||
| 010 | 922343-9 | 1.20 | 1.45 | |
| Fan 243 Eb5300Th | ||||
| 011 | 240170-5 | 13.20 | 15.97 | |
| Bolt M6X25 | ||||
| 012 | 922343-9 | 1.20 | 1.45 | |
| Fan Housing Rear Eb5300Th | ||||
| 013 | 457099-0 | 14.30 | 17.30 | |
| Screw 4x20 | ||||
| 014 | 266420-0 | 1.00 | 1.21 | |
| Pressure Spring 22 Eb5300Th | ||||
| 017 | 232328-0 | 2.40 | 2.90 | |
| Spring holder "b" | ||||
| 018 | 454904-2 | 1.20 | 1.45 | |
| Met. Screw Ph2 M5X16Mm Ck A | ||||
| 019 | 922223-9 | 1.00 | 1.21 | |
| Pressure Spring 22 Eb5300Th | ||||
| 022 | 232329-8 | 2.40 | 2.90 | |
| Spring holder "b" | ||||
| 023 | 454904-2 | 1.20 | 1.45 | |
| Met. Screw Ph2 M5X16Mm Ck A | ||||
| 024 | 922223-9 | 1.00 | 1.21 | |
| DRAAGRIEM RECHTS EB5300TH | ||||
| 025X | 161544-6 | 5.00 | 6.05 | |
| Carrying Strap L EB5300TH P | ||||
| 026X | 161543-8 | 10.52 | 12.73 | |
| Screw 4x20 | ||||
| 027 | 266420-0 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 028 | 898343-0 | |||
| Engine hood Eb5300Th | ||||
| 028C10 | 144360-1 | 13.20 | 15.97 | |
| Spark plug cap Eb5300Th | ||||
| 029 | 424909-6 | 3.60 | 4.36 | |
| Vibration Damper | ||||
| 030 | 424620-0 | 1.00 | 1.21 | |
| Gasoline filter | ||||
| 031 | 163532-9 | 20.90 | 25.29 | |
| Hose clamp IAS 3 | ||||
| 032 | 345920-4 | 1.00 | 1.21 | |
| Fuel Hose Eb5300Th | ||||
| 033 | 123788-6 | 12.22 | 14.79 | |
| Fuel hose set | ||||
| 033 | 126586-7 | 11.00 | 13.31 | |
| Vent Valve | ||||
| 034 | 168396-6 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 035 | 424505-0 | |||
| No information available, not orderable | ||||
| 036 | 412120-2 | |||
| No information available, not orderable | ||||
| 037 | 412114-7 | |||
| Hose connector | ||||
| 038 | 422137-7 | 2.40 | 2.90 | |
| Tank Cap Assy Ms246.4 A | ||||
| 039 | 127112-5 | 12.22 | 14.79 | |
| Gas tank Eb5300Th | ||||
| 044 | 457086-9 | 13.20 | 15.97 | |
| Frame Eb5300Th | ||||
| 046 | 457097-4 | 26.40 | 31.94 | |
| Met. Screw Ph2 M5X16Mm Ck A | ||||
| 048 | 922223-9 | 1.00 | 1.21 | |
| Mounting sleeve Bbx7600 A | ||||
| 052 | 458158-3 | 1.20 | 1.45 | |
| Hip Pad Eb5300Th | ||||
| 053 | 161567-4 | 13.20 | 15.97 | |
| Mounting sleeve Bbx7600 A | ||||
| 054 | 458158-3 | 1.20 | 1.45 | |
| Rubber ring 25mm | ||||
| 055 | 424678-9 | 1.20 | 1.45 | |
| Warning label "fuel" | ||||
| 059 | 810455-9 | 2.40 | 2.90 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 060 | 265B67-9 | 1.00 | 1.21 | |
| Throttle Assy Eb5300Th | ||||
| 061 | 183F27-2 | 16.50 | 19.96 | |
| Wire Harness A Eb5300Th | ||||
| 062 | 632J31-7 | 2.40 | 2.90 | |
| Wire Harness B Eb5300Th | ||||
| 063 | 632J60-0 | 2.40 | 2.90 | |
| Through Hose Eb5300Th | ||||
| 064 | 457105-1 | 3.60 | 4.36 | |
| Compression Spring 4 | ||||
| 065 | 231469-9 | 1.00 | 1.21 | |
| Throttle lever "a" | ||||
| 066 | 454899-9 | 2.40 | 2.90 | |
| Throttle Wire Comp. | ||||
| 067 | 168843-7 | 4.80 | 5.81 | |
| Lock Nut M4x7mm | ||||
| 068 | 252126-6 | 1.00 | 1.21 | |
| Gas link | ||||
| 069 | 454924-6 | 1.20 | 1.45 | |
| Throttle | ||||
| 070 | 454900-0 | 1.20 | 1.45 | |
| Hexagon socket screw M4x20 Ck | ||||
| 073 | 922138-0 | 1.00 | 1.21 | |
| Throttle Assy Eb5300Th | ||||
| 074 | 183F27-2 | 16.50 | 19.96 | |
| Clamping screw 3700B/Sp6000 A | ||||
| 075 | 251867-1 | 2.40 | 2.90 | |
| Washer 12 | ||||
| 076 | 253052-2 | 1.00 | 1.21 | |
| Leaf Spring Eb5300Th | ||||
| 077 | 232330-3 | 1.20 | 1.45 | |
| Leaf Spring Eb5300Th | ||||
| 078 | 232331-1 | 1.00 | 1.21 | |
| Hose clamp IAS 3 | ||||
| 090 | 282025-8 | 3.60 | 4.36 | |

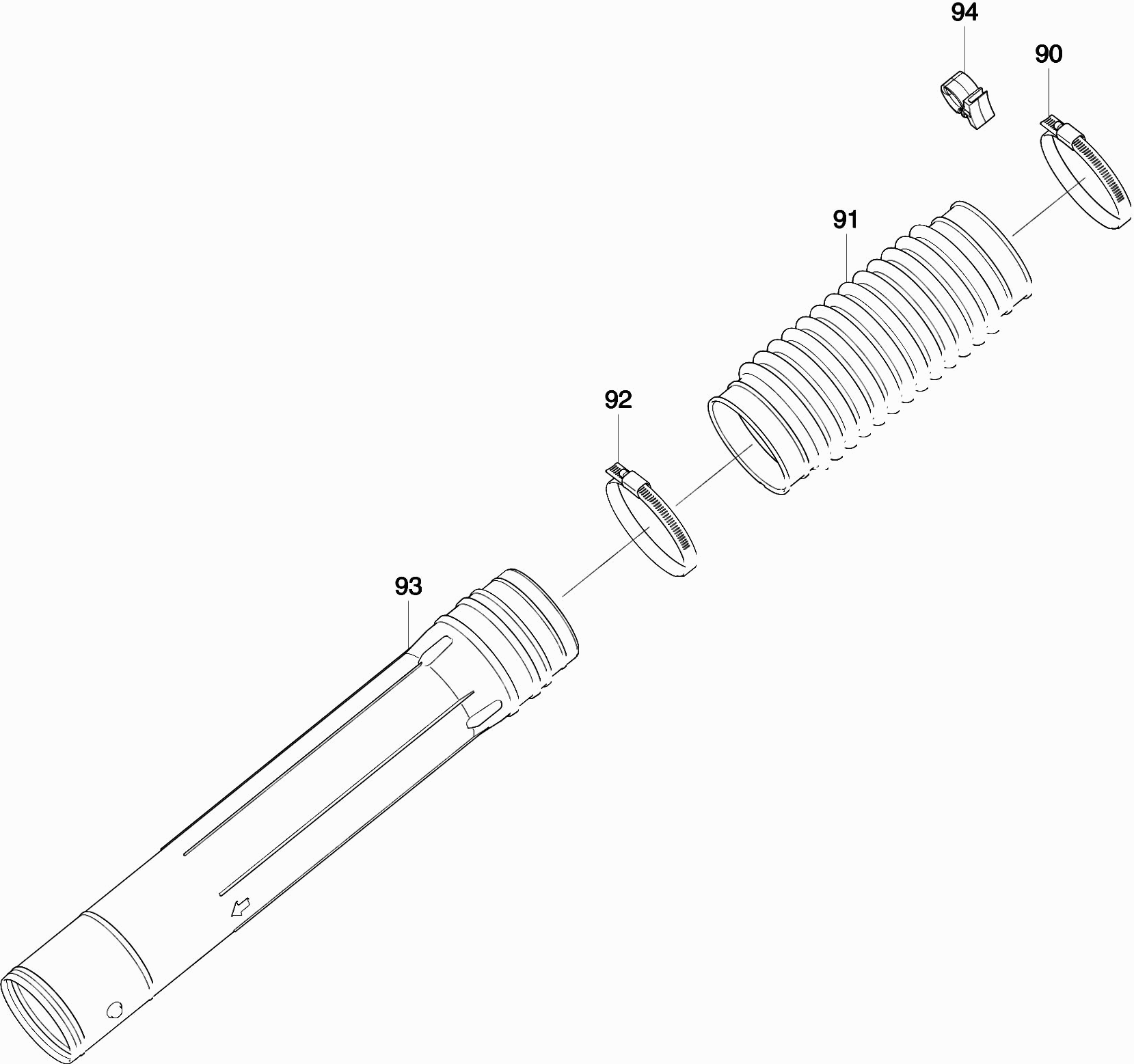

| Flex pipe | ||||
| 091 | 454934-3 | 13.20 | 15.97 | |
| Hose clamp IAS 3 | ||||
| 092 | 282025-8 | 3.60 | 4.36 | |
| Connection tube Eb5300TH A | ||||
| 093 | 161653-1 | 9.60 | 11.62 | |
| Cable Cleat | ||||
| 094 | 456400-6 | 2.40 | 2.90 | |
| Start Pulley Bbx7600 A | ||||
| 100 | 161599-1 | 7.20 | 8.71 | |
| Inbusbout 5X20 | ||||
| 101 | 922232-8 | 1.20 | 1.45 | |
| Model Label Eb5300Th | ||||
| 102 | 812A88-2 | 2.40 | 2.90 | |
| Warning Label | ||||
| 103 | 819430-2 | 2.40 | 2.90 | |
| Piston Set Eb5300Th | ||||
| 127 | 198420-1 | 14.30 | 17.30 | |
| Inbusbout 5X20 | ||||
| 128 | 922232-8 | 1.20 | 1.45 | |
| Inbusbout 5X20 | ||||
| 129 | 922232-8 | 1.20 | 1.45 | |
| Inbusbout 5X20 | ||||
| 130 | 922232-8 | 1.20 | 1.45 | |
| Valve Cover Eb5300Th | ||||
| 131 | 319465-8 | 4.80 | 5.81 | |
| Valve cover seal set Eb5300Th | ||||
| 132 | 161520-0 | 2.40 | 2.90 | |
| Cylinder Block Eb5300Th | ||||
| 133 | 135893-7 | 93.50 | 113.14 | |
| Spark Plug | ||||
| 135 | 168652-4 | 11.00 | 13.31 | |
| Distributor | ||||
| 136 | 352020-3 | 3.60 | 4.36 | |
| Control valve | ||||
| 138 | 424201-0 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 139 | 922332-4 | |||
| Sump cover seal set Eb5300Th | ||||
| 140 | 161521-8 | 2.40 | 2.90 | |
| Crankcase Cover Eb5300Th | ||||
| 141 | 319464-0 | 4.80 | 5.81 | |
| Inbusbout 5X20 | ||||
| 142 | 922232-8 | 1.20 | 1.45 | |
| Oil Cap | ||||
| 143 | 452047-4 | 2.40 | 2.90 | |
| Gasket | ||||
| 144 | 424343-0 | 1.20 | 1.45 | |
| Inlet membrane | ||||
| 145 | 346398-4 | 1.20 | 1.45 | |
| Locking Plate Eb5300Th | ||||
| 146 | 319467-4 | 3.60 | 4.36 | |
| Inbusbout 5X20 | ||||
| 147 | 922232-8 | 1.20 | 1.45 | |
| Sump seal set Eb5300Th | ||||
| 148 | 161522-6 | 3.60 | 4.36 | |
| Crankcase Eb5300Th | ||||
| 149 | 319466-6 | 8.40 | 10.16 | |
| Gasket | ||||
| 150 | 346452-4 | 1.00 | 1.21 | |
| Hex Bolt 8x12 | ||||
| 151 | 921412-3 | 1.00 | 1.21 | |
| Inbusbout 5X20 | ||||
| 152 | 922232-8 | 1.20 | 1.45 | |
| Piston Ring Set Eb5300Th | ||||
| 154 | 198421-9 | 9.60 | 11.62 | |
| Inbusbout 5X20 | ||||
| 155 | 922232-8 | 1.20 | 1.45 | |
| Keerring 10 | ||||
| 156 | 213231-4 | 6.00 | 7.26 | |
| Piston pin 11 Eb5300Th | ||||
| 157 | 256331-7 | 2.40 | 2.90 | |
| Lock Ring 11Eb5300Th | ||||
| 158 | 232316-7 | 1.00 | 1.21 | |
| Feather Key 4 | ||||
| 160 | 254001-2 | 1.00 | 1.21 | |
| Washer 35 Eb5300Th | ||||
| 161 | 253374-0 | 1.00 | 1.21 | |
| Seal ring 15 Eb5300Th | ||||
| 162 | 213088-3 | 6.00 | 7.26 | |
| Crankshaft Eb5300Th | ||||
| 163 | 123748-8 | 52.80 | 63.89 | |
| Inlet Valve Eb5300Th | ||||
| 164 | 326795-0 | 4.80 | 5.81 | |
| Exhaust valve Eb5300Th | ||||
| 165 | 326796-8 | 4.80 | 5.81 | |
| Compression spring 12 Eb5300Th | ||||
| 166 | 232315-9 | 1.00 | 1.21 | |
| Valve Locking Ring | ||||
| 167 | 331966-6 | 2.40 | 2.90 | |
| Oil Pipe Eb5300Th | ||||
| 168 | 456999-1 | 3.60 | 4.36 | |
| Seal set Eb5300Th | ||||
| 169 | 161523-4 | 1.00 | 1.21 | |
| Valve pin | ||||
| 170 | 256866-8 | 1.00 | 1.21 | |
| Rocker lifter Eb5300Th | ||||
| 172 | 310739-0 | 1.20 | 1.45 | |
| Rocker Tooth Assembly Eb5300Th | ||||
| 173 | 135894-5 | 4.80 | 5.81 | |
| Pen 5 | ||||
| 174 | 256196-7 | 1.00 | 1.21 | |
| Spacer | ||||
| 175 | 331987-8 | 1.20 | 1.45 | |
| Split Pin | ||||
| 176 | 331967-4 | 1.20 | 1.45 | |
| Eb5300Th Exhaust Gasket | ||||
| 179 | 347077-7 | 3.60 | 4.36 | |
| Exhaust Eb5300Th | ||||
| 180 | 161518-7 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 181 | 922332-4 | |||
| Spark plug cap Ebh253U A | ||||
| 182 | 424105-6 | 3.60 | 4.36 | |
| Bougieveer Ebh253U A | ||||
| 183 | 324891-8 | 1.20 | 1.45 | |
| Hexagon socket screw M4x20 Ck | ||||
| 184 | 922138-0 | 1.00 | 1.21 | |
| Wire Harness A Eb5300Th | ||||
| 185 | 632J30-9 | 1.20 | 1.45 | |
| Wire Harness B Eb5300Th | ||||
| 186 | 632J50-3 | 1.20 | 1.45 | |
| Eb5300Th Ignition | ||||
| 187 | 161411-5 | 14.30 | 17.30 | |
| Flywheel Eb5300Th | ||||
| 188 | 319391-1 | 11.00 | 13.31 | |
| Flywheel Nut | ||||
| 189 | 264054-3 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 190 | 123863-8 | |||
| No information available, not orderable | ||||
| 191 | SG00000005 | |||
| Drive sleeve | ||||
| 192 | 424516-5 | 6.00 | 7.26 | |
| Carrier | ||||
| 193 | 326200-7 | 4.80 | 5.81 | |
| Compression Spring | ||||
| 194 | 234257-3 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 195 | 441075-4 | |||
| Spiral Spring Eb5300Th | ||||
| 196 | SG00000018 | 4.80 | 5.81 | |
| Starting Device Compl Eb5300Th | ||||
| 197 | 457302-9 | 11.00 | 13.31 | |
| Starter cord | ||||
| 198 | 444043-6 | 3.60 | 4.36 | |
| START KNOP RBC310 * | ||||
| 199 | 424361-8 | 4.80 | 5.81 | |
| Stop Plate | ||||
| 200 | SG00000009 | 1.20 | 1.45 | |
| Air filter housing Eb5300Th | ||||
| 201 | 457088-5 | 4.80 | 5.81 | |
| Wing bolt 5x20 | ||||
| 202 | 251481-3 | 1.20 | 1.45 | |
| Air filter element Eb5300Th | ||||
| 203 | 424896-9 | 4.80 | 5.81 | |
| Gasoline line Eb5300Th | ||||
| 204 | 424898-5 | 8.40 | 10.16 | |
| Inner Ring | ||||
| 205 | 332075-4 | 1.00 | 1.21 | |
| Rubber sealing plate Eb5300Th | ||||
| 206 | 424897-7 | 1.00 | 1.21 | |
| Tapping screw 4x14 mm GA9070Y A | ||||
| 207 | 265B74-2 | 1.00 | 1.21 | |
| Tapping screw 4X14 Ga7020 A | ||||
| 207 | 266385-6 | 0.83 | 1.00 | |
| Air Guide Eb5300Th | ||||
| 208 | 456994-1 | 2.40 | 2.90 | |
| Allen bolt M5X50mm Eb5300Th | ||||
| 209 | 251496-0 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 210 | 456995-9 | |||
| Tapping screw 4x14 mm GA9070Y A | ||||
| 211 | 265B74-2 | 1.00 | 1.21 | |
| Tapping screw 4X14 Ga7020 A | ||||
| 211 | 266385-6 | 0.83 | 1.00 | |
| Screw 4x20 | ||||
| 212 | 266420-0 | 1.00 | 1.21 | |
| Air Filter Plate Eb5300Th | ||||
| 213 | 456993-3 | 7.20 | 8.71 | |
| Screw 4x20 | ||||
| 214 | 266420-0 | 1.00 | 1.21 | |
| Choke handle | ||||
| 215 | 453502-9 | 8.27 | 10.01 | |
| Carburetor seal set Eb5300Th | ||||
| 216 | 161519-5 | 1.20 | 1.45 | |
| Carburetor Bracket Eb5300Th | ||||
| 217 | 456996-7 | 6.00 | 7.26 | |
| Fuel Hose Eb5300Th | ||||
| 218 | 424900-4 | 1.00 | 1.21 | |
| Fuel Pump DCS230T A | ||||
| 219 | 168398-2 | 15.20 | 18.39 | |
| Carburateur Eb5300Th | ||||
| 220 | 161517-9 | 93.50 | 113.14 | |
| Bushing | ||||
| 221 | 424623-4 | 1.00 | 1.21 | |
| Hose 5x55mm | ||||
| 222 | 422084-2 | 1.20 | 1.45 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 223 | 265B67-9 | 1.00 | 1.21 | |
| Carburetor Cover | ||||
| 224 | 456401-4 | 1.20 | 1.45 | |
| Oil line 5-195 Eb5300Th | ||||
| 226 | 424901-2 | 2.40 | 2.90 | |
| Air filter gasket Eb5300Th | ||||
| 227 | 424899-3 | 3.60 | 4.36 | |
| Inbusbout 5X20 | ||||
| 228 | 922232-8 | 1.20 | 1.45 | |
| Bushing | ||||
| 229 | 424623-4 | 1.00 | 1.21 | |
| Inbusbout 5X20 | ||||
| 230 | 922232-8 | 1.20 | 1.45 | |
| Manifold Eb5300Th | ||||
| 231 | 456997-5 | 7.20 | 8.71 | |
| Choke Valve Eb5300Th | ||||
| 232 | 456998-3 | 1.20 | 1.45 | |
| Strain reliever | ||||
| 241 | 687682-1 | 1.00 | 1.21 | |
| Tapping screw 4x14 mm GA9070Y A | ||||
| 242 | 265B74-2 | 1.00 | 1.21 | |
| Tapping screw 4X14 Ga7020 A | ||||
| 242 | 266385-6 | 0.83 | 1.00 | |
| Set screw | ||||
| 250 | 266795-7 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 251 | 264065-8 | |||
| Adjustment Screw Rbc230 A | ||||
| 252 | 266704-6 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 253 | 346491-4 | |||
| Swivel element | ||||
| 254 | 325922-6 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 255 | 413140-9 | |||
| Seegering E-3 A | ||||
| 256 | 257964-1 | 7.20 | 8.71 | |
| Packing Washer | ||||
| 257 | 424444-4 | 7.20 | 8.71 | |
| Compression Spring 5-9mm | ||||
| 258 | 234183-6 | 4.80 | 5.81 | |
| Diaphragm Gasket | ||||
| 261 | 442155-9 | 7.20 | 8.71 | |
| Pump diaphragm | ||||
| 262 | WJ00009599 | 3.96 | 4.79 | |
| Pump housing Eb5300Th | ||||
| 263 | WJ00059242 | 44.00 | 53.24 | |
| Gasket Ht2350/60D A | ||||
| 264 | 442183-4 | 7.20 | 8.71 | |
| Diaphragm | ||||
| 265 | 168620-7 | 38.50 | 46.58 | |
| Cover Ea3201S A | ||||
| 266 | WJ00021158 | 4.80 | 5.81 | |
| Screw | ||||
| 267 | WJ00096325 | 7.20 | 8.71 | |
| Spring | ||||
| 268 | WJ00983160 | 3.60 | 4.36 | |
| Screw | ||||
| 269 | WJ00096424 | 3.60 | 4.36 | |
| Pin Dcs230T A | ||||
| 270 | WJ00014477 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 271 | WJ00016648 | |||
| Float needle | ||||
| 272 | WJ00008282 | 20.90 | 25.29 | |
| Inlet strainer | ||||
| 273 | WJ00014070 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 280 | 123986-2 | |||
| Gas Line Complete Eb5300Th | ||||
| 281 | 135838-5 | 11.00 | 13.31 | |
