Here you will find all available parts and drawings of the 'Makita DWT310ZK'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

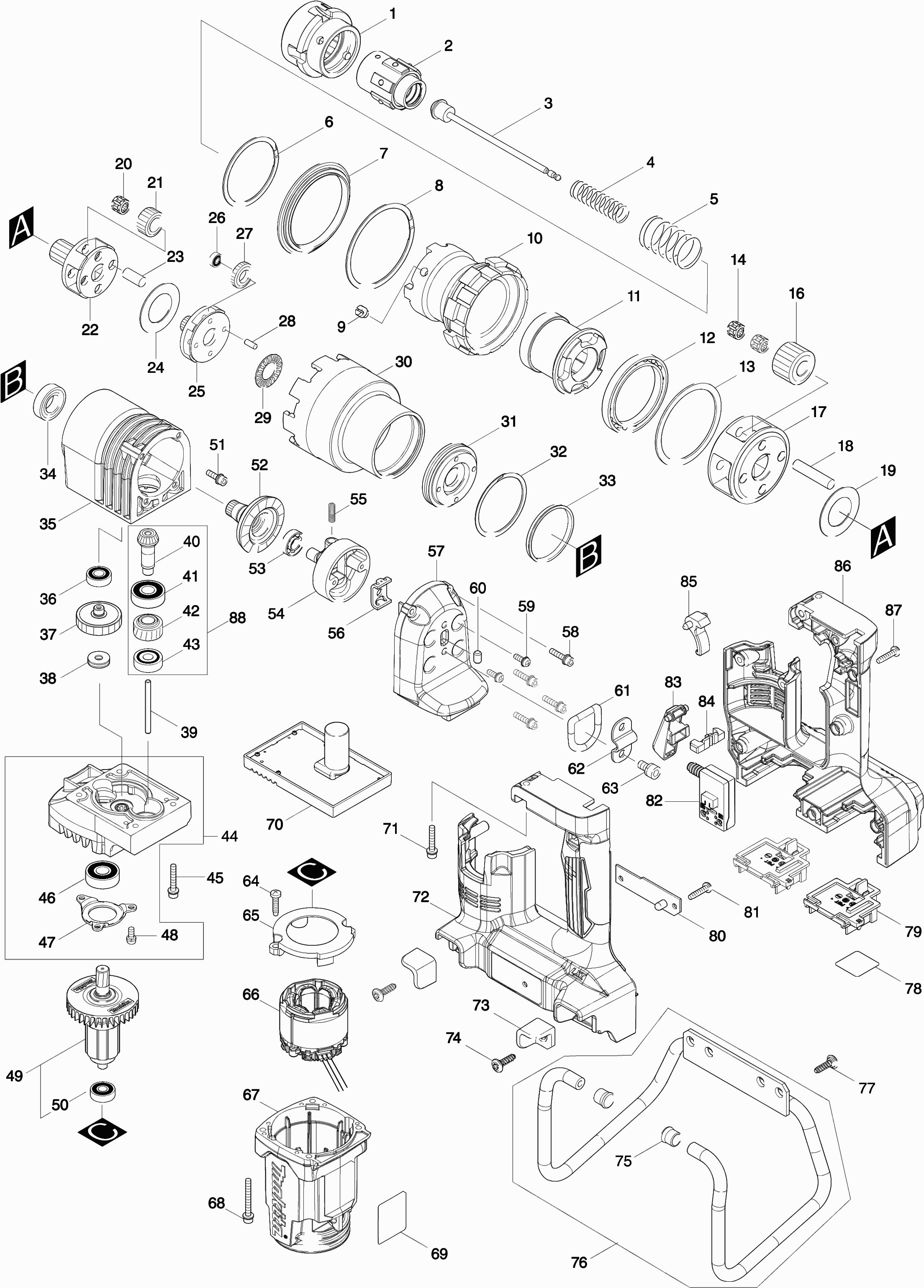

Technical drawing of model Makita DWT310ZK

Spare parts list of model Makita DWT310ZK

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
No information available, not orderable
001 153909-6
Inner sleeve 22 for 153909-6
002 764423-3 112.06 135.59
Axis DWT310
003 165074-9 15.60 18.88
Pressure Spring 13 LF1000 A
004 233468-7 0.83 1.00
Compression Spring 25
005 234143-8 1.39 1.68
Lock Ring 62 DWT310
006 257941-3 3.96 4.79
Distancer
007 324447-7 19.23 23.27
Lock Ring 70 DWT310
008 257940-5 5.71 6.91
Borgschroef DWT310
009 266022-2 2.71 3.28
Outer Support DWT310
010 325688-8 235.58 285.05
Inner Support DWT310
011 153872-3 92.95 112.47
Ball Bearing 6810
012 211611-8 25.36 30.69
No information available, not orderable
013 267282-9
Needle Bearing 810
014 212954-1 5.71 6.91
Gear 20 DWT310
016 227117-6 12.22 14.79
Gear carrier DWT310
017 310147-5 112.06 135.59
Pen 8
018 256228-0 0.83 1.00
No information available, not orderable
019 216207-0
Needle Bearing 810
020 212954-1 5.71 6.91
Gear 25 DWT310
021 226270-5 10.50 12.70
Gear 11 DWT310
022 226275-5 210.11 254.23
Pen 8
023 256227-2 1.20 1.45
No information available, not orderable
024 216207-0
Gear 14 DWT310
025 226273-9 169.36 204.93
Ball bearing 404*
026 211044-7 9.24 11.18
Gear 25 DWT310
027 226269-0 13.83 16.73
Pen 4
028 256184-4 0.83 1.00
Pressure Needle Bearing 1528
029 216403-0 4.45 5.38
Internal gear 53-66
030 227118-4 375.65 454.54
Assembly ring DWT130
031 323855-9 55.40 67.03
Lock ring 52 DWT310
032 257929-3 2.36 2.86
Washer 44 DWT310
033 257186-3 11.82 14.30
Ball bearing 6902
034 211221-1 13.82 16.72
Gear Housing DWT130
035 159930-3 63.68 77.05
Rubber Pin 4
035C10 263002-9 0.83 1.00
Ball Bearing 698vv
036 210013-5 5.09 6.16
Gear 30 Dwt310
037 226651-3 55.40 67.03
No information available, not orderable
038 212048-2
Pen 4
039 256225-6 0.83 1.00
GEAR 12 DWT310
040 226711-1 41.77 50.54
Ball bearing 6000llb
041 211061-7 7.22 8.74
No information available, not orderable
042 226476-5
Ball bearing 608llb
043 210043-6 1.67 2.02
Complete Gearbox DWT1310
044 134788-1 72.58 87.82
Hex Bolt Hr5210C
045 922148-7 0.83 1.00
Ball bearing 6000llb
046 211061-7 7.22 8.74
Bearing lock ring DWT310
047 344470-6 3.12 3.78
Screw 4X10
048 911111-5 0.83 1.00
Armature 18V DWT310
049 519497-7 51.83 62.71
Ball bearing 607lb
050 211023-5 3.72 4.50
Hexagonal Bolt
051 922123-3 0.83 1.00
Gear 14-41 DWT310
052 226812-5 68.13 82.44
Ball bearing 699 DWT310
053 211082-9 5.06 6.12
Axle Holder DWT130
054 311930-3 44.96 54.40
Compression Spring 4 DWT310
055 233098-4 0.98 1.19
Spacer DWT130
056 344062-1 2.36 2.86
No information available, not orderable
057 312B27-3
Hexagon socket bolt M4X18Mm
058 922133-0 4.45 5.38
Screw 4x12
059 911116-5 0.83 1.00
Rubber pen 6
060 263005-3 0.83 1.00
D-ring
061 282018-5 7.21 8.72
Mounting Plate
062 345517-9 2.36 2.86
Allen screw
063 266157-9 1.54 1.86
Tap screw 4x18
064 265A48-7 0.83 1.00
Intermediate plate DWT310
065 458306-4 5.71 6.91
Armature 18V DWT310
066 629337-2 51.83 62.71
Motor housing DWT310
067 458302-2 28.02 33.90
Allen bolt M4X35
068 922909-5 0.83 1.00
No information available, not orderable
069 854C60-0
Controller DWT310
070 632L40-8 197.37 238.82
Hexagon Socket Screw M4X25
071 922149-5 4.45 5.38
No information available, not orderable
072 183J09-8
Rubber pen 6
072C10 263005-3 0.83 1.00
Indicator Label DWT310
072C20 816P35-5 2.71 3.28
No information available, not orderable
072C30 422226-8
Acrylic pen
072C40 416285-2 0.83 1.00
Protective cap Dga900
073 327048-0 2.38 2.88
Self-tapping screw 5X18mm Dga900
074 251587-7 0.83 1.00
Cap, -Closure Dga700
075 422230-7 0.83 1.00
Protection Bracket GA700 P
076 135919-5 17.40 21.05
Self-tapping screw 5X18mm Dga900
077 251587-7 0.83 1.00
No information available, not orderable
078 854C68-4
Connection unit (3 contacts)
079 644809-6 3.96 4.79
Led Circuit Dwt310
080 620809-0 10.52 12.73
Tap screw 4x18
081 265A48-7 0.83 1.00
Switch C3Xa-1Pspm Dsp600
082 651083-9 19.29 23.34
Switch handle Dwt310
083 458303-0 5.06 6.12
Switch blocking DWT310
084 458307-2 4.45 5.38
Unlocking Lever DWT310
085 311928-0 13.82 16.72
No information available, not orderable
086 183J09-8
Rubber pen 6
086C10 263005-3 0.83 1.00
Indicator Label DWT310
086C20 816P35-5 2.71 3.28
No information available, not orderable
086C30 422226-8
Acrylic pen
086C40 416285-2 0.83 1.00
Tap screw 4x18
087 265A48-7 0.83 1.00
Gear Set DWT130
088 134790-4 63.68 77.05
