Here you will find all available parts and drawings of the 'Makita DWR180'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

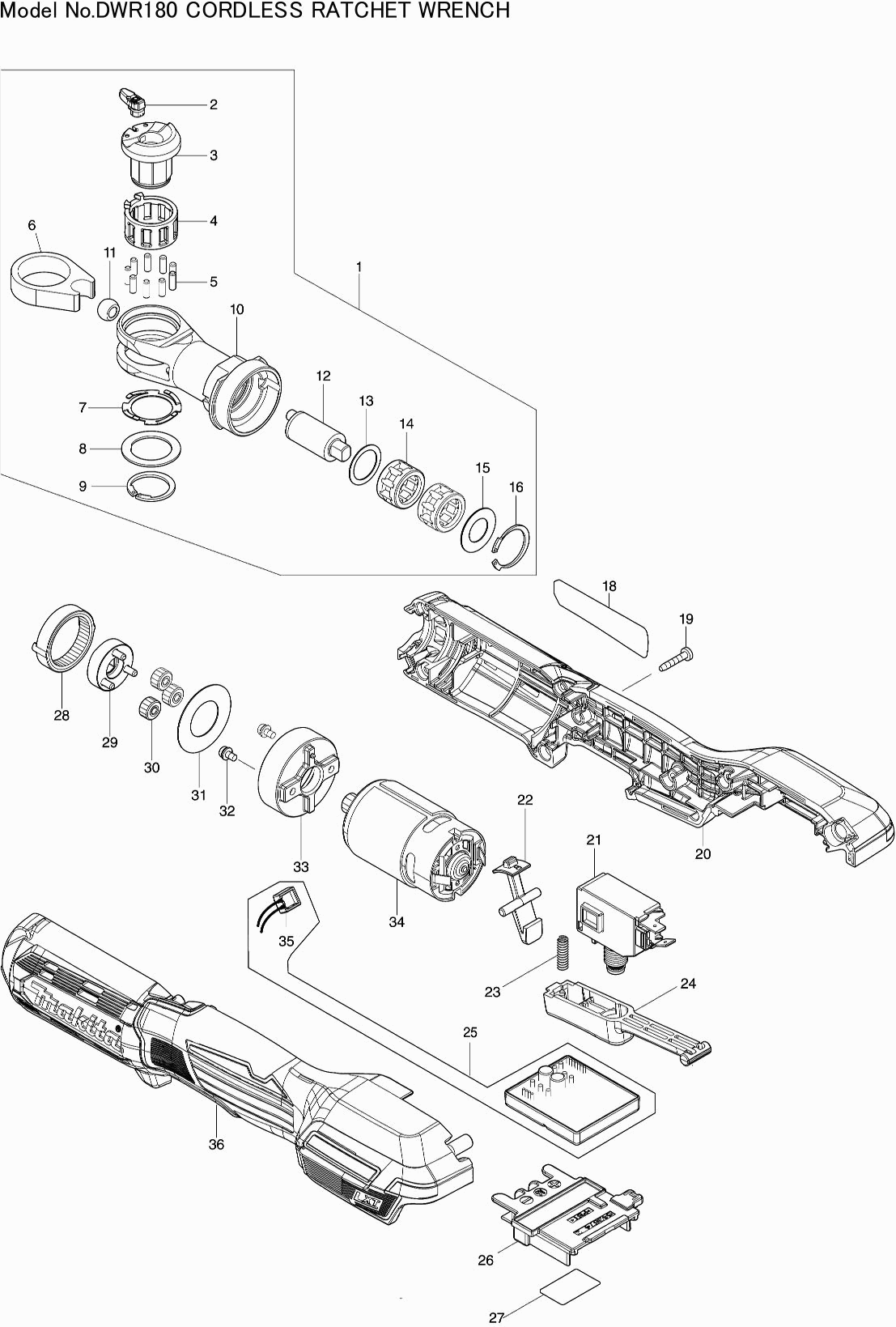

Technical drawing of model Makita DWR180
Spare parts list of model Makita DWR180
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Ratchet head assembly WR100D | ||||
| 001 | 127297-7 | 59.31 | 71.77 | |
| No information available, not orderable | ||||
| 002 | 140K70-4 | |||
| No information available, not orderable | ||||
| 003 | 327360-8 | |||
| No information available, not orderable | ||||
| 004 | 310954-6 | |||
| No information available, not orderable | ||||
| 005 | 256963-0 | |||
| No information available, not orderable | ||||
| 006 | 327357-7 | |||
| No information available, not orderable | ||||
| 007 | 232531-3 | |||
| No information available, not orderable | ||||
| 008 | 253440-3 | |||
| Lock Ring S-18 | ||||
| 009 | 961078-7 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 010 | 327356-9 | |||
| No information available, not orderable | ||||
| 011 | 327359-3 | |||
| No information available, not orderable | ||||
| 012 | 327358-5 | |||
| No information available, not orderable | ||||
| 013 | 253450-0 | |||
| Ratchet head assembly WR100D | ||||
| 014 | 127297-7 | 59.31 | 71.77 | |
| No information available, not orderable | ||||
| 015 | 253449-5 | |||
| Lock Ring R-22 | ||||
| 016 | 962112-6 | 0.83 | 1.00 | |
| Nameplate DWR180 | ||||
| 018 | 857Y46-5 | 2.71 | 3.28 | |
| Tapping Screw 3x16 | ||||
| 019 | 266130-9 | 0.83 | 1.00 | |
| Motor housing set DWR180 | ||||
| 020 | 183R89-2 | 8.21 | 9.93 | |
| Rubber pen 6 | ||||
| 020C10 | 263005-3 | 0.83 | 1.00 | |
| Switch WR100D | ||||
| 021 | 651391-8 | 23.04 | 27.88 | |
| Unlock lever WR100 | ||||
| 022 | 459422-5 | 1.39 | 1.68 | |
| Compression spring 4mm WR100D | ||||
| 023 | 232353-1 | 0.83 | 1.00 | |
| Switch handle WR100 | ||||
| 024 | 459421-7 | 1.39 | 1.68 | |
| Speed control circuit DWR180 | ||||
| 025 | 620E21-2 | 44.96 | 54.40 | |
| Connection unit | ||||
| 026 | 643874-2 | 3.54 | 4.28 | |
| Serial Number Label DWR180 | ||||
| 027 | 857Y53-8 | 0.83 | 1.00 | |
| Internal gear 41 WR100 | ||||
| 028 | 226897-1 | 1.66 | 2.01 | |
| Gear carrier cpl WR100D | ||||
| 029 | 140K71-2 | 1.99 | 2.41 | |
| Gear 14 WR100D | ||||
| 030 | 226898-9 | 2.02 | 2.44 | |
| Washer 18 | ||||
| 031 | 267235-8 | 1.39 | 1.68 | |
| Met.screw M3x6mm WR100D | ||||
| 032 | 265A38-0 | 0.83 | 1.00 | |
| Gearbox WR100D | ||||
| 033 | 310953-8 | 3.44 | 4.16 | |
| Motor 18.0V DWR180 | ||||
| 034 | 629A30-4 | 13.82 | 16.72 | |
| Light circuit WR100D | ||||
| 035 | 620B10-9 | 7.21 | 8.72 | |
| Motor housing set DWR180 | ||||
| 036 | 183R89-2 | 8.21 | 9.93 | |
| Rubber pen 6 | ||||
| 036C10 | 263005-3 | 0.83 | 1.00 | |
