Here you will find all available parts and drawings of the 'Makita DVP181'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

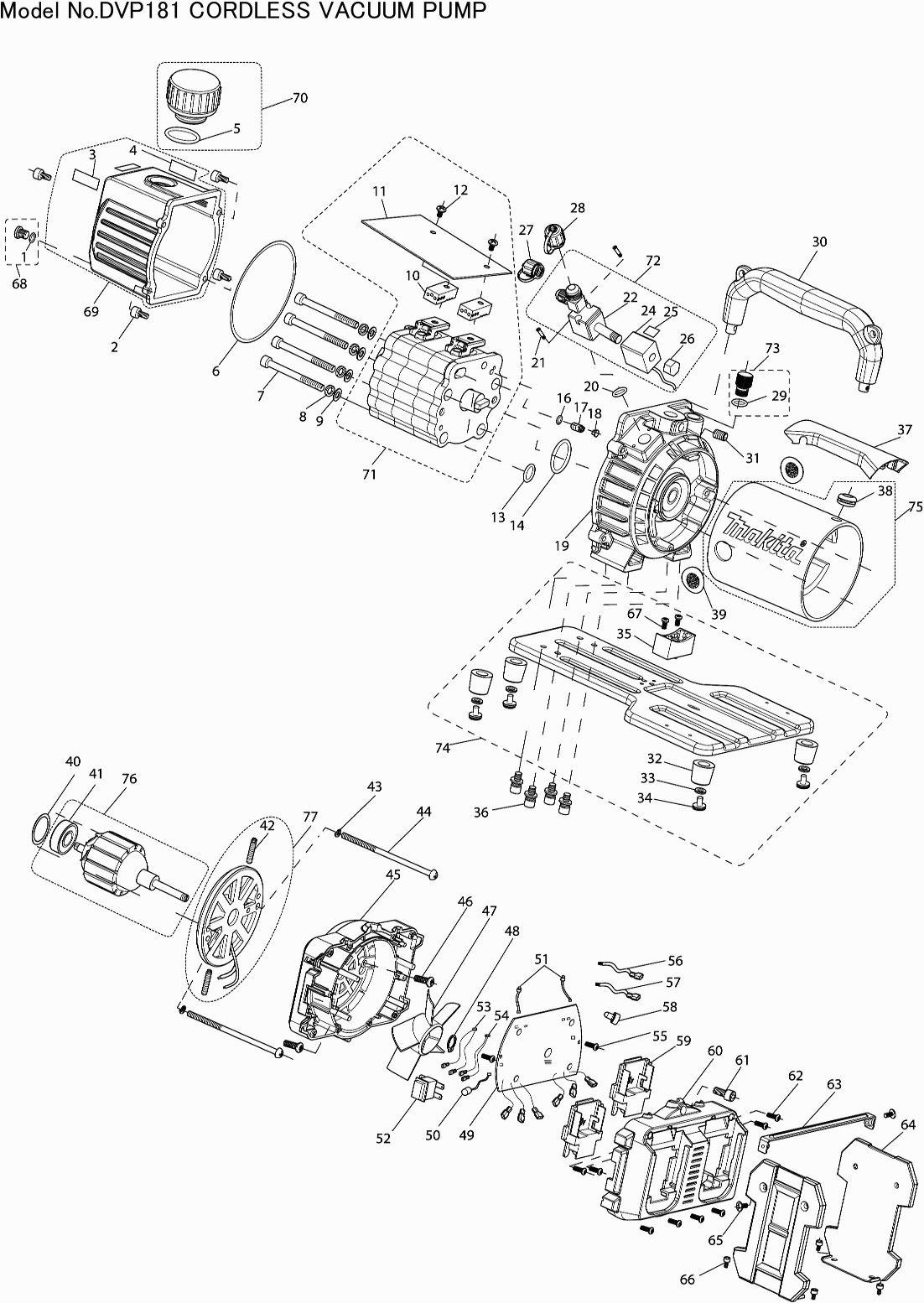

Technical drawing of model Makita DVP181
Spare parts list of model Makita DVP181
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| O-ring 10 | ||||
| 001 | AS000VP010 | 2.40 | 2.90 | |
| Hex bolt M5X16 Dvp180 | ||||
| 002 | AS000VP011 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 003 | AS00SS0537 | |||
| Warning Label | ||||
| 004 | AS00SS0306 | 2.40 | 2.90 | |
| O-ring 26 | ||||
| 005 | AS000VP013 | 3.60 | 4.36 | |
| O-Ring 120x3.1 DVP181 | ||||
| 006 | AS000VP092 | 2.40 | 2.90 | |
| Allen screw M8x90mm DVP181 | ||||
| 007 | AS000VP093 | 2.40 | 2.90 | |
| Split washer 8mm DVP181 | ||||
| 008 | AS000VP094 | 2.40 | 2.90 | |
| Washer 8mm DVP181 | ||||
| 009 | AS000VP095 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 010 | AS000VP097 | |||
| No information available, not orderable | ||||
| 011 | AS000VP098 | |||
| No information available, not orderable | ||||
| 012 | AS000VP099 | |||
| O-ring 12x1.6mm DVP181 | ||||
| 013 | AS000VP100 | 2.40 | 2.90 | |
| O-ring 34.5x2mm DVP181 | ||||
| 014 | AS000VP101 | 2.40 | 2.90 | |
| O-ring 13x2mm DVP181 | ||||
| 016 | AS000VP103 | 2.40 | 2.90 | |
| Spring 7x0,5x6 DVP181 | ||||
| 017 | AS000VP104 | 2.40 | 2.90 | |
| Throttle valve DVP181 | ||||
| 018 | AS000VP105 | 2.40 | 2.90 | |
| Trestle DVP181 | ||||
| 019 | AS00VP106M | 55.00 | 66.55 | |
| O-ring 15x2mm DVP181 | ||||
| 020 | AS000VP107 | 2.40 | 2.90 | |
| Met.screw M3x25mm DVP181 | ||||
| 021 | AS000VP173 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 022 | AS000VP109 | |||
| No information available, not orderable | ||||
| 024 | AS000VP111 | |||
| No information available, not orderable | ||||
| 025 | AS00SS0537 | |||
| KLEPMOER DVP181 | ||||
| 026 | AS000VP112 | 2.40 | 2.90 | |
| Covering hood | ||||
| 027 | AS000VP017 | 3.60 | 4.36 | |
| Inlet port DVP181 | ||||
| 028 | AS000VP113 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 029 | AS000VP115 | |||
| Handle MA245 DVP181 | ||||
| 030 | AS000VP117 | 30.80 | 37.27 | |
| Allen screw M8x8mm DVP181 | ||||
| 031 | AS000VP118 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 032 | AS000VP121 | |||
| No information available, not orderable | ||||
| 033 | AS000VP122 | |||
| Metal screw M4x8mm DVP181 | ||||
| 034 | AS000VP123 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 035 | AS000VP124 | |||
| Bolt with rivet M5x16 | ||||
| 036 | AS000VP026 | 2.40 | 2.90 | |
| Wire protection DVP181 | ||||
| 037 | AS000VP125 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 038 | AS000VP126 | |||
| Covering hood | ||||
| 039 | AS000VP020 | 6.00 | 7.26 | |
| Bearing ring DVP181 | ||||
| 040 | AS000VP128 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 041 | AS000VP130 | |||
| No information available, not orderable | ||||
| 042 | AS000VP132 | |||
| Retaining ring m5 | ||||
| 043 | AS000VP027 | 2.40 | 2.90 | |
| Met.screw M5x130mm DVP181 | ||||
| 044 | AS000VP133 | 2.40 | 2.90 | |
| Battery holder F DVP181 | ||||
| 045 | AS000VP134 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 046 | AS000VP066 | |||
| Fan DVP181 | ||||
| 047 | AS000VP135 | 3.60 | 4.36 | |
| Locking ring DVP181 | ||||
| 048 | AS000VP136 | 2.40 | 2.90 | |
| Circuit B8 DVP181 | ||||
| 049 | AS000VP137 | 306.90 | 371.35 | |
| Signaling DVP181 | ||||
| 050 | AS000VP138 | 8.40 | 10.16 | |
| LED DVP181 | ||||
| 051 | AS000VP139 | 9.60 | 11.62 | |
| Switch DVP181 | ||||
| 052 | AS000VP140 | 14.30 | 17.30 | |
| Wire tree L DVP181 | ||||
| 053 | AS000VP141 | 2.40 | 2.90 | |
| Wire tree S DVP181 | ||||
| 054 | AS000VP142 | 2.40 | 2.90 | |
| Screw M3x10 | ||||
| 055 | AS000VP035 | 3.60 | 4.36 | |
| Connection cable rd DVP181 | ||||
| 056 | AS000VP143 | 4.80 | 5.81 | |
| Connection cable DVP181 | ||||
| 057 | AS000VP144 | 4.80 | 5.81 | |
| Connection pin DVP181 | ||||
| 058 | AS000VP145 | 2.40 | 2.90 | |
| Connection unit Bcl182D(3 Cont) A | ||||
| 059 | 643523-1 | 6.00 | 7.26 | |
| Battery holder DVP181 | ||||
| 060 | AS000VP146 | 19.80 | 23.96 | |
| Allen screw M5x10mm DVP181 | ||||
| 061 | AS000VP147 | 2.40 | 2.90 | |
| Screw M3x10 | ||||
| 062 | AS000VP035 | 3.60 | 4.36 | |
| Connecting rod DVP181 | ||||
| 063 | AS000VP148 | 9.60 | 11.62 | |
| Battery guide DVP181 | ||||
| 064 | AS000VP149 | 23.10 | 27.95 | |
| Metal screw M4x8mm DVP181 | ||||
| 065 | AS000VP123 | 2.40 | 2.90 | |
| Allen screw M4x10mm DVP181 | ||||
| 066 | AS000VP174 | 2.40 | 2.90 | |
| Metal screw M4x8mm DVP181 | ||||
| 067 | AS000VP123 | 2.40 | 2.90 | |
| Oil plug DVP181 | ||||
| 068 | AS00VP086M | 8.40 | 10.16 | |
| Oil tank DVP181 | ||||
| 069 | AS00VP091M | 62.70 | 75.87 | |
| Exhaust port DVP181 | ||||
| 070 | AS000VP087 | 13.20 | 15.97 | |
| Pump Housing DVP181 | ||||
| 071 | AS000VP096 | 260.70 | 315.45 | |
| Valve DVP181 | ||||
| 072 | AS000VP108 | 140.80 | 170.37 | |
| Throttle holder DVP181 | ||||
| 073 | AS000VP114 | 14.30 | 17.30 | |
| Base holder DVP181 | ||||
| 074 | AS000VP119 | 38.50 | 46.58 | |
| Motor housing DVP181 | ||||
| 075 | AS00VP127M | 119.90 | 145.08 | |
| Armature assy DVP181 | ||||
| 076 | AS000VP129 | 225.50 | 272.86 | |
| Motor cover DVP181 | ||||
| 077 | AS000VP131 | 58.30 | 70.54 | |
