Here you will find all available parts and drawings of the 'Makita DVC867LZX4'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

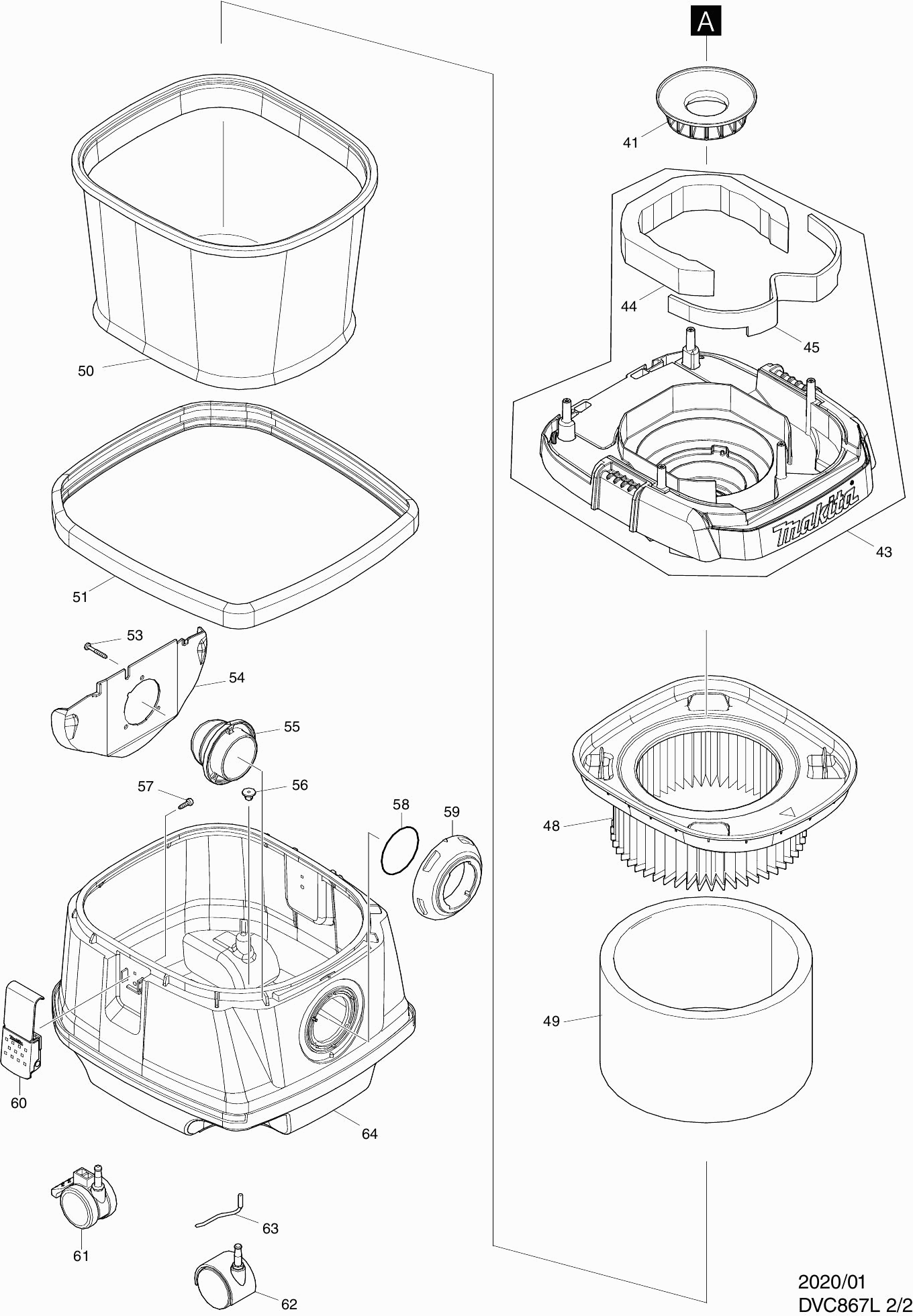

Technical drawing of model Makita DVC867LZX4
Spare parts list of model Makita DVC867LZX4
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Battery Cap Dvc862 A | ||||
| 001 | 144486-9 | 11.00 | 13.31 | |
| Warning Label | ||||
| 001C10 | 891977-8 | 2.40 | 2.90 | |
| Nameplate DVC867L | ||||
| 002 | 857B49-1 | 3.60 | 4.36 | |
| Handle | ||||
| 003 | 455734-4 | 9.60 | 11.62 | |
| Switch button DVC156L A | ||||
| 004 | 459262-1 | 4.80 | 5.81 | |
| Compression Spring 32mm | ||||
| 005 | 234273-5 | 1.00 | 1.21 | |
| Tapping screw 4x65mm | ||||
| 006 | 266340-8 | 1.00 | 1.21 | |
| Cover Complete Dvc864L | ||||
| 007 | 144973-8 | 28.60 | 34.61 | |
| Rubber pen 6 | ||||
| 008 | 263005-3 | 1.00 | 1.21 | |
| Damping shield | ||||
| 009 | 424688-6 | 3.60 | 4.36 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 010 | 265B67-9 | 1.00 | 1.21 | |
| SWITCH HOLDER | ||||
| 011 | 451343-7 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 012 | 686023-8 | |||
| Switch 1703.4801 Dvc864L | ||||
| 013 | 651098-6 | 14.30 | 17.30 | |
| Lock Ring E12 | ||||
| 014 | 961062-2 | 1.00 | 1.21 | |
| LED Circuit DVC157L | ||||
| 015 | 620D40-2 | 13.20 | 15.97 | |
| Sub Controller DVC157L | ||||
| 016 | 620D39-7 | 8.40 | 10.16 | |
| Stopring E-7 | ||||
| 017 | 961013-5 | 1.00 | 1.21 | |
| Switch base DVC157L | ||||
| 018 | 140T97-8 | 9.60 | 11.62 | |
| Indication Label DVC156L | ||||
| 018C10 | 812D41-6 | 2.40 | 2.90 | |
| O-ring 14 | ||||
| 019 | 213176-6 | 1.00 | 1.21 | |
| Shift lever | ||||
| 020 | 455733-6 | 2.40 | 2.90 | |
| O-ring 9 | ||||
| 021 | 213054-0 | 1.00 | 1.21 | |
| Rotary knob ABB OHYS2AJ | ||||
| 022 | 451344-5 | 1.00 | 1.21 | |
| Battery cover hook | ||||
| 023 | 455728-9 | 2.40 | 2.90 | |
| Compression Spring 7 | ||||
| 024 | 231240-1 | 1.00 | 1.21 | |
| Connection unit (3 contacts) | ||||
| 025 | 644808-8 | 3.60 | 4.36 | |
| Base Plate | ||||
| 026 | 455729-7 | 6.00 | 7.26 | |
| Controller DVC157L | ||||
| 027 | 620D20-8 | 139.70 | 169.04 | |
| Switch | ||||
| 029 | 651910-0 | 6.00 | 7.26 | |
| Motor connection | ||||
| 030 | 686039-3 | 1.00 | 1.21 | |
| Label serial number DVC867L | ||||
| 031 | 857B56-4 | 2.40 | 2.90 | |
| Cover DVC265 | ||||
| 032 | 140G18-2 | 3.60 | 4.36 | |
| O-ring 16 | ||||
| 032C10 | 213218-6 | 1.20 | 1.45 | |
| Label cap DVC265 | ||||
| 032C20 | 818F57-1 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 033 | 252268-6 | |||
| Separator Plate DVC157L | ||||
| 034 | 412581-6 | 16.50 | 19.96 | |
| Washer 8 | ||||
| 035 | 253752-4 | 1.00 | 1.21 | |
| Fan 104 | ||||
| 036 | 240178-9 | 6.00 | 7.26 | |
| Intermediate Flange | ||||
| 037 | 313062-2 | 1.20 | 1.45 | |
| Rubber ring 60mm | ||||
| 038 | 424685-2 | 2.40 | 2.90 | |
| Motor assy DVC157L | ||||
| 039 | 127653-1 | 59.40 | 71.87 | |
| Rubber ring 120mm | ||||
| 040 | 424686-0 | 6.00 | 7.26 | |
| Support ring DVC156L | ||||
| 041 | 422590-7 | 4.80 | 5.81 | |
| Rear block filter | ||||
| 042 | 424690-9 | 1.20 | 1.45 | |
| Tank cap cpl | ||||
| 043 | 143175-3 | 28.60 | 34.61 | |
| Compensating washer | ||||
| 044 | 424691-7 | 3.60 | 4.36 | |
| Damper | ||||
| 045 | 424689-4 | 1.20 | 1.45 | |
| HEPA FIJNSTOFFILTER STOFZUIGER | ||||
| 048 | 197166-6 | 44.00 | 53.24 | |
| DEMPER DVC861L | ||||
| 049 | 423398-2 | 7.00 | 8.47 | |
| LINNEN VOORFILTER STOFZUIGER | ||||
| 050 | 140253-0 | 14.00 | 16.94 | |
| No information available, not orderable | ||||
| 051 | 422148-2 | |||
| Tapping Screw 4x28 | ||||
| 053 | 266257-5 | 1.00 | 1.21 | |
| Mounting Plate | ||||
| 054 | 419351-4 | 2.40 | 2.90 | |
| Holder | ||||
| 055 | 419350-6 | 2.40 | 2.90 | |
| Clamp | ||||
| 056 | 421468-1 | 1.00 | 1.21 | |
| Tapping screw 4x14 mm GA9070Y A | ||||
| 057 | 265B74-2 | 1.00 | 1.21 | |
| Tapping screw 4X14 Ga7020 A | ||||
| 057 | 266385-6 | 0.83 | 1.00 | |
| O-ring 56 | ||||
| 058 | 213655-4 | 2.40 | 2.90 | |
| Hose connection adapter | ||||
| 059 | 451348-7 | 4.80 | 5.81 | |
| Hook | ||||
| 060 | 168537-4 | 10.80 | 13.07 | |
| Swivel wheel with brake 50mm | ||||
| 061 | 168535-8 | 7.20 | 8.71 | |
| Swivel wheel 50mm | ||||
| 062 | 168434-4 | 6.00 | 7.26 | |
| Earth Conductor | ||||
| 063 | 649150-2 | 3.60 | 4.36 | |
| CONTAINER DVC862 * | ||||
| 064 | 457623-9 | 22.00 | 26.62 | |
| Fan Cover 104 | ||||
| 065 | 347171-5 | 4.80 | 5.81 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 066 | 265B67-9 | 1.00 | 1.21 | |
| Fan base | ||||
| 067 | 457486-3 | 6.00 | 7.26 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 068 | 265B67-9 | 1.00 | 1.21 | |
| Armature | ||||
| 069 | 619431-8 | 14.30 | 17.30 | |
| Phillips Head Screw M3X6 | ||||
| 070 | 652069-6 | 1.00 | 1.21 | |
| Cable harness | ||||
| 071 | 632J83-8 | 3.60 | 4.36 | |
| Motor Housing Set | ||||
| 072 | 183F90-5 | 8.40 | 10.16 | |
| Motor Housing Set | ||||
| 073 | 183F90-5 | 8.40 | 10.16 | |
| Field DVC156L | ||||
| 074 | 629491-2 | 9.60 | 11.62 | |
| Controller B DVC157L | ||||
| 075 | 620D38-9 | 17.60 | 21.30 | |
| Parker Ck 2x6mm | ||||
| 076 | 266490-9 | 1.00 | 1.21 | |
| Controller sub B DVC157L | ||||
| 077 | 620D41-0 | 30.80 | 37.27 | |
