Here you will find all available parts and drawings of the 'Makita DVC861L'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

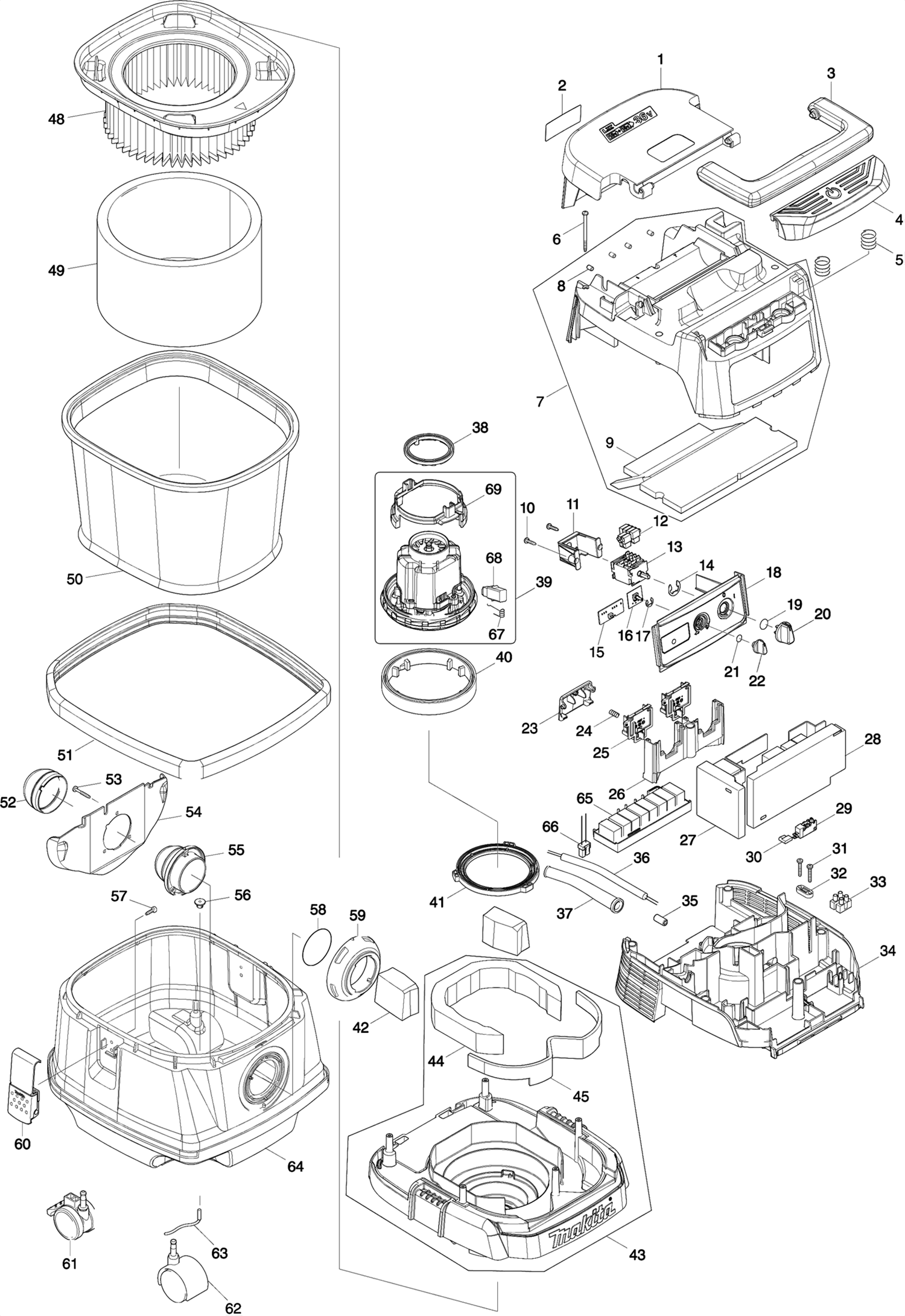

Technical drawing of model Makita DVC861L
Spare parts list of model Makita DVC861L
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Battery Cap Dvc862 A | ||||
| 001 | 144486-9 | 11.00 | 13.31 | |
| Label | ||||
| 002 | 851W61-9 | 3.60 | 4.36 | |
| Handle | ||||
| 003 | 455734-4 | 9.60 | 11.62 | |
| Switch button DVC156L A | ||||
| 004 | 459262-1 | 4.80 | 5.81 | |
| Compression Spring 32mm | ||||
| 005 | 234273-5 | 1.00 | 1.21 | |
| Tapping screw 4x65mm | ||||
| 006 | 266340-8 | 1.00 | 1.21 | |
| Covering hood | ||||
| 007 | 143173-7 | 19.80 | 23.96 | |
| Rubber pen 6 | ||||
| 008 | 263005-3 | 1.00 | 1.21 | |
| Damping shield | ||||
| 009 | 424688-6 | 3.60 | 4.36 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 010 | 265B67-9 | 1.00 | 1.21 | |
| SWITCH HOLDER | ||||
| 011 | 451343-7 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 012 | 686023-8 | |||
| Switch | ||||
| 013 | 650745-6 | 11.00 | 13.31 | |
| Lock Ring E12 | ||||
| 014 | 961062-2 | 1.00 | 1.21 | |
| Light circuit | ||||
| 015 | 620394-3 | 14.30 | 17.30 | |
| Speed control circuit | ||||
| 016 | 631922-9 | 9.60 | 11.62 | |
| Stopring E-7 | ||||
| 017 | 961013-5 | 1.00 | 1.21 | |
| Switch base | ||||
| 018 | 143176-1 | 9.60 | 11.62 | |
| O-ring 14 | ||||
| 019 | 213176-6 | 1.00 | 1.21 | |
| Shift lever | ||||
| 020 | 455733-6 | 2.40 | 2.90 | |
| O-ring 9 | ||||
| 021 | 213054-0 | 1.00 | 1.21 | |
| Rotary knob ABB OHYS2AJ | ||||
| 022 | 451344-5 | 1.00 | 1.21 | |
| Battery cover hook | ||||
| 023 | 455728-9 | 2.40 | 2.90 | |
| Compression Spring 7 | ||||
| 024 | 231240-1 | 1.00 | 1.21 | |
| Connection unit (3 contacts) | ||||
| 025 | 644808-8 | 3.60 | 4.36 | |
| Base Plate | ||||
| 026 | 455729-7 | 6.00 | 7.26 | |
| Controller B | ||||
| 027 | 620406-2 | 155.10 | 187.67 | |
| Controller A | ||||
| 028 | 620392-7 | 177.10 | 214.29 | |
| Switch | ||||
| 029 | 651910-0 | 6.00 | 7.26 | |
| Motor connection | ||||
| 030 | 686039-3 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 031 | 266374-1 | |||
| Clamp Bracket | ||||
| 032 | 687053-2 | 1.00 | 1.21 | |
| Terminal block | ||||
| 033 | 654561-8 | 3.60 | 4.36 | |
| Partition wall | ||||
| 034 | 455726-3 | 17.60 | 21.30 | |
| Line filter | ||||
| 035 | 688161-2 | 1.00 | 1.21 | |
| DC extension cord | ||||
| 036 | 666899-9 | 4.80 | 5.81 | |
| Cable grommet | ||||
| 037 | 682584-6 | 2.40 | 2.90 | |
| Rubber ring 60mm | ||||
| 038 | 424685-2 | 2.40 | 2.90 | |
| Motor cpl | ||||
| 039 | 629158-2 | 104.50 | 126.44 | |
| Rubber ring 120mm | ||||
| 040 | 424686-0 | 6.00 | 7.26 | |
| Support ring | ||||
| 041 | 424687-8 | 3.60 | 4.36 | |
| Rear block filter | ||||
| 042 | 424690-9 | 1.20 | 1.45 | |
| Tank cap cpl | ||||
| 043 | 143175-3 | 28.60 | 34.61 | |
| Compensating washer | ||||
| 044 | 424691-7 | 3.60 | 4.36 | |
| Damper | ||||
| 045 | 424689-4 | 1.20 | 1.45 | |
| HEPA FIJNSTOFFILTER STOFZUIGER | ||||
| 048 | 197166-6 | 44.00 | 53.24 | |
| DEMPER DVC861L | ||||
| 049 | 423398-2 | 7.00 | 8.47 | |
| LINNEN VOORFILTER STOFZUIGER | ||||
| 050 | 140253-0 | 14.00 | 16.94 | |
| Stop ring | ||||
| 051 | 424230-3 | 9.60 | 11.62 | |
| Inlet connector | ||||
| 052 | 424382-0 | 2.40 | 2.90 | |
| Tapping Screw 4x28 | ||||
| 053 | 266257-5 | 1.00 | 1.21 | |
| Mounting Plate | ||||
| 054 | 419351-4 | 2.40 | 2.90 | |
| Holder | ||||
| 055 | 419350-6 | 2.40 | 2.90 | |
| Clamp | ||||
| 056 | 421468-1 | 1.00 | 1.21 | |
| Tapping screw 4X14 Ga7020 A | ||||
| 057 | 266385-6 | 0.83 | 1.00 | |
| O-ring 56 | ||||
| 058 | 213655-4 | 2.40 | 2.90 | |
| Hose connection adapter | ||||
| 059 | 451348-7 | 4.80 | 5.81 | |
| Hook | ||||
| 060 | 168537-4 | 10.80 | 13.07 | |
| Swivel wheel with brake 50mm | ||||
| 061 | 168535-8 | 7.20 | 8.71 | |
| Swivel wheel 50mm | ||||
| 062 | 168434-4 | 6.00 | 7.26 | |
| Earth Conductor | ||||
| 063 | 649150-2 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 064 | 451334-8 | |||
| Control unit | ||||
| 065 | 620502-6 | 106.70 | 129.11 | |
| Cable harness | ||||
| 066 | 632F97-3 | 13.20 | 15.97 | |
| Carbon brush spring | ||||
| 067 | DM46312612 | 1.20 | 1.45 | |
| Carbon brush set Cb-353 | ||||
| 068 | 197208-6 | 23.10 | 27.95 | |
| Brush Holder | ||||
| 069 | DM46714602 | 8.40 | 10.16 | |
