Here you will find all available parts and drawings of the 'Makita DVC260'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

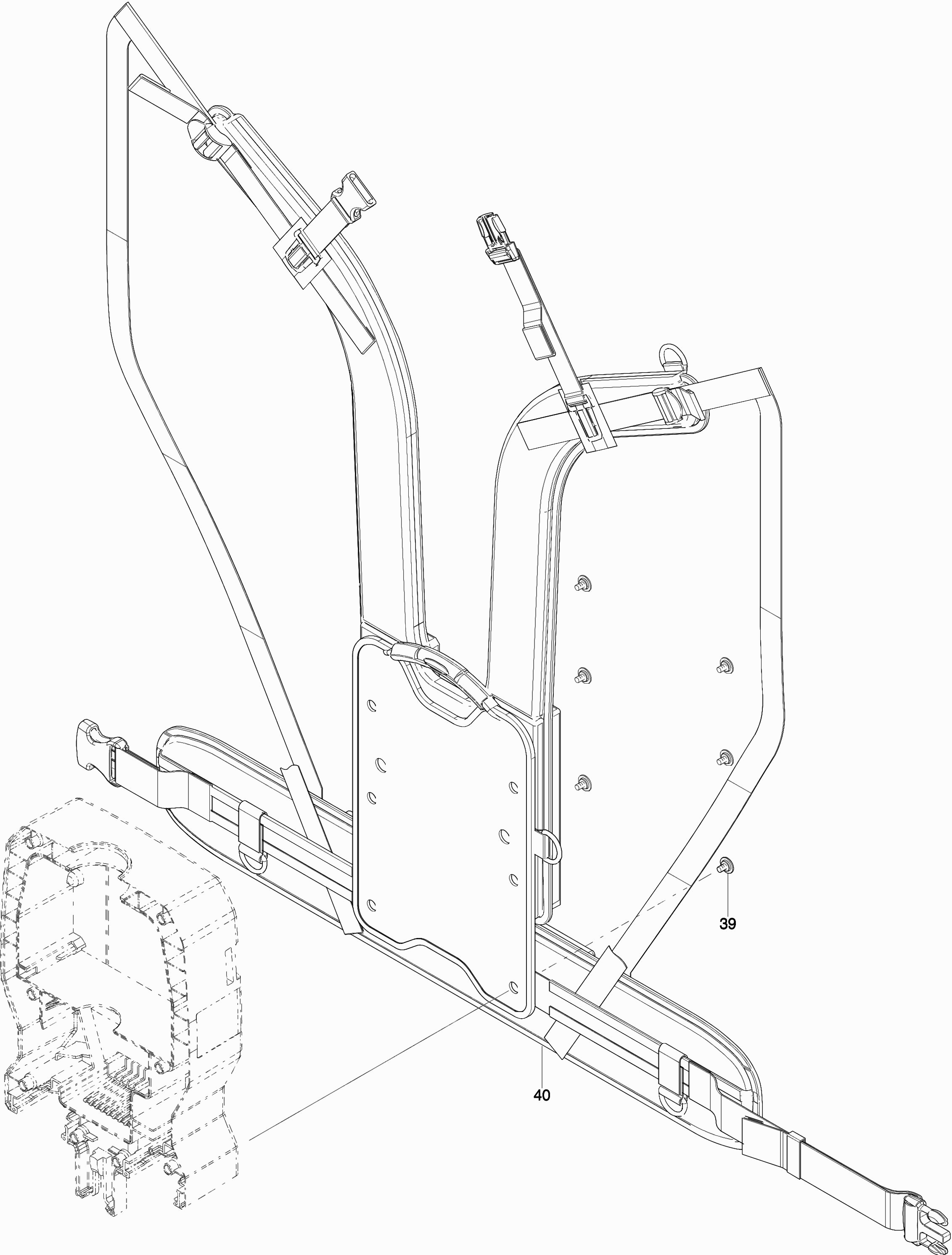

Technical drawing of model Makita DVC260
Spare parts list of model Makita DVC260
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing Part | ||||
| 001 | 143788-0 | 23.04 | 27.88 | |
| Rubber pen 6 | ||||
| 001A | 263005-3 | 0.83 | 1.00 | |
| Spacer Ring A | ||||
| 001B | 424834-1 | 0.83 | 1.00 | |
| HEPA fijnstoffilter ruggedragen stofzuiger | ||||
| 002 | 127725-2 | 8.00 | 9.68 | |
| No information available, not orderable | ||||
| 002A | 153820-2 | |||
| Intake Complete | ||||
| 003 | 135771-1 | 2.48 | 3.00 | |
| Nameplate Dvc260 | ||||
| 004 | 852D42-2 | 2.71 | 3.28 | |
| No information available, not orderable | ||||
| 005 | 266326-2 | |||
| Motor Housing Part | ||||
| 006 | 143789-8 | 23.04 | 27.88 | |
| Spacer Ring A | ||||
| 006A | 424835-9 | 0.83 | 1.00 | |
| Tapping Screw 3x16 | ||||
| 007 | 266130-9 | 0.83 | 1.00 | |
| Switch Housing | ||||
| 008 | 183D91-1 | 4.45 | 5.38 | |
| Speed control circuit | ||||
| 009 | 620525-4 | 7.22 | 8.74 | |
| Switch Housing | ||||
| 010 | 183D91-1 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 011 | 266326-2 | |||
| Clamp Bracket | ||||
| 012 | 687053-2 | 0.83 | 1.00 | |
| Power cord set | ||||
| 013 | 699077-6 | 29.35 | 35.51 | |
| Support ring | ||||
| 014 | 421380-5 | 7.22 | 8.74 | |
| Fan Housing | ||||
| 015 | 165386-0 | 19.73 | 23.87 | |
| No longer available, no replacement | ||||
| 016 | 931303-0 | |||
| Washer 6 | ||||
| 017 | 322407-3 | 2.71 | 3.28 | |
| Fan 94 | ||||
| 018 | 241851-4 | 8.21 | 9.93 | |
| Intermediate Flange | ||||
| 019 | 313062-2 | 1.18 | 1.43 | |
| No information available, not orderable | ||||
| 020 | 266326-2 | |||
| Fan base plate | ||||
| 021 | 456736-3 | 5.70 | 6.90 | |
| Armature DVC260 A | ||||
| 022 | 619517-8 | 13.82 | 16.72 | |
| Field | ||||
| 023 | 629189-1 | 11.82 | 14.30 | |
| Locating Ring | ||||
| 024 | 687464-1 | 0.83 | 1.00 | |
| Controller B | ||||
| 025 | 620526-2 | 12.22 | 14.79 | |
| Inbusbout M2x10mm | ||||
| 026 | 266786-8 | 0.83 | 1.00 | |
| Motor Housing | ||||
| 027 | 183D13-1 | 5.06 | 6.12 | |
| Motor Housing | ||||
| 028 | 183D13-1 | 5.06 | 6.12 | |
| No information available, not orderable | ||||
| 029 | 266326-2 | |||
| Support A | ||||
| 030 | 424837-5 | 2.38 | 2.88 | |
| Filter | ||||
| 031 | 424838-3 | 0.83 | 1.00 | |
| Controller A | ||||
| 032 | 620524-6 | 110.73 | 133.98 | |
| Connection unit (3 contacts) | ||||
| 033 | 644808-8 | 3.54 | 4.28 | |
| No information available, not orderable | ||||
| 034 | 266326-2 | |||
| Clamp Bracket | ||||
| 035 | 687053-2 | 0.83 | 1.00 | |
| Case latch | ||||
| 036 | 123586-8 | 1.39 | 1.68 | |
| Keerring | ||||
| 037 | 424836-7 | 3.44 | 4.16 | |
| Dust Cap | ||||
| 038 | 456739-7 | 7.57 | 9.16 | |
| Flat head screw M5 | ||||
| 039 | 265008-3 | 1.18 | 1.43 | |
| Carrying harnes TG-LHS 225 | ||||
| 040 | 162469-7 | 27.00 | 32.67 | |
| O-ring 56 | ||||
| 041 | 213655-4 | 1.67 | 2.02 | |
