Here you will find all available parts and drawings of the 'Makita DVC155L'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

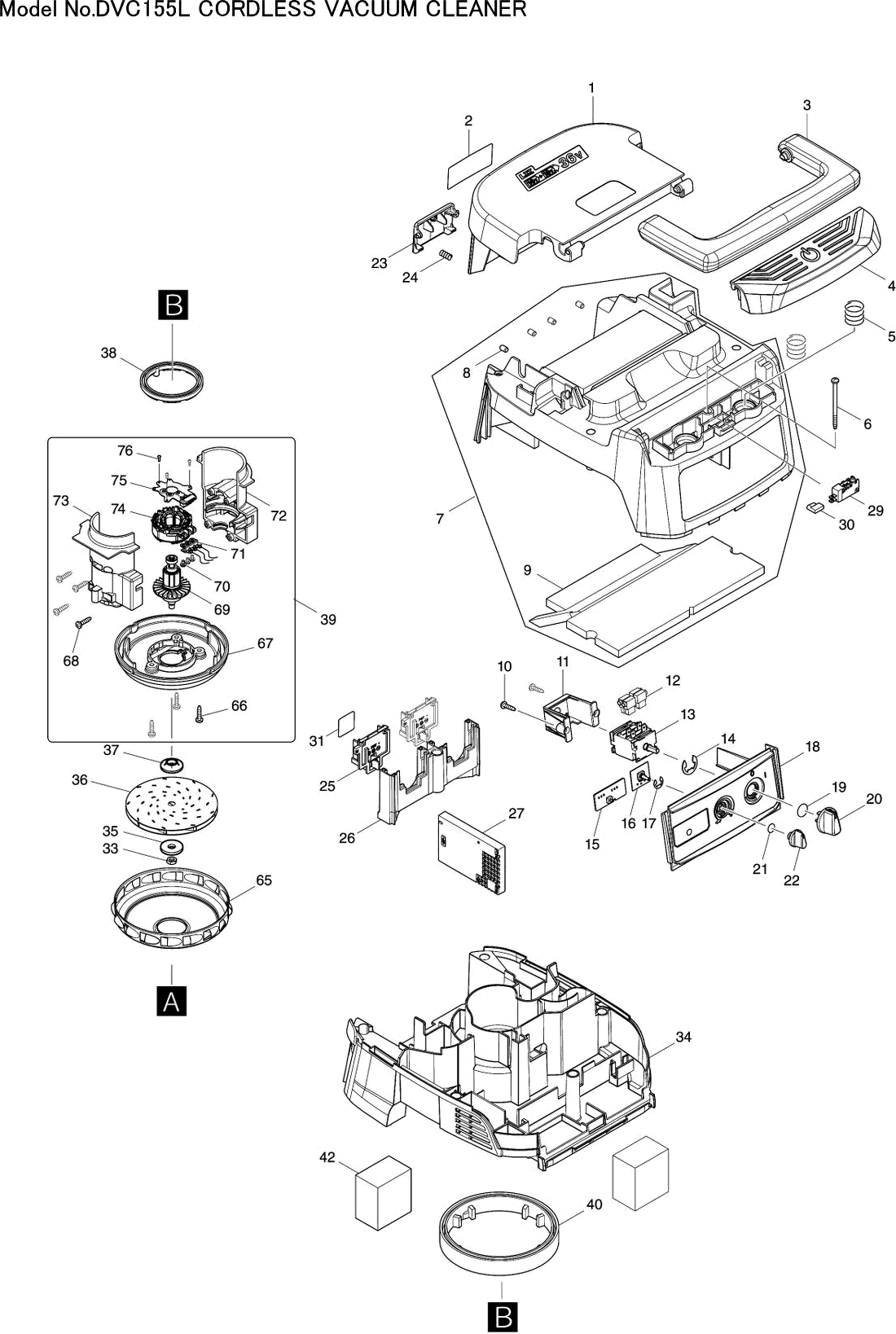

Technical drawing of model Makita DVC155L
Spare parts list of model Makita DVC155L
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Battery Cap Dvc862 A | ||||
| 001 | 144486-9 | 11.00 | 13.31 | |
| Warning Label | ||||
| 001C10 | 891977-8 | 2.40 | 2.90 | |
| NAAMPLAAT DVC155L | ||||
| 002 | 857B71-8 | 1.00 | 1.21 | |
| Handle | ||||
| 003 | 455734-4 | 9.60 | 11.62 | |
| Switch button DVC156L A | ||||
| 004 | 459262-1 | 4.80 | 5.81 | |
| Compression Spring 32mm | ||||
| 005 | 234273-5 | 1.00 | 1.21 | |
| Tapping screw 4x65mm | ||||
| 006 | 266340-8 | 1.00 | 1.21 | |
| Covering hood | ||||
| 007 | 144409-7 | 22.00 | 26.62 | |
| Rubber pen 6 | ||||
| 008 | 263005-3 | 1.00 | 1.21 | |
| Damping shield | ||||
| 009 | 424688-6 | 3.60 | 4.36 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 010 | 265B67-9 | 1.00 | 1.21 | |
| SWITCH HOLDER | ||||
| 011 | 451343-7 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 012 | 686023-8 | |||
| Switch | ||||
| 013 | 650622-2 | 8.40 | 10.16 | |
| Lock Ring E12 | ||||
| 014 | 961062-2 | 1.00 | 1.21 | |
| Light circuit | ||||
| 015 | 620649-6 | 13.20 | 15.97 | |
| Speed control circuit | ||||
| 016 | 631922-9 | 9.60 | 11.62 | |
| Stopring E-7 | ||||
| 017 | 961013-5 | 1.00 | 1.21 | |
| Switch base | ||||
| 018 | 144479-6 | 8.40 | 10.16 | |
| Indication Label DVC156L | ||||
| 018C10 | 812D41-6 | 2.40 | 2.90 | |
| O-ring 14 | ||||
| 019 | 213176-6 | 1.00 | 1.21 | |
| Shift lever | ||||
| 020 | 455733-6 | 2.40 | 2.90 | |
| O-ring 9 | ||||
| 021 | 213054-0 | 1.00 | 1.21 | |
| Rotary knob ABB OHYS2AJ | ||||
| 022 | 451344-5 | 1.00 | 1.21 | |
| Battery cover hook | ||||
| 023 | 455728-9 | 2.40 | 2.90 | |
| Compression Spring 7 | ||||
| 024 | 231240-1 | 1.00 | 1.21 | |
| Connection unit (3 contacts) | ||||
| 025 | 644808-8 | 3.60 | 4.36 | |
| Base Plate | ||||
| 026 | 455729-7 | 6.00 | 7.26 | |
| Controller | ||||
| 027 | 620639-9 | 132.00 | 159.72 | |
| Switch | ||||
| 029 | 651910-0 | 6.00 | 7.26 | |
| Motor connection | ||||
| 030 | 686039-3 | 1.00 | 1.21 | |
| LABEL SERIENR DVC155L | ||||
| 031 | 857B79-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 033 | 252268-6 | |||
| Separator Plate DVC157L | ||||
| 034 | 412581-6 | 16.50 | 19.96 | |
| Washer 8 | ||||
| 035 | 253752-4 | 1.00 | 1.21 | |
| Fan 104 | ||||
| 036 | 240178-9 | 6.00 | 7.26 | |
| Intermediate Flange | ||||
| 037 | 313062-2 | 1.20 | 1.45 | |
| Rubber ring 60mm | ||||
| 038 | 424685-2 | 2.40 | 2.90 | |
| Motor assy DVC156L | ||||
| 039 | 127602-8 | 59.40 | 71.87 | |
| Rubber ring 120mm | ||||
| 040 | 424686-0 | 6.00 | 7.26 | |
| Support ring DVC156L | ||||
| 041 | 422590-7 | 4.80 | 5.81 | |
| Rear block filter | ||||
| 042 | 424690-9 | 1.20 | 1.45 | |
| Tank cap cpl | ||||
| 043 | 143175-3 | 28.60 | 34.61 | |
| Compensating washer | ||||
| 044 | 424691-7 | 3.60 | 4.36 | |
| Damper | ||||
| 045 | 424689-4 | 1.20 | 1.45 | |
| Float | ||||
| 046 | 158166-1 | 4.80 | 5.81 | |
| Rubber Gasket | ||||
| 047 | 423365-7 | 1.20 | 1.45 | |
| Float chamber | ||||
| 048 | 419725-9 | 4.80 | 5.81 | |
| No longer available, no replacement | ||||
| 049 | 266374-1 | |||
| STOFFILTER STOFZUIGER | ||||
| 050 | 140248-3 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 051 | 422148-2 | |||
| Inlet connector | ||||
| 052 | 424382-0 | 2.40 | 2.90 | |
| Tapping Screw 4x28 | ||||
| 053 | 266257-5 | 1.00 | 1.21 | |
| Mounting Plate | ||||
| 054 | 419351-4 | 2.40 | 2.90 | |
| Holder | ||||
| 055 | 419350-6 | 2.40 | 2.90 | |
| Clamp | ||||
| 056 | 421468-1 | 1.00 | 1.21 | |
| Tapping screw 4x14 mm GA9070Y A | ||||
| 057 | 265B74-2 | 1.00 | 1.21 | |
| O-ring 56 | ||||
| 058 | 213655-4 | 2.40 | 2.90 | |
| Hose connection adapter | ||||
| 059 | 451348-7 | 4.80 | 5.81 | |
| Hook | ||||
| 060 | 168537-4 | 10.80 | 13.07 | |
| Swivel wheel with brake 50mm | ||||
| 061 | 168535-8 | 7.20 | 8.71 | |
| Swivel wheel 50mm | ||||
| 062 | 168434-4 | 6.00 | 7.26 | |
| Earth Conductor | ||||
| 063 | 649150-2 | 3.60 | 4.36 | |
| Container | ||||
| 064 | 452291-3 | 26.40 | 31.94 | |
| Fan Cover 104 | ||||
| 065 | 347171-5 | 4.80 | 5.81 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 066 | 265B67-9 | 1.00 | 1.21 | |
| Fan base | ||||
| 067 | 457486-3 | 6.00 | 7.26 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 068 | 265B67-9 | 1.00 | 1.21 | |
| Armature | ||||
| 069 | 619431-8 | 14.30 | 17.30 | |
| Phillips Head Screw M3X6 | ||||
| 070 | 652069-6 | 1.00 | 1.21 | |
| Cable harness | ||||
| 071 | 632J83-8 | 3.60 | 4.36 | |
| Motor Housing Set | ||||
| 072 | 183F90-5 | 8.40 | 10.16 | |
| Motor Housing Set | ||||
| 073 | 183F90-5 | 8.40 | 10.16 | |
| Field DVC156L | ||||
| 074 | 629491-2 | 9.60 | 11.62 | |
| Controller B | ||||
| 075 | 620648-8 | 16.50 | 19.96 | |
| Parker Ck 2x6mm | ||||
| 076 | 266490-9 | 1.00 | 1.21 | |
