Here you will find all available parts and drawings of the 'Makita DVC152L'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

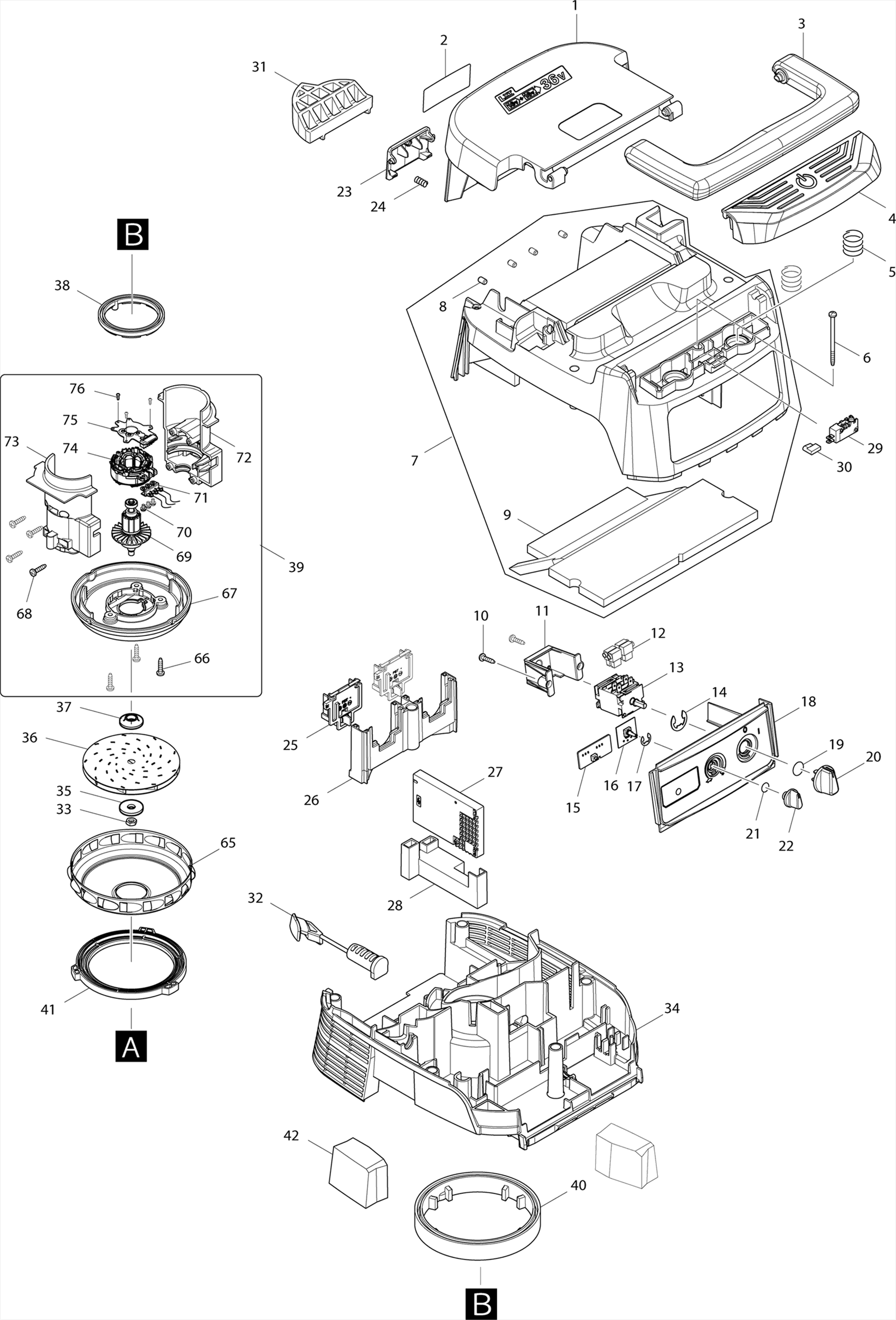

Technical drawing of model Makita DVC152L
Spare parts list of model Makita DVC152L
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| A01 | 122512-4 | |||
| STOFZUIGERSLANG 38X2500MM | ||||
| A02 | 195434-1 | 56.00 | 67.76 | |
| PLASTIC STOFZAK STOFZUIGER 45L | ||||
| A03 | 195432-5 | 7.00 | 8.47 | |
| Extension Bar | ||||
| A04 | 192563-1 | 9.00 | 10.89 | |
| HANDGREEP ZUIGBUIS ALUMINIUM | ||||
| A05 | 192562-3 | 11.00 | 13.31 | |
| KIERZUIGMOND LANG IVOOR WIT | ||||
| A06 | 410306-2 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| A07 | 451350-0 | |||
| OPBERGBAK ACCESSOIRES STOFZUIGER | ||||
| A08 | 455732-8 | 11.00 | 13.31 | |
| Screw 4x20 | ||||
| A09 | 911138-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| C01 | 151449-8 | |||
| No information available, not orderable | ||||
| C06 | 415962-3 | |||
| Hose connector base part | ||||
| C10 | 417191-4 | 6.00 | 7.26 | |
| Indication Label DVC156L | ||||
| C10 | 812D41-6 | 2.40 | 2.90 | |
| Warning Label | ||||
| C10 | 891977-8 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| C11 | 256241-8 | |||
| Self-tapping screw 4x6 | ||||
| C16 | 265871-4 | 1.00 | 1.21 | |
| Transition ring for hose part | ||||
| C20 | 417306-3 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| C21 | 154427-7 | |||
| No information available, not orderable | ||||
| C26 | 415965-7 | |||
| SLANGADAPTER 45/38MM [MACHINE] | ||||
| C30 | 417307-1 | 5.00 | 6.05 | |
| No information available, not orderable | ||||
| C31 | 415964-9 | |||
| Brush for 195551-7 | ||||
| C36 | 743328-0 | 3.60 | 4.36 | |
| Clamping Ring for 417191-4 | ||||
| C40 | 417586-1 | 2.40 | 2.90 | |
| Rubber strip for 195551-7 | ||||
| C41 | 743327-2 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| E01 | 891978-6 | |||
| No information available, not orderable | ||||
| F08 | 144408-9 | |||
| Nozzle (a) | ||||
| F12 | 192236-6 | 5.00 | 6.05 | |
| STOFZUIGERSLANG 38X5000MM | ||||
| F20 | 195435-9 | 97.00 | 117.37 | |
| STOFZUIGERSLANG 28X5000MM | ||||
| F21 | 195436-7 | 67.00 | 81.07 | |
| No information available, not orderable | ||||
| F22 | 195437-5 | |||
| No information available, not orderable | ||||
| F24 | 195544-4 | |||
| SLANGADAPTER 45/38MM [MACHINE] | ||||
| F25 | 195545-2 | 5.00 | 6.05 | |
| KOPPELADAPTER 35/25 RIBBED X38MM | ||||
| F26 | 195546-0 | 2.00 | 2.42 | |
| SLANGADAPTER 25/22MM [MACHINE] | ||||
| F27 | 195547-8 | 3.00 | 3.63 | |
| KOPPELADAPTER 38X25/22MM | ||||
| F28 | 195548-6 | 9.00 | 10.89 | |
| VLOERZUIGMOND HARDE VLOER | ||||
| F29 | 195549-4 | 12.00 | 14.52 | |
| No information available, not orderable | ||||
| F30 | 195550-9 | |||
| VLOERZUIGMOND HARDE VLOER | ||||
| F31 | 195551-7 | 18.00 | 21.78 | |
| No information available, not orderable | ||||
| F32 | 195552-5 | |||
| No information available, not orderable | ||||
| F33 | 195553-3 | |||
| VLOEISTOFFILTER STOFZUIGER | ||||
| F34 | 195555-9 | 30.00 | 36.30 | |
| FLEECE STOFZAK 15L STOFZUIGER | ||||
| F35 | 195557-5 | 17.00 | 20.57 | |
| FLEECE STOFZAK 15L STOFZUIGER | ||||
| F35-1 | 195557-5 | 17.00 | 20.57 | |
| No information available, not orderable | ||||
| F36 | 195637-7 | |||
| ACCU BL1840B LXT 18 V 4,0AH | ||||
| F39-1 | 197265-4 | 63.00 | 76.23 | |
| No information available, not orderable | ||||
| F40-1 | 197267-0 | |||
| No information available, not orderable | ||||
| F43-1 | 197273-5 | |||
| No longer available, no replacement | ||||
| F47 | 198184-7 | |||
| No information available, not orderable | ||||
| F48 | 198533-8 | |||
| STOFZUIGERSLANG GLAD 28X5000MM | ||||
| F64 | 191G76-1 | 55.00 | 66.55 | |
| Battery Cap Dvc862 A | ||||
| 001 | 144486-9 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 002 | 855W57-2 | |||
| Handle | ||||
| 003 | 455734-4 | 9.60 | 11.62 | |
| Switch button DVC156L A | ||||
| 004 | 459262-1 | 4.80 | 5.81 | |
| Compression Spring 32mm | ||||
| 005 | 234273-5 | 1.00 | 1.21 | |
| Tapping screw 4x65mm | ||||
| 006 | 266340-8 | 1.00 | 1.21 | |
| Covering hood | ||||
| 007 | 144409-7 | 22.00 | 26.62 | |
| Rubber pen 6 | ||||
| 008 | 263005-3 | 1.00 | 1.21 | |
| Damping shield | ||||
| 009 | 424688-6 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 010 | 266326-2 | |||
| SWITCH HOLDER | ||||
| 011 | 451343-7 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 012 | 686023-8 | |||
| Switch | ||||
| 013 | 650622-2 | 8.40 | 10.16 | |
| Lock Ring E12 | ||||
| 014 | 961062-2 | 1.00 | 1.21 | |
| Light circuit | ||||
| 015 | 620649-6 | 13.20 | 15.97 | |
| Speed control circuit | ||||
| 016 | 631922-9 | 9.60 | 11.62 | |
| Stopring E-7 | ||||
| 017 | 961013-5 | 1.00 | 1.21 | |
| Switch base | ||||
| 018 | 144479-6 | 8.40 | 10.16 | |
| O-ring 14 | ||||
| 019 | 213176-6 | 1.00 | 1.21 | |
| Shift lever | ||||
| 020 | 455733-6 | 2.40 | 2.90 | |
| O-ring 9 | ||||
| 021 | 213054-0 | 1.00 | 1.21 | |
| Rotary knob ABB OHYS2AJ | ||||
| 022 | 451344-5 | 1.00 | 1.21 | |
| Battery cover hook | ||||
| 023 | 455728-9 | 2.40 | 2.90 | |
| Compression Spring 7 | ||||
| 024 | 231240-1 | 1.00 | 1.21 | |
| Connection unit (3 contacts) | ||||
| 025 | 644808-8 | 3.60 | 4.36 | |
| Base Plate | ||||
| 026 | 455729-7 | 6.00 | 7.26 | |
| Controller | ||||
| 027 | 620639-9 | 132.00 | 159.72 | |
| Control base | ||||
| 028 | 457609-3 | 3.60 | 4.36 | |
| Switch | ||||
| 029 | 651910-0 | 6.00 | 7.26 | |
| Motor connection | ||||
| 030 | 686039-3 | 1.00 | 1.21 | |
| Spacer | ||||
| 031 | 424981-8 | 3.60 | 4.36 | |
| Baffle | ||||
| 032 | 424980-0 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 033 | 252268-6 | |||
| Partition wall | ||||
| 034 | 455726-3 | 17.60 | 21.30 | |
| Washer 8 | ||||
| 035 | 253752-4 | 1.00 | 1.21 | |
| Fan 104 | ||||
| 036 | 240178-9 | 6.00 | 7.26 | |
| Intermediate Flange | ||||
| 037 | 313062-2 | 1.20 | 1.45 | |
| Rubber ring 60mm | ||||
| 038 | 424685-2 | 2.40 | 2.90 | |
| Motor cpl | ||||
| 039 | 123974-9 | 63.80 | 77.20 | |
| Rubber ring 120mm | ||||
| 040 | 424686-0 | 6.00 | 7.26 | |
| Support ring | ||||
| 041 | 424687-8 | 3.60 | 4.36 | |
| Rear block filter | ||||
| 042 | 424690-9 | 1.20 | 1.45 | |
| Tank cap cpl | ||||
| 043 | 143175-3 | 28.60 | 34.61 | |
| Compensating washer | ||||
| 044 | 424691-7 | 3.60 | 4.36 | |
| Damper | ||||
| 045 | 424689-4 | 1.20 | 1.45 | |
| Float | ||||
| 046 | 158166-1 | 4.80 | 5.81 | |
| Rubber Gasket | ||||
| 047 | 423365-7 | 1.20 | 1.45 | |
| Float chamber | ||||
| 048 | 419725-9 | 4.80 | 5.81 | |
| No longer available, no replacement | ||||
| 049 | 266374-1 | |||
| STOFFILTER STOFZUIGER | ||||
| 050 | 140248-3 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 051 | 422148-2 | |||
| Inlet connector | ||||
| 052 | 424382-0 | 2.40 | 2.90 | |
| Tapping Screw 4x28 | ||||
| 053 | 266257-5 | 1.00 | 1.21 | |
| Mounting Plate | ||||
| 054 | 419351-4 | 2.40 | 2.90 | |
| Holder | ||||
| 055 | 419350-6 | 2.40 | 2.90 | |
| Clamp | ||||
| 056 | 421468-1 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 057 | 266192-7 | |||
| O-ring 56 | ||||
| 058 | 213655-4 | 2.40 | 2.90 | |
| Hose connection adapter | ||||
| 059 | 451348-7 | 4.80 | 5.81 | |
| Hook | ||||
| 060 | 168537-4 | 10.80 | 13.07 | |
| Swivel wheel with brake 50mm | ||||
| 061 | 168535-8 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 061-1 | 162C28-5 | |||
| Swivel wheel 50mm | ||||
| 062 | 168434-4 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 062-1 | 162C27-7 | |||
| Earth Conductor | ||||
| 063 | 649150-2 | 3.60 | 4.36 | |
| Tank assy DVC150L | ||||
| 064 | 191B56-7 | 105.60 | 127.78 | |
| Fan Cover 104 | ||||
| 065 | 347171-5 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 066 | 266326-2 | |||
| Fan base | ||||
| 067 | 457486-3 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 068 | 266326-2 | |||
| Armature | ||||
| 069 | 619431-8 | 14.30 | 17.30 | |
| Armature | ||||
| 069-1 | 619431-8 | 14.30 | 17.30 | |
| Phillips Head Screw M3X6 | ||||
| 070 | 652069-6 | 1.00 | 1.21 | |
| Cable harness | ||||
| 071 | 632J83-8 | 3.60 | 4.36 | |
| Motor Housing Set | ||||
| 072 | 183F90-5 | 8.40 | 10.16 | |
| Motor Housing Set | ||||
| 073 | 183F90-5 | 8.40 | 10.16 | |
| Field | ||||
| 074 | 629256-2 | 10.80 | 13.07 | |
| Controller B | ||||
| 075 | 620648-8 | 16.50 | 19.96 | |
| Parker Ck 2x6mm | ||||
| 076 | 266490-9 | 1.00 | 1.21 | |
