Here you will find all available parts and drawings of the 'Makita DUR191L'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

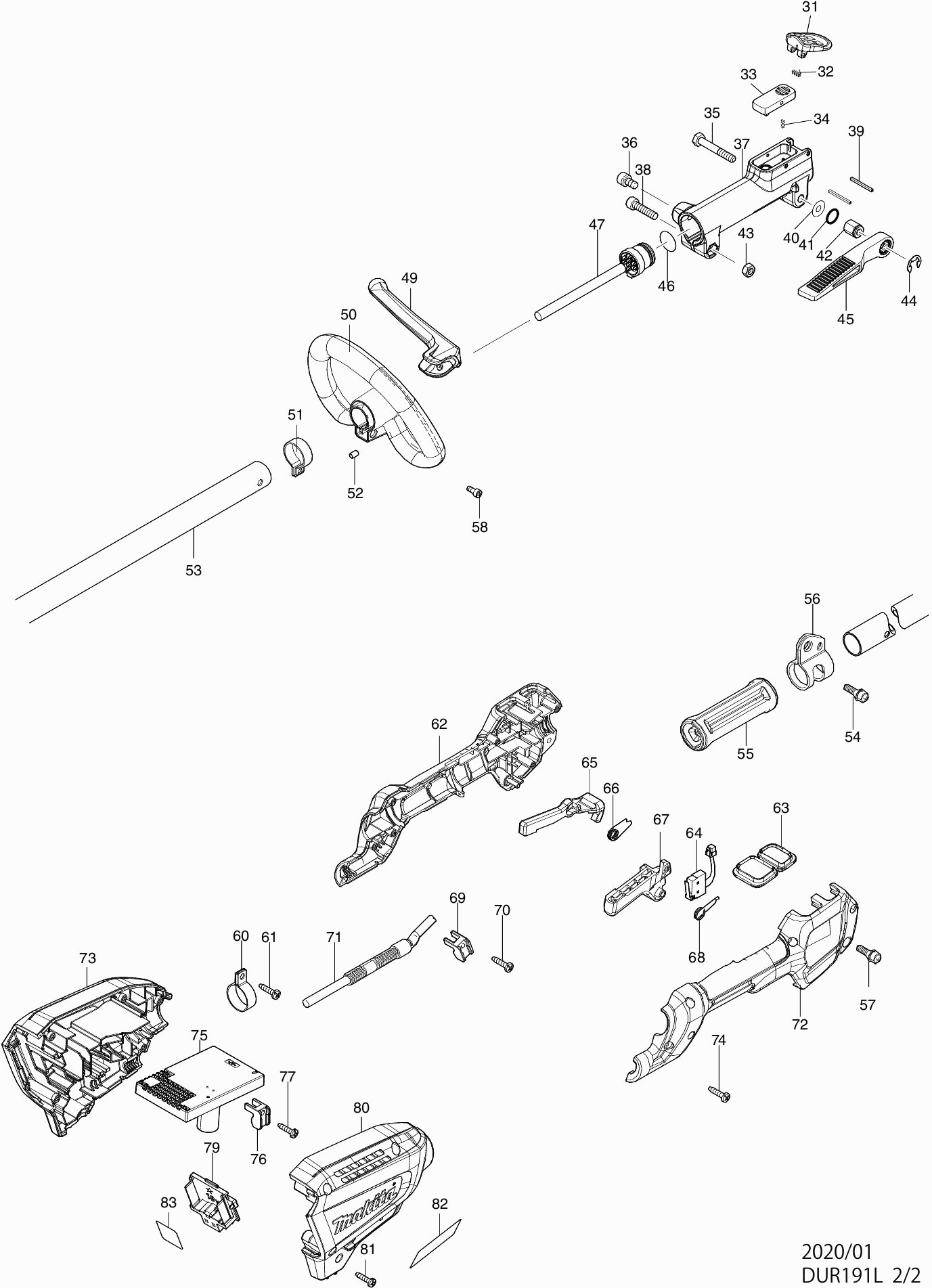

Technical drawing of model Makita DUR191L
Spare parts list of model Makita DUR191L
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing Set DUR190U | ||||
| 001 | 183P06-0 | 8.21 | 9.93 | |
| Phillips Head Screw M3X6 | ||||
| 002 | 652069-6 | 0.83 | 1.00 | |
| Field | ||||
| 003 | 629248-1 | 17.74 | 21.47 | |
| No information available, not orderable | ||||
| 004 | 210215-3 | |||
| Motor assembly DUR190 | ||||
| 005 | 510449-1 | 23.06 | 27.90 | |
| Ball Bearing 609zz | ||||
| 006 | 210049-4 | 3.28 | 3.97 | |
| O-ring 24 | ||||
| 007 | 213380-7 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 008 | 210215-3 | |||
| Gear 26 | ||||
| 009 | 221492-2 | 2.71 | 3.28 | |
| Axle DUR190 | ||||
| 010 | 327542-2 | 3.54 | 4.28 | |
| Ball Bearing 6001dw | ||||
| 011 | 211131-2 | 9.24 | 11.18 | |
| Collar Pin 4mm | ||||
| 012 | 256546-6 | 0.83 | 1.00 | |
| O-ring 5 | ||||
| 013 | 213021-5 | 0.83 | 1.00 | |
| Motor Housing Set DUR190U | ||||
| 014 | 183P06-0 | 8.21 | 9.93 | |
| Compression Spring 8 | ||||
| 015 | 233376-2 | 0.93 | 1.13 | |
| Cover cap DUR190 | ||||
| 016 | 412408-0 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 017 | 266326-2 | |||
| Turntable DUR190 | ||||
| 018 | 140T23-7 | 5.06 | 6.12 | |
| Flange Ring DUR190 | ||||
| 019 | 347668-4 | 1.39 | 1.68 | |
| NUT M10 | ||||
| 020 | 264025-0 | 2.02 | 2.44 | |
| Hex bolt M5X25 Em404Mp | ||||
| 021 | 251513-6 | 0.83 | 1.00 | |
| Mounting Bracket DUR190 | ||||
| 022 | 347667-6 | 1.39 | 1.68 | |
| Rubber bushing 24 | ||||
| 023 | 424567-8 | 1.46 | 1.77 | |
| No information available, not orderable | ||||
| 024 | 168526-9 | |||
| Line Cutter | ||||
| 025 | 346855-2 | 3.54 | 4.28 | |
| Mowing cap DUR190 | ||||
| 026 | 412392-9 | 8.21 | 9.93 | |
| No information available, not orderable | ||||
| 027 | 266326-2 | |||
| Power cable set A DUR191L | ||||
| 028 | 699088-1 | 23.06 | 27.90 | |
| O-ring 18 | ||||
| 029 | 213275-4 | 0.83 | 1.00 | |
| Locking Pin B DUR191L | ||||
| 030 | 326880-9 | 0.83 | 1.00 | |
| Cover Cap DUR191L | ||||
| 031 | 454304-6 | 5.70 | 6.90 | |
| Compression spring 3 DUR191L | ||||
| 032 | 233604-5 | 0.98 | 1.19 | |
| Lock button DUR191L | ||||
| 033 | 454303-8 | 5.06 | 6.12 | |
| Pressure Spring 2 | ||||
| 034 | 233211-4 | 0.83 | 1.00 | |
| Hex bolt M6X40 | ||||
| 035 | 265596-0 | 0.83 | 1.00 | |
| Hex bolt M6X12 | ||||
| 036 | 922311-2 | 0.83 | 1.00 | |
| Connecting Sleeve 24 B DUR191L | ||||
| 037 | 319531-1 | 21.08 | 25.51 | |
| No information available, not orderable | ||||
| 037-1 | 312D65-7 | |||
| Hex Bolt M6x25mm | ||||
| 038 | 266087-4 | 0.83 | 1.00 | |
| Spring 2.5x25 DUR191L | ||||
| 039 | 258010-3 | 0.83 | 1.00 | |
| Thin Washer 6 | ||||
| 040 | 253332-6 | 0.83 | 1.00 | |
| O-ring 11 | ||||
| 041 | 213105-9 | 0.83 | 1.00 | |
| Hex nut M6 | ||||
| 042 | 252159-1 | 2.02 | 2.44 | |
| Hex Nut M6 | ||||
| 043 | 931302-2 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 044 | 961014-3 | |||
| Lever | ||||
| 045 | 272268-0 | 2.02 | 2.44 | |
| O-ring 18 | ||||
| 046 | 213275-4 | 0.83 | 1.00 | |
| Power cable set B DUR191L | ||||
| 047 | 699087-3 | 28.02 | 33.90 | |
| Steel cpl A DUR191 | ||||
| 048 | 140T22-9 | 10.50 | 12.70 | |
| Warning Label DUR368A/L | ||||
| 048C10 | 819N87-3 | 2.71 | 3.28 | |
| Makita logo label | ||||
| 048C20 | 819312-8 | 2.71 | 3.28 | |
| Complete Handle | ||||
| 049 | 143695-7 | 6.38 | 7.72 | |
| Screw 4x16 A | ||||
| 049C10 | 911526-6 | 0.83 | 1.00 | |
| Bow Handle Em2653Lh A | ||||
| 050 | 457937-6 | 9.24 | 11.18 | |
| Handle attachment 29mm | ||||
| 051 | 347011-7 | 1.99 | 2.41 | |
| Rubber pen 6 | ||||
| 052 | 263005-3 | 0.83 | 1.00 | |
| Steel B DUR191L | ||||
| 053 | 327546-4 | 10.50 | 12.70 | |
| Hex. Socket Hd. Bolt (w/flange) M5x12 | ||||
| 054 | 922212-4 | 0.83 | 1.00 | |
| Spacer | ||||
| 055 | 451601-1 | 2.02 | 2.44 | |
| Hanger | ||||
| 056 | 347116-3 | 1.18 | 1.43 | |
| No information available, not orderable | ||||
| 057 | 922228-9 | |||
| Hex. Socket Hd. Bolt (w/flange) M5x12 | ||||
| 058 | 922212-4 | 0.83 | 1.00 | |
| Tube Grip Bracket | ||||
| 060 | 346248-3 | 0.98 | 1.19 | |
| No information available, not orderable | ||||
| 061 | 266326-2 | |||
| Handle DUR190L | ||||
| 062 | 183P04-4 | 11.82 | 14.30 | |
| Hex Nut M5 | ||||
| 062C10 | 931202-6 | 0.83 | 1.00 | |
| Controller sub DUR190 | ||||
| 063 | 140T18-0 | 19.23 | 23.27 | |
| Label A/U DUR190L | ||||
| 063C10 | 8010M7-8 | 1.20 | 1.45 | |
| Indicator label DUR190L | ||||
| 063C20 | 8010M8-6 | 1.00 | 1.21 | |
| Switch | ||||
| 064 | 632E26-0 | 10.99 | 13.30 | |
| Unlock handle | ||||
| 065 | 455629-1 | 2.71 | 3.28 | |
| Torsion Spring 9 | ||||
| 066 | 233621-5 | 0.83 | 1.00 | |
| Switch handle | ||||
| 067 | 455625-9 | 3.12 | 3.78 | |
| Torsion spring 10 | ||||
| 068 | 233612-6 | 1.39 | 1.68 | |
| Clamp Bracket | ||||
| 069 | 687260-7 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 070 | 266326-2 | |||
| Wire harness DUR190L | ||||
| 071 | 699149-7 | 7.22 | 8.74 | |
| Handle DUR190L | ||||
| 072 | 183P04-4 | 11.82 | 14.30 | |
| Hex Nut M5 | ||||
| 072C10 | 931202-6 | 0.83 | 1.00 | |
| Housing Set DUR190 | ||||
| 073 | 183P07-8 | 7.22 | 8.74 | |
| Rubber pen 6 | ||||
| 073C10 | 263005-3 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 074 | 266326-2 | |||
| Controller DUR190 | ||||
| 075 | 620C56-1 | 99.33 | 120.19 | |
| Clamp Bracket | ||||
| 076 | 687260-7 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 077 | 266326-2 | |||
| Connection unit (3 contacts) | ||||
| 079 | 644809-6 | 3.96 | 4.79 | |
| Housing Set DUR190 | ||||
| 080 | 183P07-8 | 7.22 | 8.74 | |
| Rubber pen 6 | ||||
| 080C10 | 263005-3 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 081 | 266326-2 | |||
| Naamplaat DUR191L | ||||
| 082 | 857D26-5 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 083 | 857D32-0 | |||
