Here you will find all available parts and drawings of the 'Makita DUR182LRME'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

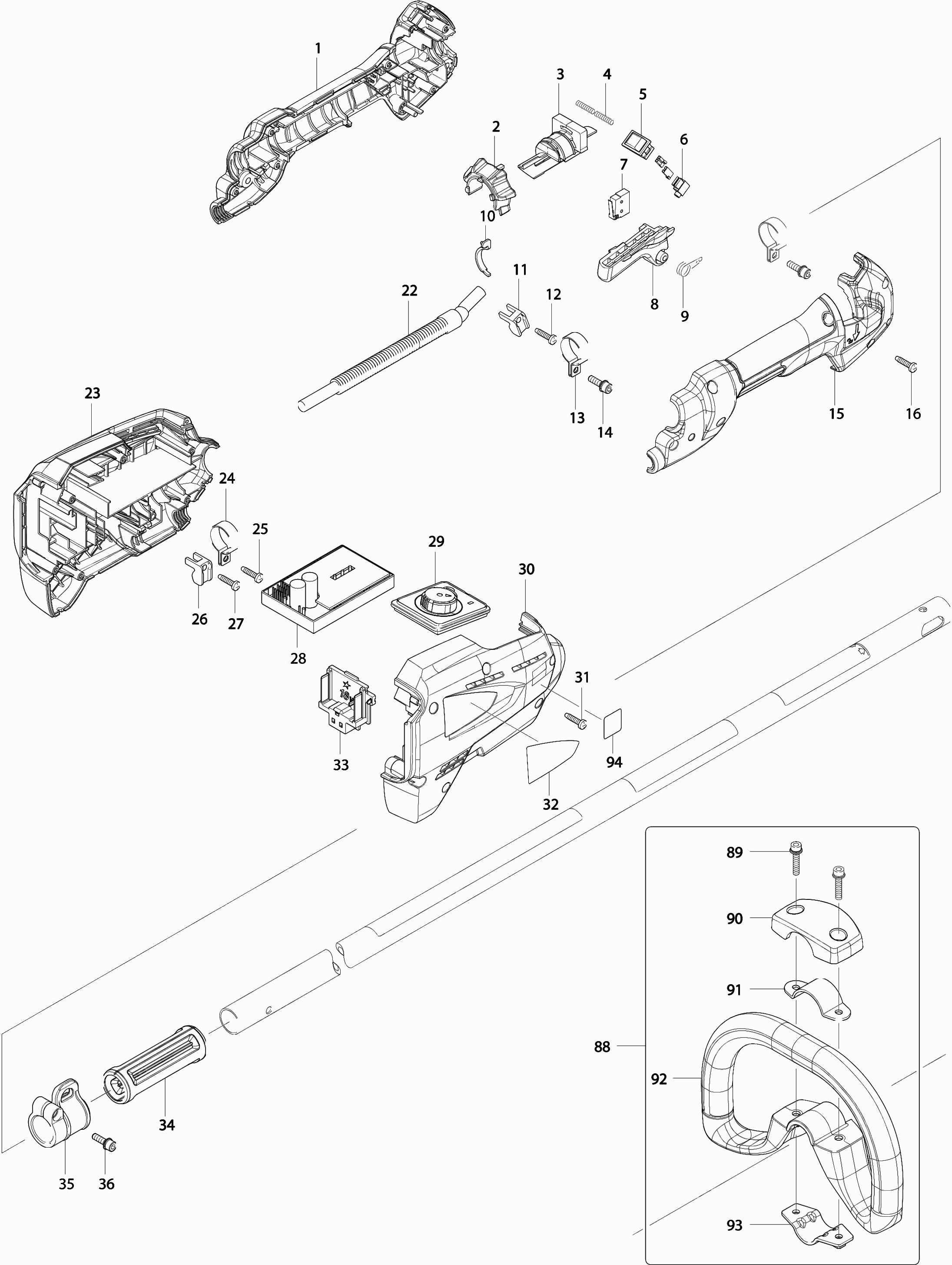

Technical drawing of model Makita DUR182LRME

Spare parts list of model Makita DUR182LRME

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Handle set
001 187698-1 35.13 42.51
Unlock handle
002 454737-5 5.06 6.12
Base Plate
003 454738-3 5.71 6.91
Compression Spring 4
004 234079-1 0.83 1.00
Switch sle6a2-33
005 651533-4 3.72 4.50
Socket
006 686015-7 0.83 1.00
Switch
007 650704-0 9.26 11.20
Switch handle
008 454736-7 5.71 6.91
Torsion spring 10
009 233612-6 1.39 1.68
Cord Protector
010 451985-7 10.50 12.70
No information available, not orderable
011 687261-5
Tap screw 4x18
012 265A48-7 0.83 1.00
Tube Grip Bracket
013 346248-3 0.98 1.19
No information available, not orderable
014 922228-9
Handle set
015 187698-1 35.13 42.51
Tap screw 4x18
016 265A48-7 0.83 1.00
Connecting Cable
022 699064-5 10.50 12.70
Control housing
023 187665-6 23.58 28.53
Tube Grip Bracket
024 346248-3 0.98 1.19
Tap screw 4x18
025 265A48-7 0.83 1.00
No information available, not orderable
026 687261-5
Tap screw 4x18
027 265A48-7 0.83 1.00
Control unit
028 620196-7 131.16 158.70
Control 'sub' unit
029 142134-4 38.75 46.89
Control housing
030 187665-6 23.58 28.53
Tap screw 4x18
031 265A48-7 0.83 1.00
Name plate "dur182l"
032 814X28-4 2.71 3.28
Connection unit (3 contacts)
033 644808-8 3.54 4.28
Spacer
034 451601-1 2.02 2.44
Hanger
035 168478-4 3.96 4.79
No information available, not orderable
036 922228-9
Motor Housing Set
056 187585-4 18.58 22.48
DC field 18v
057 629985-7 63.68 77.05
Armature 18v
058 619324-9 83.13 100.59
O-ring 22
059-1A 213373-4 1.18 1.43
O-ring 22
059-1B 213373-4 1.18 1.43
O-ring 22
059-1C 213373-4 1.18 1.43
O-ring 22
059-1F 213373-4 1.18 1.43
O-ring 22
059-1G 213373-4 1.18 1.43
O-ring 22
059-1H 213373-4 1.18 1.43
O-ring 22
059-1I 213373-4 1.18 1.43
O-ring 22
059A 213961-7 0.83 1.00
O-ring 22
059B 213961-7 0.83 1.00
O-ring 22
059C 213961-7 0.83 1.00
O-ring 22
059F 213961-7 0.83 1.00
O-ring 22
059G 213961-7 0.83 1.00
Bearing Housing
060 318978-6 5.06 6.12
O-ring 19
061 213325-5 0.83 1.00
Ball bearing 626zz
062-1A 210143-2 2.71 3.28
Ball bearing 626zz
062-1B 210143-2 2.71 3.28
Ball bearing 626zz
062-1C 210143-2 2.71 3.28
Ball bearing 626zz
062-1F 210143-2 2.71 3.28
Ball bearing 626zz
062-1G 210143-2 2.71 3.28
Ball bearing 626zz
062-1H 210143-2 2.71 3.28
Ball bearing 626zz
062-1I 210143-2 2.71 3.28
Ball bearing 626zz
062A 210143-2 2.71 3.28
Ball bearing 626zz
062B 210143-2 2.71 3.28
Ball bearing 626zz
062C 210143-2 2.71 3.28
Ball bearing 626zz
062F 210143-2 2.71 3.28
Ball bearing 626zz
062G 210143-2 2.71 3.28
Gear 31
063 227773-2 4.45 5.38
Spindle Ass'y
064 326275-6 12.22 14.79
Ball bearing 6000ddw
065 211289-7 12.22 14.79
No information available, not orderable
066 324917-6
Motor Housing Set
069 187585-4 18.58 22.48
Tap screw 4x18
070 265A48-7 0.83 1.00
Rubber bushing 24
071 424567-8 1.46 1.77
Rod cpl
075 142241-3 33.42 40.44
Connecting Cable
077 699059-8 23.04 27.88
Guide plate
079 346622-5 4.45 5.38
Guide Piece
080 326348-5 10.50 12.70
Rivet
081 413143-3 0.83 1.00
Mounting ring for cap
082 454641-8 6.08 7.36
Spring Washer 6 A
083 253903-9 0.83 1.00
Allen Bolt m6x30
084 266579-3 0.83 1.00
No information available, not orderable
085 265C54-4
No information available, not orderable
088 195626-2
No information available, not orderable
089 922243-3
No information available, not orderable
090 452843-0
No information available, not orderable
091 346468-9
Beugelhandgreep
092 452841-4 10.50 12.70
Wire Clamp
093-1 347094-7 1.18 1.43
No information available, not orderable
094 802H58-1
