Here you will find all available parts and drawings of the 'Makita DUM111'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

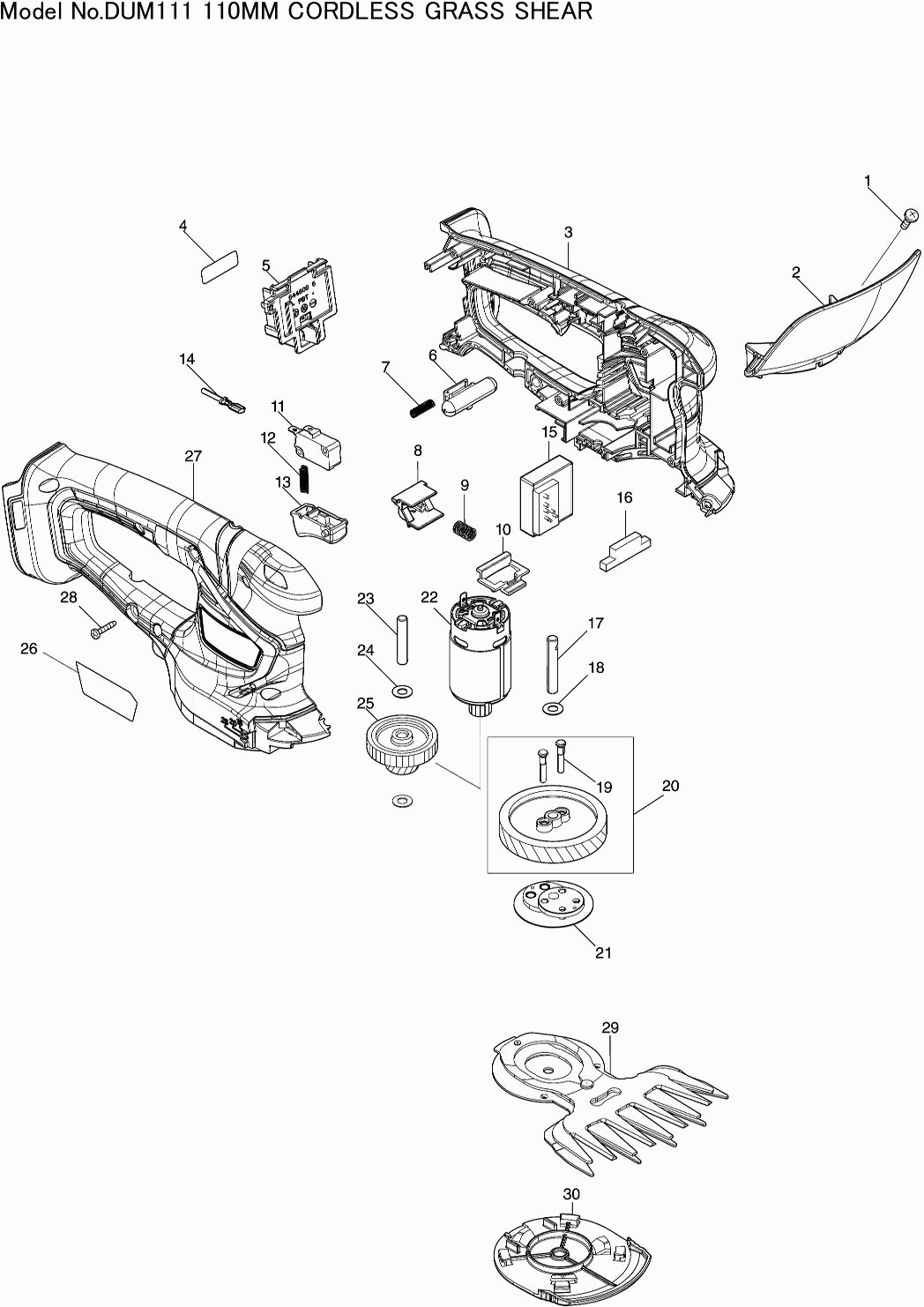

Technical drawing of model Makita DUM111
Spare parts list of model Makita DUM111
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Adjustment Screw M4x12 | ||||
| 001 | 915116-7 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 002 | 140V97-0 | |||
| Label "Safety" | ||||
| 002C10 | 819948-3 | 2.71 | 3.28 | |
| Machine Housing | ||||
| 003 | 183G03-2 | 15.60 | 18.88 | |
| Hex nut M4 | ||||
| 003C10 | 931102-0 | 0.83 | 1.00 | |
| Plate | ||||
| 003C20 | 346275-0 | 0.83 | 1.00 | |
| Rubber pen 6 | ||||
| 003C30 | 263005-3 | 0.83 | 1.00 | |
| Serial number label DUM111 | ||||
| 004 | 811957-8 | 0.83 | 1.00 | |
| Connection unit (3 contacts) | ||||
| 005 | 644809-6 | 3.96 | 4.79 | |
| Lock button Uh200D A | ||||
| 006 | 452438-9 | 0.83 | 1.00 | |
| Compression Spring 4 | ||||
| 007 | 234079-1 | 0.83 | 1.00 | |
| Guide Plate | ||||
| 008 | 457534-8 | 0.83 | 1.00 | |
| Compression Spring 6 | ||||
| 009 | 234339-1 | 0.83 | 1.00 | |
| Deblock handle | ||||
| 010 | 454879-5 | 0.83 | 1.00 | |
| Switch D3V-16-3C26 A | ||||
| 011 | 650744-8 | 1.67 | 2.02 | |
| Compression Spring 4 | ||||
| 012 | 234079-1 | 0.83 | 1.00 | |
| Switch handle | ||||
| 013 | 417564-1 | 0.83 | 1.00 | |
| Cable entry DUM11 | ||||
| 014 | 632S19-1 | 1.20 | 1.45 | |
| Controller DUM111 | ||||
| 015 | 620E35-1 | 25.36 | 30.69 | |
| Dust Guide | ||||
| 016 | 451814-4 | 0.83 | 1.00 | |
| Pin 6 | ||||
| 017 | 268254-7 | 0.83 | 1.00 | |
| Washer 6 | ||||
| 018 | 253715-0 | 0.83 | 1.00 | |
| Pin 4 Um164D | ||||
| 019 | 268256-3 | 0.83 | 1.00 | |
| Gear 47 | ||||
| 020 | 135883-0 | 2.36 | 2.86 | |
| Drive Shaft | ||||
| 021 | 161598-3 | 5.71 | 6.91 | |
| Motor 18.0v | ||||
| 022 | 629945-9 | 11.82 | 14.30 | |
| Pin 6 | ||||
| 023 | 268076-5 | 0.83 | 1.00 | |
| Washer 6 | ||||
| 024 | 253715-0 | 0.83 | 1.00 | |
| Gear 12-31 | ||||
| 025 | 226831-1 | 1.18 | 1.43 | |
| Nameplate DUM111 | ||||
| 026 | 811949-7 | 0.83 | 1.00 | |
| Machine Housing | ||||
| 027 | 183G03-2 | 15.60 | 18.88 | |
| Hex nut M4 | ||||
| 027C10 | 931102-0 | 0.83 | 1.00 | |
| Plate | ||||
| 027C20 | 346275-0 | 0.83 | 1.00 | |
| Rubber pen 6 | ||||
| 027C30 | 263005-3 | 0.83 | 1.00 | |
| Tapping Screw 3x16 | ||||
| 028 | 266130-9 | 0.83 | 1.00 | |
| Messenset 110mm | ||||
| 029 | 191N23-4 | 27.00 | 32.67 | |
| Flesje olie | ||||
| 029C10 | 188369-3 | 2.00 | 2.42 | |
| Lower Plate | ||||
| 030 | 140451-6 | 2.71 | 3.28 | |
