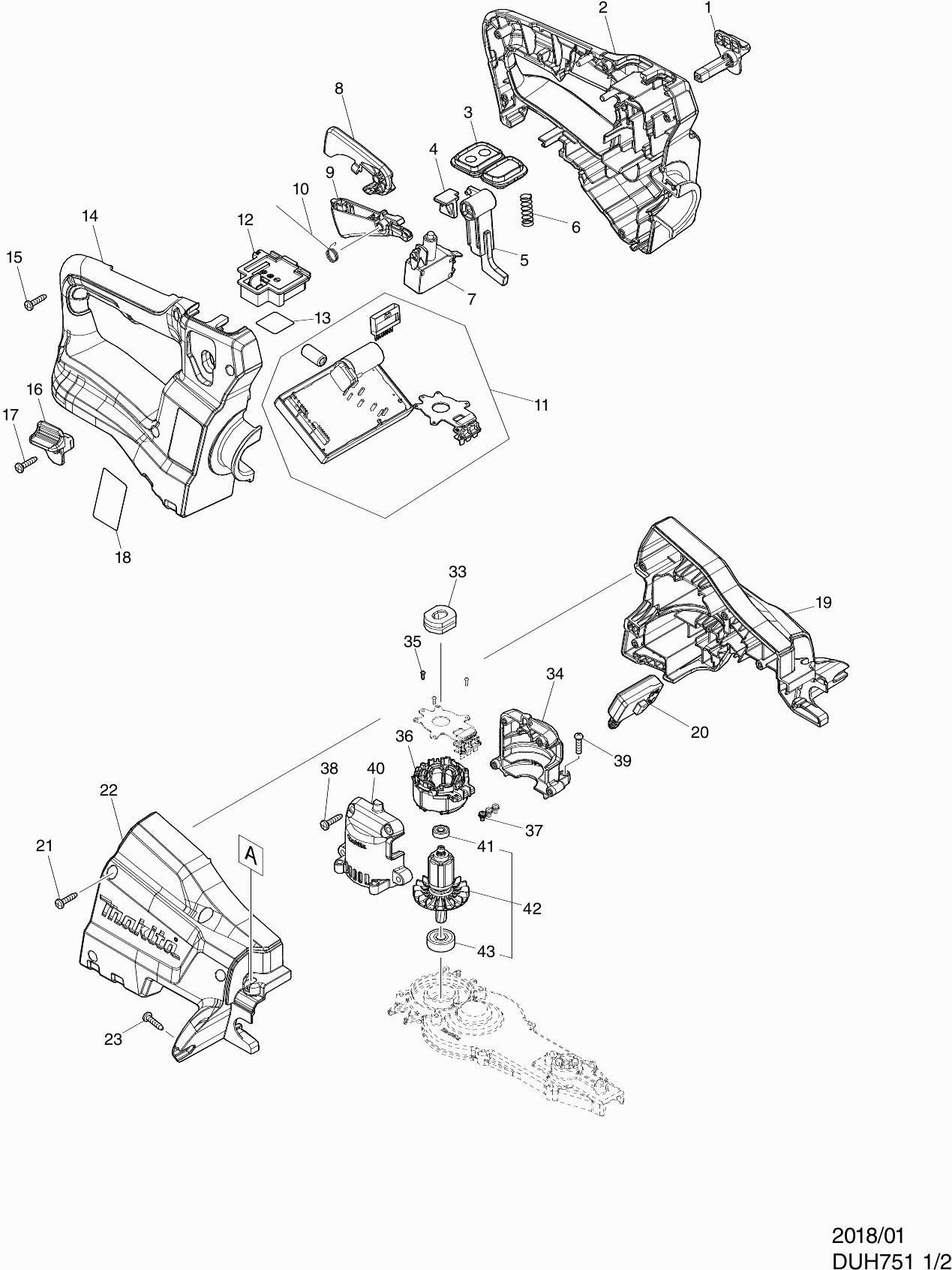

Technical drawing of model Makita DUH751
Spare parts list of model Makita DUH751
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Lock-lever L DUH501 | ||||
| 001 | 458406-0 | 1.20 | 1.45 | |
| Handle set DUH 501 | ||||
| 002 | 183J51-9 | 17.60 | 21.30 | |
| Rubber pen 6 | ||||
| 002C10 | 263005-3 | 1.00 | 1.21 | |
| Controler sub DUH501/601/751 | ||||
| 003 | 140A04-7 | 22.00 | 26.62 | |
| Indication Label DUH501 | ||||
| 003C10 | 806G56-1 | 2.40 | 2.90 | |
| Switch label DUH501 | ||||
| 003C20 | 817C42-3 | 2.40 | 2.90 | |
| Slider plate DUH501 | ||||
| 004 | 458570-7 | 1.20 | 1.45 | |
| Locking arm DUH501 | ||||
| 005 | 458405-2 | 2.40 | 2.90 | |
| Compression Spring 8 | ||||
| 006 | 234204-4 | 1.20 | 1.45 | |
| Switch | ||||
| 007 | 650781-2 | 16.50 | 19.96 | |
| Unlock handle DUH501 | ||||
| 008 | 458403-6 | 2.40 | 2.90 | |
| Switch handle R DUH501 | ||||
| 009 | 458404-4 | 2.40 | 2.90 | |
| Torsion Spring 10 DUH501 | ||||
| 010 | 232454-5 | 1.00 | 1.21 | |
| CONTROLLER DUH501 A | ||||
| 011 | 620M96-9 | 118.80 | 143.75 | |
| Connection unit (3 contacts) | ||||
| 012 | 644809-6 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 013 | 854K25-0 | |||
| Handle set DUH 501 | ||||
| 014 | 183J51-9 | 17.60 | 21.30 | |
| Rubber pen 6 | ||||
| 014C10 | 263005-3 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 015 | 265B67-9 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 015-1 | 265B67-9 | 1.00 | 1.21 | |
| Lock-lever R DUH501 | ||||
| 016 | 458407-8 | 1.20 | 1.45 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 017 | 265B67-9 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 017-1 | 265B67-9 | 1.00 | 1.21 | |
| Nameplate DUH751 | ||||
| 018 | 854K19-5 | 1.00 | 1.21 | |
| Housing DUH501 | ||||
| 019 | 183K21-4 | 17.60 | 21.30 | |
| Nut M5X8 DUH501 | ||||
| 019C10 | 252143-6 | 1.00 | 1.21 | |
| Impact Buffer | ||||
| 019C20 | 424344-8 | 1.00 | 1.21 | |
| Switch C3Xa-1Pspm Dsp600 | ||||
| 020 | 651083-9 | 19.80 | 23.96 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 021 | 265B67-9 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 021-1 | 265B67-9 | 1.00 | 1.21 | |
| Housing DUH501 | ||||
| 022 | 183K21-4 | 17.60 | 21.30 | |
| Nut M5X8 DUH501 | ||||
| 022C010 | 252143-6 | 1.00 | 1.21 | |
| Impact Buffer | ||||
| 022C20 | 424344-8 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 023 | 265B67-9 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 023-1 | 265B67-9 | 1.00 | 1.21 | |
| Sheet metal screw 5x25 | ||||
| 024 | 265B66-1 | 0.95 | 1.15 | |
| Protective cap DUH501 | ||||
| 025 | 458399-1 | 4.80 | 5.81 | |
| Handle DUH501/601/751 | ||||
| 026 | 458400-2 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 027 | 251476-6 | |||
| INBUSBOUT M5X35MM P | ||||
| 027-1 | 265D13-4 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 027-2 | 265E44-9 | |||
| Washer 10 DUH501 | ||||
| 028 | 253416-0 | 1.20 | 1.45 | |
| Bus 6 DUH501 | ||||
| 029 | 257678-2 | 2.40 | 2.90 | |
| Rubber bush 8 DUH501 | ||||
| 030 | 422260-8 | 2.40 | 2.90 | |
| Compression spring 5 DUH501 | ||||
| 031 | 233222-9 | 2.40 | 2.90 | |
| Switch handle F DUH501 | ||||
| 032 | 458402-8 | 8.40 | 10.16 | |
| Rubber bush DUH501 | ||||
| 033 | 422261-6 | 2.40 | 2.90 | |
| Motor housing DUH501 | ||||
| 034 | 183L66-8 | 3.60 | 4.36 | |
| Parker Ck 2x6mm | ||||
| 035 | 266490-9 | 1.00 | 1.21 | |
| Field DUH501 | ||||
| 036 | 629352-6 | 26.40 | 31.94 | |
| Phillips Head Screw M3X6 | ||||
| 037 | 652069-6 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 038 | 265B67-9 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 038-1 | 265B67-9 | 1.00 | 1.21 | |
| Screw 4X16 DUH501 A | ||||
| 039 | 265178-8 | 1.00 | 1.21 | |
| Motor housing DUH501 | ||||
| 040 | 183L66-8 | 3.60 | 4.36 | |
| Ball Bearing 695zz | ||||
| 041 | 211157-4 | 2.40 | 2.90 | |
| Armature DUH series A | ||||
| 042 | 510450-6 | 19.80 | 23.96 | |
| Ball Bearing 608ddw | ||||
| 043 | 210005-4 | 4.80 | 5.81 | |
| Ball Bearing 608Zz A | ||||
| 043 | 210046-0 | 1.20 | 1.45 | |
| Rubber bush 8 DUH501 | ||||
| 044 | 422259-3 | 1.20 | 1.45 | |
| Gear housing cpl DUH500 A | ||||
| 045 | 136278-0 | 42.90 | 51.91 | |
| Impact Buffer | ||||
| 045C10 | 424344-8 | 1.00 | 1.21 | |
| O-ring 22 | ||||
| 045C20 | 213961-7 | 1.00 | 1.21 | |
| Gasket DUH501 | ||||
| 046 | 458417-5 | 1.00 | 1.21 | |
| Ball Bearing 608Zz A | ||||
| 047 | 210046-0 | 1.20 | 1.45 | |
| Friction plate DUH501 | ||||
| 048 | 347361-0 | 1.20 | 1.45 | |
| Connecting rod DUH501 | ||||
| 049 | 347362-8 | 6.00 | 7.26 | |
| Metric screw M5x12mm | ||||
| 050 | 915211-3 | 1.00 | 1.21 | |
| Shear Protector DUH501 | ||||
| 051 | 458408-6 | 13.82 | 16.72 | |
| Guide E UH008G | ||||
| 051-1 | 412908-0 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 052 | 199100-2 | |||
| MESSENSET UH005GZ | ||||
| 052-1 | 191R54-7 | 58.00 | 70.18 | |
| No information available, not orderable | ||||
| 052C10 | 345205-8 | |||
| Screw 5x10 | ||||
| 052C20 | 911208-0 | 1.00 | 1.21 | |
| MOER M5X8 DUH501 | ||||
| 052C30 | 252311-1 | 1.20 | 1.45 | |
| Bus 5mm | ||||
| 052C40 | 257439-0 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 052C50 | 253558-0 | |||
| Crosshead screw 5x20mm | ||||
| 052C60 | 265181-9 | 1.00 | 1.21 | |
| Sheet metal screw 5x25 | ||||
| 053 | 265B66-1 | 0.95 | 1.15 | |
| Complete gear DUH501 | ||||
| 054 | 140B79-2 | 22.00 | 26.62 | |
| Connecting rod DUH501 | ||||
| 055 | 347362-8 | 6.00 | 7.26 | |
| Gearbox cover DUH501 | ||||
| 056 | 140B62-9 | 30.80 | 37.27 | |
| Friction plate DUH501 | ||||
| 056 | 347361-0 | 1.20 | 1.45 | |
| Ball Bearing 626z | ||||
| 057 | 210047-8 | 3.60 | 4.36 | |
| Seal | ||||
| 058 | 443159-4 | 4.80 | 5.81 | |
| Hex bolt M6x4 | ||||
| 060 | 266559-9 | 2.40 | 2.90 | |
| Hex bolt 4x16 | ||||
| 061 | 266437-3 | 1.00 | 1.21 | |
| Metric screw M5x12mm | ||||
| 062 | 915211-3 | 1.00 | 1.21 | |
| Spacer Bushing 750 DUH752 | ||||
| 063 | 458629-0 | 19.80 | 23.96 | |
| Bus 5mm | ||||
| 064 | 257439-0 | 1.20 | 1.45 | |
| Washer 6 | ||||
| 065 | 253804-1 | 1.00 | 1.21 | |
