Here you will find all available parts and drawings of the 'Makita DUH607'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

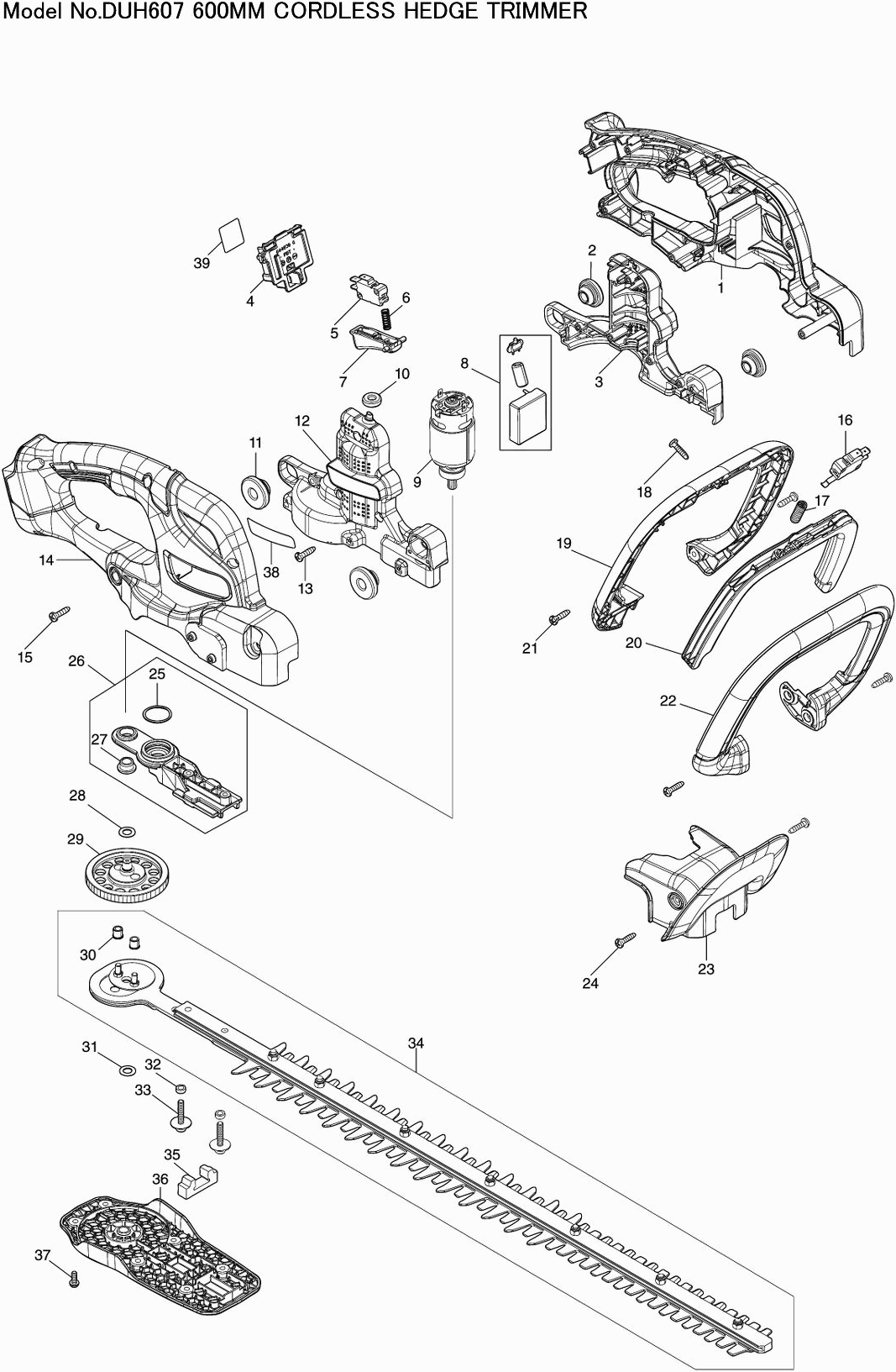

Technical drawing of model Makita DUH607
Spare parts list of model Makita DUH607
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Handgreepset DUH507 | ||||
| 001 | 183Y38-1 | 9.28 | 11.23 | |
| Rubber pen 6 | ||||
| 001C10 | 263005-3 | 0.83 | 1.00 | |
| Label waarschuw DUH507 | ||||
| 001C20 | 8062W1-7 | 0.83 | 1.00 | |
| Washer 8mm | ||||
| 002 | 424394-3 | 0.83 | 1.00 | |
| Motorhuisset DUH507/607 | ||||
| 003 | 183X36-9 | 6.52 | 7.89 | |
| Hex nut M4 | ||||
| 003C10 | 931102-0 | 0.83 | 1.00 | |
| Connection unit (3 contacts) | ||||
| 004 | 644809-6 | 3.96 | 4.79 | |
| Schakelaar 020 DUH507/607 | ||||
| 005 | 650036-5 | 3.56 | 4.31 | |
| Compression Spring 5 | ||||
| 006 | 231372-4 | 0.83 | 1.00 | |
| Schakelhendel R DUH507/607 | ||||
| 007 | 413M81-7 | 0.83 | 1.00 | |
| Controller DUH507/607 | ||||
| 008 | 620L03-6 | 31.54 | 38.16 | |
| Motor DUH507/607 | ||||
| 009 | 629B93-6 | 14.28 | 17.28 | |
| Ring 6mm | ||||
| 010 | 424195-9 | 0.83 | 1.00 | |
| Washer 8mm | ||||
| 011 | 424394-3 | 0.83 | 1.00 | |
| Motorhuisset DUH507/607 | ||||
| 012 | 183X36-9 | 6.52 | 7.89 | |
| Hex nut M4 | ||||
| 012C10 | 931102-0 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 013 | 266326-2 | |||
| Handgreepset DUH507 | ||||
| 014 | 183Y38-1 | 9.28 | 11.23 | |
| Rubber pen 6 | ||||
| 014C10 | 263005-3 | 0.83 | 1.00 | |
| Label waarschuw DUH507 | ||||
| 014C20 | 8062W1-7 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 015 | 266326-2 | |||
| Schakelaar 021 DUH507/607 | ||||
| 016 | 650037-3 | 3.74 | 4.53 | |
| Compression Spring 6 | ||||
| 017 | 231325-3 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 018 | 266326-2 | |||
| Handgreep kap E DUH507/607 | ||||
| 019 | 413M89-1 | 2.83 | 3.42 | |
| Schakelknop FE DUH507/607 | ||||
| 020 | 413M90-6 | 2.12 | 2.57 | |
| No information available, not orderable | ||||
| 021 | 266326-2 | |||
| Handgreep E DUH507/607 | ||||
| 022 | 413M88-3 | 2.83 | 3.42 | |
| Beschermerkap DUH507/607 | ||||
| 023 | 413M82-5 | 1.10 | 1.33 | |
| No information available, not orderable | ||||
| 024 | 266326-2 | |||
| O-ring 22 | ||||
| 025 | 213961-7 | 0.83 | 1.00 | |
| Tandwielhuis DUH507/607 | ||||
| 026 | 136928-7 | 3.84 | 4.65 | |
| Slide Bearing 8mm | ||||
| 027 | 214064-0 | 0.83 | 1.00 | |
| Washer 8 x 14 x 0.5mm | ||||
| 028 | 253215-0 | 0.83 | 1.00 | |
| Tandwielset DUH507/607 | ||||
| 029 | 136843-5 | 9.37 | 11.34 | |
| Sliding bearing 5mm | ||||
| 030 | 262570-9 | 0.83 | 1.00 | |
| Washer 8 x 14 x 0.5mm | ||||
| 031 | 253215-0 | 0.83 | 1.00 | |
| Ring 5 DUH507/607 | ||||
| 032 | 257802-7 | 0.83 | 1.00 | |
| Allen Bolt M5x255mm DUN500W | ||||
| 033 | 265A89-3 | 0.83 | 1.00 | |
| Messenset 60cm DUH607 | ||||
| 034 | 1911J2-4 | 54.00 | 65.34 | |
| Oil guide set | ||||
| 034C10 | 188605-7 | 2.10 | 2.54 | |
| Stofgeleider DUH506 | ||||
| 035 | 422904-0 | 0.83 | 1.00 | |
| Hitteschild cpl DUH507/607 | ||||
| 036 | 413M87-5 | 2.52 | 3.05 | |
| No information available, not orderable | ||||
| 037 | 911118-1 | |||
| Naamplaat DUH607 | ||||
| 038 | 8582P3-0 | 0.83 | 1.00 | |
| Label serienr. DUH607 | ||||
| 039 | 8582R0-0 | 0.83 | 1.00 | |
