Here you will find all available parts and drawings of the 'Makita DUH606'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

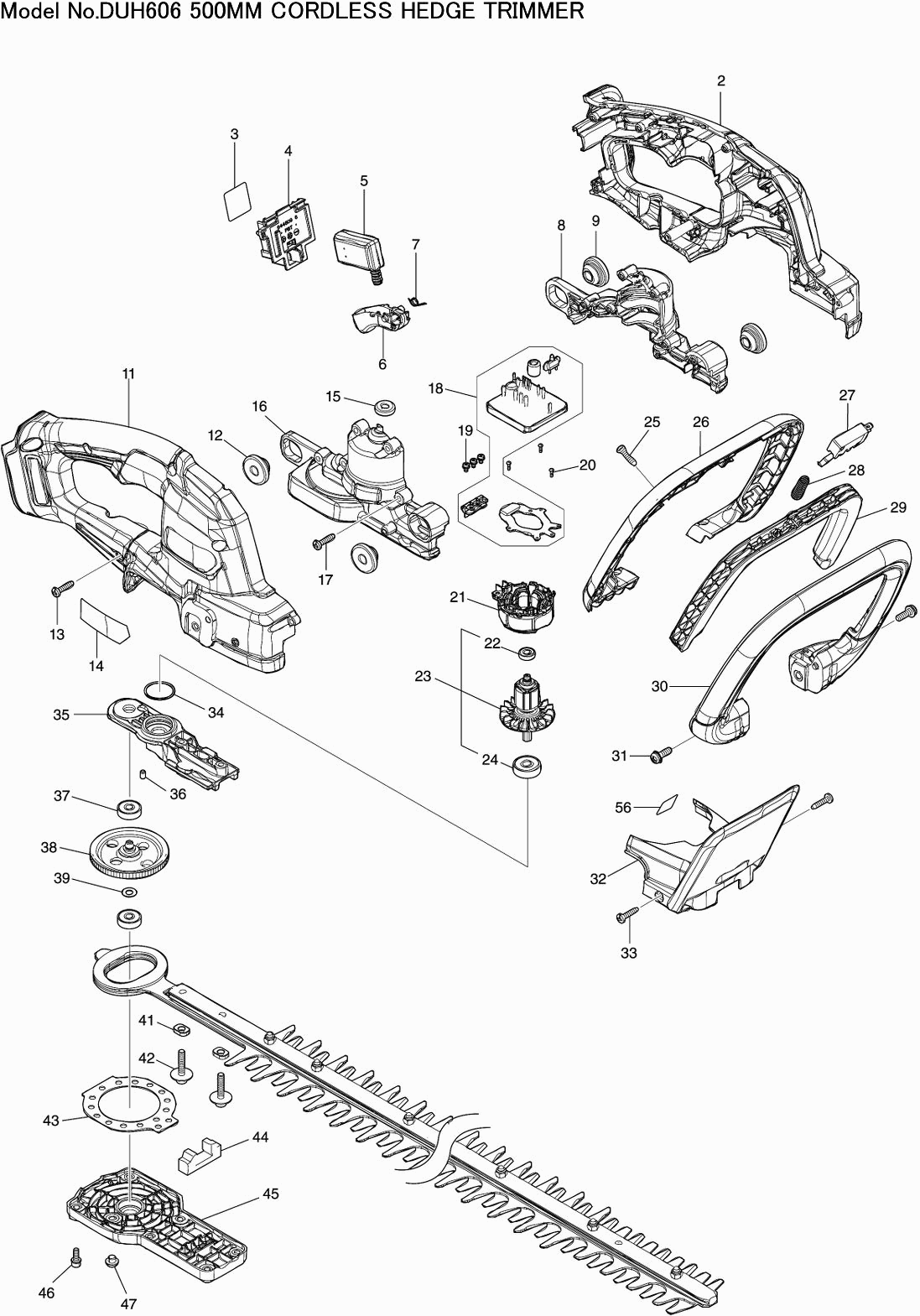

Technical drawing of model Makita DUH606
Spare parts list of model Makita DUH606
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| HANDGREEPSET DUH506 | ||||
| 002 | 183V39-1 | 17.60 | 21.30 | |
| Rubber pen 6 | ||||
| 002C10 | 263005-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 003 | 8580P9-6 | |||
| Connection unit (3 contacts) | ||||
| 004 | 644809-6 | 4.80 | 5.81 | |
| SCHAKELAAR C3XA DUH506 | ||||
| 005 | 650033-1 | 18.70 | 22.63 | |
| SCHAKELKNOP RE DUH506 | ||||
| 006 | 413J41-1 | 1.00 | 1.21 | |
| TORSIEVEER 6 DUH506 | ||||
| 007 | 232770-5 | 1.00 | 1.21 | |
| MOTORHUISSET DUH506 | ||||
| 008 | 183V95-1 | 7.20 | 8.71 | |
| Washer 8mm | ||||
| 009 | 424394-3 | 1.20 | 1.45 | |
| HANDGREEPSET DUH506 | ||||
| 011 | 183V39-1 | 17.60 | 21.30 | |
| Rubber pen 6 | ||||
| 011C10 | 263005-3 | 1.00 | 1.21 | |
| Washer 8mm | ||||
| 012 | 424394-3 | 1.20 | 1.45 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 013 | 265B67-9 | 1.00 | 1.21 | |
| NAAMPLAAT DUH606 | ||||
| 014 | 8580P3-8 | 1.00 | 1.21 | |
| Ring 6mm | ||||
| 015 | 424195-9 | 1.00 | 1.21 | |
| MOTORHUISSET DUH506 | ||||
| 016 | 183V95-1 | 7.20 | 8.71 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 017 | 265B67-9 | 1.00 | 1.21 | |
| CONTROLLER DUH506 | ||||
| 018 | 620J54-7 | 64.90 | 78.53 | |
| Phillips Head Screw M3X6 | ||||
| 019 | 652069-6 | 1.00 | 1.21 | |
| Parker Ck 2x6mm | ||||
| 020 | 266490-9 | 1.00 | 1.21 | |
| VELD DUH506 | ||||
| 021 | 629B24-5 | 8.40 | 10.16 | |
| Ball Bearing 695zz | ||||
| 022 | 211157-4 | 2.40 | 2.90 | |
| MOTOR ASSY DUH506 | ||||
| 023 | 519764-0 | 18.70 | 22.63 | |
| No information available, not orderable | ||||
| 024 | 210023-2 | |||
| TAPSCHR 4X18MM DGA520 A | ||||
| 025 | 265B67-9 | 1.00 | 1.21 | |
| BESCHERMKAP E DUH506 | ||||
| 026 | 413J39-8 | 3.60 | 4.36 | |
| SCHAKELAAR D2VW DUH506 | ||||
| 027 | 650034-9 | 8.40 | 10.16 | |
| Compression Spring 6 | ||||
| 028 | 231325-3 | 1.00 | 1.21 | |
| SCHAKELKNOP FE DUH506 | ||||
| 029 | 413J40-3 | 3.60 | 4.36 | |
| VOORHANDGREEP DUH506 | ||||
| 030 | 413J38-0 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 031 | 911223-4 | |||
| Guard complete DUH506 | ||||
| 032 | 141K47-2 | 2.40 | 2.90 | |
| LABEL WAARSCHUW DUH506 | ||||
| 032C10 | 8059E3-6 | 2.40 | 2.90 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 033 | 265B67-9 | 1.00 | 1.21 | |
| O-ring 22 | ||||
| 034 | 213961-7 | 1.00 | 1.21 | |
| LAGERHUIS E DUH506 | ||||
| 035 | 312D09-7 | 6.00 | 7.26 | |
| Rubber Pin 4 | ||||
| 036 | 263002-9 | 1.00 | 1.21 | |
| Ball bearing 626llb | ||||
| 037 | 211016-2 | 6.00 | 7.26 | |
| GEAR UH020/021G DUH506/606 | ||||
| 038 | 141K44-8 | 22.00 | 26.62 | |
| No information available, not orderable | ||||
| 038-1 | 1412A9-3 | |||
| Washer 6 | ||||
| 039 | 253715-0 | 1.20 | 1.45 | |
| MESSENSET 600MM DUH506Z P | ||||
| 040 | 1910H9-0 | 40.00 | 48.40 | |
| MULTIFUNCTIONEEL VET TUBE 80G | ||||
| 040C10 | 199450-5 | 6.00 | 7.26 | |
| AFSTANDHOUDER DUH506 | ||||
| 040C20 | 313436-7 | 1.00 | 1.21 | |
| AFSTANDHOUDER DUH506 | ||||
| 041 | 313436-7 | 1.00 | 1.21 | |
| Allen Bolt M5x255mm DUN500W | ||||
| 042 | 265A89-3 | 1.00 | 1.21 | |
| PLAAT DUH506 | ||||
| 043 | 347A10-5 | 2.40 | 2.90 | |
| STOFGELEIDER DUH506 | ||||
| 044 | 422904-0 | 1.00 | 1.21 | |
| ONDERPLAAT 500E DUH506 | ||||
| 045 | 413J26-7 | 4.80 | 5.81 | |
| Allen bolt m4x12 | ||||
| 046 | 922118-6 | 1.00 | 1.21 | |
| Hex bolt M6x4 | ||||
| 047 | 266559-9 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 048 | 264013-7 | |||
| BLADGELEIDER 600MM | ||||
| 049 | 327982-4 | 13.00 | 15.73 | |
| BLADPLAAT 600MM DUH606 | ||||
| 050 | 347987-8 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 051 | 725300-4 | |||
| RING 5 DUH506 | ||||
| 052 | 257876-8 | 1.00 | 1.21 | |
| ONDERPLAAT DUH506 | ||||
| 053 | 347990-9 | 2.40 | 2.90 | |
| SLUITRING 5MM DUH506 | ||||
| 054 | 253571-8 | 1.00 | 1.21 | |
| MET.SCHROEF M5X20MM DUH506 | ||||
| 055 | 265A40-3 | 1.00 | 1.21 | |
| Label 92Db | ||||
| 056 | 807E85-5 | 2.40 | 2.90 | |
