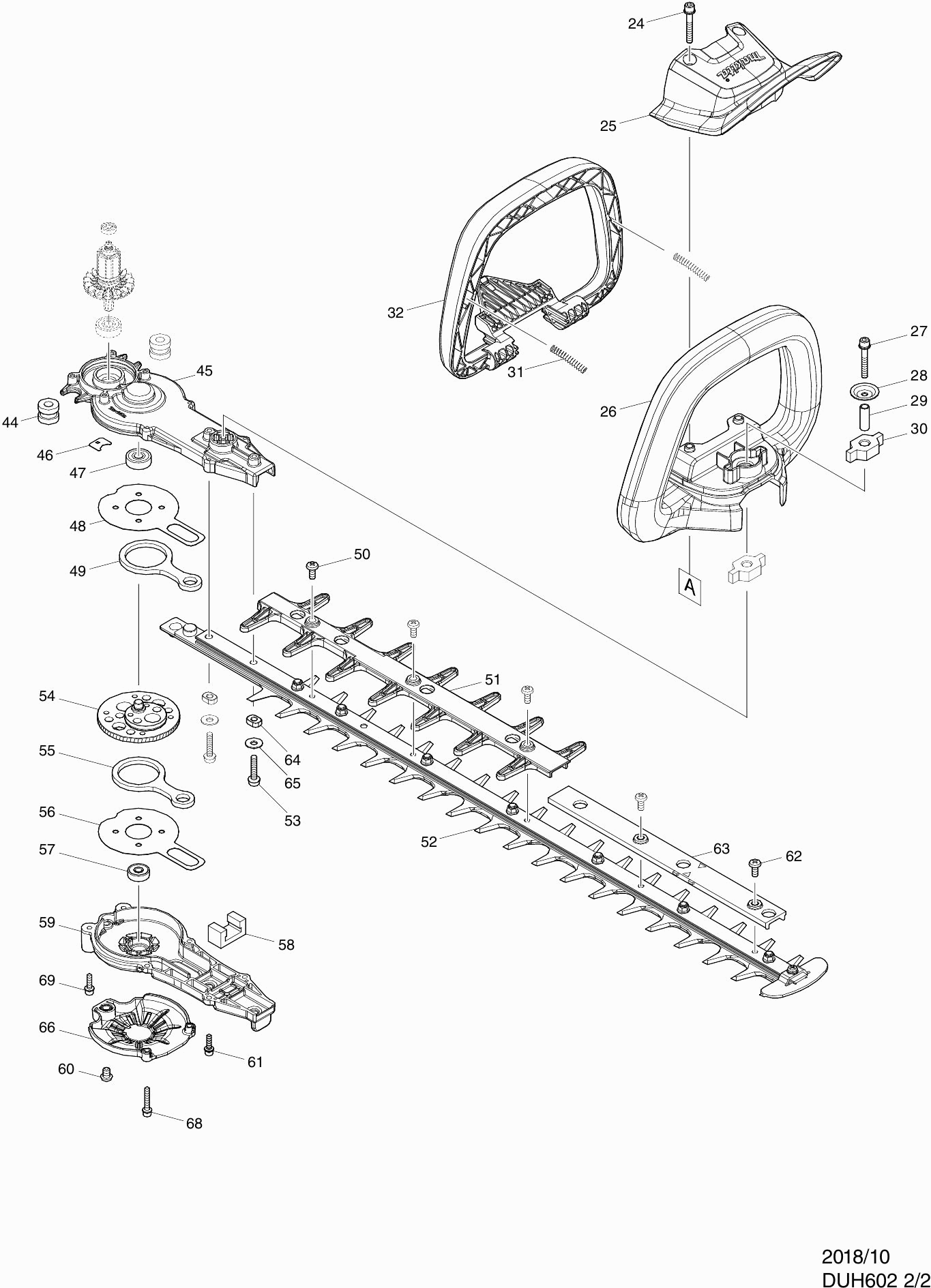

Technical drawing of model Makita DUH602

Spare parts list of model Makita DUH602

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Lock-lever L DUH501
001 458406-0 1.00 1.21
Handle set DUH 501
002 183J51-9 17.40 21.05
Rubber pen 6
002C10 263005-3 0.83 1.00
Controler sub DUH501/601/751
003 140A04-7 21.08 25.51
Indication Label DUH501
003C10 806G56-1 0.83 1.00
Switch label DUH501
003C20 817C42-3 0.98 1.19
Slider plate DUH501
004 458570-7 0.98 1.19
Locking arm DUH501
005 458405-2 1.39 1.68
Compression Spring 8
006 234204-4 0.98 1.19
Switch
007 650781-2 15.60 18.88
Unlock handle DUH501
008 458403-6 1.39 1.68
Switch handle R DUH501
009 458404-4 1.99 2.41
Torsion Spring 10 DUH501
010 232454-5 0.83 1.00
Controller DUH501 A
011 620M96-9 118.43 143.30
Connection unit (3 contacts)
012 644809-6 3.96 4.79
Serial number label DUH602
013 855G51-8 0.83 1.00
Handle set DUH 501
014 183J51-9 17.40 21.05
Rubber pen 6
014C10 263005-3 0.83 1.00
No information available, not orderable
015 266326-2
Tapschr 4x18mm DGA520 A
015-1 265B67-9 0.83 1.00
Lock-lever R DUH501
016 458407-8 1.20 1.45
No information available, not orderable
017 266326-2
Tapschr 4x18mm DGA520 A
017-1 265B67-9 0.83 1.00
Nameplate DUH602
018 855G45-3 0.83 1.00
Housing DUH501
019 183K21-4 17.40 21.05
Nut M5X8 DUH501
019C10 252143-6 0.83 1.00
Impact Buffer
019C20 424344-8 0.83 1.00
Switch C3Xa-1Pspm Dsp600
020 651083-9 19.29 23.34
No information available, not orderable
021 266326-2
Tapschr 4x18mm DGA520 A
021-1 265B67-9 0.83 1.00
Housing DUH501
022 183K21-4 17.40 21.05
Nut M5X8 DUH501
022C10 252143-6 0.83 1.00
Impact Buffer
022C20 424344-8 0.83 1.00
No information available, not orderable
023 266326-2
Tapschr 4x18mm DGA520 A
023-1 265B67-9 0.83 1.00
No longer available, no replacement
024 265182-7
Protective cap DUH501
025 458399-1 4.45 5.38
Handle DUH501/601/751
026 458400-2 11.84 14.33
No information available, not orderable
027 251476-6
Inbusbout M5X35Mm A
027-1 265D13-4 0.83 1.00
Washer 10 DUH501
028 253416-0 0.98 1.19
Bus 6 DUH501
029 257678-2 1.39 1.68
Rubber bush 8 DUH501
030 422260-8 1.67 2.02
Compression spring 5 DUH501
031 233222-9 1.39 1.68
Switch handle F DUH501
032 458402-8 7.22 8.74
Rubber bush DUH501
033 422261-6 1.67 2.02
Motor housing DUH501
034 183L66-8 3.54 4.28
Parker Ck 2x6mm
035 266490-9 0.83 1.00
Field DUH501
036 629352-6 25.36 30.69
Phillips Head Screw M3X6
037 652069-6 0.83 1.00
No information available, not orderable
038 266326-2
Tapschr 4x18mm DGA520 A
038-1 265B67-9 0.83 1.00
Screw 4X16 DUH501 A
039 265178-8 0.83 1.00
Motor housing DUH501
040 183L66-8 3.54 4.28
Ball Bearing 695zz
041 211157-4 1.39 1.68
Armature DUH series A
042 510450-6 19.23 23.27
Ball Bearing 608ddw
043 210005-4 4.45 5.38
Ball Bearing 608Zz A
043 210046-0 0.83 1.00
Rubber bush 8 DUH501
044 422259-3 1.18 1.43
Gear housing cpl DUH500 A
045 136278-0 42.72 51.69
Impact Buffer
045C10 424344-8 0.83 1.00
O-ring 22
045C20 213961-7 0.83 1.00
Gasket DUH501
046 458417-5 0.83 1.00
Ball Bearing 608Zz A
047 210046-0 0.83 1.00
Friction plate DUH501
048 347361-0 0.83 1.00
Connecting rod DUH501
049 347362-8 5.06 6.12
Metric screw M5x12mm
050 915211-3 0.83 1.00
Shear Protector DUH501
051 458408-6 13.82 16.72
Guide E UH008G
051-1 412908-0 3.11 3.76
No longer available, no replacement
052 199599-1
Messenset 60 cm voor de UH008
052-1 191R57-1 71.00 85.91
No information available, not orderable
052C10 345205-8
Screw 5x10
052C20 911208-0 0.83 1.00
Flesje olie
052C30 188369-3 2.00 2.42
No longer available, no replacement
053 265182-7
Complete gear DUH501
054 140B79-2 21.08 25.51
Connecting rod DUH501
055 347362-8 5.06 6.12
Friction plate DUH501
056 347361-0 0.83 1.00
Ball Bearing 626z
057 210047-8 3.12 3.78
Seal
058 443159-4 4.45 5.38
Gearbox cover DUH501
059 140B62-9 29.79 36.05
Bolt M4x8mm DUH
060 265338-2 0.83 1.00
Allen bolt M4x16mm DUH
061 265A29-1 0.83 1.00
Metric screw M5x12mm
062 915211-3 0.83 1.00
Spacer Bushing 600 DUH602
063 458628-2 12.22 14.79
Washer 5 DUH Series
064 257465-9 0.83 1.00
Washer 6
065 253804-1 0.83 1.00
Base Plate DUH Series
066 458907-8 10.50 12.70
Allen bolt M4x25mm DUH
068 265698-2 0.83 1.00
Allen bolt M4x16mm DUH
069 265A29-1 0.83 1.00
