Here you will find all available parts and drawings of the 'Makita DUH551'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

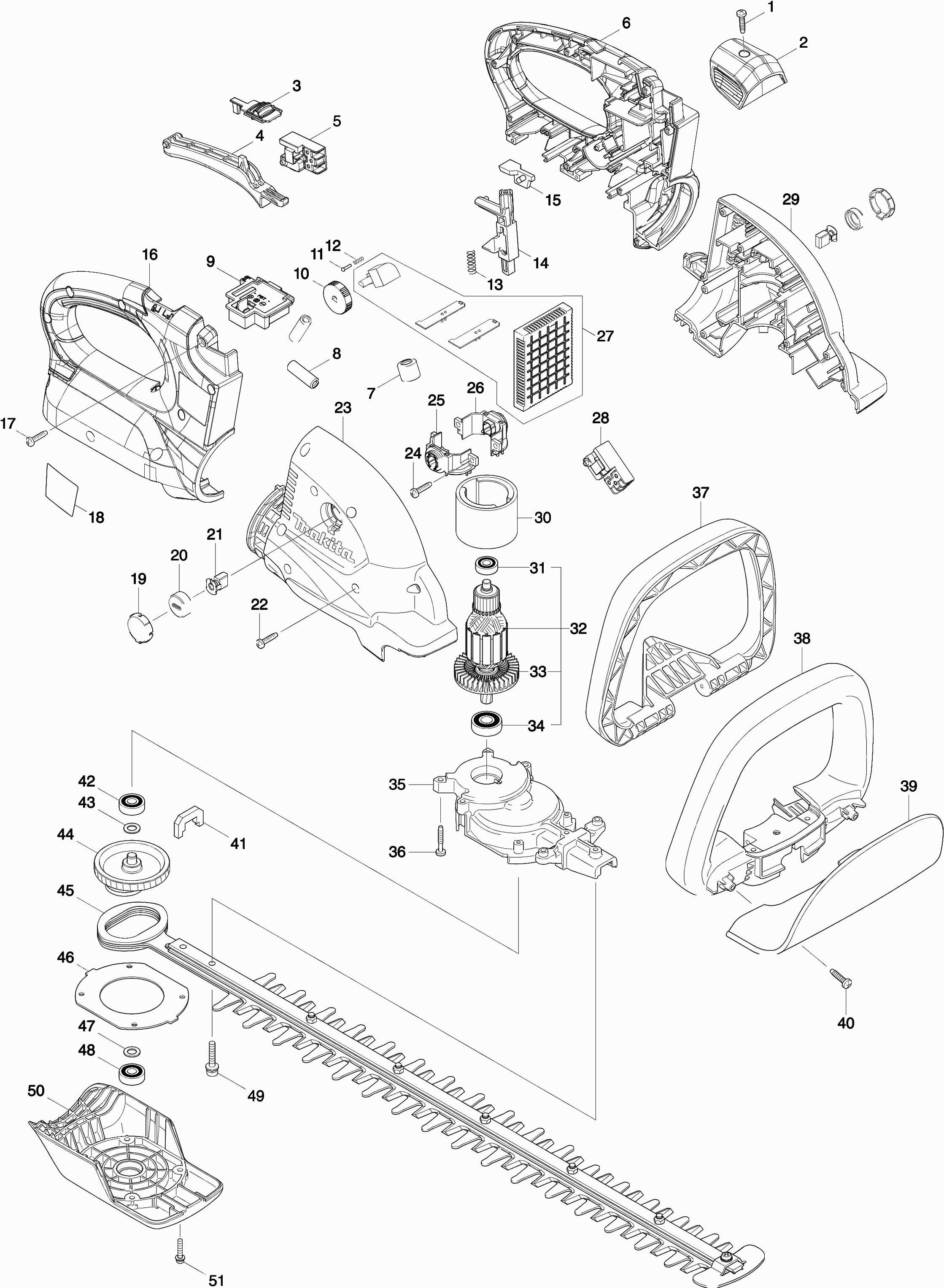

Technical drawing of model Makita DUH551
Spare parts list of model Makita DUH551
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tap screw 4x18 | ||||
| 001 | 265A48-7 | 0.83 | 1.00 | |
| Knob | ||||
| 002 | 452164-0 | 7.22 | 8.74 | |
| Unlock handle | ||||
| 003 | 455093-6 | 2.71 | 3.28 | |
| Switch handle | ||||
| 004 | 455091-0 | 4.45 | 5.38 | |
| Switch | ||||
| 005 | 650730-9 | 11.82 | 14.30 | |
| Housing | ||||
| 006 | 187879-7 | 38.72 | 46.85 | |
| Rubber pen 6 | ||||
| 006A | 263005-3 | 0.83 | 1.00 | |
| Label "indication" | ||||
| 006B | 803N80-7 | 2.71 | 3.28 | |
| Line filter | ||||
| 007 | 688163-8 | 0.83 | 1.00 | |
| Line filter | ||||
| 008 | 688165-4 | 0.83 | 1.00 | |
| Connection unit (3 contacts) | ||||
| 009 | 644808-8 | 3.54 | 4.28 | |
| Knob 28 | ||||
| 010 | 271427-3 | 1.18 | 1.43 | |
| Rivet 2 | ||||
| 011 | 255058-6 | 0.83 | 1.00 | |
| Compression Spring 3 | ||||
| 012 | 233002-3 | 0.83 | 1.00 | |
| Compression Spring 6x29mm | ||||
| 013 | 233117-6 | 0.83 | 1.00 | |
| Deblock handle | ||||
| 014 | 452162-4 | 4.45 | 5.38 | |
| Tappet | ||||
| 015 | 455092-8 | 2.71 | 3.28 | |
| Housing | ||||
| 016 | 187879-7 | 38.72 | 46.85 | |
| Rubber pen 6 | ||||
| 016A | 263005-3 | 0.83 | 1.00 | |
| Label "indication" | ||||
| 016B | 803N80-7 | 2.71 | 3.28 | |
| Tap screw 4x18 | ||||
| 017 | 265A48-7 | 0.83 | 1.00 | |
| Label "duh551" | ||||
| 018 | 815P92-0 | 2.71 | 3.28 | |
| Brush cover | ||||
| 019 | 452145-4 | 1.67 | 2.02 | |
| Brush holder cap | ||||
| 020 | 643941-3 | 2.36 | 2.86 | |
| Koolborstel Set Cb-442 A | ||||
| 021 | 195023-2 | 3.54 | 4.28 | |
| Tap screw 4x18 | ||||
| 022 | 265A48-7 | 0.83 | 1.00 | |
| Motor Housing | ||||
| 023 | 187878-9 | 30.69 | 37.13 | |
| Rubber Pin 4 | ||||
| 023A | 263025-7 | 0.83 | 1.00 | |
| Tap screw 4x18 | ||||
| 024 | 265A48-7 | 0.83 | 1.00 | |
| Carbon Brush holder R | ||||
| 025 | 644511-1 | 3.54 | 4.28 | |
| Carbon Brush holder L | ||||
| 026 | 644512-9 | 3.97 | 4.80 | |
| Speed control circuit | ||||
| 027 | 620274-3 | 92.95 | 112.47 | |
| Switch | ||||
| 028 | 650730-9 | 11.82 | 14.30 | |
| Motor Housing | ||||
| 029 | 187878-9 | 30.69 | 37.13 | |
| Rubber Pin 4 | ||||
| 029A | 263025-7 | 0.83 | 1.00 | |
| Magnet holder | ||||
| 030 | 638020-0 | 17.38 | 21.03 | |
| Ball bearing 607llb | ||||
| 031 | 211021-9 | 4.45 | 5.38 | |
| Armature | ||||
| 032 | 519261-6 | 54.30 | 65.70 | |
| Impeller 55mm | ||||
| 033 | 240045-8 | 2.02 | 2.44 | |
| Ball bearing 6000rd | ||||
| 034 | 211062-5 | 4.45 | 5.38 | |
| Gear housing set | ||||
| 035 | 140604-7 | 40.56 | 49.08 | |
| Rubber Pin 4 | ||||
| 035A | 263002-9 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 036 | 265999-8 | |||
| Switch handle B | ||||
| 037 | 452160-8 | 12.22 | 14.79 | |
| Handle | ||||
| 038 | 452158-5 | 10.99 | 13.30 | |
| Hand protection | ||||
| 039 | 452147-0 | 8.21 | 9.93 | |
| Tap screw 4x18 | ||||
| 040 | 265A48-7 | 0.83 | 1.00 | |
| Dust Guide | ||||
| 041 | 443142-1 | 0.83 | 1.00 | |
| Ball Bearing 608Zz A | ||||
| 042 | 210046-0 | 0.83 | 1.00 | |
| Washer 8 x 14 x 1mm | ||||
| 043 | 253835-0 | 0.83 | 1.00 | |
| Complete Gear | ||||
| 044 | 140536-8 | 87.86 | 106.31 | |
| No information available, not orderable | ||||
| 045A | 194671-4 | |||
| Hex lock nut 5x8 | ||||
| 045AC10 | 252103-8 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 045B | 126416-2 | |||
| No information available, not orderable | ||||
| 045BC10 | 264013-7 | |||
| Bus 5 | ||||
| 045BC20 | 257717-8 | 1.67 | 2.02 | |
| Bus 5 | ||||
| 045BC20 | 257766-5 | 0.83 | 1.00 | |
| Plate | ||||
| 046 | 346325-1 | 1.75 | 2.12 | |
| Washer 8 x 14 x 1mm | ||||
| 047 | 253835-0 | 0.83 | 1.00 | |
| Ball Bearing 608Zz A | ||||
| 048 | 210046-0 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 049 | 265182-7 | |||
| Cover | ||||
| 050 | 452156-9 | 10.99 | 13.30 | |
| Screw 4x20 | ||||
| 051 | 911138-5 | 0.83 | 1.00 | |
