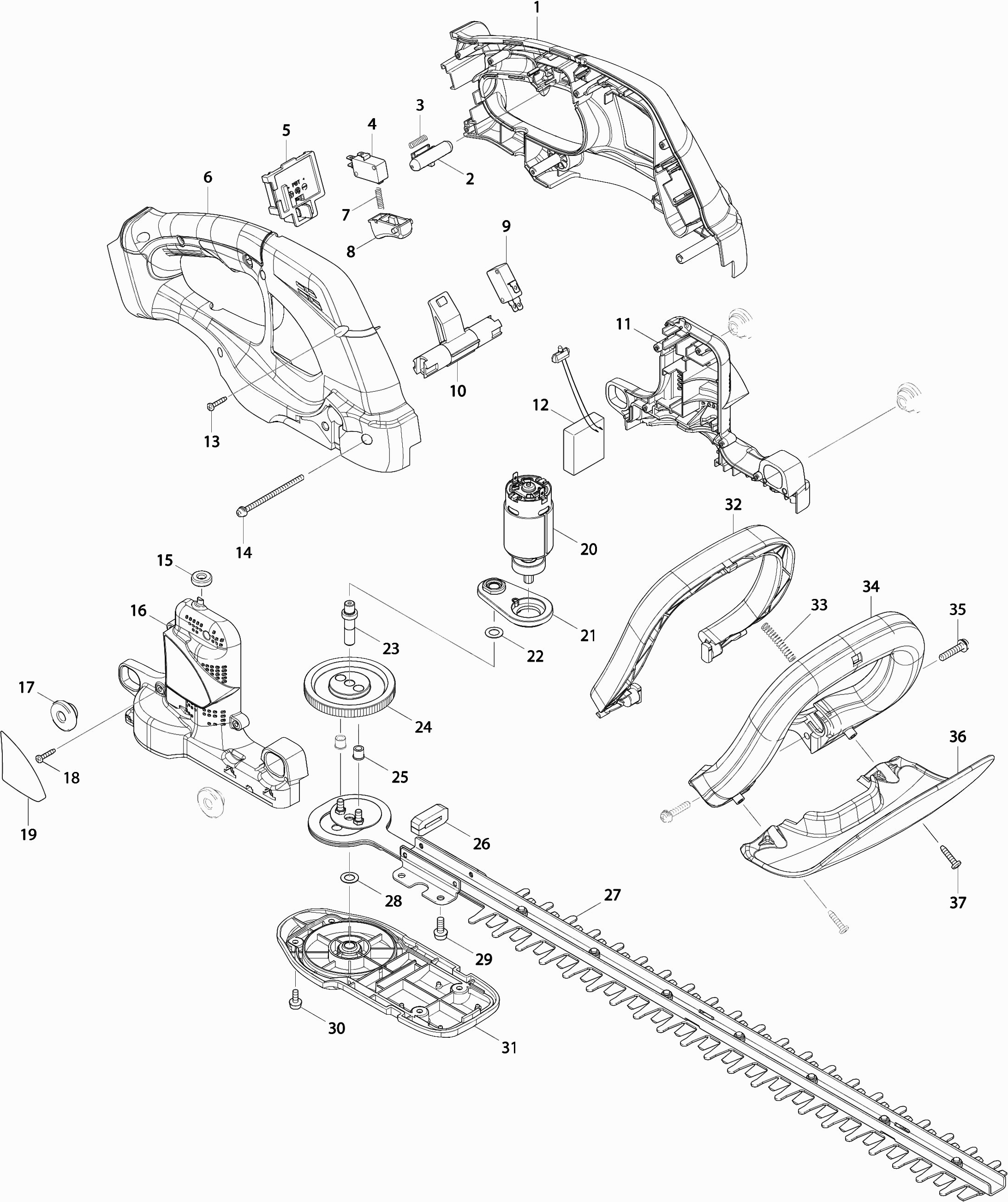

Technical drawing of model Makita DUH521Z
Spare parts list of model Makita DUH521Z
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Set Of Handles | ||||
| 001 | 187284-8 | 16.50 | 19.96 | |
| Lock button Uh200D A | ||||
| 002 | 452438-9 | 1.00 | 1.21 | |
| Compression Spring 4 | ||||
| 003 | 234079-1 | 1.00 | 1.21 | |
| Switch Sw-48 | ||||
| 004 | 651852-8 | 4.80 | 5.81 | |
| Connection unit (3 contacts) | ||||
| 005 | 643854-8 | 3.60 | 4.36 | |
| Set Of Handles | ||||
| 006 | 187284-8 | 16.50 | 19.96 | |
| Compression Spring 4 | ||||
| 007 | 234079-1 | 1.00 | 1.21 | |
| Switch handle | ||||
| 008 | 417564-1 | 1.20 | 1.45 | |
| Switch Sw-48 | ||||
| 009 | 651852-8 | 4.80 | 5.81 | |
| Switching Arm | ||||
| 010 | 452681-0 | 1.20 | 1.45 | |
| Motor Housing | ||||
| 011 | 187285-6 | 11.00 | 13.31 | |
| Speed control circuit | ||||
| 012 | 638970-9 | 33.00 | 39.93 | |
| Line filter | ||||
| 012A | 688161-2 | 1.00 | 1.21 | |
| Tapping Screw 3x16 | ||||
| 013 | 266130-9 | 1.00 | 1.21 | |
| Cross-head screw 4x65mm | ||||
| 014 | 911193-7 | 1.00 | 1.21 | |
| Ring 6mm | ||||
| 015 | 424195-9 | 1.00 | 1.21 | |
| Motor Housing | ||||
| 016 | 187285-6 | 11.00 | 13.31 | |
| Washer 8mm | ||||
| 017 | 424394-3 | 1.20 | 1.45 | |
| Tapping Screw 3x16 | ||||
| 018 | 266130-9 | 1.00 | 1.21 | |
| Nameplate "duh521" | ||||
| 019 | 815W98-0 | 3.60 | 4.36 | |
| Motor 18v | ||||
| 020 | 629928-9 | 27.50 | 33.28 | |
| Bearing Housing | ||||
| 021 | 141211-9 | 3.60 | 4.36 | |
| Washer 8 x 14 x 0.5mm | ||||
| 022 | 253215-0 | 1.00 | 1.21 | |
| As Uh42/48/5261 A | ||||
| 023 | 326034-8 | 2.40 | 2.90 | |
| Gear 93 | ||||
| 024 | 227281-3 | 11.00 | 13.31 | |
| Sliding bearing 5mm | ||||
| 025 | 262570-9 | 1.00 | 1.21 | |
| Dust Guide | ||||
| 026 | 423417-4 | 1.20 | 1.45 | |
| SCHAARMESSENSET 52 CM | ||||
| 027 | 195769-0 | 40.00 | 48.40 | |
| Oil guide set | ||||
| 027A | 188605-7 | 2.40 | 2.90 | |
| Sliding bearing 5mm | ||||
| 027B | 262570-9 | 1.00 | 1.21 | |
| Washer 8 x 14 x 0.5mm | ||||
| 028 | 253215-0 | 1.00 | 1.21 | |
| Metal screw Ph M5x14mm Ck | ||||
| 029 | 266809-2 | 1.00 | 1.21 | |
| Screw 4X10 | ||||
| 030 | 911113-1 | 1.00 | 1.21 | |
| Lower Cover | ||||
| 031 | 453317-4 | 6.00 | 7.26 | |
| Switch Handle | ||||
| 032 | 452678-9 | 3.60 | 4.36 | |
| Compression spring 5mm | ||||
| 033 | 234261-2 | 1.00 | 1.21 | |
| Handle | ||||
| 034 | 452682-8 | 6.00 | 7.26 | |
| Screw 5x25 | ||||
| 035 | 911243-8 | 1.00 | 1.21 | |
| Hand guard | ||||
| 036 | 453316-6 | 7.20 | 8.71 | |
| Tap screw 4x18 | ||||
| 037 | 265A48-7 | 1.00 | 1.21 | |
