Here you will find all available parts and drawings of the 'Makita DUH506'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

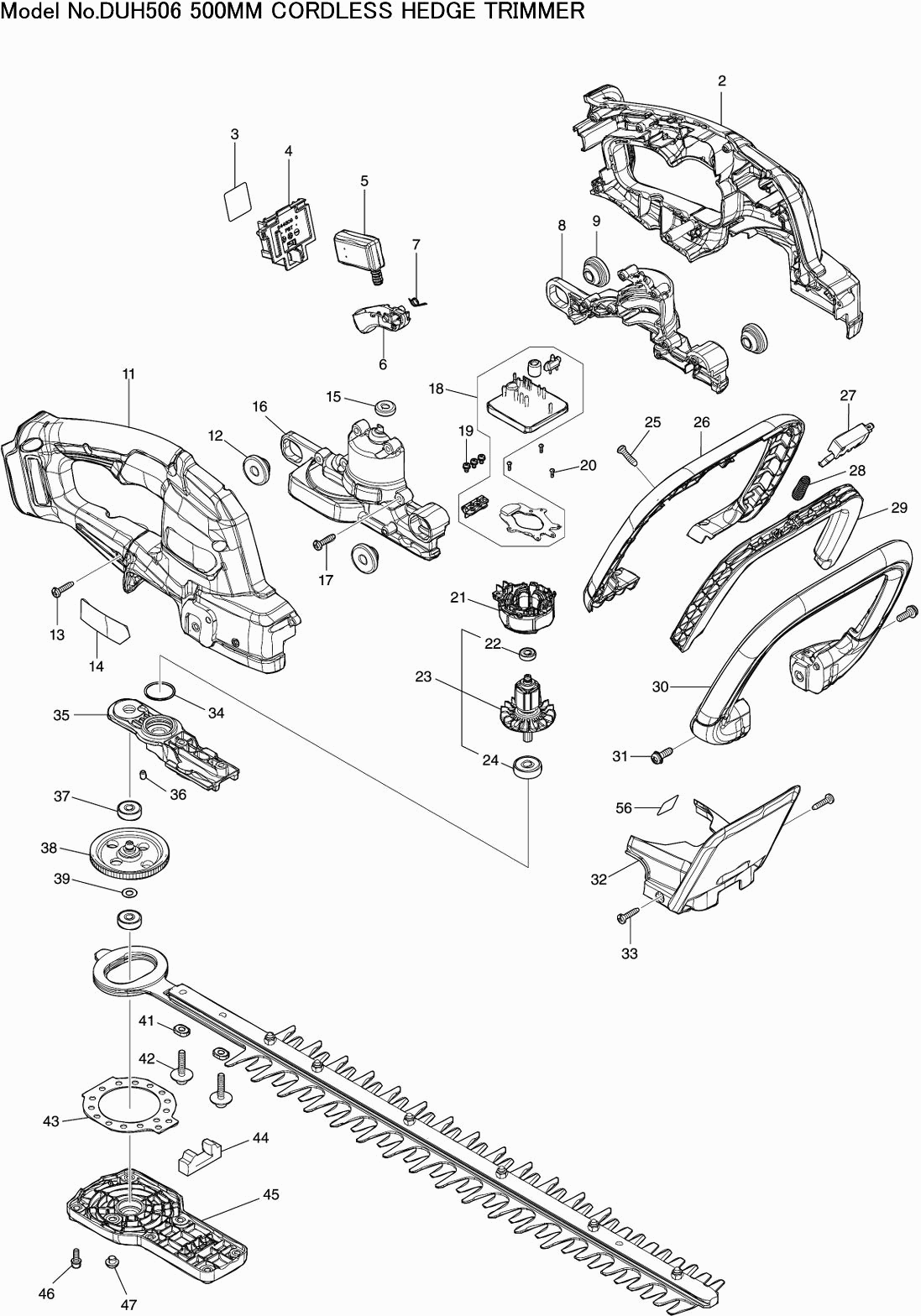

Technical drawing of model Makita DUH506
Spare parts list of model Makita DUH506
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Handgreepset DUH506 | ||||
| 002 | 183V39-1 | 16.56 | 20.04 | |
| Rubber pen 6 | ||||
| 002C10 | 263005-3 | 0.83 | 1.00 | |
| Label serienr. DUH506 | ||||
| 003 | 8580M8-7 | 0.83 | 1.00 | |
| Connection unit (3 contacts) | ||||
| 004 | 644809-6 | 3.96 | 4.79 | |
| Schakelaar C3XA DUH506 | ||||
| 005 | 650033-1 | 18.32 | 22.17 | |
| Schakelknop RE DUH506 | ||||
| 006 | 413J41-1 | 0.83 | 1.00 | |
| Torsieveer 6 DUH506 | ||||
| 007 | 232770-5 | 0.83 | 1.00 | |
| Motorhuisset DUH506 | ||||
| 008 | 183V95-1 | 6.88 | 8.32 | |
| Washer 8mm | ||||
| 009 | 424394-3 | 0.83 | 1.00 | |
| Handgreepset DUH506 | ||||
| 011 | 183V39-1 | 16.56 | 20.04 | |
| Rubber pen 6 | ||||
| 011C10 | 263005-3 | 0.83 | 1.00 | |
| Washer 8mm | ||||
| 012 | 424394-3 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 013 | 266326-2 | |||
| Naamplaat DUH506 | ||||
| 014 | 8580M5-3 | 0.83 | 1.00 | |
| Ring 6mm | ||||
| 015 | 424195-9 | 0.83 | 1.00 | |
| Motorhuisset DUH506 | ||||
| 016 | 183V95-1 | 6.88 | 8.32 | |
| No information available, not orderable | ||||
| 017 | 266326-2 | |||
| Controller DUH506 | ||||
| 018 | 620J54-7 | 64.88 | 78.50 | |
| Phillips Head Screw M3X6 | ||||
| 019 | 652069-6 | 0.83 | 1.00 | |
| Parker Ck 2x6mm | ||||
| 020 | 266490-9 | 0.83 | 1.00 | |
| Veld DUH506 | ||||
| 021 | 629B24-5 | 7.80 | 9.44 | |
| Ball Bearing 695zz | ||||
| 022 | 211157-4 | 1.39 | 1.68 | |
| Motor assy DUH506 | ||||
| 023 | 519764-0 | 18.32 | 22.17 | |
| No information available, not orderable | ||||
| 024 | 210023-2 | |||
| No information available, not orderable | ||||
| 025 | 266326-2 | |||
| Beschermkap E DUH506 | ||||
| 026 | 413J39-8 | 2.98 | 3.61 | |
| Schakelaar D2VW DUH506 | ||||
| 027 | 650034-9 | 7.80 | 9.44 | |
| Compression Spring 6 | ||||
| 028 | 231325-3 | 0.83 | 1.00 | |
| Schakelknop FE DUH506 | ||||
| 029 | 413J40-3 | 2.98 | 3.61 | |
| Voorhandgreep DUH506 | ||||
| 030 | 413J38-0 | 4.82 | 5.83 | |
| No information available, not orderable | ||||
| 031 | 911223-4 | |||
| Beschermkap cpl DUH506 | ||||
| 032 | 141K47-2 | 2.24 | 2.71 | |
| Label waarschuw DUH506 | ||||
| 032C10 | 8059E3-6 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 033 | 266326-2 | |||
| O-ring 22 | ||||
| 034 | 213961-7 | 0.83 | 1.00 | |
| Lagerhuis E DUH506 | ||||
| 035 | 312D09-7 | 5.42 | 6.56 | |
| Rubber Pin 4 | ||||
| 036 | 263002-9 | 0.83 | 1.00 | |
| Ball bearing 626llb | ||||
| 037 | 211016-2 | 5.71 | 6.91 | |
| Tandwiel DUH506 | ||||
| 038 | 141K44-8 | 21.96 | 26.57 | |
| Washer 6 | ||||
| 039 | 253715-0 | 0.83 | 1.00 | |
| Messenset 500MM DUH506Z | ||||
| 040 | 1910H8-2 | 48.00 | 58.08 | |
| Multifunctioneel Vet tube 80g | ||||
| 040C10 | 199450-5 | 7.00 | 8.47 | |
| Afstandhouder DUH506 | ||||
| 040C20 | 313436-7 | 0.83 | 1.00 | |
| Afstandhouder DUH506 | ||||
| 041 | 313436-7 | 0.83 | 1.00 | |
| Allen Bolt M5x255mm DUN500W | ||||
| 042 | 265A89-3 | 0.83 | 1.00 | |
| Plaat DUH506 | ||||
| 043 | 347A10-5 | 1.58 | 1.91 | |
| Stofgeleider DUH506 | ||||
| 044 | 422904-0 | 0.83 | 1.00 | |
| Onderplaat 500E DUH506 | ||||
| 045 | 413J26-7 | 4.82 | 5.83 | |
| Allen bolt m4x12 | ||||
| 046 | 922118-6 | 0.83 | 1.00 | |
| Hex bolt M6x4 | ||||
| 047 | 266559-9 | 2.38 | 2.88 | |
| No information available, not orderable | ||||
| 048 | 264013-7 | |||
| Zwaard 500E | ||||
| 049 | 327981-6 | 10.00 | 12.10 | |
| Plaat 500E DUH506 | ||||
| 050 | 347986-0 | 1.74 | 2.11 | |
| Enkel mes DUH506 | ||||
| 051 | 725299-3 | 16.00 | 19.36 | |
| Ring 5 DUH506 | ||||
| 052 | 257876-8 | 0.83 | 1.00 | |
| Onderplaat DUH506 | ||||
| 053 | 347990-9 | 1.44 | 1.74 | |
| Sluitring 5mm DUH506 | ||||
| 054 | 253571-8 | 0.83 | 1.00 | |
| Met.schroef M5x20mm DUH506 | ||||
| 055 | 265A40-3 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 056 | 802H58-1 | |||
