Here you will find all available parts and drawings of the 'Makita DUC302Z'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

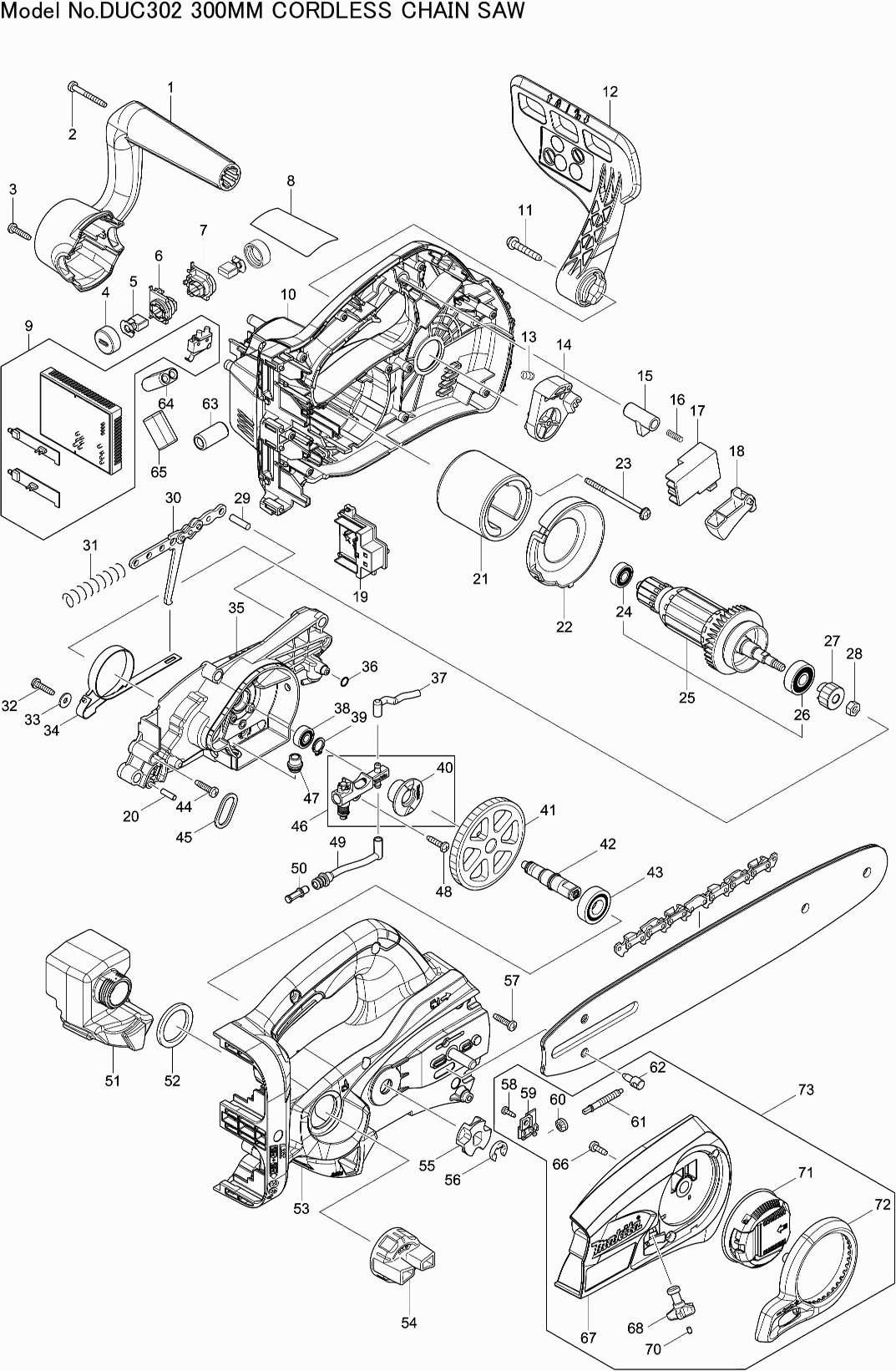

Technical drawing of model Makita DUC302Z
Spare parts list of model Makita DUC302Z
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Handle | ||||
| 001 | 451972-6 | 4.14 | 5.01 | |
| No information available, not orderable | ||||
| 002 | 266053-1 | |||
| Tap screw 4x18 | ||||
| 003 | 265A48-7 | 0.83 | 1.00 | |
| Brush holder cap | ||||
| 004 | 643941-3 | 2.36 | 2.86 | |
| Brush Cap | ||||
| 004-1 | 643829-7 | 0.83 | 1.00 | |
| Koolborstel Set Cb-442 A | ||||
| 005 | 195023-2 | 3.54 | 4.28 | |
| Carbon Brush holder R | ||||
| 006 | 644514-5 | 2.71 | 3.28 | |
| Carbon brush holder R DUC302 | ||||
| 006-1 | 643538-8 | 2.38 | 2.88 | |
| Carbon Brush holder L | ||||
| 007 | 644513-7 | 2.71 | 3.28 | |
| Carbon brush holder L DUC302 | ||||
| 007-1 | 643537-0 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 008 | 815R34-6 | |||
| Speed control circuit | ||||
| 009 | 620275-1 | 112.06 | 135.59 | |
| Housing | ||||
| 010 | 187882-8 | 92.95 | 112.47 | |
| Rubber pen 6 | ||||
| 010C10 | 263005-3 | 0.83 | 1.00 | |
| Tapping screw Pt 5x30 | ||||
| 011 | 266173-1 | 0.83 | 1.00 | |
| Hand Protection Duc252 A | ||||
| 012 | 142836-2 | 11.82 | 14.30 | |
| Warning Label | ||||
| 012C10 | 804P18-7 | 2.71 | 3.28 | |
| Compression Spring 6 | ||||
| 013 | 231298-0 | 0.83 | 1.00 | |
| Mounting plate | ||||
| 014 | 451973-4 | 8.21 | 9.93 | |
| Deadman's Switch | ||||
| 015 | 416178-3 | 0.83 | 1.00 | |
| Compression Spring 4 | ||||
| 016 | 233173-6 | 0.83 | 1.00 | |
| Switch | ||||
| 017 | 650730-9 | 11.82 | 14.30 | |
| Switch head | ||||
| 018 | 450212-9 | 3.96 | 4.79 | |
| Connection unit (3 contacts) | ||||
| 019 | 644808-8 | 3.54 | 4.28 | |
| Pen 4 | ||||
| 020 | 256184-4 | 0.83 | 1.00 | |
| Magnet holder AS3625 A | ||||
| 021 | 638571-3 | 11.64 | 14.08 | |
| Spacer plate | ||||
| 022 | 451970-0 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 023 | 266292-3 | |||
| Ball bearing 607Zz A | ||||
| 024 | 211382-7 | 3.20 | 3.87 | |
| Armature | ||||
| 025 | 519268-2 | 48.40 | 58.56 | |
| Ball bearing 629ddw | ||||
| 026 | 211092-6 | 4.45 | 5.38 | |
| Gear 16 | ||||
| 027 | 227252-0 | 21.77 | 26.34 | |
| Nut M6 | ||||
| 028 | 252186-8 | 0.83 | 1.00 | |
| Pen 5 | ||||
| 029 | 256123-4 | 1.39 | 1.68 | |
| Intermediate Plate | ||||
| 030 | 158047-9 | 2.84 | 3.44 | |
| Compression Spring 9 | ||||
| 031 | 233175-2 | 0.83 | 1.00 | |
| Tap screw 4x18 | ||||
| 032 | 265A48-7 | 0.83 | 1.00 | |
| Met. screw 4x18mm DUC355 | ||||
| 032-1 | 265620-9 | 0.83 | 1.00 | |
| 4 Washer | ||||
| 033 | 267195-4 | 0.83 | 1.00 | |
| Brake Band | ||||
| 034 | 168321-7 | 6.38 | 7.72 | |
| Bearing Housing | ||||
| 035 | 142573-8 | 15.05 | 18.21 | |
| Rubber Pin 4 | ||||
| 035C10 | 263002-9 | 0.83 | 1.00 | |
| Oil hose elbow Duc252 | ||||
| 035C20 | 414377-1 | 0.83 | 1.00 | |
| O-ring 6 | ||||
| 036 | 213039-6 | 0.83 | 1.00 | |
| Oil hose | ||||
| 037 | 422058-3 | 2.02 | 2.44 | |
| No information available, not orderable | ||||
| 038 | 210028-2 | |||
| Locking Ring S-10 | ||||
| 039 | 257408-1 | 0.83 | 1.00 | |
| Worm Wheel DUC353 | ||||
| 040 | 221427-3 | 3.29 | 3.98 | |
| Gear 73 | ||||
| 041 | 227251-2 | 9.24 | 11.18 | |
| Spindle Ass'y | ||||
| 042 | 326417-2 | 2.71 | 3.28 | |
| No information available, not orderable | ||||
| 043 | 210109-2 | |||
| Ball Bearing 6001Ddw A | ||||
| 043-1 | 210163-6 | 1.18 | 1.43 | |
| Tap screw 4x18 | ||||
| 044 | 265A48-7 | 0.83 | 1.00 | |
| Hanger | ||||
| 045 | 310593-2 | 1.67 | 2.02 | |
| Oil pump complete | ||||
| 046-1 | 142156-4 | 15.60 | 18.88 | |
| Oil pump complete | ||||
| 046-2 | 142156-4 | 15.60 | 18.88 | |
| Bushing | ||||
| 047 | 424629-2 | 1.18 | 1.43 | |
| Tap screw 4x18 | ||||
| 048 | 265A48-7 | 0.83 | 1.00 | |
| Hose Buc250 A | ||||
| 049 | 422313-3 | 1.26 | 1.52 | |
| Hose Buc250 A | ||||
| 049-1 | 422313-3 | 1.26 | 1.52 | |
| Suction Head DUC355/EA3201S A | ||||
| 050 | 452666-6 | 0.83 | 1.00 | |
| Oil Reservoir | ||||
| 051 | 455121-7 | 11.82 | 14.30 | |
| Sponge rubber | ||||
| 052 | 424326-0 | 0.83 | 1.00 | |
| Housing | ||||
| 053 | 187882-8 | 92.95 | 112.47 | |
| Rubber pen 6 | ||||
| 053C10 | 263005-3 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 054 | 158810-0 | |||
| Tank Cap Cpl As1812Lge A | ||||
| 054-1 | 140L60-3 | 3.54 | 4.28 | |
| Chain drive wheel | ||||
| 055 | 221526-1 | 2.36 | 2.86 | |
| No information available, not orderable | ||||
| 056 | 961014-3 | |||
| Tap screw 4x18 | ||||
| 057 | 265A48-7 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 058 | 266020-6 | |||
| Covering hood | ||||
| 059 | 454818-5 | 0.83 | 1.00 | |
| Gear 14 | ||||
| 060 | 227496-2 | 3.96 | 4.79 | |
| Adjusting Screw | ||||
| 061 | 326372-8 | 0.83 | 1.00 | |
| Adjustment Pin | ||||
| 062 | 326310-0 | 0.98 | 1.19 | |
| Line filter | ||||
| 063 | 688161-2 | 0.83 | 1.00 | |
| Line filter | ||||
| 064 | 688172-7 | 0.83 | 1.00 | |
| Line filter | ||||
| 065 | 688172-7 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 066 | 266020-6 | |||
| No information available, not orderable | ||||
| 067 | 142571-2 | |||
| Drive Shaft | ||||
| 068 | 142665-3 | 3.54 | 4.28 | |
| Rubber Pin 4 | ||||
| 070 | 263002-9 | 0.83 | 1.00 | |
| Quick Release Toggle | ||||
| 071 | 142235-8 | 5.71 | 6.91 | |
| Cover Ring | ||||
| 072 | 454819-3 | 1.20 | 1.45 | |
| Shield for sword | ||||
| 073 | 196779-0 | 33.36 | 40.37 | |
| Suction Head DUC355/EA3201S A | ||||
| 075 | 452666-6 | 0.83 | 1.00 | |
