Here you will find all available parts and drawings of the 'Makita DUB363'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

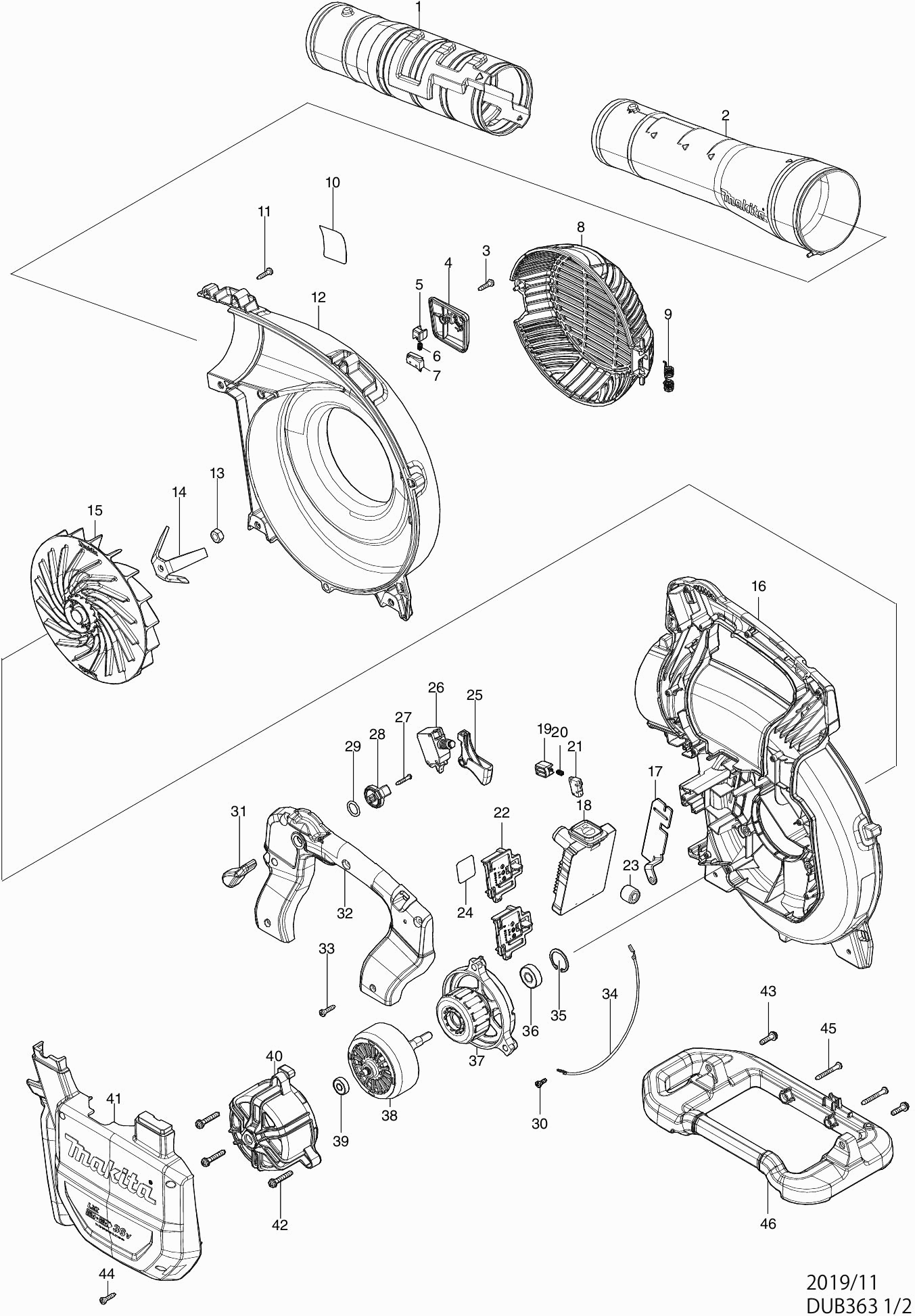

Technical drawing of model Makita DUB363
Spare parts list of model Makita DUB363
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Blow tube 72 set DUB363 A | ||||
| 001 | 183R01-2 | 6.00 | 7.26 | |
| Middle pipe set DUB363 A | ||||
| 002 | 183R06-2 | 11.00 | 13.31 | |
| Hex Socket Screw M5x38mm | ||||
| 002C10 | 265A67-3 | 2.40 | 2.90 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 003 | 265B67-9 | 1.00 | 1.21 | |
| Switch cap DUB363 | ||||
| 004 | 459790-6 | 1.20 | 1.45 | |
| Pushbutton A DUB363 | ||||
| 005 | 459793-0 | 1.00 | 1.21 | |
| Compression Spring 4 | ||||
| 006 | 233118-4 | 1.00 | 1.21 | |
| Switch DTR180 | ||||
| 007 | 632L94-5 | 11.00 | 13.31 | |
| Fan cover DUB363 | ||||
| 008 | 127424-6 | 8.40 | 10.16 | |
| Hex Socket Screw M5x32mm | ||||
| 008C10 | 265A66-5 | 2.40 | 2.90 | |
| Torsion Spring 8mm DUB363 | ||||
| 009 | 232600-0 | 1.00 | 1.21 | |
| Nameplate DUB363 | ||||
| 010 | 856S45-8 | 3.60 | 4.36 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 011 | 265B67-9 | 1.00 | 1.21 | |
| Fan Housing R DUB363 | ||||
| 012 | 459784-1 | 19.80 | 23.96 | |
| Hex nut 8x13 | ||||
| 013 | 252154-1 | 1.20 | 1.45 | |
| Chopping Axis DUB363 | ||||
| 014 | 347570-1 | 4.80 | 5.81 | |
| Fan DUB363 | ||||
| 015 | 240204-4 | 17.60 | 21.30 | |
| No information available, not orderable | ||||
| 016 | 140S59-0 | |||
| Warning Label DUB363 A | ||||
| 016C10 | 8011Y4-4 | 2.40 | 2.90 | |
| Base Plate DUB363 | ||||
| 017 | 347718-5 | 1.20 | 1.45 | |
| Controller DUB363 | ||||
| 018 | 140S58-2 | 132.00 | 159.72 | |
| Switch label DUB363 | ||||
| 018C10 | 8007N9-0 | 2.40 | 2.90 | |
| Pushbutton B DUB363 | ||||
| 019 | 459794-8 | 1.00 | 1.21 | |
| Compression Spring 4 | ||||
| 020 | 233118-4 | 1.00 | 1.21 | |
| Switch DTR180 | ||||
| 021 | 632L94-5 | 11.00 | 13.31 | |
| Connection unit (3 contacts) | ||||
| 022 | 644809-6 | 4.80 | 5.81 | |
| Line filter | ||||
| 023 | 688163-8 | 1.20 | 1.45 | |
| Serial number label DUB362 | ||||
| 024 | 856S53-9 | 2.40 | 2.90 | |
| Switch button DUB363 | ||||
| 025 | 459791-4 | 1.00 | 1.21 | |
| Switch C3JW-6B-pan DUB363 | ||||
| 026 | 651438-8 | 19.80 | 23.96 | |
| Tap Screw Pt 3x20 | ||||
| 027 | 266127-8 | 1.00 | 1.21 | |
| Lever DUB184 | ||||
| 028 | 459698-4 | 1.00 | 1.21 | |
| O-ring 14 | ||||
| 029 | 213154-6 | 1.00 | 1.21 | |
| Screw 3.5X7 | ||||
| 030 | 652008-6 | 1.00 | 1.21 | |
| Control pin DUB363 | ||||
| 031 | 459792-2 | 1.20 | 1.45 | |
| Handle L DUB363 | ||||
| 032 | 459788-3 | 16.50 | 19.96 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 033 | 265B67-9 | 1.00 | 1.21 | |
| Wire harness DUB363 | ||||
| 034 | 632P80-0 | 1.20 | 1.45 | |
| Lock ring R-26 A | ||||
| 035 | 962105-3 | 1.00 | 1.21 | |
| Ball bearing 6000ddw | ||||
| 036 | 211289-7 | 13.20 | 15.97 | |
| Field DUB363 | ||||
| 037 | 629473-4 | 46.20 | 55.90 | |
| Armature DUB363 | ||||
| 038 | 619609-3 | 88.00 | 106.48 | |
| Ball bearing 607llb | ||||
| 039 | 211021-9 | 4.80 | 5.81 | |
| Motor Housing DUB363 | ||||
| 040 | 459789-1 | 6.00 | 7.26 | |
| Motor Hood DUB363 | ||||
| 041 | 140N74-4 | 13.20 | 15.97 | |
| Rubber pen 6 | ||||
| 041C10 | 263005-3 | 1.00 | 1.21 | |
| Screw 5x30 | ||||
| 042 | 911253-5 | 1.00 | 1.21 | |
| Screw Vk 20mm | ||||
| 043 | 911233-1 | 1.00 | 1.21 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 044 | 265B67-9 | 1.00 | 1.21 | |
| Screw 4x35 | ||||
| 045 | 266351-3 | 1.00 | 1.21 | |
| Side Handle DUB363 | ||||
| 046 | 459787-5 | 14.30 | 17.30 | |
| Suction tube B DUB363 | ||||
| 047 | 459800-9 | 7.22 | 8.74 | |
| Suction tube A set 183R05-4 A | ||||
| 048 | 183R05-4 | 14.30 | 17.30 | |
| Hex Socket Screw M5x32mm | ||||
| 048C10 | 265A66-5 | 2.40 | 2.90 | |
| Elbow pipe DUB363 | ||||
| 049 | 127502-2 | 16.50 | 19.96 | |
| Hex Socket Screw M5x38mm | ||||
| 049C10 | 265A67-3 | 2.40 | 2.90 | |
| BLADVANGZAK DUB363 | ||||
| 050 | 162988-3 | 14.00 | 16.94 | |
| DRAAGRIEM BLADBLAZER/-ZUIGER | ||||
| 051 | 162698-2 | 3.00 | 3.63 | |
