Here you will find all available parts and drawings of the 'Makita DUB362'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

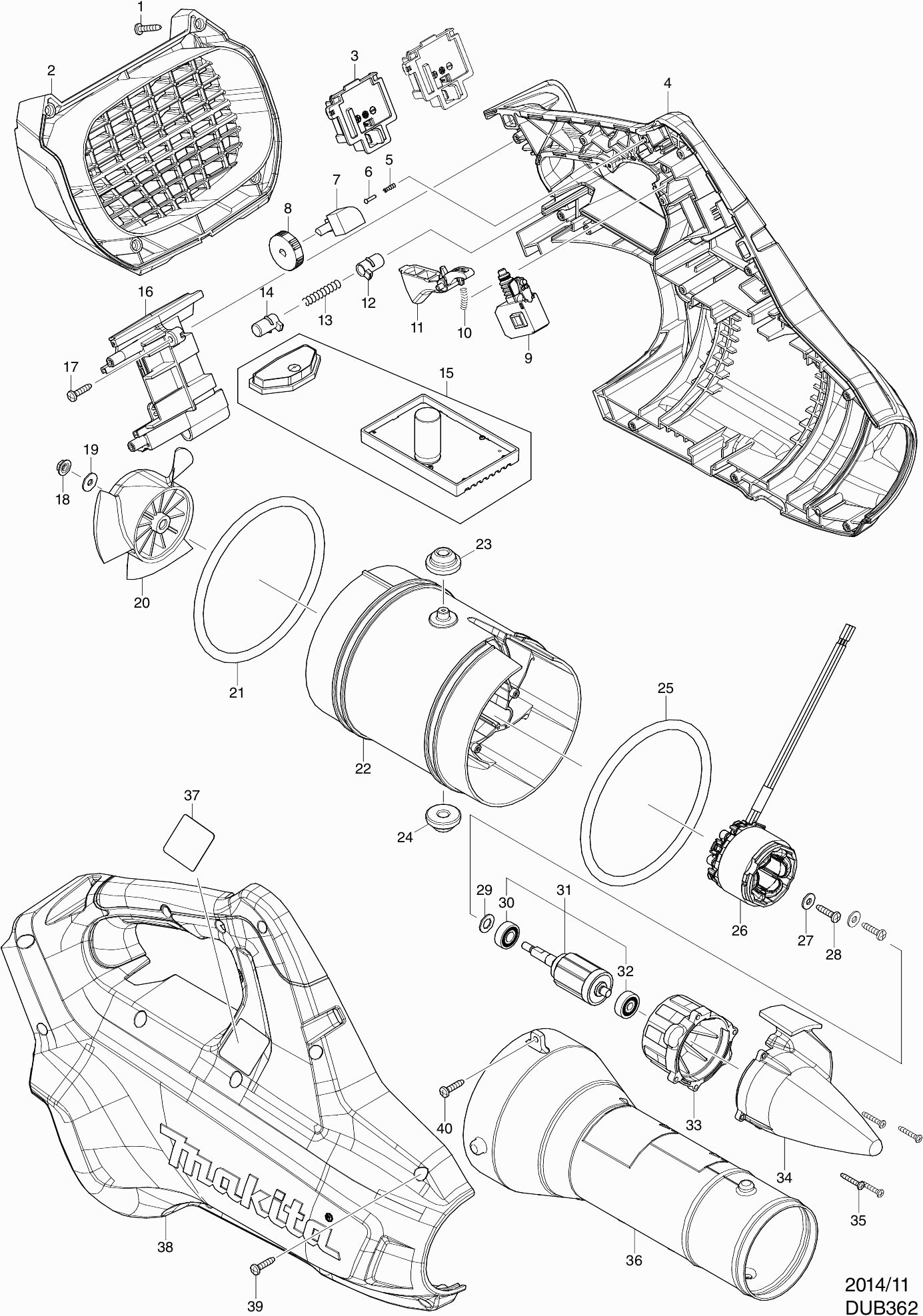

Technical drawing of model Makita DUB362
Spare parts list of model Makita DUB362
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| TAPSCHR 4X18MM DGA520 A | ||||
| 001 | 265B67-9 | 1.00 | 1.21 | |
| Tail Cover | ||||
| 002 | 455912-6 | 8.40 | 10.16 | |
| Connection unit (3 contacts) | ||||
| 003 | 644808-8 | 3.60 | 4.36 | |
| Motor Housing | ||||
| 004 | 183A81-6 | 59.40 | 71.87 | |
| Rubber pen 6 | ||||
| 004A | 263005-3 | 1.00 | 1.21 | |
| Warning Label DUB363 A | ||||
| 004B | 8011Y4-4 | 2.40 | 2.90 | |
| Rubber pen 6 | ||||
| 004C10 | 263005-3 | 1.00 | 1.21 | |
| Warning Label DUB363 A | ||||
| 004C20 | 8011Y4-4 | 2.40 | 2.90 | |
| Compression Spring 3 | ||||
| 005 | 233002-3 | 1.00 | 1.21 | |
| Rivet 2 | ||||
| 006 | 255058-6 | 1.00 | 1.21 | |
| Speed Controller | ||||
| 007 | 620415-1 | 11.00 | 13.31 | |
| Knob 28 | ||||
| 008 | 271427-3 | 1.20 | 1.45 | |
| Switch c3jw-1p | ||||
| 009 | 650709-0 | 14.30 | 17.30 | |
| Compression Spring 4 | ||||
| 010 | 233101-1 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 011 | 455913-4 | |||
| No information available, not orderable | ||||
| 011A | 455913-4 | |||
| No information available, not orderable | ||||
| 011B | 4132P0-9 | |||
| No information available, not orderable | ||||
| 011C | 4132P0-9 | |||
| Rotary knob ABB OHYS2AJ | ||||
| 012 | 418881-2 | 1.00 | 1.21 | |
| Compression Spring 5 | ||||
| 013 | 233092-6 | 1.00 | 1.21 | |
| Rotary knob ABB OHYS2AJ | ||||
| 014 | 418881-2 | 1.00 | 1.21 | |
| Covering hood | ||||
| 015 | 143166-4 | 184.64 | 223.41 | |
| CONTROLLER DUB362 A | ||||
| 015-1 | 141N60-8 | 121.00 | 146.41 | |
| Centering housing | ||||
| 016 | 143146-0 | 7.20 | 8.71 | |
| Rubber pen 6 | ||||
| 016A | 263005-3 | 1.00 | 1.21 | |
| Rubber pen 6 | ||||
| 016C10 | 263005-3 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 017 | 265B67-9 | 1.00 | 1.21 | |
| Hex lock nut 5x8 | ||||
| 018 | 252103-8 | 1.20 | 1.45 | |
| Nut M5X8mm DUB184 | ||||
| 018 | 252286-4 | 1.00 | 1.21 | |
| Lock washer 5 | ||||
| 019 | 253194-2 | 1.00 | 1.21 | |
| Fan 110mm Dub362 A | ||||
| 020 | 240177-1 | 11.00 | 13.31 | |
| Gasket ring 115mm | ||||
| 021 | 424721-4 | 4.80 | 5.81 | |
| Motor Housing | ||||
| 022 | 455907-9 | 15.40 | 18.63 | |
| Rubber ring 8mm | ||||
| 023 | 424194-1 | 1.20 | 1.45 | |
| Rubber ring 8mm | ||||
| 024 | 424194-1 | 1.20 | 1.45 | |
| Gasket ring 115mm | ||||
| 025 | 424721-4 | 4.80 | 5.81 | |
| Field coil | ||||
| 026 | 629153-2 | 58.30 | 70.54 | |
| No information available, not orderable | ||||
| 026-1 | 629B73-2 | |||
| Field coil | ||||
| 026A | 629153-2 | 58.30 | 70.54 | |
| No information available, not orderable | ||||
| 026B | 629B73-2 | |||
| Lock washer 5 | ||||
| 027 | 253184-5 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 028 | 265B67-9 | 1.00 | 1.21 | |
| Washer 8 x 14 x 1mm | ||||
| 029 | 253835-0 | 1.00 | 1.21 | |
| Ball Bearing | ||||
| 030 | 210040-2 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 031 | 519444-8 | |||
| Ball bearing 626zz | ||||
| 032 | 210143-2 | 3.60 | 4.36 | |
| Motor Hood | ||||
| 033 | 455908-7 | 4.80 | 5.81 | |
| Baffle | ||||
| 034 | 455909-5 | 8.40 | 10.16 | |
| Screw 3x20mm | ||||
| 035 | 265935-4 | 1.00 | 1.21 | |
| Blowpipe | ||||
| 036 | 455914-2 | 11.00 | 13.31 | |
| Nameplate Dub362 | ||||
| 037 | 850U44-4 | 3.60 | 4.36 | |
| Motor Housing | ||||
| 038 | 183A81-6 | 59.40 | 71.87 | |
| Rubber pen 6 | ||||
| 038A | 263005-3 | 1.00 | 1.21 | |
| Warning Label DUB363 A | ||||
| 038B | 8011Y4-4 | 2.40 | 2.90 | |
| Rubber pen 6 | ||||
| 038C10 | 263005-3 | 1.00 | 1.21 | |
| Warning Label DUB363 A | ||||
| 038C20 | 8011Y4-4 | 2.40 | 2.90 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 039 | 265B67-9 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 040 | 266300-0 | 1.00 | 1.21 | |
