Here you will find all available parts and drawings of the 'Makita DUB361'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

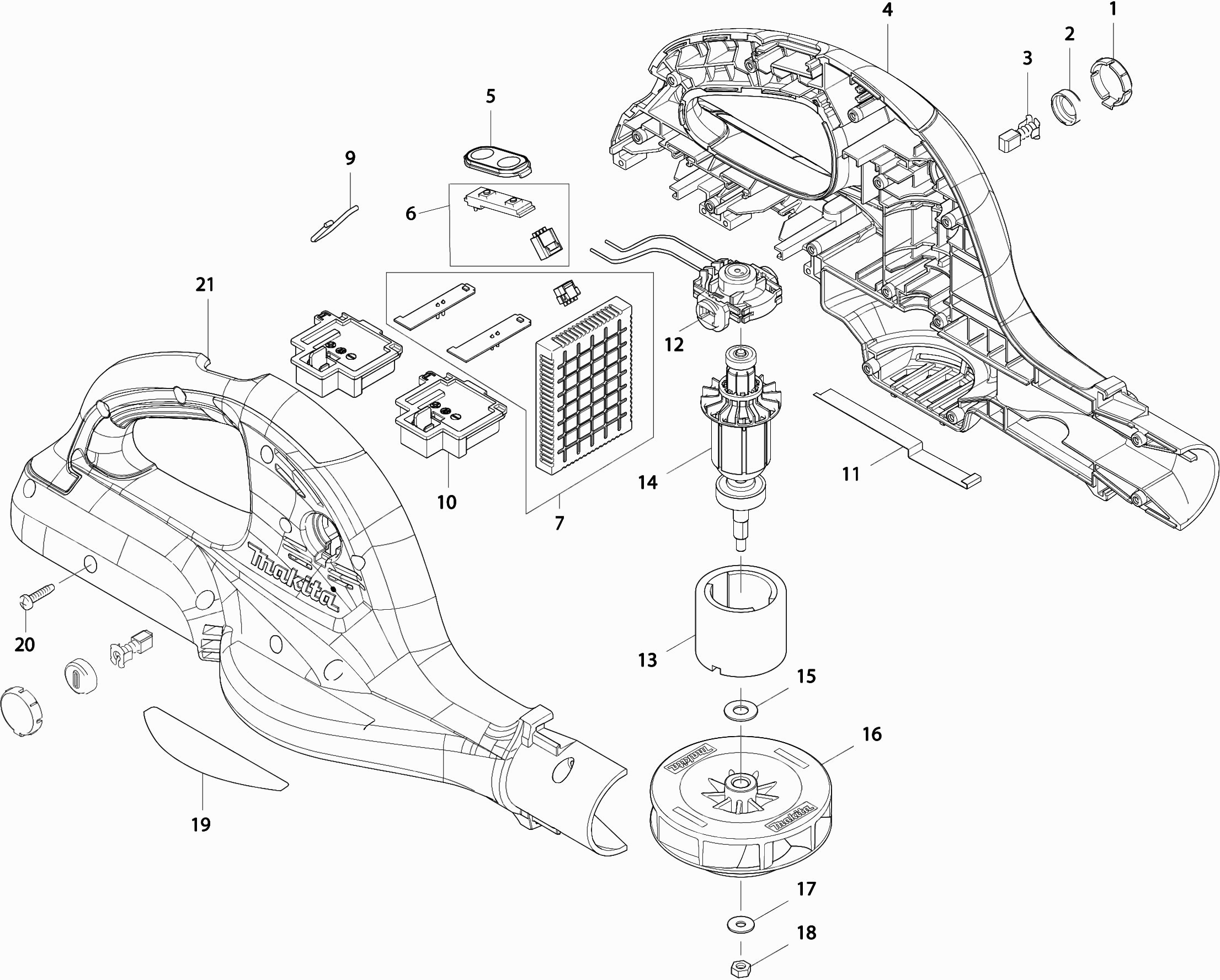

Technical drawing of model Makita DUB361
Spare parts list of model Makita DUB361
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Brush cover | ||||
| 001 | 452145-4 | 2.40 | 2.90 | |
| Brush Cap | ||||
| 002 | 643929-3 | 1.00 | 1.21 | |
| Carbon brush set Cb-430 | ||||
| 003 | 191971-3 | 3.60 | 4.36 | |
| Motor housing Dub361 | ||||
| 004 | 187850-1 | 59.40 | 71.87 | |
| Rubber pen 6 | ||||
| 004A | 263005-3 | 1.00 | 1.21 | |
| Warning Label | ||||
| 004B | 891050-4 | 2.40 | 2.90 | |
| Switch Slider Bub360 | ||||
| 005 | 140463-9 | 3.60 | 4.36 | |
| Switch Dub361 | ||||
| 006 | 620282-4 | 8.40 | 10.16 | |
| Speed control circuit Dub360 | ||||
| 007 | 620276-9 | 86.90 | 105.15 | |
| Hanger Bub360 | ||||
| 009 | 325973-9 | 2.40 | 2.90 | |
| Connection unit (3 contacts) | ||||
| 010 | 644808-8 | 3.60 | 4.36 | |
| Ground Plate | ||||
| 011 | 346328-5 | 2.40 | 2.90 | |
| Brush Holder | ||||
| 012 | 632B93-7 | 3.60 | 4.36 | |
| Magnet holder | ||||
| 013 | 638420-4 | 26.40 | 31.94 | |
| Armature | ||||
| 014 | 619260-9 | 33.00 | 39.93 | |
| Washer 8 | ||||
| 015 | 253865-1 | 1.20 | 1.45 | |
| Fan 95 BUB360 | ||||
| 016 | 240124-2 | 11.00 | 13.31 | |
| Lock washer 5 | ||||
| 017 | 253194-2 | 1.00 | 1.21 | |
| Flange Nut M5-8 Bub360 | ||||
| 018 | 252177-9 | 1.00 | 1.21 | |
| Nameplate "dub361" | ||||
| 019 | 815N43-1 | 3.60 | 4.36 | |
| Tap screw 4x18 | ||||
| 020 | 265A48-7 | 1.00 | 1.21 | |
| Motor housing Dub361 | ||||
| 021 | 187850-1 | 59.40 | 71.87 | |
| Rubber pen 6 | ||||
| 021A | 263005-3 | 1.00 | 1.21 | |
| Warning Label | ||||
| 021B | 891050-4 | 2.40 | 2.90 | |
