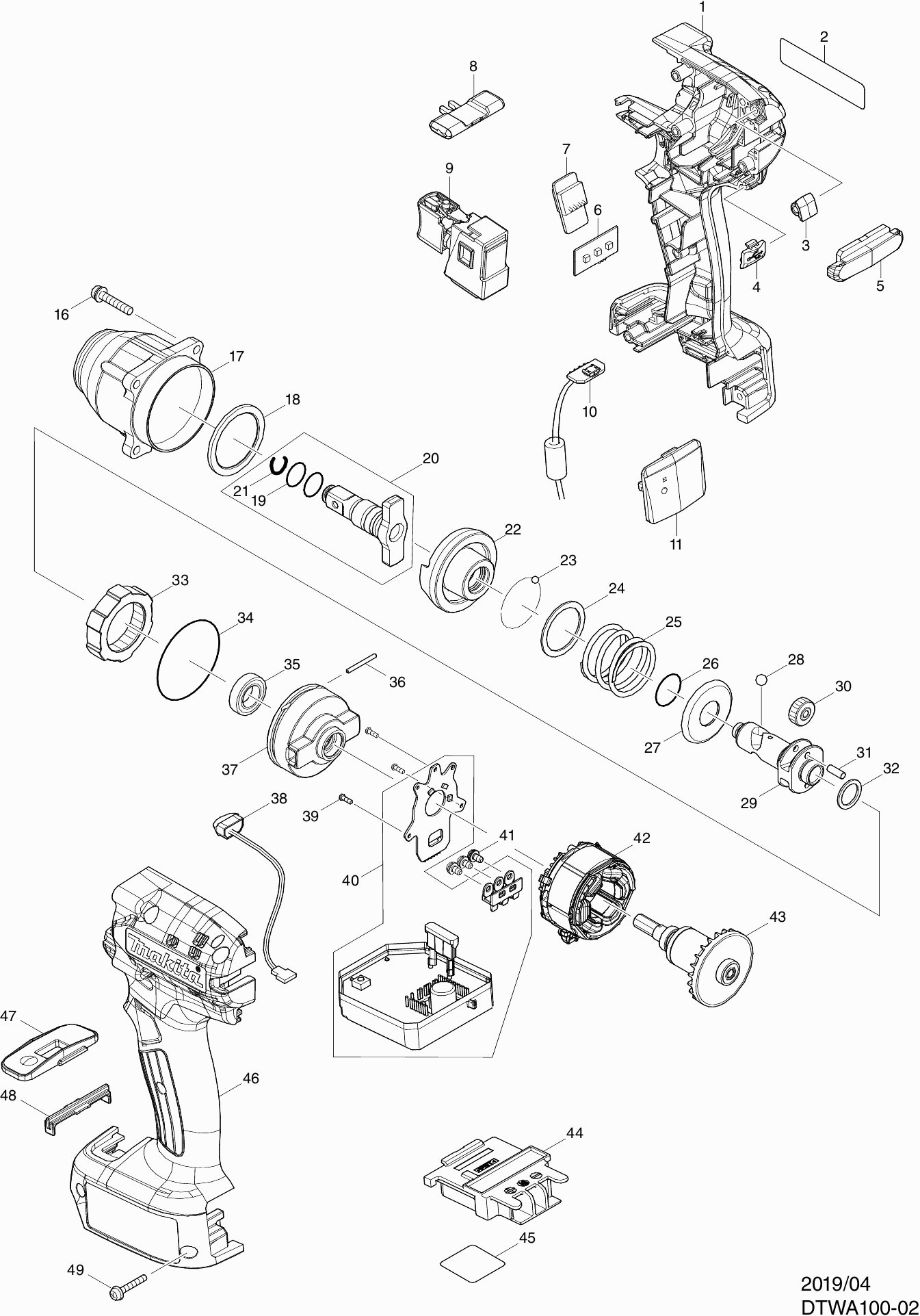

Technical drawing of model Makita DTWA100
Spare parts list of model Makita DTWA100
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 001 | 183P03-6 | |||
| Rubber pen 6 | ||||
| 001C10 | 263005-3 | 0.83 | 1.00 | |
| Hexagonal nut M3 | ||||
| 001C20 | 931002-4 | 0.83 | 1.00 | |
| Nameplate DTWA100 | ||||
| 002 | 855U90-2 | 0.83 | 1.00 | |
| Cover cap red | ||||
| 003 | 459416-0 | 3.54 | 4.28 | |
| USB cover cap | ||||
| 004 | 144709-5 | 2.71 | 3.28 | |
| Lens | ||||
| 005 | 457484-7 | 2.02 | 2.44 | |
| Light circuit DTD040 | ||||
| 006 | 620A98-3 | 9.24 | 11.18 | |
| Buzzer circuit DTDA series | ||||
| 007 | 620A97-5 | 8.21 | 9.93 | |
| Rotary knob ABB OHYS2AJ | ||||
| 008 | 455053-8 | 0.83 | 1.00 | |
| Complete switch DTDA140 | ||||
| 009 | 140L08-5 | 33.36 | 40.37 | |
| Switch cap DTDA series | ||||
| 009C10 | 422465-0 | 5.06 | 6.12 | |
| USB circuit DTDA series | ||||
| 010 | 620A99-1 | 11.82 | 14.30 | |
| Cover cap STM 1800 | ||||
| 011 | 459402-1 | 8.21 | 9.93 | |
| Screw 4x22 | ||||
| 016 | 265145-3 | 0.83 | 1.00 | |
| Impact housing B DTWA100 | ||||
| 017 | 140L06-9 | 38.75 | 46.89 | |
| Ball bearing 68/14LLU DTDA series | ||||
| 017C10 | 210177-5 | 5.06 | 6.12 | |
| O-ring 24 | ||||
| 017C20 | 213380-7 | 0.83 | 1.00 | |
| 18mm DTDA series washer | ||||
| 017C30 | 267063-1 | 0.83 | 1.00 | |
| Seeger Ring R24 | ||||
| 017C40 | 962113-4 | 0.83 | 1.00 | |
| Nylon washer 30mm DTD171 | ||||
| 018 | 261160-5 | 0.83 | 1.00 | |
| O-ring 12 | ||||
| 019 | 213118-0 | 0.83 | 1.00 | |
| Anvil E 9.5 DTW070 | ||||
| 020 | 136118-2 | 169.36 | 204.93 | |
| Spring Washer 7 | ||||
| 021 | 231964-9 | 1.20 | 1.45 | |
| Strike Piece C DTWA100 | ||||
| 022 | 327344-6 | 41.77 | 50.54 | |
| Steel ball 3.5 | ||||
| 023 | 216040-0 | 0.83 | 1.00 | |
| Flat Washer 24 | ||||
| 024 | 267175-0 | 0.83 | 1.00 | |
| Compression Spring 25 D DTWA100 | ||||
| 025 | 232527-4 | 23.06 | 27.90 | |
| O-ring 14mm | ||||
| 026 | 213541-9 | 0.83 | 1.00 | |
| Washer 14 | ||||
| 027 | 267851-6 | 1.18 | 1.43 | |
| Steel ball 5.6 | ||||
| 028 | 216041-8 | 0.83 | 1.00 | |
| Axis B DTDA100 | ||||
| 029 | 327355-1 | 118.43 | 143.30 | |
| Gear 16 DTWA/DTDA-series | ||||
| 030 | 226896-3 | 3.44 | 4.16 | |
| Pen 3.5 | ||||
| 031 | 256173-9 | 0.83 | 1.00 | |
| Washer 12 | ||||
| 032 | 267104-3 | 0.83 | 1.00 | |
| Gear 39 DTDA-series | ||||
| 033 | 226895-5 | 5.06 | 6.12 | |
| O-ring 42 | ||||
| 034 | 213561-3 | 0.83 | 1.00 | |
| Ball Bearing 6801llb | ||||
| 035 | 210112-3 | 5.06 | 6.12 | |
| Pin 2mm DTDA-series | ||||
| 036 | 256555-5 | 0.83 | 1.00 | |
| Gearbox DTDA series | ||||
| 037 | 459400-5 | 5.70 | 6.90 | |
| LED Circuit | ||||
| 038 | 620521-2 | 5.71 | 6.91 | |
| Parker Ck 2x6mm | ||||
| 039 | 266490-9 | 0.83 | 1.00 | |
| Controller DTWA100 | ||||
| 040 | 620A33-1 | 175.85 | 212.78 | |
| Phillips Head Screw M3X6 | ||||
| 041 | 652069-6 | 0.83 | 1.00 | |
| Field DTDA100 | ||||
| 042 | 629418-2 | 12.19 | 14.75 | |
| Motor DTWA100 | ||||
| 043 | 619574-6 | 68.13 | 82.44 | |
| Connection unit (3 contacts) | ||||
| 044 | 643850-6 | 4.45 | 5.38 | |
| Serial number label DTWA100 | ||||
| 045 | 855U95-2 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 046 | 183P03-6 | |||
| Rubber pen 6 | ||||
| 046C10 | 263005-3 | 0.83 | 1.00 | |
| Hexagonal nut M3 | ||||
| 046C20 | 931002-4 | 0.83 | 1.00 | |
| Red Indicator Plate DTDA100 | ||||
| 047 | 140L11-6 | 9.24 | 11.18 | |
| Indicator label red DTDA100 | ||||
| 047C10 | 819J54-4 | 5.06 | 6.12 | |
| Stopper DTDA series | ||||
| 048 | 459424-1 | 2.36 | 2.86 | |
| Screw M30x20 | ||||
| 049 | 251581-9 | 0.83 | 1.00 | |
