Here you will find all available parts and drawings of the 'Makita DTW700'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

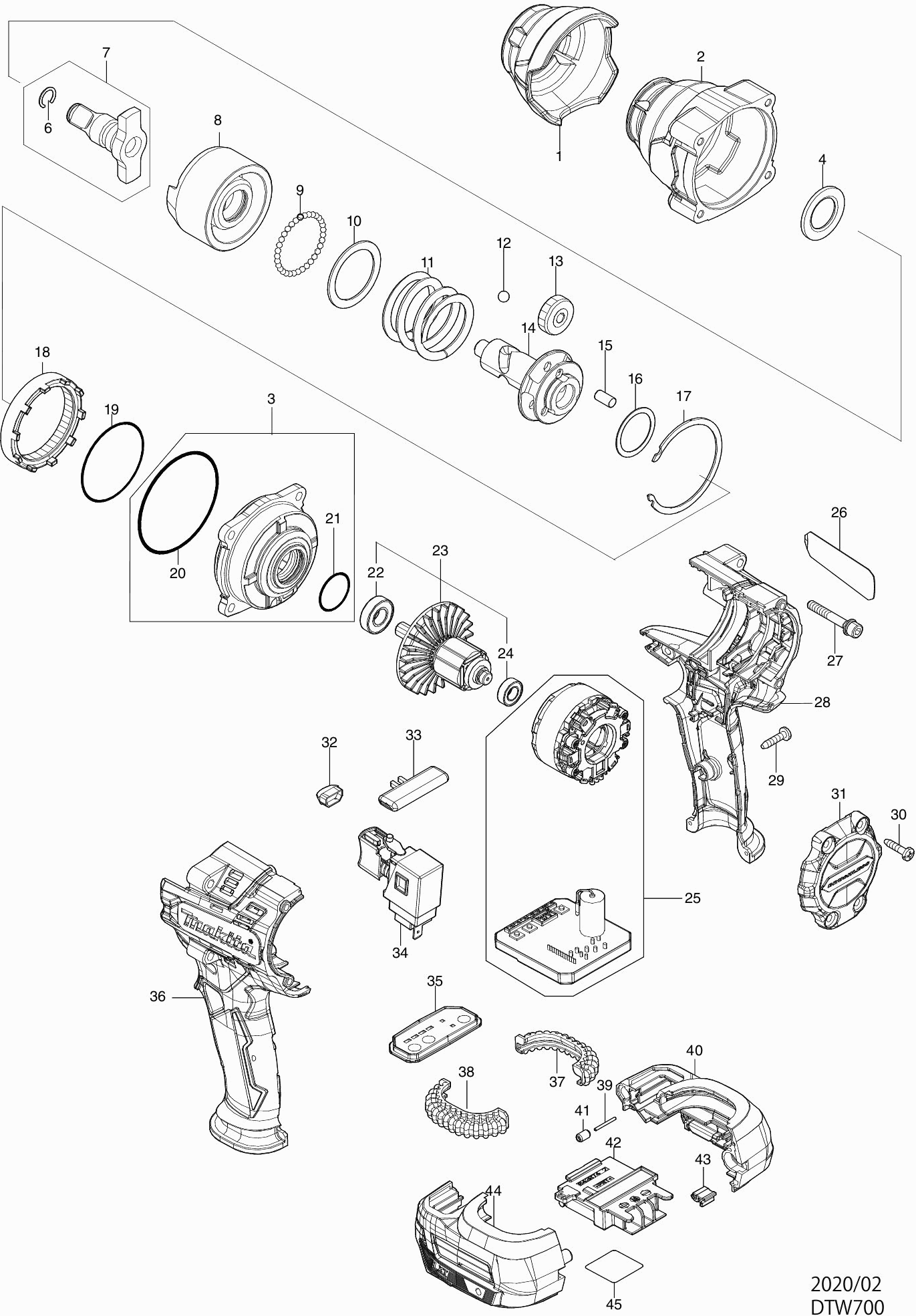

Technical drawing of model Makita DTW700
Spare parts list of model Makita DTW700
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Bump cap DTW700/701 | ||||
| 001 | 422607-6 | 1.18 | 1.43 | |
| Impact housing DTW700/01 | ||||
| 002 | 141U35-9 | 17.38 | 21.03 | |
| Gear DTW700/01 | ||||
| 003 | 136296-8 | 11.82 | 14.30 | |
| Washer 20 DTW700/01 | ||||
| 004 | 253481-9 | 0.83 | 1.00 | |
| Lock washer 10 | ||||
| 006 | 231907-1 | 0.83 | 1.00 | |
| Anvil DTW700 | ||||
| 007 | 136256-0 | 72.58 | 87.82 | |
| Striking Piece DTW700/01 | ||||
| 008 | 327624-0 | 25.36 | 30.69 | |
| No information available, not orderable | ||||
| 009 | 216001-0 | |||
| Washer 32 | ||||
| 010 | 267340-1 | 1.18 | 1.43 | |
| Compression Spring 34 DTW700/01 | ||||
| 011 | 232629-6 | 4.45 | 5.38 | |
| Steel ball 6.4 | ||||
| 012 | 216007-8 | 0.83 | 1.00 | |
| Gear 21 DTW700/01 | ||||
| 013 | 227813-6 | 2.02 | 2.44 | |
| Shaft DTW700/01 | ||||
| 014 | 327623-2 | 12.22 | 14.79 | |
| Pin 6mm DTW701 | ||||
| 015 | 256211-7 | 0.83 | 1.00 | |
| Rivet 25mm | ||||
| 016 | 267494-4 | 0.83 | 1.00 | |
| Lock Ring DTW700/01 | ||||
| 017 | 347722-4 | 3.96 | 4.79 | |
| Gear 48 DTW700/01 | ||||
| 018 | 227814-4 | 3.96 | 4.79 | |
| O-ring 48 | ||||
| 019 | 213624-5 | 0.83 | 1.00 | |
| O-ring 60 | ||||
| 020 | 213654-6 | 1.39 | 1.68 | |
| O-ring 22 | ||||
| 021 | 213961-7 | 0.83 | 1.00 | |
| Ball Bearing 6900Ddw DUX60 A | ||||
| 022 | 210258-5 | 4.60 | 5.57 | |
| Armature DTW700/01 | ||||
| 023 | 519635-1 | 21.74 | 26.31 | |
| Ball Bearing 688ZZ DTW701 | ||||
| 024 | 211343-7 | 1.67 | 2.02 | |
| Field | ||||
| 025 | 629A06-1 | 99.33 | 120.19 | |
| Nameplate DTW700 | ||||
| 026 | 857M03-1 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 027 | 251476-6 | |||
| Inbusbout M5X35Mm A | ||||
| 027-1 | 265D13-4 | 0.83 | 1.00 | |
| Motor Housing DTW700/01 | ||||
| 028 | 183P88-2 | 12.22 | 14.79 | |
| No information available, not orderable | ||||
| 029 | 266326-2 | |||
| No information available, not orderable | ||||
| 030 | 266326-2 | |||
| Rear cover DTW700/01 | ||||
| 031 | 412673-1 | 2.71 | 3.28 | |
| Light Circuit Dhp483 | ||||
| 032 | 620549-0 | 3.54 | 4.28 | |
| Switch button L/r | ||||
| 033 | 456268-0 | 0.98 | 1.19 | |
| Switch TW001G | ||||
| 034 | 140U03-9 | 28.02 | 33.90 | |
| Switch cap DTW701 | ||||
| 034C10 | 424774-3 | 0.83 | 1.00 | |
| Switch plate DTW700/01 | ||||
| 035 | 140U53-4 | 1.67 | 2.02 | |
| Label A/U DTW301 | ||||
| 035C10 | 8012S9-8 | 1.20 | 1.45 | |
| Motor Housing DTW700/01 | ||||
| 036 | 183P88-2 | 12.22 | 14.79 | |
| Vibration Damper | ||||
| 037 | 422A56-3 | 1.18 | 1.43 | |
| Vibration Damper | ||||
| 038 | 422A56-3 | 1.18 | 1.43 | |
| Pin 1.5 | ||||
| 039 | 268284-8 | 0.83 | 1.00 | |
| Battery Housing DTW700/01 | ||||
| 040 | 183P89-0 | 8.21 | 9.93 | |
| Rubber pen 6 | ||||
| 040C10 | 263005-3 | 0.83 | 1.00 | |
| Lock Nut M4x7mm | ||||
| 040C20 | 252126-6 | 0.83 | 1.00 | |
| Rubber pen 5 | ||||
| 041 | 263036-2 | 1.18 | 1.43 | |
| Connection unit | ||||
| 042 | 643874-2 | 3.54 | 4.28 | |
| Protection AF-DW | ||||
| 043 | 424517-3 | 0.83 | 1.00 | |
| Battery Housing DTW700/01 | ||||
| 044 | 183P89-0 | 8.21 | 9.93 | |
| Rubber pen 6 | ||||
| 044C10 | 263005-3 | 0.83 | 1.00 | |
| Lock Nut M4x7mm | ||||
| 044C20 | 252126-6 | 0.83 | 1.00 | |
| Serial number label DTW700 | ||||
| 045 | 857M11-2 | 0.83 | 1.00 | |
