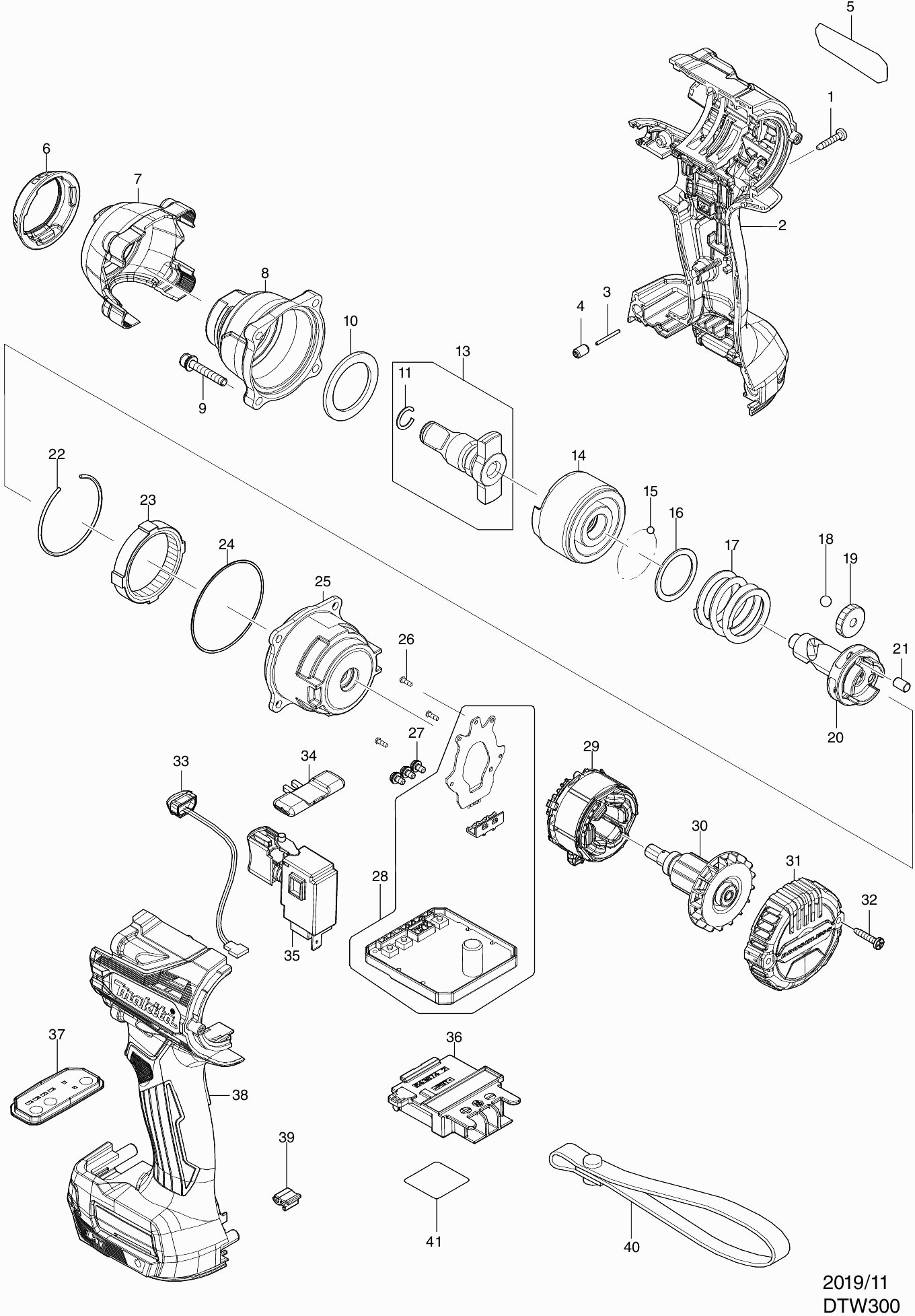

Technical drawing of model Makita DTW300
Spare parts list of model Makita DTW300
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tapping Screw 3x16 | ||||
| 001 | 266130-9 | 1.00 | 1.21 | |
| Motor Housing Set DTW300/301 | ||||
| 002 | 183P27-2 | 14.30 | 17.30 | |
| Rubber pen 6 | ||||
| 002C10 | 263005-3 | 1.00 | 1.21 | |
| Lock Nut M4x7mm | ||||
| 002C20 | 252126-6 | 1.00 | 1.21 | |
| Pin 1.5 | ||||
| 003 | 268284-8 | 1.00 | 1.21 | |
| Rubber pen 5 | ||||
| 004 | 263036-2 | 1.20 | 1.45 | |
| Nameplate DTW300 | ||||
| 005 | 857A18-6 | 3.60 | 4.36 | |
| Shock ring DTW300 | ||||
| 006 | 422584-2 | 2.40 | 2.90 | |
| Impact housing DTW300/301 | ||||
| 007 | 412556-5 | 1.20 | 1.45 | |
| Impact house DTW300/301 | ||||
| 008 | 140T36-8 | 10.50 | 12.70 | |
| IMPACT HOUSING DTW300/301 P | ||||
| 008 | 1410F7-0 | 10.50 | 12.70 | |
| Allen screw M4x25mm DTW301 | ||||
| 009 | 265472-8 | 3.60 | 4.36 | |
| Plastic washer 28 | ||||
| 010 | 261154-0 | 1.00 | 1.21 | |
| Lock washer 10 | ||||
| 011 | 231907-1 | 1.00 | 1.21 | |
| Anvil E DTW300 | ||||
| 013 | 136223-5 | 36.30 | 43.92 | |
| No information available, not orderable | ||||
| 013A | 137253-9 | |||
| No information available, not orderable | ||||
| 013B | 137253-9 | |||
| Strike piece DTW300/301 | ||||
| 014 | 327572-3 | 24.20 | 29.28 | |
| No information available, not orderable | ||||
| 015 | 216001-0 | |||
| Flat Washer 24 | ||||
| 016 | 267175-0 | 1.20 | 1.45 | |
| Compression spring 25 DTW300/301 | ||||
| 017 | 232615-7 | 2.40 | 2.90 | |
| Steel ball 5.6 | ||||
| 018 | 216041-8 | 1.00 | 1.21 | |
| Gear 22 | ||||
| 019 | 227338-0 | 6.00 | 7.26 | |
| Axis DTW300/301 | ||||
| 020 | 327573-1 | 30.80 | 37.27 | |
| Pen 5 | ||||
| 021 | 268311-1 | 1.00 | 1.21 | |
| Lock washer 43 | ||||
| 022 | 233910-8 | 1.00 | 1.21 | |
| Gear 51 | ||||
| 023 | 227337-2 | 3.60 | 4.36 | |
| O-ring 49 | ||||
| 024 | 213785-1 | 1.00 | 1.21 | |
| Gearbox housing DTW300/301 | ||||
| 025 | 140T37-6 | 8.40 | 10.16 | |
| Parker Ck 2x6mm | ||||
| 026 | 266490-9 | 1.00 | 1.21 | |
| Phillips Head Screw M3X6 | ||||
| 027 | 652069-6 | 1.00 | 1.21 | |
| Circuit DTW300/301 | ||||
| 028 | 620C64-2 | 93.50 | 113.14 | |
| Field | ||||
| 029 | 629A98-0 | 8.40 | 10.16 | |
| Armature DTW300/301 | ||||
| 030 | 619626-3 | 17.60 | 21.30 | |
| Back cover DTW300/301 | ||||
| 031 | 412555-7 | 2.40 | 2.90 | |
| Tapping Screw 3x16 | ||||
| 032 | 266130-9 | 1.00 | 1.21 | |
| LED Circuit | ||||
| 033 | 620521-2 | 6.00 | 7.26 | |
| Rotary knob ABB OHYS2AJ | ||||
| 034 | 455053-8 | 1.00 | 1.21 | |
| Switch C3JR-4B DF001G | ||||
| 035 | 651443-5 | 22.00 | 26.62 | |
| Connection unit | ||||
| 036 | 643874-2 | 3.60 | 4.36 | |
| Switch plate DTW300/301 | ||||
| 037 | 140T43-1 | 2.40 | 2.90 | |
| Label A/U DTW301 | ||||
| 037C10 | 8012S9-8 | 2.40 | 2.90 | |
| Motor Housing Set DTW300/301 | ||||
| 038 | 183P27-2 | 14.30 | 17.30 | |
| Rubber pen 6 | ||||
| 038C10 | 263005-3 | 1.00 | 1.21 | |
| Lock Nut M4x7mm | ||||
| 038C20 | 252126-6 | 1.00 | 1.21 | |
| Protection AF-DW | ||||
| 039 | 424517-3 | 1.00 | 1.21 | |
| Serial number label DTW300 | ||||
| 041 | 857A26-7 | 2.40 | 2.90 | |
