Here you will find all available parts and drawings of the 'Makita DTW285'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

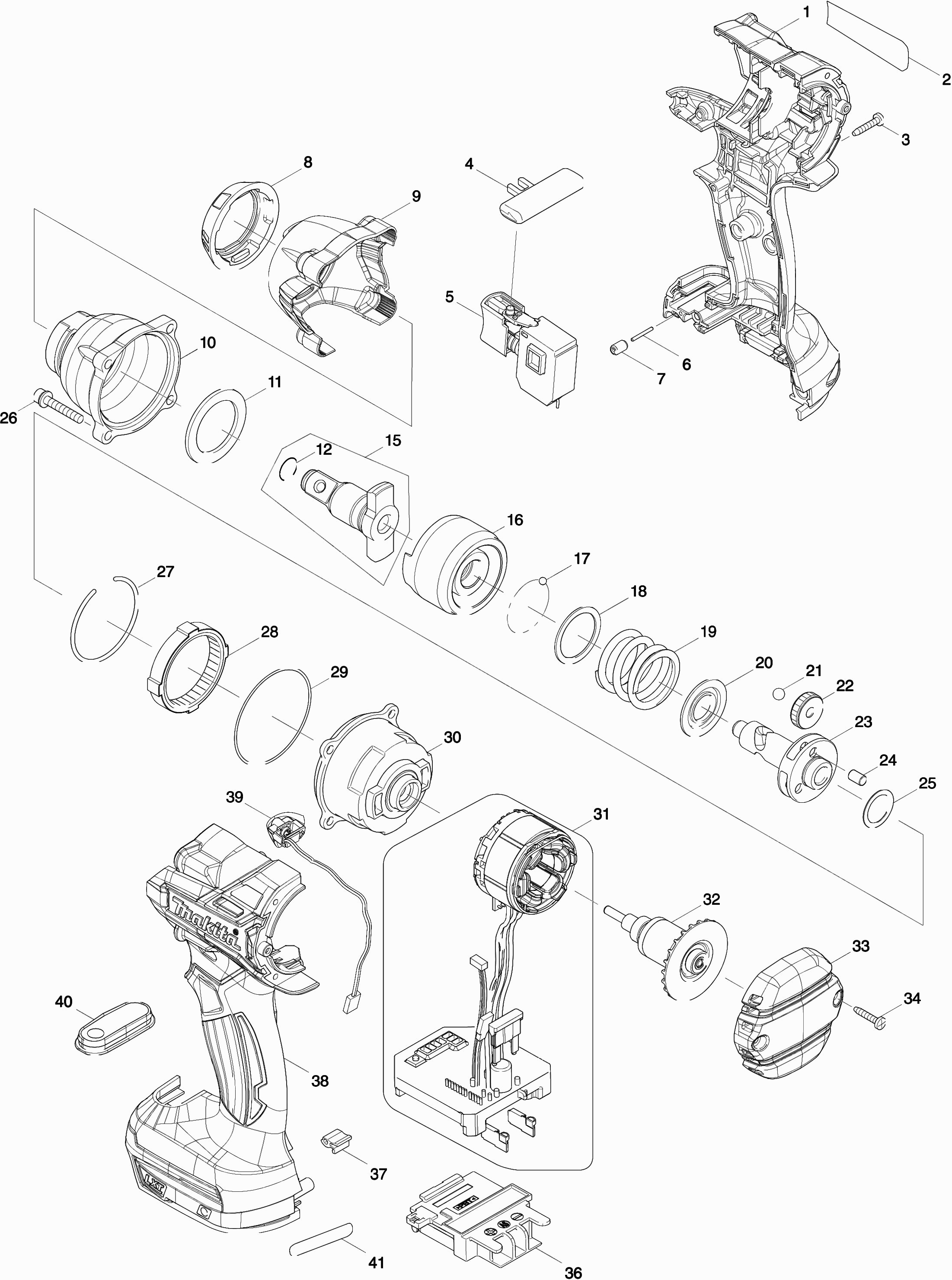

Technical drawing of model Makita DTW285
Spare parts list of model Makita DTW285
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing Set | ||||
| 001 | 183D46-6 | 22.00 | 26.62 | |
| Lock Nut M4x7mm | ||||
| 001A | 252126-6 | 1.00 | 1.21 | |
| Rubber pen 6 | ||||
| 001B | 263005-3 | 1.00 | 1.21 | |
| Label | ||||
| 002 | 852T92-3 | 3.60 | 4.36 | |
| Tapping Screw 3x16 | ||||
| 003 | 266130-9 | 1.00 | 1.21 | |
| L/R Switch Button | ||||
| 004 | 419041-9 | 1.20 | 1.45 | |
| Switch | ||||
| 005 | 650673-5 | 14.30 | 17.30 | |
| Pin 1.5 | ||||
| 006 | 268184-2 | 1.00 | 1.21 | |
| Rubber pen 5 | ||||
| 007 | 263036-2 | 1.20 | 1.45 | |
| Stop ring | ||||
| 008 | 424568-6 | 3.60 | 4.36 | |
| Impact housing cover | ||||
| 009 | 454851-7 | 3.60 | 4.36 | |
| Impact Case Dtw280 A | ||||
| 010 | 140K43-7 | 13.20 | 15.97 | |
| Plastic washer 28 | ||||
| 011 | 261154-0 | 1.00 | 1.21 | |
| Lock washer 10 | ||||
| 012 | 231907-1 | 1.00 | 1.21 | |
| Anvil | ||||
| 015 | 135824-6 | 34.10 | 41.26 | |
| Striker | ||||
| 016 | 326384-1 | 23.10 | 27.95 | |
| Steel ball 3.5 | ||||
| 017 | 216040-0 | 1.00 | 1.21 | |
| Flat Washer 24 | ||||
| 018 | 267175-0 | 1.20 | 1.45 | |
| Compression Spring 25 | ||||
| 019 | 234322-8 | 3.60 | 4.36 | |
| Washer 14 | ||||
| 020 | 267766-7 | 1.00 | 1.21 | |
| Steel ball 5.6 | ||||
| 021 | 216041-8 | 1.00 | 1.21 | |
| Gear 22 | ||||
| 022 | 227338-0 | 6.00 | 7.26 | |
| Spindle Ass'y | ||||
| 023 | 326385-9 | 22.00 | 26.62 | |
| Pen 5 | ||||
| 024 | 268311-1 | 1.00 | 1.21 | |
| Washer 15 | ||||
| 025 | 253147-1 | 1.00 | 1.21 | |
| Hexagon socket screw 4x25 | ||||
| 026 | 922146-1 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 026A | 045083-3A | |||
| Lock washer 43 | ||||
| 027 | 233910-8 | 1.00 | 1.21 | |
| Gear 51 | ||||
| 028 | 227337-2 | 3.60 | 4.36 | |
| O-ring 49 | ||||
| 029 | 213785-1 | 1.00 | 1.21 | |
| Gearcase Sa | ||||
| 030 | 142389-1 | 13.20 | 15.97 | |
| Field | ||||
| 031 | 632J24-4 | 112.20 | 135.76 | |
| Armature | ||||
| 032 | 619341-9 | 56.10 | 67.88 | |
| Tail Cover | ||||
| 033 | 454850-9 | 3.60 | 4.36 | |
| Tapping Screw 3x16 | ||||
| 034 | 266130-9 | 1.00 | 1.21 | |
| Connection unit Bcl182D(3 Cont) A | ||||
| 036 | 643523-1 | 6.00 | 7.26 | |
| Connection unit DTD153 3cont | ||||
| 036 | 643860-3 | 4.80 | 5.81 | |
| Protection AF-DW | ||||
| 037 | 424517-3 | 1.00 | 1.21 | |
| Motor Housing Set | ||||
| 038 | 183D46-6 | 22.00 | 26.62 | |
| Lock Nut M4x7mm | ||||
| 038A | 252126-6 | 1.00 | 1.21 | |
| Rubber pen 6 | ||||
| 038B | 263005-3 | 1.00 | 1.21 | |
| Light circuit | ||||
| 039 | 620295-5 | 7.20 | 8.71 | |
| Shift Plate | ||||
| 040 | 144217-6 | 2.40 | 2.90 | |
