Here you will find all available parts and drawings of the 'Makita DTW1001'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

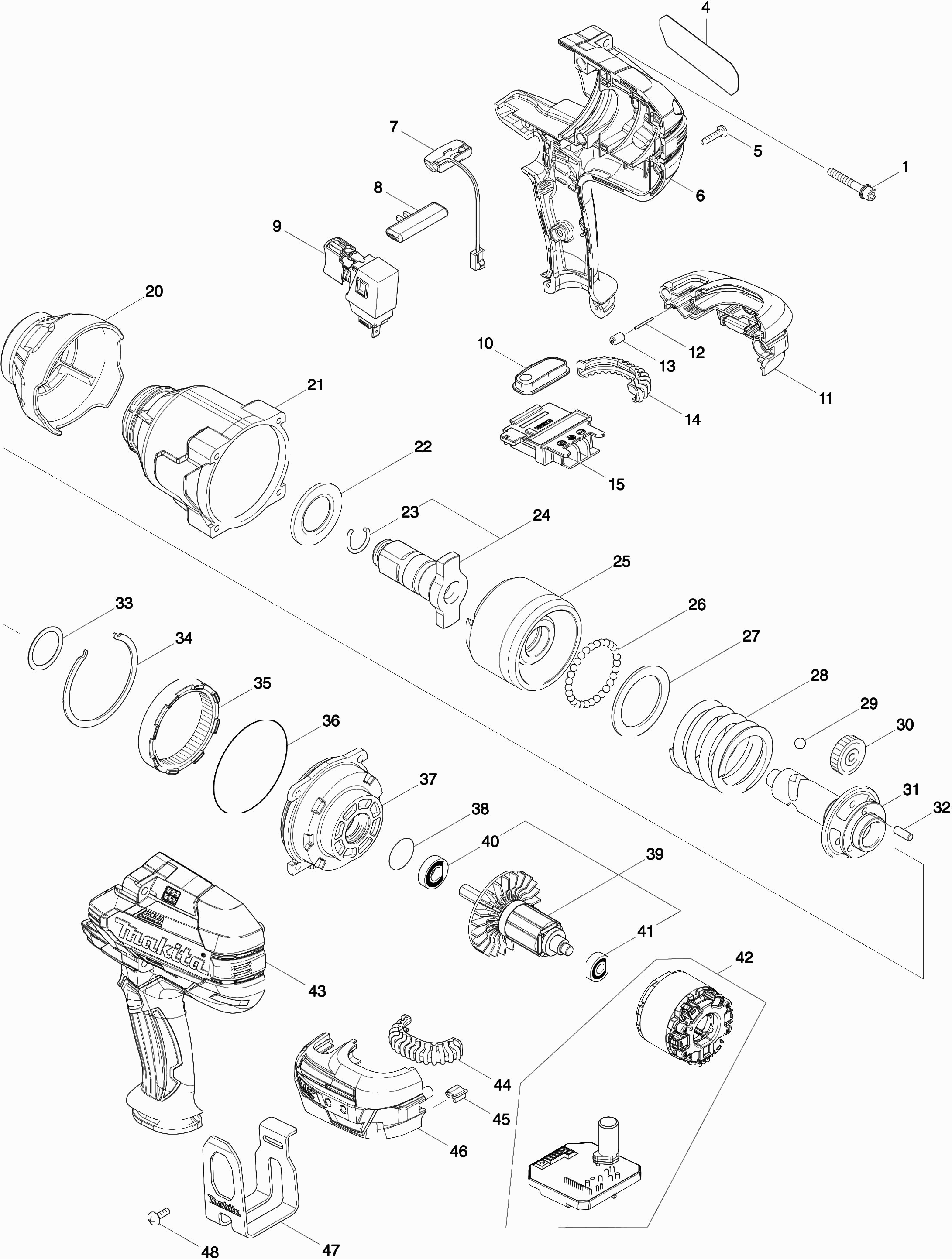

Technical drawing of model Makita DTW1001
Spare parts list of model Makita DTW1001
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 001 | 251476-6 | |||
| INBUSBOUT M5X35MM P | ||||
| 001-1 | 265D13-4 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 001-2 | 265E44-9 | |||
| Nameplate "dtw1001" | ||||
| 004 | 851K74-8 | 3.60 | 4.36 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 005 | 265B67-9 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 006 | 183C08-8 | |||
| Light circuit | ||||
| 007 | 620351-1 | 12.10 | 14.64 | |
| Switch button L/r | ||||
| 008 | 456268-0 | 1.20 | 1.45 | |
| Switch | ||||
| 009 | 143416-7 | 19.80 | 23.96 | |
| Shift Plate | ||||
| 010 | 143417-5 | 3.60 | 4.36 | |
| Battery Housing | ||||
| 011 | 183C12-7 | 13.20 | 15.97 | |
| Rubber pen 6 | ||||
| 011A | 263005-3 | 1.00 | 1.21 | |
| Pin 1.5 | ||||
| 012 | 268284-8 | 1.00 | 1.21 | |
| Rubber pen 5 | ||||
| 013 | 263036-2 | 1.20 | 1.45 | |
| Vibration Damper | ||||
| 014 | 422A56-3 | 1.20 | 1.45 | |
| Connection unit Bcl182D(3 Cont) A | ||||
| 015 | 643523-1 | 6.00 | 7.26 | |
| Bumper | ||||
| 020 | 424978-7 | 3.60 | 4.36 | |
| Hammer Case | ||||
| 021 | 144473-8 | 28.60 | 34.61 | |
| Rivet 25mm | ||||
| 022 | 346948-5 | 2.40 | 2.90 | |
| Retaining ring 16A | ||||
| 023 | 231920-9 | 1.80 | 2.18 | |
| Lock washer 16 A | ||||
| 023 | 232334-5 | 1.20 | 1.45 | |
| Anvil | ||||
| 024 | 135803-4 | 59.40 | 71.87 | |
| Striker | ||||
| 025 | 326612-4 | 68.20 | 82.52 | |
| Steel ball 4.8 | ||||
| 026 | 216002-8 | 1.00 | 1.21 | |
| Rivet 38mm | ||||
| 027 | 267493-6 | 2.40 | 2.90 | |
| Compression Spring 38 | ||||
| 028 | 234383-8 | 8.40 | 10.16 | |
| Steel ball 7.1 | ||||
| 029 | 216009-4 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 030 | 227391-6 | |||
| Spindle Ass'y | ||||
| 031 | 326611-6 | 97.90 | 118.46 | |
| Pin 5 | ||||
| 032 | 268079-9 | 1.00 | 1.21 | |
| Rivet 25mm | ||||
| 033 | 267494-4 | 1.00 | 1.21 | |
| Lock Ring S | ||||
| 034 | 346947-7 | 6.00 | 7.26 | |
| Gear 54 | ||||
| 035 | 227392-4 | 11.00 | 13.31 | |
| O-ring 67 | ||||
| 035 | 213720-9 | 2.40 | 2.90 | |
| O-ring 67 | ||||
| 036 | 213720-9 | 2.40 | 2.90 | |
| Gear Cover | ||||
| 037 | 135718-5 | 28.60 | 34.61 | |
| O-ring 22 | ||||
| 038 | 213961-7 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 039 | 519384-0 | |||
| Ball Bearing 6900Ddw DUX60 A | ||||
| 040 | 210258-5 | 4.80 | 5.81 | |
| Ball bearing 607llb | ||||
| 041 | 211021-9 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 042 | 629330-60 | |||
| No information available, not orderable | ||||
| 042A | 629170-2 | |||
| Field | ||||
| 042B | 629B59-6 | 16.50 | 19.96 | |
| No longer available, no replacement | ||||
| 043 | 183C08-8 | |||
| Vibration Damper | ||||
| 044 | 422A56-3 | 1.20 | 1.45 | |
| Protection AF-DW | ||||
| 045 | 424517-3 | 1.00 | 1.21 | |
| Battery Housing | ||||
| 046 | 183C12-7 | 13.20 | 15.97 | |
| Rubber pen 6 | ||||
| 046A | 263005-3 | 1.00 | 1.21 | |
| Carry Hook | ||||
| 047 | 346949-3 | 2.00 | 2.42 | |
| Screw,M4x12 | ||||
| 048 | 251314-2 | 1.00 | 1.21 | |
| CONTROLLER DTW A | ||||
| 050B | 620K29-2 | 139.70 | 169.04 | |
| MET.SCHR M2X6MM | ||||
| 051B | 652119-7 | 1.00 | 1.21 | |
