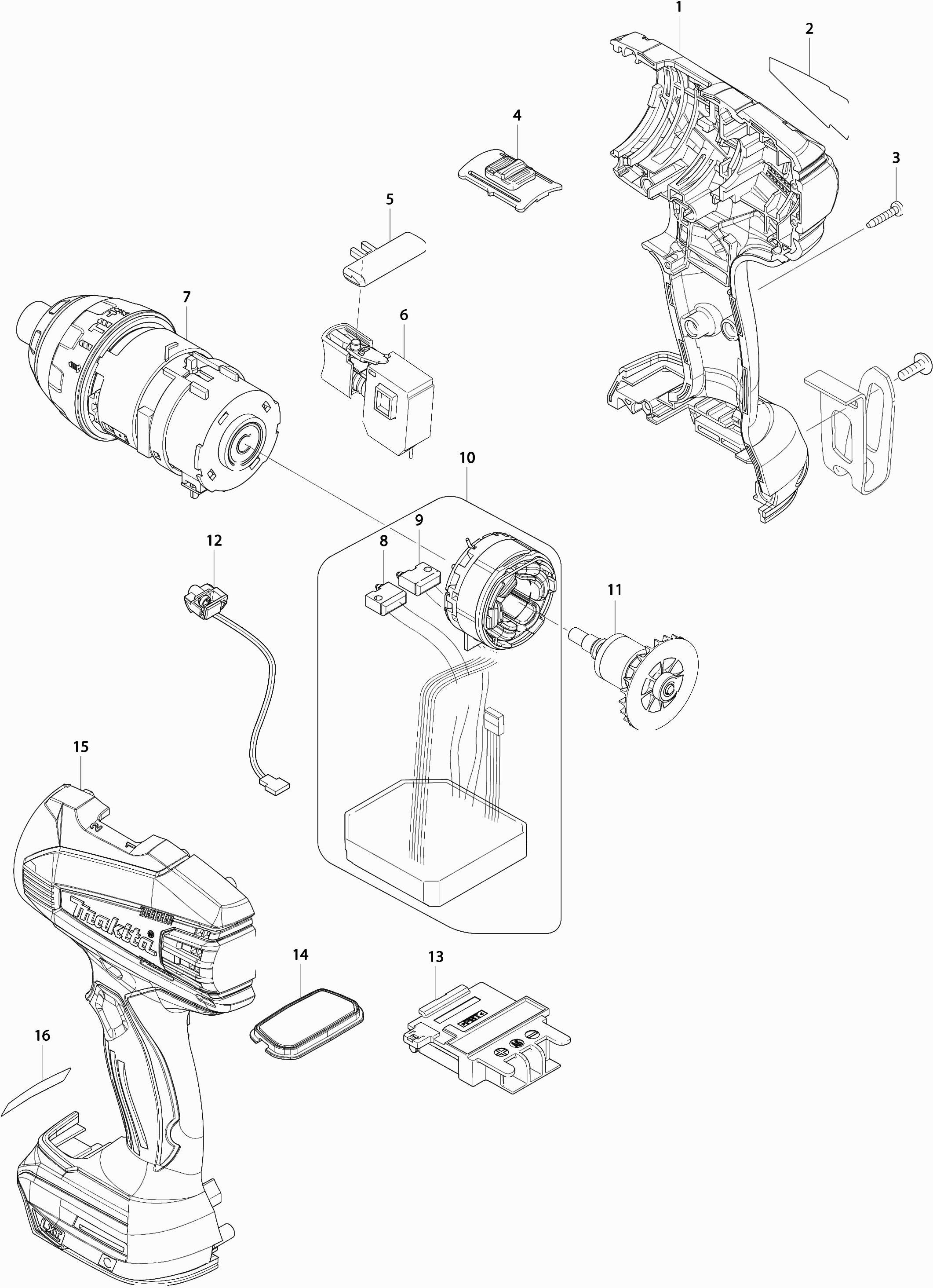

Technical drawing of model Makita DTP141
Spare parts list of model Makita DTP141
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing Set | ||||
| 001 | 187269-4 | 26.40 | 31.94 | |
| Nameplate Dtp141 | ||||
| 002 | 815U19-0 | 3.60 | 4.36 | |
| Tapping Screw 3x16 | ||||
| 003 | 266130-9 | 1.00 | 1.21 | |
| High/low speed slide | ||||
| 004 | 126105-9 | 3.60 | 4.36 | |
| Compression Spring 3 | ||||
| 004A | 234232-9 | 1.20 | 1.45 | |
| L/R Switch Button | ||||
| 005 | 419041-9 | 1.20 | 1.45 | |
| Switch | ||||
| 006 | 650673-5 | 14.30 | 17.30 | |
| Gear set | ||||
| 007 | 126341-7 | 177.10 | 214.29 | |
| Switch "L" | ||||
| 008 | 638958-9 | 33.00 | 39.93 | |
| Switch "r" | ||||
| 009 | 638959-7 | 33.00 | 39.93 | |
| Field | ||||
| 010 | 638899-9 | 198.00 | 239.58 | |
| Armature | ||||
| 011 | 619292-6 | 48.40 | 58.56 | |
| Light circuit | ||||
| 012 | 620092-9 | 7.20 | 8.71 | |
| Connection unit Bcl182D(3 Cont) A | ||||
| 013 | 643523-1 | 6.00 | 7.26 | |
| Shift Plate | ||||
| 014 | 141268-0 | 9.60 | 11.62 | |
| Motor Housing Set | ||||
| 015 | 187269-4 | 26.40 | 31.94 | |
| Rubber pen 6 | ||||
| 015A | 263005-3 | 1.00 | 1.21 | |
| Locking Ring 11 | ||||
| 018 | 231951-8 | 1.00 | 1.21 | |
| Washer 12 | ||||
| 019 | 267085-1 | 1.00 | 1.21 | |
| Compression Spring 13 | ||||
| 020 | 233005-7 | 1.00 | 1.21 | |
| Socket | ||||
| 021 | 324420-7 | 4.80 | 5.81 | |
| Stop ring | ||||
| 022 | 424485-0 | 3.60 | 4.36 | |
| Hammer Case | ||||
| 023 | 135505-2 | 22.00 | 26.62 | |
| Coupling Ring | ||||
| 024 | 453321-3 | 6.00 | 7.26 | |
| Leaf Spring | ||||
| 025 | 232272-1 | 1.20 | 1.45 | |
| Sleeve 24 | ||||
| 026 | 257809-3 | 2.40 | 2.90 | |
| Lock Ring Wr-15 | ||||
| 027 | 961085-0 | 1.20 | 1.45 | |
| Impact Chamber "a" | ||||
| 028 | 223175-0 | 3.60 | 4.36 | |
| Impact Chamber "b" | ||||
| 029 | 223176-8 | 2.40 | 2.90 | |
| Steel ball 3 | ||||
| 030 | 216019-1 | 1.00 | 1.21 | |
| Washer | ||||
| 031 | 267839-6 | 1.20 | 1.45 | |
| Exchange Plate | ||||
| 032 | 346560-1 | 2.40 | 2.90 | |
| Exchangeable ring | ||||
| 033 | 313227-6 | 2.40 | 2.90 | |
| Pressure Spring 2 | ||||
| 034 | 234231-1 | 1.20 | 1.45 | |
| Switch Housing | ||||
| 035 | 453320-5 | 3.60 | 4.36 | |
| Gear housing set | ||||
| 036 | 135504-4 | 22.00 | 26.62 | |
| Pin Guide | ||||
| 037 | 453324-7 | 1.20 | 1.45 | |
| Flat head pin 1.2-3.5mm | ||||
| 038 | 256537-7 | 1.00 | 1.21 | |
| Plastic ring 15 | ||||
| 039 | 261130-4 | 1.20 | 1.45 | |
| O-ring 12.5 | ||||
| 040 | 213166-9 | 2.40 | 2.90 | |
| Steel ball 3.5 | ||||
| 041 | 216040-0 | 1.00 | 1.21 | |
| Anvil | ||||
| 042 | 326126-3 | 19.80 | 23.96 | |
| Compression spring 2.5 | ||||
| 043 | 234233-7 | 1.00 | 1.21 | |
| Steel ball 5.6 | ||||
| 044 | 216041-8 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 045 | 256272-7 | |||
| No information available, not orderable | ||||
| 046 | 326123-9 | |||
| No information available, not orderable | ||||
| 047 | 234234-5 | |||
| No information available, not orderable | ||||
| 048 | 331977-1 | |||
| Steel ball 3 | ||||
| 049 | 216019-1 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 050 | 326124-7 | |||
| Steel ball 3 | ||||
| 051 | 216019-1 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 052 | 267453-8 | |||
| Steel ball 5.6 | ||||
| 053 | 216041-8 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 054 | 142037-2 | |||
| Ball Bearing 6805llb | ||||
| 055 | 211379-6 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 056 | 453325-5 | |||
| No information available, not orderable | ||||
| 057 | 227319-4 | |||
| No information available, not orderable | ||||
| 058 | 227320-9 | |||
| No information available, not orderable | ||||
| 059 | 268266-0 | |||
| No information available, not orderable | ||||
| 060 | 453323-9 | |||
| No information available, not orderable | ||||
| 061 | 227287-1 | |||
| No information available, not orderable | ||||
| 062 | 141251-7 | |||
| No information available, not orderable | ||||
| 063 | 227284-7 | |||
| No information available, not orderable | ||||
| 064 | 135506-0 | |||
| No information available, not orderable | ||||
| 065 | 211022-7 | |||
