Here you will find all available parts and drawings of the 'Makita DTP131'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

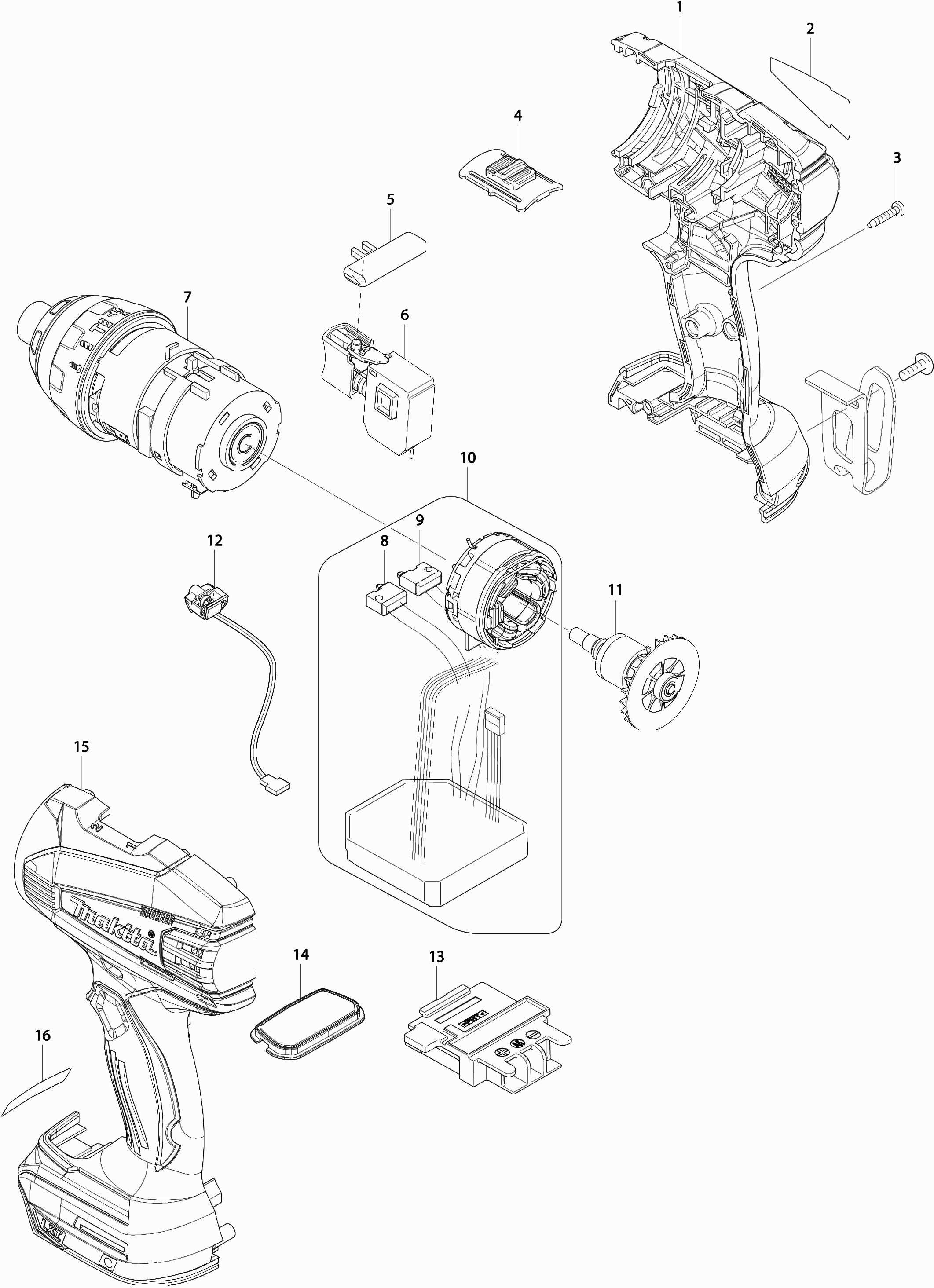

Technical drawing of model Makita DTP131

Spare parts list of model Makita DTP131

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor Housing Set
001 187266-0 23.06 27.90
Rubber pen 6
001A 263005-3 0.83 1.00
Label
002 815T63-1 2.71 3.28
Tapping Screw 3x16
003 266130-9 0.83 1.00
High/low speed slide
004 126105-9 2.71 3.28
Compression Spring 3
004 234232-9 0.83 1.00
L/R Switch Button
005 419041-9 0.98 1.19
Switch
006 650673-5 13.82 16.72
Gear set
007 126341-7 177.00 214.17
Switch "L"
008 638958-9 32.15 38.90
Switch "r"
009 638959-7 32.15 38.90
Field
010 638898-1 197.37 238.82
Armature
011 619292-6 48.40 58.56
Light circuit
012 620092-9 6.70 8.11
Connection unit (3 contacts)
013 643850-6 4.45 5.38
Shift Plate
014 141268-0 9.24 11.18
Motor Housing Set
015 187266-0 23.06 27.90
Rubber pen 6
015 263005-3 0.83 1.00
Locking Ring 11
018 231951-8 0.83 1.00
Washer 12
019 267085-1 0.83 1.00
Compression Spring 13
020 233005-7 0.83 1.00
Socket
021 324420-7 3.96 4.79
Stop ring
022 424485-0 2.84 3.44
Hammer Case
023 135505-2 21.23 25.69
Coupling Ring
024 453321-3 5.70 6.90
Leaf Spring
025 232272-1 0.98 1.19
Sleeve 24
026 257809-3 2.38 2.88
Lock Ring Wr-15
027 961085-0 0.83 1.00
Impact Chamber "a"
028 223175-0 3.44 4.16
Impact Chamber "b"
029 223176-8 1.66 2.01
Steel ball 3
030 216019-1 0.83 1.00
Washer
031 267839-6 1.20 1.45
Exchange Plate
032 346560-1 1.39 1.68
Exchangeable ring
033 313227-6 1.67 2.02
Pressure Spring 2
034 234231-1 1.20 1.45
Switch Housing
035 453320-5 2.71 3.28
Gear housing set
036 135504-4 21.23 25.69
Pin Guide
037 453324-7 0.83 1.00
Flat head pin 1.2-3.5mm
038 256537-7 0.83 1.00
Plastic ring 15
039 261130-4 0.83 1.00
O-ring 12.5
040 213166-9 1.39 1.68
Steel ball 3.5
041 216040-0 0.83 1.00
Anvil
042 326126-3 19.29 23.34
Compression spring 2.5
043 234233-7 0.83 1.00
No information available, not orderable
044 216011-7
No information available, not orderable
045 256272-7
No information available, not orderable
046 326123-9
No information available, not orderable
047 234234-5
No information available, not orderable
048 331977-1
Steel ball 3
049 216019-1 0.83 1.00
No information available, not orderable
050 326124-7
Steel ball 3
051 216019-1 0.83 1.00
No information available, not orderable
052 267453-8
No information available, not orderable
053 216011-7
No information available, not orderable
054 142037-2
Ball Bearing 6805llb
055 211379-6 12.80 15.49
No information available, not orderable
056 453325-5
No information available, not orderable
057 227319-4
No information available, not orderable
058 227320-9
No information available, not orderable
059 268266-0
No information available, not orderable
060 453323-9
No information available, not orderable
061 227287-1
No information available, not orderable
062 141251-7
No information available, not orderable
063 227284-7
No information available, not orderable
064 135506-0
No information available, not orderable
065 211022-7
