Here you will find all available parts and drawings of the 'Makita DTM51'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

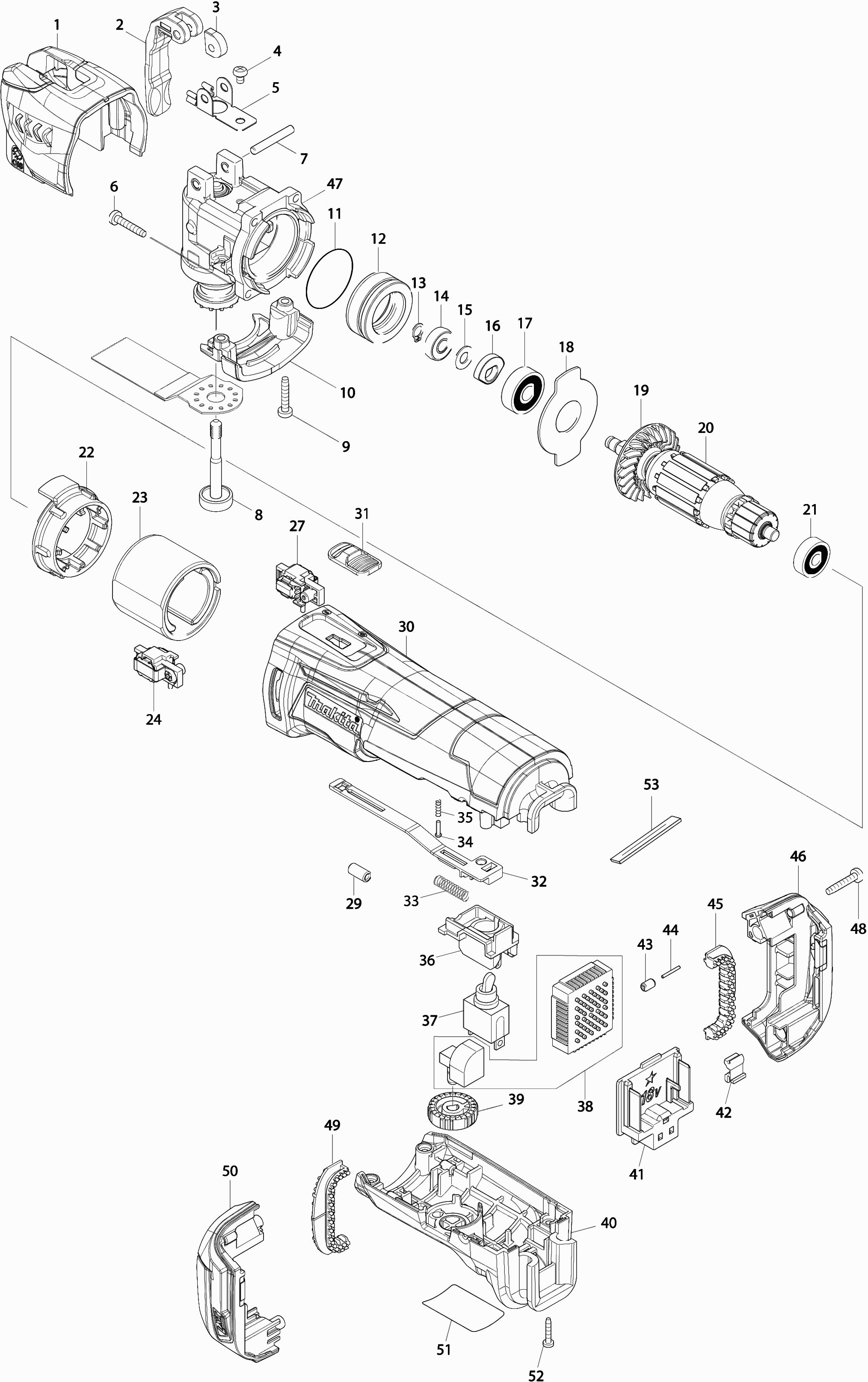

Technical drawing of model Makita DTM51
Spare parts list of model Makita DTM51
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Guard | ||||
| 001 | 455272-6 | 3.54 | 4.28 | |
| Unlocking pawl | ||||
| 002 | 319059-9 | 2.71 | 3.28 | |
| Swivel Plate | ||||
| 003 | 313268-2 | 2.02 | 2.44 | |
| No information available, not orderable | ||||
| 004 | 911102-6 | |||
| Leaf Spring | ||||
| 005 | 232282-8 | 0.98 | 1.19 | |
| Self-tapping screw 4x20 | ||||
| 006 | 266424-2 | 0.83 | 1.00 | |
| Pen 5 | ||||
| 007 | 268306-4 | 0.83 | 1.00 | |
| Axle Bolt | ||||
| 008 | 327177-9 | 4.82 | 5.83 | |
| Axle Bolt | ||||
| 008A | 327177-9 | 4.82 | 5.83 | |
| Axle Bolt | ||||
| 008B | 327177-9 | 4.82 | 5.83 | |
| Self-tapping screw 4x20 | ||||
| 009 | 266424-2 | 0.83 | 1.00 | |
| Cover | ||||
| 010 | 454635-3 | 1.46 | 1.77 | |
| O-ring 35 | ||||
| 011 | 213343-3 | 0.83 | 1.00 | |
| Bearing Housing | ||||
| 012 | 326347-7 | 4.45 | 5.38 | |
| Lock ring S-7 | ||||
| 013 | 961003-8 | 0.83 | 1.00 | |
| Pivot Bearing 706 A | ||||
| 014 | 210164-4 | 1.67 | 2.02 | |
| Washer 7 | ||||
| 015 | 253133-2 | 0.83 | 1.00 | |
| Counterweight | ||||
| 016 | 313245-4 | 0.83 | 1.00 | |
| Ball bearing 629ddw | ||||
| 017 | 211092-6 | 4.45 | 5.38 | |
| Bearing Lock | ||||
| 018 | 285857-2 | 0.83 | 1.00 | |
| Impeller 46 | ||||
| 019 | 240140-4 | 0.98 | 1.19 | |
| Armature 18v | ||||
| 020 | 519338-7 | 19.23 | 23.27 | |
| Ball bearing 627ddw | ||||
| 021 | 210045-2 | 3.12 | 3.78 | |
| Intermediate plate Dtm41 51 | ||||
| 022 | 455017-2 | 0.83 | 1.00 | |
| Magnet holder | ||||
| 023 | 632B69-4 | 11.82 | 14.30 | |
| Brush Holder | ||||
| 024 | 632B88-0 | 3.12 | 3.78 | |
| Brush Holder | ||||
| 027 | 632B89-8 | 3.12 | 3.78 | |
| Line filter | ||||
| 029 | 688161-2 | 0.83 | 1.00 | |
| Motor Housing | ||||
| 030 | 455013-0 | 10.50 | 12.70 | |
| Switch Button | ||||
| 031 | 455016-4 | 0.83 | 1.00 | |
| SWITCH SLIDER | ||||
| 032 | 455015-6 | 0.83 | 1.00 | |
| Compression spring 5mm | ||||
| 033 | 234263-8 | 0.83 | 1.00 | |
| Rivet 2 | ||||
| 034 | 255058-6 | 0.83 | 1.00 | |
| Compression Spring 3 | ||||
| 035 | 233002-3 | 0.83 | 1.00 | |
| Switch box Dtm41 51 | ||||
| 036 | 455018-0 | 0.83 | 1.00 | |
| Switch | ||||
| 037 | 651423-1 | 11.82 | 14.30 | |
| No information available, not orderable | ||||
| 038 | 620270-1 | |||
| Toerenregelcircuit Dtm51 A | ||||
| 038-1 | 620H89-6 | 63.68 | 77.05 | |
| Rotary Knob 28mm | ||||
| 039 | 271617-8 | 1.67 | 2.02 | |
| Handle Cover | ||||
| 040 | 142553-4 | 3.12 | 3.78 | |
| Rubber pen 6 | ||||
| 040A | 263005-3 | 0.83 | 1.00 | |
| Connection unit 18v (3 contacts) | ||||
| 041 | 643852-2 | 3.12 | 3.78 | |
| Damping felt | ||||
| 042 | 424476-1 | 0.83 | 1.00 | |
| Rubber pen 5 | ||||
| 043 | 263036-2 | 1.18 | 1.43 | |
| Pin 1.5 | ||||
| 044 | 268184-2 | 0.83 | 1.00 | |
| Damping Rubber | ||||
| 045 | 424473-7 | 1.39 | 1.68 | |
| Battery Housing | ||||
| 046 | 187848-8 | 5.06 | 6.12 | |
| Rubber pen 6 | ||||
| 046A | 263005-3 | 0.83 | 1.00 | |
| Crank Case | ||||
| 047 | 143250-5 | 77.67 | 93.98 | |
| Self-tapping screw 4x20 | ||||
| 048 | 266424-2 | 0.83 | 1.00 | |
| Damping Rubber | ||||
| 049 | 424473-7 | 1.39 | 1.68 | |
| Battery Housing | ||||
| 050 | 187848-8 | 5.06 | 6.12 | |
| Rubber pen 6 | ||||
| 050A | 263005-3 | 0.83 | 1.00 | |
| Label | ||||
| 051 | 815M50-8 | 2.71 | 3.28 | |
| Tapping Screw 3x16 | ||||
| 052 | 266130-9 | 0.83 | 1.00 | |
| Sponge rubber | ||||
| 053 | 423404-3 | 0.83 | 1.00 | |
