Here you will find all available parts and drawings of the 'Makita DTD152'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

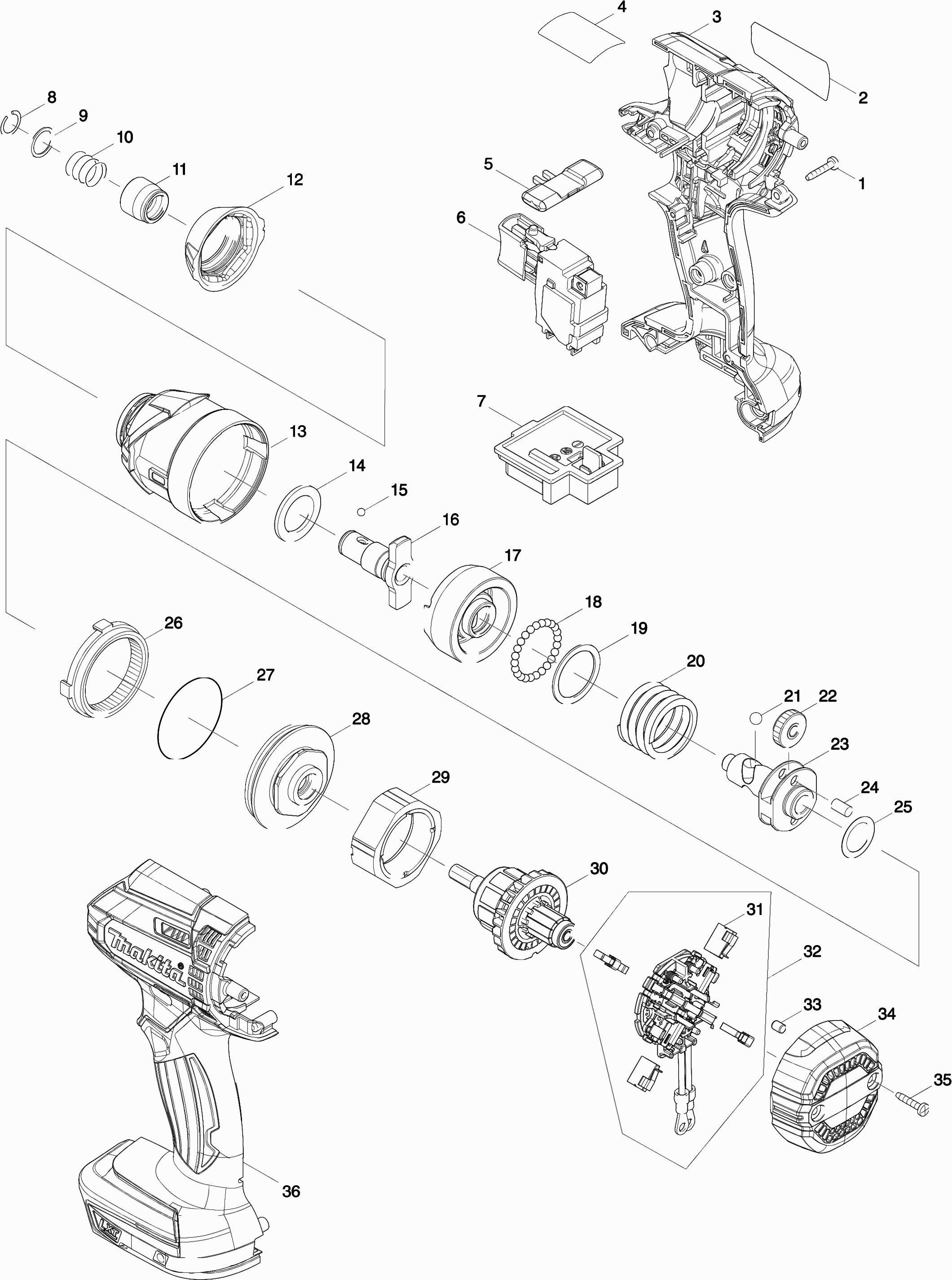

Technical drawing of model Makita DTD152
Spare parts list of model Makita DTD152
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tapping Screw 3x16 | ||||
| 001 | 266130-9 | 1.00 | 1.21 | |
| Label | ||||
| 002 | 851E29-7 | 3.60 | 4.36 | |
| Motorhuis set | ||||
| 003 | 183B63-4 | 11.00 | 13.31 | |
| Rubber pen 6 | ||||
| 003A | 263005-3 | 1.00 | 1.21 | |
| Rotary knob ABB OHYS2AJ | ||||
| 005 | 455053-8 | 1.00 | 1.21 | |
| Switch | ||||
| 006 | 632F26-6 | 36.30 | 43.92 | |
| Light circuit | ||||
| 006A | 620445-2 | 3.60 | 4.36 | |
| Line filter | ||||
| 006B | 688164-6 | 1.00 | 1.21 | |
| Grounding clamp DTD152 | ||||
| 006C | 654015-5 | 1.00 | 1.21 | |
| Clamping bushing for statorv. 1.25mm | ||||
| 006D | 654501-6 | 0.83 | 1.00 | |
| Connection unit 18v (3 contacts) | ||||
| 007 | 643852-2 | 3.60 | 4.36 | |
| Locking Ring 11 | ||||
| 008 | 231951-8 | 1.00 | 1.21 | |
| Washer 12 | ||||
| 009 | 267085-1 | 1.00 | 1.21 | |
| Compression Spring 13 | ||||
| 010 | 233005-7 | 1.00 | 1.21 | |
| Bit Holder | ||||
| 011 | 326072-0 | 3.60 | 4.36 | |
| Bumper | ||||
| 012 | 424738-7 | 2.40 | 2.90 | |
| Hammer Case | ||||
| 013 | 143299-5 | 9.60 | 11.62 | |
| Nylon washer 19mm | ||||
| 014 | 261151-6 | 1.00 | 1.21 | |
| Steel ball 3.5 | ||||
| 015 | 216040-0 | 1.00 | 1.21 | |
| Anvil | ||||
| 016 | 326565-7 | 8.40 | 10.16 | |
| Striker | ||||
| 017 | 326564-9 | 8.40 | 10.16 | |
| Steel ball 3.5 | ||||
| 018 | 216040-0 | 1.00 | 1.21 | |
| Flat Washer 24 | ||||
| 019 | 267175-0 | 1.20 | 1.45 | |
| Compression Spring 24 | ||||
| 020 | 234251-5 | 3.60 | 4.36 | |
| Steel ball 5.6 | ||||
| 021 | 216041-8 | 1.00 | 1.21 | |
| Gear 22 | ||||
| 022 | 227362-3 | 3.60 | 4.36 | |
| Spindle Ass'y | ||||
| 023 | 326562-3 | 8.40 | 10.16 | |
| Pen 5 | ||||
| 024 | 256253-1 | 1.00 | 1.21 | |
| Thin washer 15 | ||||
| 025 | 253314-8 | 1.00 | 1.21 | |
| Gear | ||||
| 026 | 227378-8 | 2.40 | 2.90 | |
| O-ring 40 | ||||
| 027 | 213507-9 | 1.20 | 1.45 | |
| Bearing Housing | ||||
| 028 | 143298-7 | 6.00 | 7.26 | |
| Magnetic Unit Dtd152 A | ||||
| 029 | 632F93-1 | 14.30 | 17.30 | |
| No information available, not orderable | ||||
| 029-1 | 632U16-9 | |||
| Armature | ||||
| 030 | 619377-8 | 17.60 | 21.30 | |
| Brush set Cb448 | ||||
| 031 | 196855-0 | 3.60 | 4.36 | |
| Brush Holder | ||||
| 032 | 632F25-8 | 10.80 | 13.07 | |
| Line filter | ||||
| 032A | 688172-7 | 1.20 | 1.45 | |
| Connection unit | ||||
| 032B | 654409-4 | 1.00 | 1.21 | |
| Rubber Pin 4 | ||||
| 033 | 263032-0 | 1.00 | 1.21 | |
| Motor Housing Cover | ||||
| 034 | 456044-2 | 2.40 | 2.90 | |
| Tapping Screw 3x16 | ||||
| 035 | 266130-9 | 1.00 | 1.21 | |
| Motorhuis set | ||||
| 036 | 183B63-4 | 11.00 | 13.31 | |
| Rubber pen 6 | ||||
| 036A | 263005-3 | 1.00 | 1.21 | |
