Here you will find all available parts and drawings of the 'Makita DTD148'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

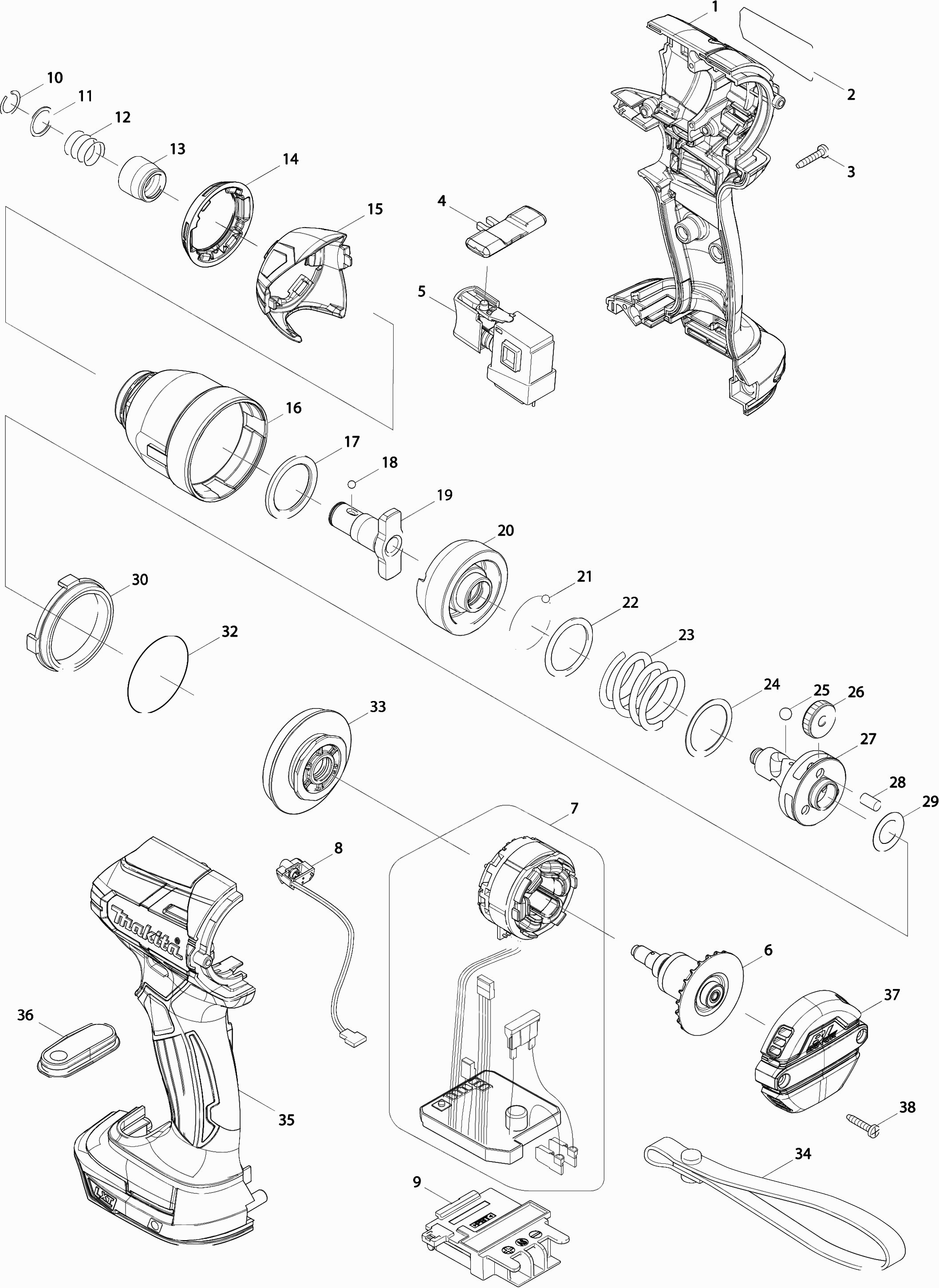

Technical drawing of model Makita DTD148
Spare parts list of model Makita DTD148
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 001 | 187973-5 | 19.80 | 23.96 | |
| Rubber pen 6 | ||||
| 001A | 263005-3 | 1.00 | 1.21 | |
| Nameplate "dtd148" | ||||
| 002 | 850D20-6 | 3.60 | 4.36 | |
| Tapping Screw 3x16 | ||||
| 003 | 266130-9 | 1.00 | 1.21 | |
| Rotary knob ABB OHYS2AJ | ||||
| 004 | 455053-8 | 1.00 | 1.21 | |
| Switch | ||||
| 005 | 141448-8 | 16.50 | 19.96 | |
| Armature | ||||
| 006 | 619343-5 | 45.10 | 54.57 | |
| Field DTD148 | ||||
| 007 | 629369-9 | 112.20 | 135.76 | |
| LED Circuit | ||||
| 008 | 620294-7 | 9.60 | 11.62 | |
| Connection unit Bcl182D(3 Cont) A | ||||
| 009 | 643523-1 | 6.00 | 7.26 | |
| Locking Ring 11 | ||||
| 010 | 231951-8 | 1.00 | 1.21 | |
| Washer 12 | ||||
| 011 | 267085-1 | 1.00 | 1.21 | |
| Compression Spring 13 | ||||
| 012 | 233005-7 | 1.00 | 1.21 | |
| Bit Holder | ||||
| 013 | 326072-0 | 3.60 | 4.36 | |
| Stop ring | ||||
| 014 | 424627-6 | 1.20 | 1.45 | |
| Impact case cap | ||||
| 015 | 455051-2 | 1.20 | 1.45 | |
| Slaghuis Dtd137 A | ||||
| 016 | 144788-3 | 16.50 | 19.96 | |
| Plastic washer 24 | ||||
| 017 | 261155-8 | 1.20 | 1.45 | |
| Steel ball 3.5 | ||||
| 018 | 216040-0 | 1.00 | 1.21 | |
| Anvil | ||||
| 019 | 326508-9 | 8.40 | 10.16 | |
| Anvil | ||||
| 019A | 326508-9 | 8.40 | 10.16 | |
| Striker | ||||
| 020 | 326412-2 | 19.80 | 23.96 | |
| Steel ball 3.5 | ||||
| 021 | 216040-0 | 1.00 | 1.21 | |
| Flat Washer 24 | ||||
| 022 | 267175-0 | 1.20 | 1.45 | |
| Compression Spring 24 | ||||
| 023 | 234331-7 | 2.40 | 2.90 | |
| Washer 24mm | ||||
| 024 | 253090-4 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 025 | 216011-7 | |||
| Gear 22 | ||||
| 026 | 227338-0 | 6.00 | 7.26 | |
| Spindle Ass'y | ||||
| 027 | 326411-4 | 29.70 | 35.94 | |
| Pen 5 | ||||
| 028 | 268311-1 | 1.00 | 1.21 | |
| Thin washer 15 | ||||
| 029 | 253314-8 | 1.00 | 1.21 | |
| Gear | ||||
| 030 | 227351-8 | 4.80 | 5.81 | |
| O-ring 40 | ||||
| 032 | 213507-9 | 1.20 | 1.45 | |
| Bearing Housing | ||||
| 033 | 142517-8 | 11.00 | 13.31 | |
| Motor Housing | ||||
| 035 | 187973-5 | 19.80 | 23.96 | |
| Rubber pen 6 | ||||
| 035A | 263005-3 | 1.00 | 1.21 | |
| Shift Plate | ||||
| 036 | 141583-2 | 3.60 | 4.36 | |
| Tail Cover | ||||
| 037 | 455052-0 | 3.60 | 4.36 | |
| Tapping Screw 3x16 | ||||
| 038 | 266130-9 | 1.00 | 1.21 | |
