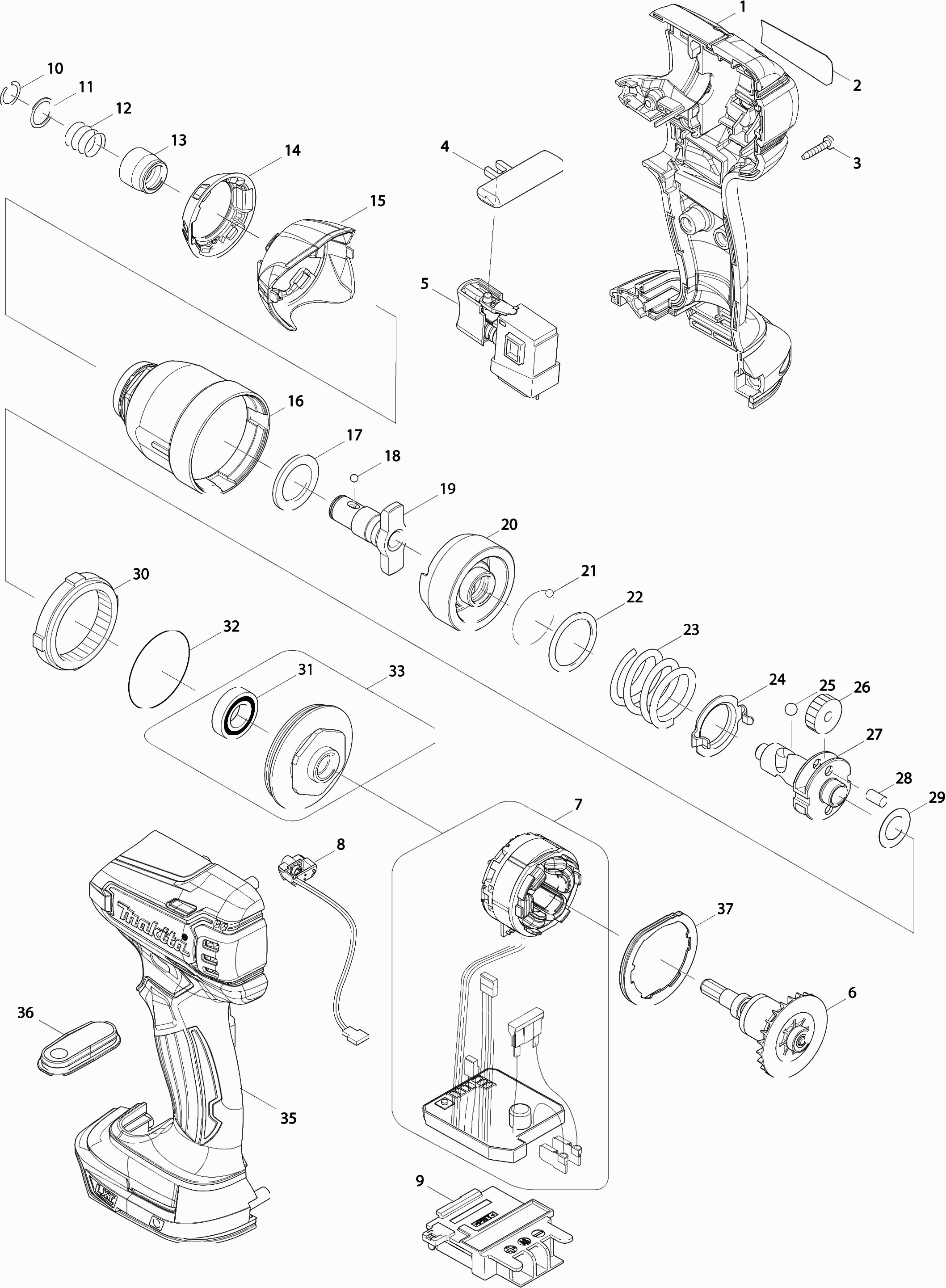

Technical drawing of model Makita DTD147
Spare parts list of model Makita DTD147
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 001 | 187388-6 | 51.70 | 62.56 | |
| Rubber pen 6 | ||||
| 001A | 263005-3 | 1.00 | 1.21 | |
| Nameplate "dtd147" | ||||
| 002 | 815F42-5 | 3.60 | 4.36 | |
| Tapping Screw 3x16 | ||||
| 003 | 266130-9 | 1.00 | 1.21 | |
| L/R Switch Button | ||||
| 004 | 419041-9 | 1.20 | 1.45 | |
| Switch | ||||
| 005 | 141448-8 | 16.50 | 19.96 | |
| Seal DTD171 | ||||
| 005A | 424496-5 | 1.20 | 1.45 | |
| Armature | ||||
| 006A | 619353-2 | 47.30 | 57.23 | |
| Field Winding | ||||
| 007 | 632A40-2 | 130.90 | 158.39 | |
| Light circuit | ||||
| 008 | 620136-5 | 8.40 | 10.16 | |
| Connection unit Bcl182D(3 Cont) A | ||||
| 009 | 643523-1 | 6.00 | 7.26 | |
| Locking Ring 11 | ||||
| 010 | 231951-8 | 1.00 | 1.21 | |
| Washer 12 | ||||
| 011 | 267085-1 | 1.00 | 1.21 | |
| Compression Spring 13 | ||||
| 012 | 233005-7 | 1.00 | 1.21 | |
| Bit Holder | ||||
| 013 | 326072-0 | 3.60 | 4.36 | |
| Bumper | ||||
| 014 | 424495-7 | 3.60 | 4.36 | |
| Impact housing cover | ||||
| 015 | 453664-3 | 1.20 | 1.45 | |
| Hammer Case | ||||
| 016 | 141477-1 | 13.20 | 15.97 | |
| Nylon washer 19mm | ||||
| 017 | 261151-6 | 1.00 | 1.21 | |
| Steel ball 3.5 | ||||
| 018 | 216040-0 | 1.00 | 1.21 | |
| Anvil | ||||
| 019 | 326071-2 | 13.20 | 15.97 | |
| Striker | ||||
| 020 | 326054-2 | 19.80 | 23.96 | |
| Steel ball 3.5 | ||||
| 021 | 216040-0 | 1.00 | 1.21 | |
| Flat Washer 24 | ||||
| 022 | 267175-0 | 1.20 | 1.45 | |
| Compression Spring 24 | ||||
| 023 | 234251-5 | 3.60 | 4.36 | |
| Plate | ||||
| 024 | 346466-3 | 1.00 | 1.21 | |
| Steel ball 5.6 | ||||
| 025 | 216041-8 | 1.00 | 1.21 | |
| Gear 22 | ||||
| 026 | 227362-3 | 3.60 | 4.36 | |
| Spindle Ass'y | ||||
| 027 | 326066-5 | 17.60 | 21.30 | |
| Pen 5 | ||||
| 028 | 256253-1 | 1.00 | 1.21 | |
| Thin Washer 12 Btd134 | ||||
| 029 | 253362-7 | 1.00 | 1.21 | |
| Gear | ||||
| 030 | 227150-8 | 3.60 | 4.36 | |
| Ball Bearing 6901llb | ||||
| 031 | 211140-1 | 7.20 | 8.71 | |
| O-ring 40 | ||||
| 032 | 213507-9 | 1.20 | 1.45 | |
| Bearing Housing | ||||
| 033 | 158631-0 | 16.50 | 19.96 | |
| Motor Housing | ||||
| 035 | 187388-6 | 51.70 | 62.56 | |
| Rubber pen 6 | ||||
| 035A | 263005-3 | 1.00 | 1.21 | |
| Shift Plate | ||||
| 036 | 141583-2 | 3.60 | 4.36 | |
| Intermediate Plate | ||||
| 037 | 453665-1 | 3.60 | 4.36 | |
